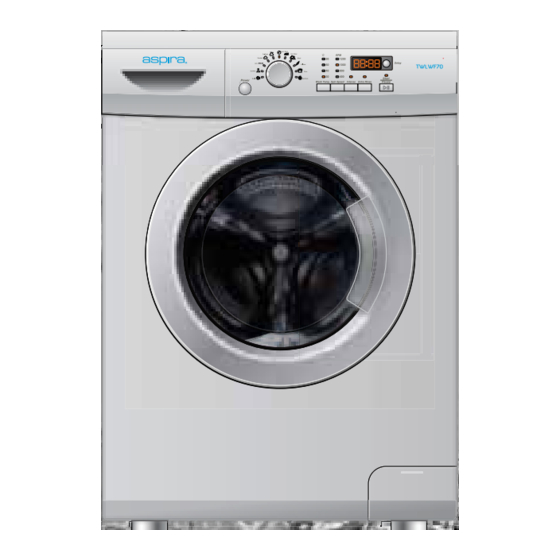

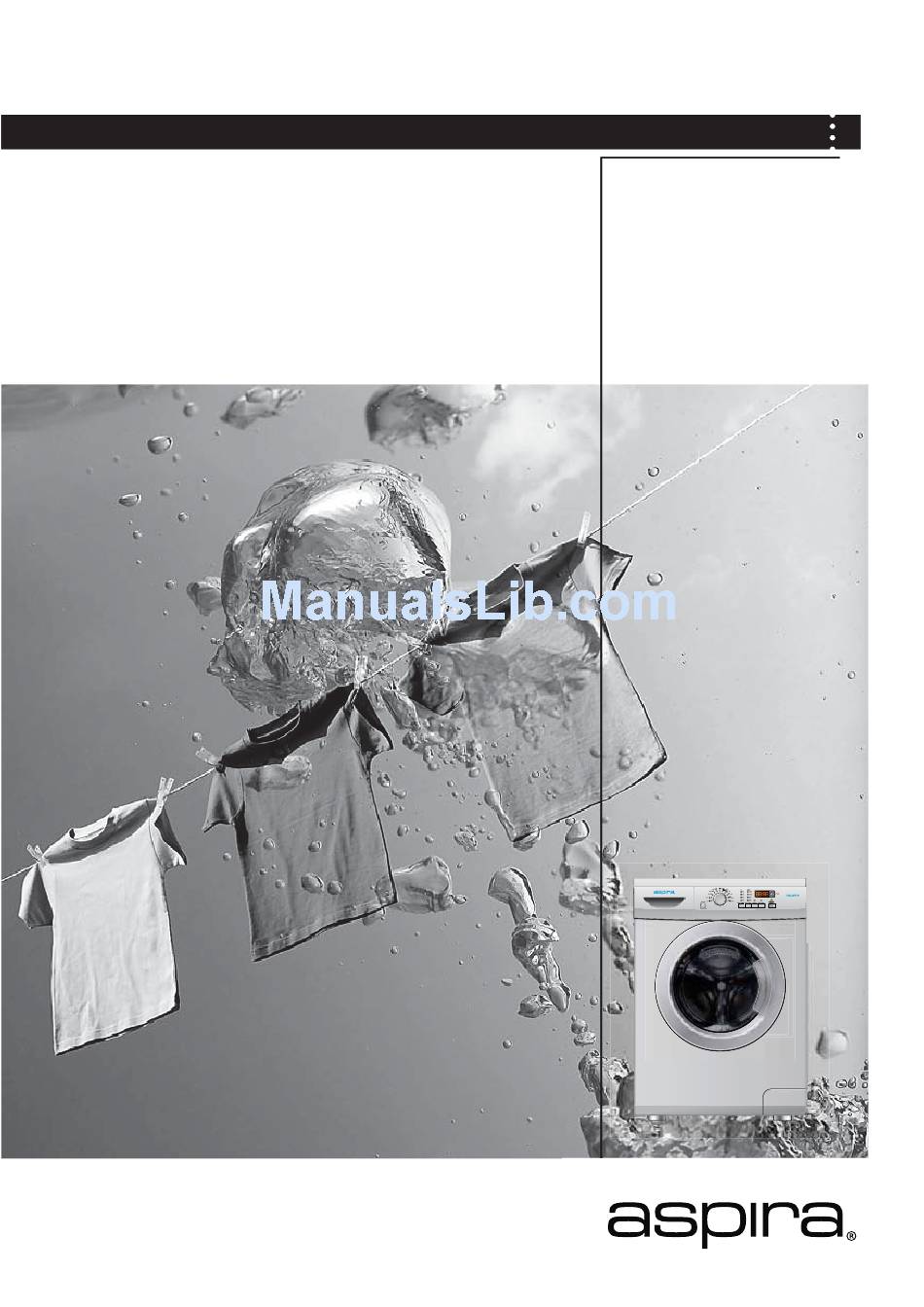

- Page 1 AUTOMATIC FRONT LOADING WASHING MACHINE USER MANUAL TWLWF70...
-
Page 2: Table Of Contents
03 - 09 10 - 15 16- 20 TABLE OF CONTENTS BEFORE USE USING THE APPLIANCE MAINTENANCE COMPONENTS ........03 > PROGRAM SELECTION ......10 CLEANING & CARE ......16 > > PREPARATION........0 > CONSUMPTION AND TECHNICAL DATA ..11 DISPLAY CODES .......18 >... -
Page 3: Before Use
BEFORE USE COMPONENTS THANKS FOR PURCHASING AN ASPIRA PRODUCT Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance. -
Page 4: Preparation 0
BEFORE USE PREPARATION PREPARING THE MACHINE Remove all the packing materials prior to use, including the polystyrene base. Upon opening the package, water drops may be seen on the plastic bag and the porthole. This is normal phenomenon resulting from water tests in the factory. DESCRIPTION This diagram may differ slightly from the layout of the washing machine you have just purchased due to technical improvements. -
Page 5: Safety Instructions
BEFORE USE SAFETY INSTRUCTIONS BEFORE SWITCHING THE APPLIANCE ON FOR THE FIRST TIME DO ... DO NOT ..Make sure that the transport bolts are removed..Touch or use the appliance when barefoot or with wet ... Use a separate earthed socket for the power supply. or damp hands or feet. -
Page 6: Installation
BEFORE USE INSTALLATION REMOVING THE TRANSPORTATION BOLTS The transportation bolts are designed for clamping anti-vibration components inside of the washing machine during the transportation process. Remove the back cover. Remove the four bolts on the rear side and take out the synthetic stabilisers from within the machine. - Page 7 BEFORE USE INLET HOSE 1. Connect the nut on the inlet hose to the connector on the water valve. 2. Connect the inlet hose to a water tap with cold, fresh water. Note: Use the hose-set supplied with the appliance. Old hose-sets should not be reused.
-
Page 8: Control Panel
BEFORE USE CONTROL PANEL Detergent/Softener Drawer Extra Rinse Power Button Start/Pause Button Program Dial Wash Temp LED Display Spin Speed Delay Intense button OPERATIONAL FUNCTIONS _ Open the drawer, three compartments can be seen: ¬Detergent distribution drawer Compartment 1: Prewash detergent Compartment 2: Detergent for programs 1 to 8. - Page 9 BEFORE USE _ Touch this button lightly to select the desired speed. When a speed is set, it will be displayed on ¬ Spin Speed the indicator. Note:If there is no indicator light displayed, it means no spinning. Note: Different water temperatures and spinning speeds can be set for different laundries.
-
Page 10: Using The Appliance
USING THE APPLIANCE PROGRAM SELECTION PROGRAM MODES 1 Detergent compartment for prewash mode 2 Detergent compartment 3 Compartment for softener TWLWF70 Program Maximum Preset Laundry Type Preset spin speed Wool - - to 40 °C 30°C Woolen fabrics 400 rpm Synthetic - - to 60 °C 40°C... -
Page 11: Consumption And Technical Data
USING THE APPLIANCE CONSUMPTION AND TECHNICAL DATA CONSUMPTION TABLE TWLWF70 PROGRAM MAX.LOAD TEMPERATURE WASHING TIME 2 kg 30°C 1:00 h Wool Synthetic 4 kg 40°C 1:10 h 4 kg 40°C 1:18 h 7 kg 60°C 1:28 h Standard Pre-wash 7 kg 40°C... -
Page 12: Washing Methods
USING THE APPLIANCE WASHING METHODS PLEASE NOTE This washing machine is for domestic use only. If the machine is used for commercial purposes the warranty will be void. Do not use for purposes other than that for which it was designed. Follow the instructions given on the label of each garment and wash only machine-washable garments. - Page 13 USING THE APPLIANCE LOADING THE MACHINE ¬ When first using the washing machine, let it run unloaded with detergent on a 60 program. This will prevent the laundry from being tainted by oil or dirty water from the washing machine. ¬...
- Page 14 USING THE APPLIANCE SETTING WASHING TEMPERATURE Press and hold down the temperature button until the desired temperature is selected . SETTING SPIN SPEED Press and hold down the “Spin Speed” (E) button until the desired speed is selected. See "Operational functions" on the "Control Panel" pages (08 and 09) for selecting temperature and spin speed.
- Page 15 USING THE APPLIANCE CARE CHART Resistant material Bleachable in cold water Don't dry clean Delicate fabric Do not bleach Dry flat Washable at 95 °C Iron at 200 °C Hung to dry Washable at 60 °C Iron at 150 °C Dry on clothes hanger Washable at 40 °C Iron at 100 °C...
-
Page 16: Maintenance
MAINTENANCE CLEANING & CARE AFTER WASHING Turn off the water supply (Fig.1b) and pull out electricity plug (Fig.1) after each wash.Open the washer door to prevent formation of moisture and odours. Fig.1b Fig.1 CLEANING THE DETERGENT DRAWER Clean the detergent/softener drawer regularly. REMOVING DETERGENT DRAWER Slide out the draw (in direction shown in Fig.1c) until draw release is visible. - Page 17 MAINTENANCE WATER INLET VALVE AND INLET VALVE FILTER To prevent blockage to the water supply by ingress of foreign substances, clean the water inlet valve and inlet valve filter regularly. MOVING THE MACHINE If the machine is to be moved to a distant location, replace the transportation bolts removed before installation to prevent damage as shown below.
-
Page 18: Display Codes
MAINTENANCE DISPLAY CODES DISPLAY CODES AND SPECIAL FUNCTIONS CODES CAUSES SOLUTIONS _ Shut the door properly. Err1 ¬ Door is not properly shut. _ Clean the filter and check the drain hose for blockage. If error Err2 ¬ Drainage error, water not emptied within 6 minutes. -
Page 19: Troubleshooting
MAINTENANCE TROUBLESHOOTING TROUBLESHOOTING The following circumstances do not mean there is a fault with the appliance. Contact the Customer Care Team when you have confirmed the problem after following the instructions below. PROBLEM CAUSES SOLUTIONS _ Check connection to the power supply. Washing machine fails to ¬... -
Page 20: Important Safety Information
IMPORTA T T NT SAFETY INFORMAT A A ION Do not use a multiple socket extension cord. A separate earthed socket is required which shall be accessible at all times. If the mains cord becomes damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person with a lead of the same type and rating to avoid a hazard.
