Sound2 ZT51000 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
2
ZT51000
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZT51000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sound2 ZT51000

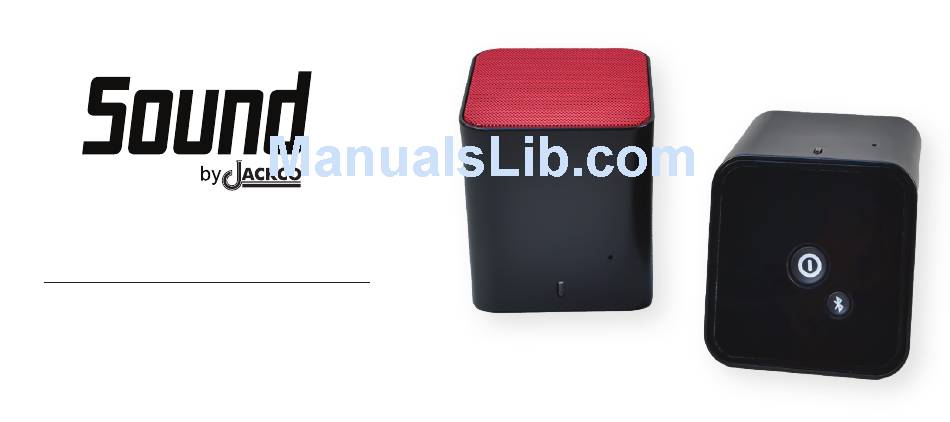

  • Page 1 ZT51000 User Manual...

  • Page 2: Product Layout

    Product Layout Battery Indicator Microphone Power Button & Answer/End Call Bluetooth Indicator Bluetooth® Pairing Bottom Magnetic Base Charging Port AUX Input Front Back...

  • Page 3: Table Of Contents

    Table of Contents Contents of the box Product Layout............1 Bluetooth Speakers Introduction............2 USB Charging Cable Features..............3 3.5mm audio input cable Safety Information..........4 Carrying Pouch Set-up...............5 -Turning Speakers on........5 -Pairing with Bluetooth Device.....6 A. Introduction: Taking Calls............7 by Jackco is a pair of Bluetooth Connecting via 3.5mm AUX in input....

  • Page 4: Features

    B. Features Two speakers wirelessly connected via Bluetooth 2.0 ch High Fidelity Stereo Sound Each speaker can be used separately Built in Microphone for phone calls and video conferencing AUX input Rechargeable lithium battery Magnetic base allows you to attach the speakers to steel surfaces supports the following standards -Bluetooth 2.1+ -Advanced Audio Distribution profile (A2DP)

  • Page 5: Safety Information

    C. Safety Information Do not expose the speakers to rain, moisture or any liquid. Exposure to liquid or moisture may cause the speakers to fail and increase the risk of electrical shock or fire. Do not expose the speakers to open flame, such as candles, camp fire, etc. Under no circumstances should the users make any change or modification to the product or its accessories.

  • Page 6: Set-Up

    D. Set-up Turning the Speakers On and Off: 1. Power on: Lightly press and hold (Power Button) of both speakers at the same time for 4 seconds, Bluetooth Indicator will start blinking and accompanied by power on ring tone. 2. Power off: Lightly press and hold (Power Button) of one speaker for 4 seconds, Bluetooth indicator will stop blinking and accompanied with power off...

  • Page 7: Pairing With Bluetooth Device

    Pairing with Bluetooth Equipped Device: 1. Pairing the 2 speakers: Press and hold (Power Button) of both speakers until power is on, it will enter pairing mode for 10~30 seconds, and accompanied by the Bluetooth indicator fast blinking. Once it is paired, Bluetooth indicator will blink slowly and accompanied by a ring tone (Pairing time will vary depending on external interference) 2.

  • Page 8: Taking Calls

    Taking Calls with your connected to your phone: When your phone receives an incoming call, a ring tone alert will come from your speaker. To accept a call: -Press the (Power Button) on the master speaker. To end a call: -Press the (Power Button) on the master speaker.

  • Page 9: Connecting Via 3.5Mm Aux In Input

    E. Connecting to via 3.5mm AUX input: You can use speakers for music play with any device that has 3.5mm Audio out port. Simply plug in the 3.5mm cable (included) into the speaker and into your device then play music. F.

  • Page 10: Factory Reset Pairing Procedure

    G. Factory Reset Pairing Procedure: Power On Pairing Speakers Pair with Device Complete Pairing 4 sec. 30~60 sec. < Bluetooth Bluetooth DEVICES Sound² Not Paired Now Discoverable Note: Please turn off the Bluetooth connectivity on your device. A.) Press B.) Allow 30~60 seconds Press and hold again on Press the...

  • Page 11: Troubleshooting

    H. Troubleshooting Problem Solution No audio from the speakers Check if the Bluetooth device and speakers are powered on and paired. Increase volume from your Bluetooth device. Music playing through the speaker is Make sure the distance between the intermittent Bluetooth device and the speaker is within the 30 foot range, or check if there...
  • Page 12 Problem Solution Music is intermittent, when the Restart the pairing process again, and check is connected to Apple devices, i.e. Apple “forget this device” in the Bluetooth setting. iOS is able to pair with 2 separate Bluetooth iPad, iPhone, iPod. devices at the same time.
  • Page 13 Problem Solution Only one speaker has sound speakers are not properly paired. Please power off both speakers and refer back to Section D, set-up to start the pairing procedures again. The speaker should pair each other first, then with the Bluetooth device.

  • Page 14: Technical Specifications

    I. Technical Specifications Dimensions (Detached) 2.45”L x 2.45” W x 3.3”H Charge Current 300mA 5V DC Charge Voltage Battery Lithium polymer 800 mAh Working Temperature -4°F - 113°F (-20°C - 45°C) Working Humidity 5% - 95% Working Hours* About 6 hours (at 60% volume) *Working hours are dependent on the Range 30 ft.

  • Page 15: Environmental Protection

    K. Environmental Protection Do not dispose of the product with household waste. Do not incinerate. Keep away from fire. L. Lithium Battery Caring Tips This product uses the micro USB charge port, and built-in lithium battery. We recommend that the battery is fully charged and discharged during first three uses to ensure the battery is in it’s best performance.

  • Page 16: Warranty

    Limited Six (6) Month Warranty Jackco Transnational Inc. warrants “SOUND2 by JACKCO” branded products to the original purchaser against any manufacturing defect in material or worksmanship for a period of six (6) months from the original date of purchase. If the defective product is determined to be covered under this warranty, it shall be repaired or replaced at manufacturer’s discretion without charge.
