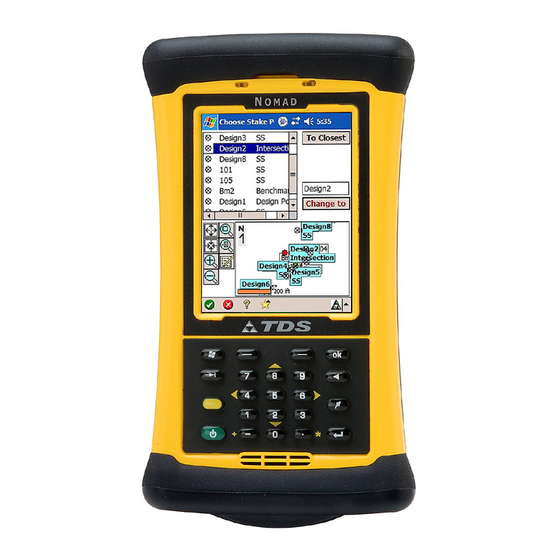

TDS NOMAD
G e t t i n G S t a r t e d G u i d e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NOMAD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TDS NOMAD

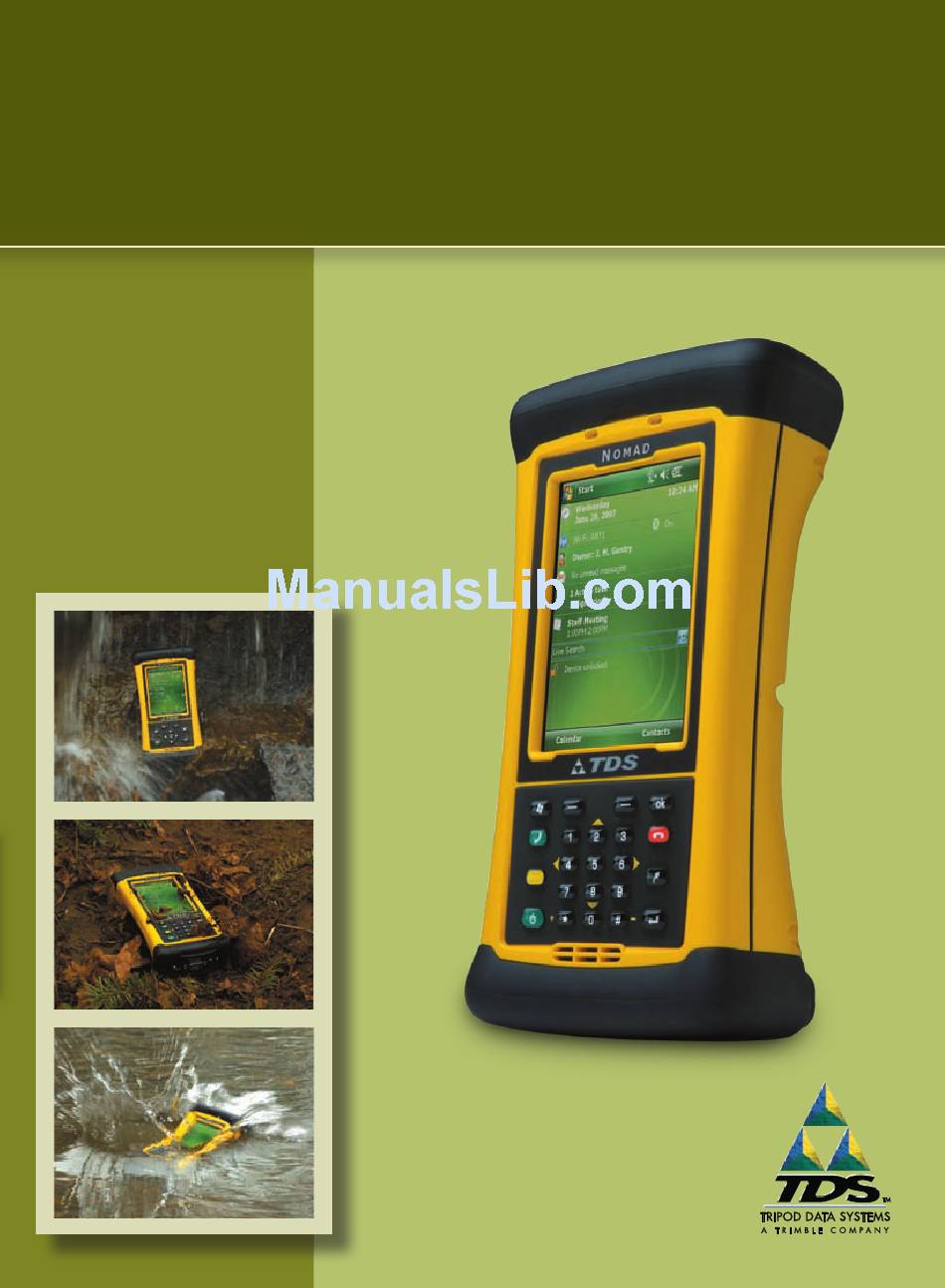

  • Page 1 TDS NOMAD G e t t i n G S t a r t e d G u i d e...
  • Page 2 Water damage caused by improper installation of the Expansion Caps or I/O Boots is not covered by warranty. Removal of the back case voids the limited warranty. There are important seals that will break and the Nomad will no longer be waterproof.

  • Page 3: Table Of Contents

    Contents Welcome ................1 Device Hardware ............... 2 Unit Setup ................4 Working with the Unit and the Battery......8 Settings on your Unit ............16 Communication..............19 Caring for your Unit ............27 Environmental Considerations......... 28 Safe Use of your Unit ............29 Environmental Specifications ..........

  • Page 4: Device Hardware

    Device Hardware Front View Front View PDA Keypad Numeric Data Keypad Expansion Cap Expansion Cap Notification Notification Battery Battery Application Application Application Application Soft Key* Soft Key* Soft Key* Soft Key* Start* Start* Tab* Backspace* Function Key* Today* Today* Power Enter* Power Number pad and Navigation keys...

  • Page 5: Back View

    Back View Back View with hand strap Expansion Cap Expansion Cap Battery Stylus Door Hand Holder Strap Battery Door screws I/O Boot I/O Boot Standard Standard Expansion Cap without Cap 8-pin CF slot custom slot type II An Extended Cap, sold as an accessory, can be used for oversized CompactFlash (CF) and Secure Digital (SD) cards.

  • Page 6: Unit Setup

    Unit Setup 1. Install the battery The Lithium-Ion (Li-Ion) battery and battery cover are shipped detached from the unit. Insert the battery into the compartment so the connectors on the battery mate with the pins in the battery compartment. Press firmly.

  • Page 7: Attach The Hand Strap

    3. Install the screen protector To keep the touchscreen clean and protected, install the screen protector following the instructions provided in the screen protector package. Unprotected screens become scratched and scuffed over time. Screen protectors extend the life of the display by providing a protective and replaceable barrier between abrasive grit and the surface of the display.
  • Page 8 If you opt for password protection, the password must be entered every time you turn the unit on or use the Power key to resume operation. WARNING: BE CERTAIN TO REMEMBER THE PASSWORD. The only way to recover from a forgotten password is to perform a Clean Boot and you will LOSE all application software, licenses, settings and data on your unit.
  • Page 9 10. I/O Boots There are two types of boots available. The boots can be swapped by loosening the screws pointed out in the picture below. USB I/O Boot Serial I/O Boot Screws to swap boot Screws to swap boot Pin 5 Pin 1 Pin 9 Pin 6...

  • Page 10: Working With The Unit And The Battery

    Working with the Unit and the Battery Battery life: The Lithium-Ion (Li-Ion) battery life is dependent upon the application and operating environment. Repeated usage of the keypad and display backlight, heavy usage of the 802.11 (Wireless LAN or WLAN), cold temperatures, GPS, and high power consumption CF and SD devices can all reduce the battery life.
  • Page 11 recommended temperature range for charging the battery is between +32°F and +113°F (0 C and +45 C). If the battery temperature is outside of this range, the battery will not charge. Warning! Be sure to only use the AC adapter included with your unit.
  • Page 12 Calibrating the battery: The battery has an internal gauge that provides an estimate of the amount of energy in the battery as it charges and discharges. If your battery is showing inaccuracy in the power gauge or large jumps in capacity, (i.e. the power is reading 50% and goes dead shortly thereafter) it may need calibration.

  • Page 13: The Today Screen

    Speaker and microphone Your unit comes with an integrated speaker and a microphone. It also has an audio jack that is wired for a headset with a mono speaker(s) and mic combination. It is not for stereo headsets. To record, tap Start / Programs / Notes. If you do not see the Recording toolbar, tap Menu / View Recording Toolbar.

  • Page 14: Additional Functions

    Power key features The Power key turns the unit on and off and performs a number of additional functions. Turn backlight on/off: To toggle the backlight on or off, hold down the Power key for approximately 1 second. Once toggled off, the backlight will stay off until it is toggled back on.

  • Page 15: Storage Memory

    store. Follow the instructions on the screen ONLY if you want to completely clear your unit. NOTE: GPS applications installed will need to be reinstalled, but certain configuration parameters of the internal GPS receiver (baud, parity, etc.) will remain unchanged. Storage memory Unlike many handhelds which can lose data if they lose power, all your data is always stored in non-volatile persistent storage...
  • Page 16 To see if the GPS is on or off, refer to the Today screen. You cannot modify its state from there. Running the GPS will impact the Nomad’s battery performance, so the GPS should be turned off when not in use.

  • Page 17: Using The Stylus

    If you are unable to connect to the GPS using the default GPS settings, you can restore it to factory default settings by performing a shutdown. See page 12. Using the stylus Ensure that you DO NOT use the metal screwdriver of the stylus on the touchscreen;...

  • Page 18: Settings On Your Unit

    Settings on your Unit Tap Start / Settings. Tap any of the icons on the Personal, System or Connections tabs to customize the unit settings to your own preferences. Tap OK to exit the settings. Some of the more useful settings are described below. Lock (password) If you want password protection from unauthorized use of your unit, tap Personal / Lock.
  • Page 19 Input Tap Personal / Input. You can change settings related to input method, word completion, voice recording and other options. Today Tap Personal / Today. This screen allows you to customize the Today screen. Backlight for display and keypad Tap System / Backlight. Change the settings as follows: Display backlight: The default is on.

  • Page 20: System Information

    Memory Tap System / Memory to see how much Storage memory (Flash) and Program memory (RAM) is available. Closing programs still leaves them resident in RAM. As more programs are started, available RAM decreases. If RAM resources become low, you can stop programs and remove them from RAM.

  • Page 21: Communication

    Communication Your unit may offer multiple methods of communication with other devices as described below. Not all the features apply to every unit, as some of the features are offered as options. If the feature described does not apply to your unit, please disregard that section.
  • Page 22 Troubleshooting connection problems 1. Confirm the unit is configured to communicate with the PC. Tap Start / Programs / ActiveSync / Menu / Connections. Confirm the box Synchronize all PCs using this connection is checked and USB is selected from the dropdown list. 2.
  • Page 23 Bluetooth All units come with embedded Bluetooth capability—a short- range wireless communication technology. Devices with Bluetooth capabilities can exchange information (beam) over a distance of about 30 feet (10 meters), without requiring a physical connection. Bluetooth settings: tap Start / Settings / Connections / Bluetooth.
  • Page 24 Bluetooth file transfer between two units and/or a PC: To transfer files between two units and/or a PC does not always require a partnership. (If your PC does require a partnership, see below.) 1. Confirm Bluetooth is enabled on both units and the receiving unit is visible.
  • Page 25 Bluetooth connection with a PC 1. Ensure that your PC has connectivity software installed. See Connecting to the PC on page 19. 2. Set up a partnership between your unit and the PC. See above about creating a partnership. Refer to your PC documentation for instructions.
  • Page 26 802.11 (WLAN) If your unit comes with built-in 802.11 (also called Wireless LAN or WLAN) capability, you can wirelessly transmit data to and from your unit by connecting to available access points or hot spots. Once connected, you can access the Internet and other network information, send and receive email and use virtual private networks (VPNs) for secure remote access.
  • Page 27 If you choose to create a Work connection, open File Explorer on your unit. Tap Menu / Open Path / New Path to open a window, allowing you to enter the name of a computer on the network on which you want to view file shares.
  • Page 28 Additional connectivity Your unit supports several additional kinds of connections. If you do not have embedded WLAN or GPS, you can purchase CF or SDIO cards to add the functionality. The following types of additional connectivity are also possible: Modem: The unit supports dial-up connections to an Internet Service Provider and sending and receiving e-mail with file attachments.

  • Page 29: Caring For Your Unit

    Caring for your Unit Cleaning the unit Clean the unit with a soft cloth dampened with either water or a diluted mild detergent. If a mild detergent is used, rinse with water to ensure all residue is removed. Do not use any chemical cleaners and do not put the unit in the dishwasher.

  • Page 30: Environmental Considerations

    Environmental Considerations The unit’s rugged design allows you to run your applications in harsh outdoor environments. Here are some considerations that will help you get the most out of your unit when working in very wet, hot or cold conditions. Water This unit is designed to withstand accidental immersion.

  • Page 31: Safe Use Of Your Unit

    Safe Use of your Unit Carrying the unit Due to radio frequency emissions, it is unsafe to operate the radio with the unit in a holster, dangling from a lanyard, or with any method that keeps the powered unit in very close proximity to the head or torso. For safe operation, carry the unit in your hand with the antennas located at least 8 inches (~20 cm) from the head or torso.

  • Page 32: Environmental Specifications

    Environmental Specifications Operation: -22 to +140 °F (-30 to +60 C) EMPERATURE Storage: -40 to +158 °F (-40 to +70 C) Shock: MIL-STD-810F, Method 503.4 MIL-STD-810F, Method 507.4 UMIDITY IP67, sealed against accidental immersion (submersible to 1 ATER meter for 30 minutes), MIL-STD 810F, Method 512.4, Procedure 1 MIL-STD-810F, Method 516.5, Procedure IV 26 drops @4 ft.

  • Page 33: Troubleshooting

    Troubleshooting It is critically important that my battery doesn’t fail during a job. Do you have any suggestions? Consider carrying a fully charged spare battery in the field. The unit is designed so that battery replacement can be easily done. How do I delete files? Open File Explorer and browse to the file to be deleted.
  • Page 34 Can I use my SDIO device with my unit? SDIO devices work as long as they are supported with Windows 6 drivers. An Extended Cap, sold as an accessory, can be used for oversized SD cards. How can I see file extensions or file attributes? The File Explorer included in Windows Mobile does not have any support for viewing file extensions like the Windows Explorer program on a PC.

  • Page 35: Regulatory Information

    Regulatory Information U.S.A. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 36: Declaration Of Conformity

    Corvallis, OR 97333 USA Declares, under our sole responsibility, that the product: Product Name: Handheld Data Collector Model Number: Nomad Product Options: conforms to the following Product Specifications: R&TTE Directive 1999/5/EC EN 61000-3-2 (2000) ETSI EN 300 328 V1.6.1 (2004) EN 61000-3-3 (2001) ETSI EN 301 489-1 V1.5.1 (2004)
  • Page 37 Recycling in Europe: To recycle TDS or Trimble WEEE (Waste Electrical and Electronic Equipment products that run on electrical power), call +31 497 53 24 30 and ask for the “WEEE Associate.” Mail a request for recycling instructions to:...
  • Page 38 Tripod daTa SySTemS a trimBle comPanY P.o. Box 947 corvallis or 97339 For more inFormation, visit: tdsway.com or call 541-753-9322...
