Summary of Contents for sputec MVS

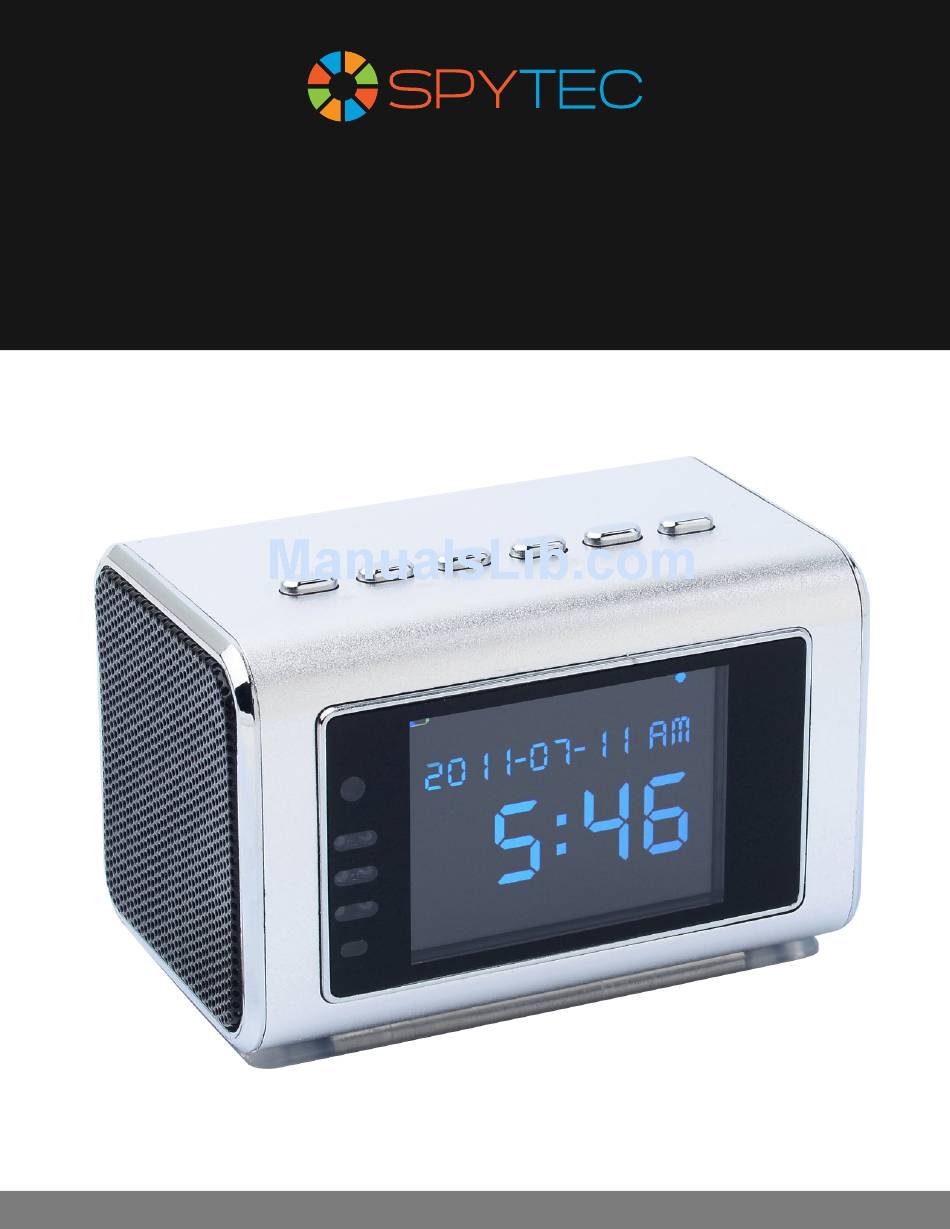

- Page 1 MVS - Mini Video Speaker Mini Clock Radio Night Vision Hidden Camera User Manual Spy Tec www.spytecinc.com...
-
Page 2: Table Of Contents
Powering Up the Device Micro SD Memory Card for Data Storage Button/Menu Options Finding and Accessing the Hidden Camera Programming and Using the MVS Device Set the Language Set the Time and Date Accessing, Adding and Deleting Files Audio Player... -
Page 3: Getting Started
GETTING STARTED Components • MVS device with rechargeable battery • USB and audio cables • Headphones • USB charging unit • User Manual Spy Tec Spy Tec www.spytecinc.com www.spytecinc.com... -
Page 4: Features
Features • Functions independently as a clock, radio or MP3 player • Works as an external speaker for portable or cellular devices when attached with audio cable • Allows picture browsing for .JPG files and video streaming for MP4/3GP/AVI/ASF format videos •... -
Page 5: Powering Up The Device
Powering Up the Device Plug the USB cable into the back of the MVS device via the small USB port and attach the cord to the external power supply (USB charging unit) via the larger USB port. Plug the external power supply (USB charging unit) into an electrical outlet and wait for the battery to begin charging. -
Page 6: Button/Menu Options
Button/Menu Options Buttons for Menu selections are located on top of the MVS device: VOL-/|<< Volume decrease / Previous on Menu / Fast backward VOL+/>>| Volume increase / Next on Menu / Fast forward MENU Menu / Mute MODE Mode switch Confirm Menu selections... -
Page 7: Programming And Using The Mvs Device
Programming and Using the MVS Device The MVS Welcome Screen will appear after you switch the power to ON and you may begin programming the device using the top VOL buttons to navigate illustrated menu selections (left to right) such as the Audio Player, Video Player, Picture View, Radio, LINE IN and System Setup. -
Page 8: Accessing, Adding And Deleting Files
Accessing, Adding and Deleting Files To access files on the MVS device, connect the MVS device by USB to a computer and go to MY DOCUMENTS. The device will show up as a Removable Disk with Music, Picture and Video folders. Each folder contains files as stored on the MVS device’s Micro SD card. - Page 9 5. Download pop-up with Save File selected Spy Tec Spy Tec www.spytecinc.com www.spytecinc.com...
-
Page 10: Audio Player
OK button when selecting the audio file to begin. To access audio files by PC/MAC, simply plug the USB cable into a computer and manipulate files through MY DOCUMENTS. The MVS device should appear immediately upon connection as a separate drive and allow you to drag and drop such files. -
Page 11: Video Player
Video Player After using the VOL buttons on top of the MVS device to select the Video Player icon (second to right), click OK. Next you will see a list of video files and may use the navigation buttons to select a file and begin playing the file by clicking OK. -
Page 12: Picture View
Locate the Picture View icon (third to right) by using the VOL buttons on top of the MVS device to select the Picture View menu item. Access the selected application by clicking OK. Thumbnails of the images will appear to the left and a list of files to the right. -
Page 13: Radio
Locate the Radio icon (fourth to right) by using the VOL buttons on top of the MVS device to select the Radio menu item. Access the selected application by clicking OK. There is no additional menu feature for the Radio application. -
Page 14: System Setup
System Setup Access Available Disc Space To view available disc space, use the VOL buttons to select the System Setup icon (last on the right) of the main menu and click OK. Next, select the Memory icon and press the OK button. Here you view your SD capacity with used and unused data values. -
Page 15: Loop Record
Navigate to the Camera IR LED selection by using the VOL buttons and press the OK button. Set to On, Auto or Off and press the OK button again. Press the ESC button to return to the previous menu. Loop record When the Micro SD card is full, the oldest one or several files are automatically deleted to release the space for continue video recording. -
Page 16: Automatic Recording
Automatic Recording Access the Monitor Settings menu of the hidden interface. To access this menu, press VOL keys together for 3 seconds and navigate to the DV Settings icon. Press the OK button. Use the VOL keys to navigate to the Auto Record option and press the OK button. -
Page 17: Specifications
Specifications Video decode MP4/3GP/AVI/ASF; Video encode MPEG4 Audio decode MP3/WMA/WAV/AAC; Audio encode AAC Video resolution 320*240/640*480 Video frame rate 30fps Image format Image resolution Up to 2M Pixel Speaker power LED Resolution 320*240, QVGA Storage capacity Micro-SD card Support Up to 32GB Interface type MINI 5 pins USB, USB 1.1/2.0 IR LED... -
Page 18: Precautions
Precautions • Strictly observe relevant laws as this product cannot be used for any illegal purpose. The user is responsible for any legal matters. • The maximum life of the battery will diminish if not used for a long time so recharge it before use or storage. -
Page 19: Frequently Asked Questions (Faqs)
Frequently Asked Questions (FAQs) How do I get audio and video to record at the same time? Access the Monitor Settings menu of the hidden interface. To access this menu, press VOL keys together for 3 seconds and navigate to the DV Settings icon.
