GForce ps1200 Instruction Manual

INTRODUCTION

Thank you for purchasing the Gforce 1200W,
you will be very pleased with its performance because our AC/DC Switching Power Supply is designed
and manufactured by skilled professionals using the highest standard in workmanship You can be
assured of many years of trouble free service
force
Your G AC/DC switching Power Supply is designed to use household AC power source to power
equipments that required DC power The Gforce converts standard household power 100-240V AC to 15
30V DC power and can supply up to 50 amperes of continuous power

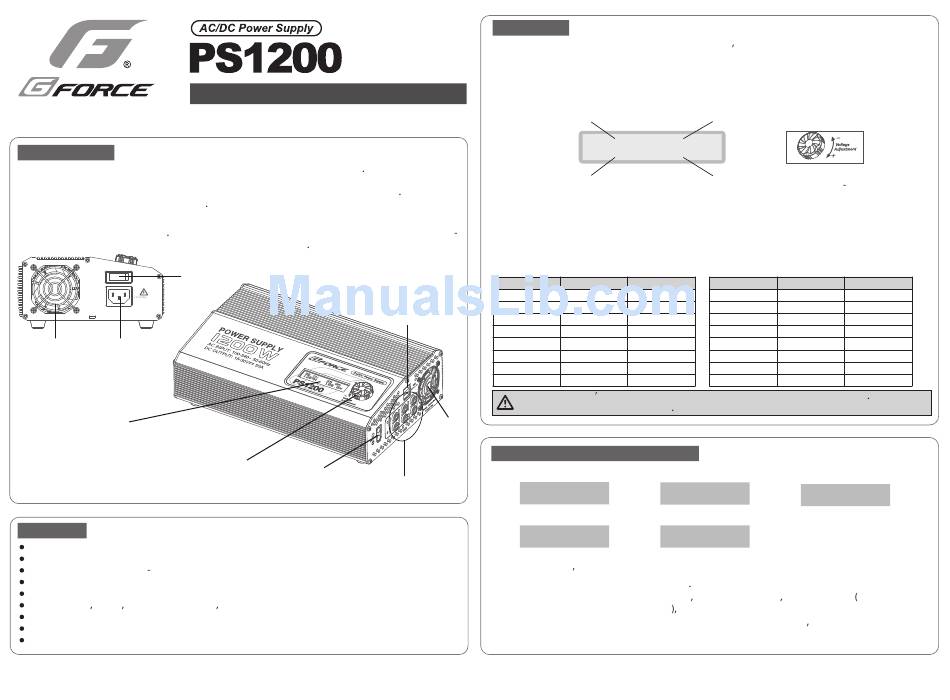

Power
ON OFF
Switch
AC INPUT
100-240V
Check the AC Voltage
Before POWER ON
Temp. Controlled Fan
Cooling AC Power
Fan Input Socket
LCD Display
(Current/Voltage/Output Power
Percentage of Output Power)

FEATURES

Active PFC: smaller AC input current less interference, and Conform to CE Regulations.
One main DC power outputs, up to 50 amperes.
Output voltage adjustable 15 30V.
LCD indicates voltage, current amperes output, output power and the output power percentage.
AC 100-240V worldwide operation: need not any alternative switcher, worldwide safe operation.
Two USB ports 5 volts 2100mA total for iPad mobile phone, digital cameras and etc.
Smart cooling fans turned on upon the temperature automatically.
Over current, over voltage, over load and over temperature protection.
Short-circuit protection on output, safer and more reliable.
1200W,50A
AC/DC SWITCHING
POWER SUPPLY
INSTRUCTION MANUAL
50A AC/DC Switching Power Supply We are confident that
Voltage Adjustment Dial
Main DC Output
(15V-30V)
XT90 Connector
(50A Max)
1

OPERATION

To use the power supply after you connect the device to it set POWER to turn it on with the power switch.
Please check all connections and confirm the wall AC outlet has power before you switch on the power
supply.
The LCD will display actual output voltage, current. If the voltage is NOT suitable for your charger or other
load, using the dial rotary to change the output voltage.
To take advantage of Gforce 1200W's full power capability, the output voltage should be 24V DC or
higher. Per Ohm's law, 24V x 50A = 1200W. Therefore, if you want to attain 1200W of output power, the
output voltage must set to 24V DC or higher.
The actual amount of output current feeding to the loading is also limited to 1200 Watts. If output voltage
is 30V, the max current is 40A.

Output Power Chart

Output Voltage(V) Max Current(A) Max Power(W)
15
USB Power 16
5V / 2.1A
17
18
19
20
21
22
Warning:
Cooling
Fan

WARNING AND ERROR MESSAGE

In case of an error the screen will display the cause of error.
3 DC Output
Over current
10A Max Each
protection.
Over current protection.
Over voltage
protection.
Over voltage protection.
Your power supply s overload protection circuit automatically shuts down the power supply when it is
overload and resets by turning POWER to OFF
If over power protection shows on LCD display set POWER to OFF reduce the load by using a device
that does not require more than 1200 watts then set POWER to ON.
If over temperature protection shows on LCD display, set POWER to OFF reduce the load and wait for
the device to cool down. than set POWER to ON.
Output Voltage Output Current
(15-30V) (UP to 50A)
3 0 . 0 V 3 5 . 2 A
1 0 5 6 W 8 8 . 0 %
Output Power Percentage of
Output Power
Output Voltage(V) Max Current(A) Max Power(W)
50.0 750 23
50.0 800 24
50.0 850 25
50.0 900 26
50.0 950 27
50.0 1000 28
50.0 1050 29
50.0 1100 30
Don t adjust the output voltage when the power supply is under loading It may cause
damage to the charger
Over power
protection.
Over power protection.
Low voltage
protection
Low voltage protection.
2
Output voltage
adjustable 15 30V
50.0 1150
50.0 1200
48.0 1200
46.2 1200
44.4 1200
42.9 1200
41.4 1200
40.0 1200
Over temperature
protection.
Over temperature protection.
