Summary of Contents for Winix Finecel FCSPU1

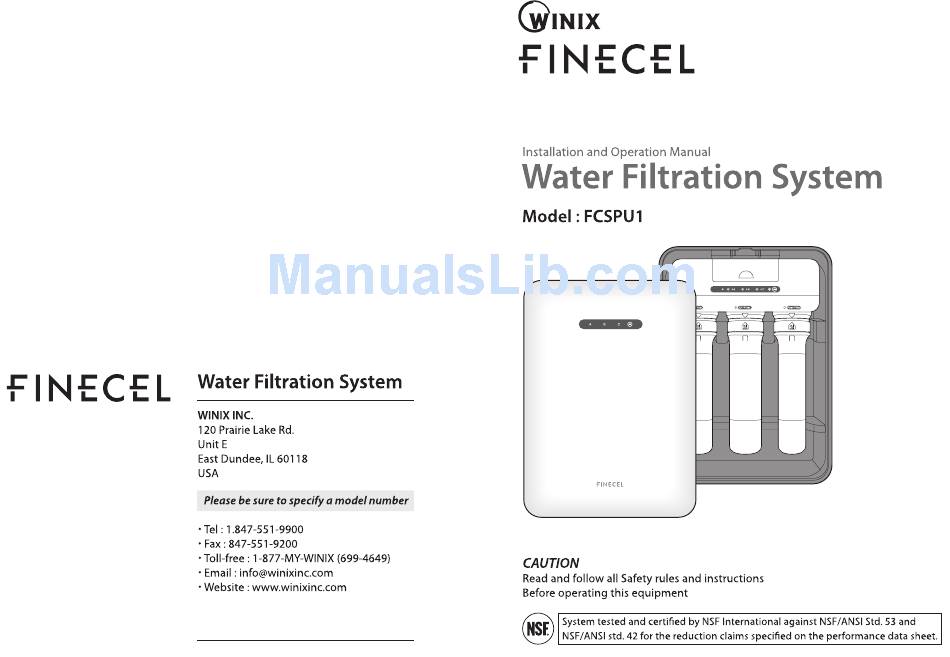

- Page 1 Please contact your dealer for questions regarding your product and to purchase WINIX Replacement Filters. 2013.02.28...
-
Page 2: Warranty
& Warrantor: Winix Inc., 120 Prairie Lake Rd Unit E, East Dundee, IL 60118 Warrantor guarantees, to the original owner, that the FINECEL Water Filtration System, when installed and maintained in accordance with the instructions, will be free from defects in materials and workmanship for a period of one year from date of installation. -
Page 3: Safety Instructions
2.0 SAFETY INSTRUCTIONS 3.0 SPECIFICATIONS & DIMENSIONS Read all steps and guides carefully before installing and using your Water Filtration System. Supply water Pressure : 20~100 psi (140~689kPa) Follow all steps exactly to correctly install. Reading this manual will also help you to get all the Supply water temperature limits : 33 ~100 F (0.6 ~38℃... -
Page 4: Installation Instructions
IMPORTANT: To avoid damaging the sink or counter, consult a quali ed plumber or installer Brasscap for drilling procedures in porcelain, stainless steel, granite, quartz or some other special material. WINIX is not responsible for any damage that occurs due to improper installation of the unit. -
Page 5: Installation Overview
4.3 Installation Overview 4.4 Turn O The Water Supply Locate cold water supply pipe, under the sink that you wish to lter for drinking water. Before you begin, close the cold water/water supply valve that feeds water to your tap. Then open the faucet to drain water from the sink cold water pipe. -
Page 6: Faucet Mounting
<Figure 4.8.1> wall, 8 inches from countertop or 12 inches procedures in porcelain, stainless steel, granite, quartz or some other special material. WINIX is from cabinet oor. For best results install not responsible for any damage that occurs due to improper installation of the unit. -
Page 7: Install Batteries
1. Close the water shut o valve/angle stop that is immediately in front of the supply tube 4.9 Install Batteries and open the faucet to drain water from the sink cold water pipe. 2. Remove the nut that connects the cold water faucet to the supply tube. Some water These will power the lights and other alerts that tell you when to change your lters may spill out. - Page 8 Saddle Valve Connections 6. Insert plastic tab to ensure quick connect tting cannot come as done. <Figure 4.11.2-4> <Figure 4.10.3> <Figure 4.10.4> y l t a i t Filtered Water Bottom bolt Faucet 1/4”tubing end of tubing round and smooth. Ferrule with no cuts, nicks or at spots correct full 3/4”...
- Page 9 This is normal and harmless. After ushing the system you should be able to check for clarity of the water in a clear glass Your Fincel drinking water system from Winix is now ready for use;providing you and your family with clean, healthy and great tasting drinking water.
-
Page 10: Filter Cartridge Replacement
<Figure 5.3.1> WINIX Water Filtration System model FCSPU1 with replacement lters SPCF1 and SPUF1 conforms to NSF/ANSI 42 and 53 for the speci c performance claims as veri ed and substantiated by test data. - Page 11 6.0 REPLACEMENT INDICATOR Battery Indicator 6.1 FCSPU1 Indicator When the timer reaches approximately 18 months of use, it will ash. At this time it is recommended to replace battery. When the batteries are installed for the rst time, the The FINECEL Water Filtration System is equipped with a replacement indicator that measures indicator display will beep and ash all indicator lights to ensure the user they are both total ow of water AND the length of time each lter has been in use.
-
Page 12: Troubleshooting
7.0 TROUBLESHOOTING Problem: Chlorine taste and/or odor in the ltered water. Problem: Water leaks at push connect ttings. Cause: The level of chlorine in your water supply exceeds maximum limits, and has Cause: Tubing not pushed in all the way. destroyed the Ultra Filtration membrane.
