2.4G Bluetooth Datalink & iPad
Ground Station User Guide
Thank you for purchasing DJI products. Please strictly follow this user guide to mount and connect the 2.4G
Bluetooth Datalink, install the Assistant Software on your computer, as well as the App on your mobile device.
Note：The map of Mainland China download from Mainland China IP addresses has differences with the actual
geographic environments. If users download the map of Mainland China from foreign IP addresses, which will be
more accurate.
2.4G Bluetooth Datalink

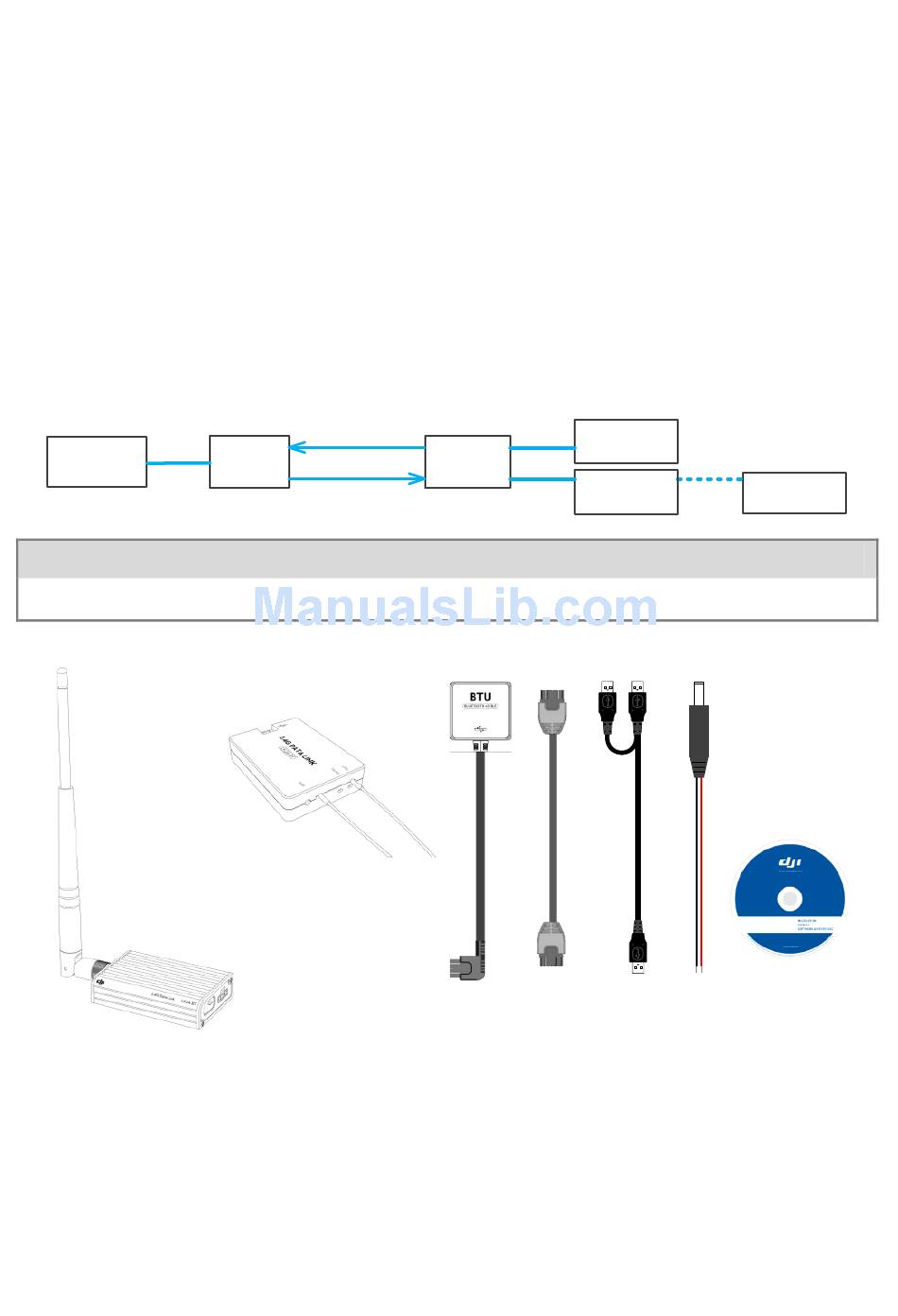

The 2.4G Bluetooth Datalink consists of the Air end and the Ground end, which provides reliable and stable remote
wireless transmissions for Ground Station based applications. The signal flow is as shown below.
Flight control
CAN-Bus
system
Flight control systems that support the 2.4G Bluetooth Datalink
ACE ONE(Firmware V4.02 or above), WKM(Firmware V5.24 or above),
NAZA-M, NAZA-M V2(Firmware V4.00 or above), A2(Firmware V2.0 or above)
1.1 In the box
The Ground end of
The Ground end of
2.4G Bluetooth
2.4G Bluetooth
Datalink
Datalink
Important：the firmware of BTU should be upgraded to version 1.0.1.2 or above to use with the 2.4G Bluetooth
Datalink.
1.2 User supplied
To use the 2.4G Bluetooth Datalink and Ground Station, please prepare the Flight control system, the aircraft,
batteries, PC or iPad etc.
1.3 Connections and use
(1)
Please assemble the antenna of the Ground end first.
©2013-2014 DJI Innovations. All Rights Reserved.
Signals from
Ground Station
The Air
end
Signals from Flight
control system
The Air end of
2.4G Bluetooth
Datalink
PC Ground
USB
The
Ground end
CAN-Bus
BTU module
BTU
CAN-Bus
Module
cable
V1.08
Station
iPad Ground
Bluetooth
Bluetooth
Station
Ground Station
USB
DC power
Installer CD for
cable
cable
PC
- 1 -
Advertisement
Table of Contents
Related Manuals for dji 2.4G Bluetooth Datalink
Summary of Contents for dji 2.4G Bluetooth Datalink
-
Page 1: In The Box
2.4G Bluetooth Datalink The 2.4G Bluetooth Datalink consists of the Air end and the Ground end, which provides reliable and stable remote wireless transmissions for Ground Station based applications. The signal flow is as shown below. Signals from... - Page 2 You can configure the Flight control system using the Assistant software on a PC or iOS mobile Device wirelessly over the link of the 2.4G Bluetooth Datalink, however you cannot upgrade the firmware of the Flight control system using this communication route.
- Page 3 1.4 LED Indicator descriptions The LED Indicators of the 2.4G Bluetooth Datalink will work after power on, the descriptions are shown below. TX/RX LINK Green blinks Sending Solid Green The Air end links with the Ground end successfully TX/RX LINK...
- Page 4 The iPad Ground Station is designed for remote flight control in applications of surveillance, aerial photography, etc., it should be used with the 2.4G Bluetooth Datalink to achieve auto flight after the setting of the routes. The application with easy usable design offers great portability and simple operation, which will provide users with an extraordinary flight experiences.
- Page 5 EIRP (Equivalent Isotropic Radiated Power) ≤100mW Receiver Sensitivity (1%PER) -94dBm Power Consumption The Ground end: ≤1.3W The Air end: ≤0.9W Features Frequency Band 2.4G(2400MHz ~2483MHz) Serial Data Rate 115200 bps Antenna Options - 5 - ©2013-2014 DJI Innovations. All Rights Reserved.
- Page 6 The Ground Station fails to connect with the Main controller, please check the following items The distance between the two ends of the 2.4G Bluetooth Datalink should be more than 1.5m. Make sure the Ground end is connected correctly and the LED indicator of BTU is green.
