CRAIN 625 Instruction Manual

IMPORTANT SAFETY
INSTRUCTIONS

GENERAL SAFETY RULES

WARNING! Read and understand all instructions.
Failure to follow all instructions listed below may result
in electric shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS
Work Area
Keep your work area clean and well lit. Cluttered
benches and dark areas invite accidents.
Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable
liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
Keep bystanders, children, and visitors away while
operating a power tool. Distractions can cause you
to lose control.
Electrical Safety
Grounded tools must be plugged into an outlet
properly installed and grounded in accordance
with all codes and ordinances. Never remove the
grounding prong or modify the plug in any way.
Do not use any adaptor plugs. Check with a quali-
fied electrician if you are in doubt as to whether
the outlet is properly grounded. If the tools should
electrically malfunction or break down, grounding
provides a low resistance path to carry electricity
away from the user.
Avoid body contact with grounded surfaces such
as pipes, radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body is
grounded.
Don't expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
Do not abuse the cord. Never use the cord to carry
the tool or pull the plug from an outlet. Keep cord
away from heat, oil, sharp edges or moving parts.
Replace damaged cords immediately. Damaged
cords increase the risk of electric shock.
When operating a power tool outside, use an out-
door extension cord marked "W-A" or "W." These

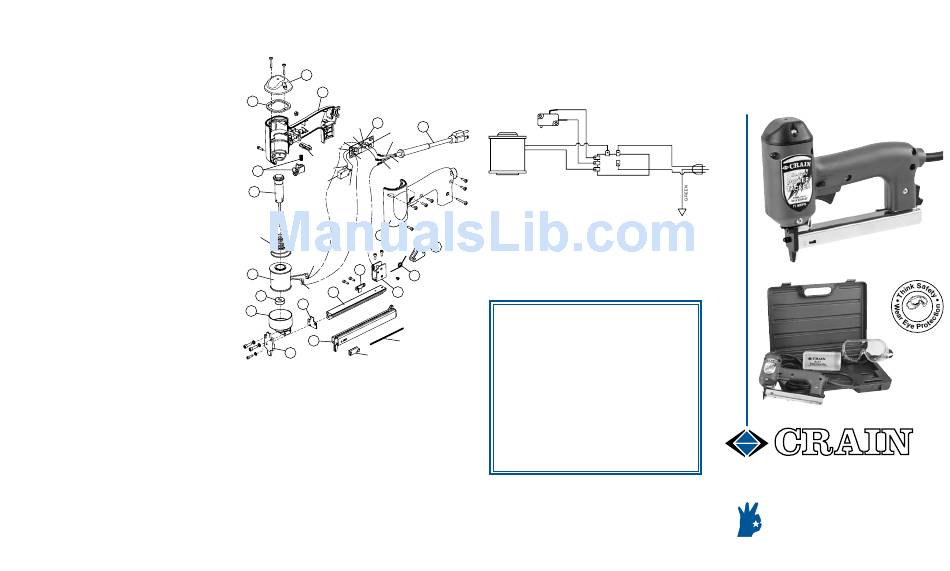

REPLACEMENT PARTS AND

ORDERING INFORMATION

05
08
15
23
42
ACH
ACG
L1
SW1 BLK To ACH
SW2
1615-J
L2
WHT To ACG
To SW1
17 GREEN To GRD
1615-I
TO SW2
22
1615-C
08
To L1
10
38
06
To L2
03 04
34
02
19
07 1615-T
01
1615-S
Order no. Description Order no. Description
1625-01 Front Guide 1625-17 Trigger & Spring
& Screws
1625-19 Coil Housing
1625-02 Front Cover & Screws
1625-03 Aluminum Channel 1625-20 Release Button
& Screw
1625-22 Driver Assembly
1625-04 Rear Bracket
1625-23 Control Board
& Screws
1625-34 Bumper
1625-05 Aluminum Cap
1625-38 Staple Coil
& Screws
1625-41 Carrying Case
1625-06 Torsion Spring
1625-42 Power Cord
1625-07 Magazine
1615-C Driver Spring
1625-08 Handle Set
1615-I Micro Switch
& Screws
1615-J Trigger Lock
1625-10 Stop & Screws
1615-S Staple Pusher
1625-15 Retaining Ring
1615-T Pusher Spring
& Screws

WIRING DIAGRAM

1615-I
MIRCO SWITCH
TO SW1
TO SW2
COIL WIRE 1
COIL WIRE 2
1625-38 1625-23
STAPLE COIL CONTROL BOARD
20
guarantee
This Crain tool is guaranteed to be free of defects
due to faulty materials or workmanship for a period
of 6 months.
During this period, any parts of tools found defective
subject to the guarantee will be replaced at no charge.
Returns should be sent freight PREPAID, in assembled
condition and with a copy of the Bill of Sale (proof of
purchase) to CRAIN CUTTER COMPANY, Milpitas,
CA 95035. New tools or loaners will not be given for
those pending warranty repairs.
No claims shall exceed in amount the suggested sales
price of the product. No other guarantee, oral or writ-
ten, is expressed or implied.
CRAIN CUTTER CO., INC.
1155 WRIGLEY WAY, MILPITAS, CA 95035-5426
TEL: 408-946-6100 FAX: 408-946-4268
Printed by:HF
INSTRUCTION
MANUAL
FOR
BLACK
AC OUTLET
WHITE
GROUND

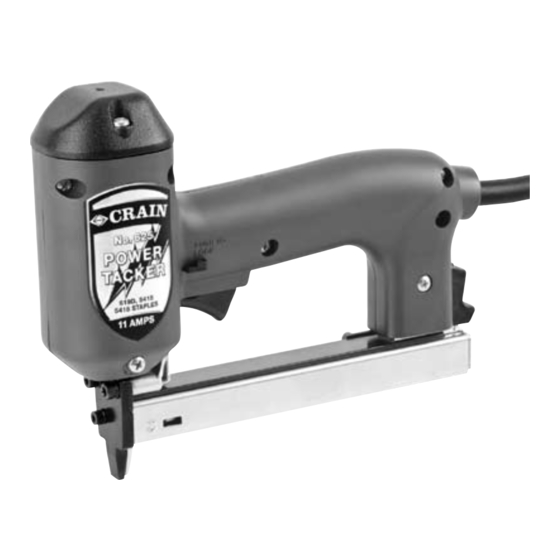

No. 625 POWER TACKER
Made in
FORM F1625-0910 America
CRAIN
