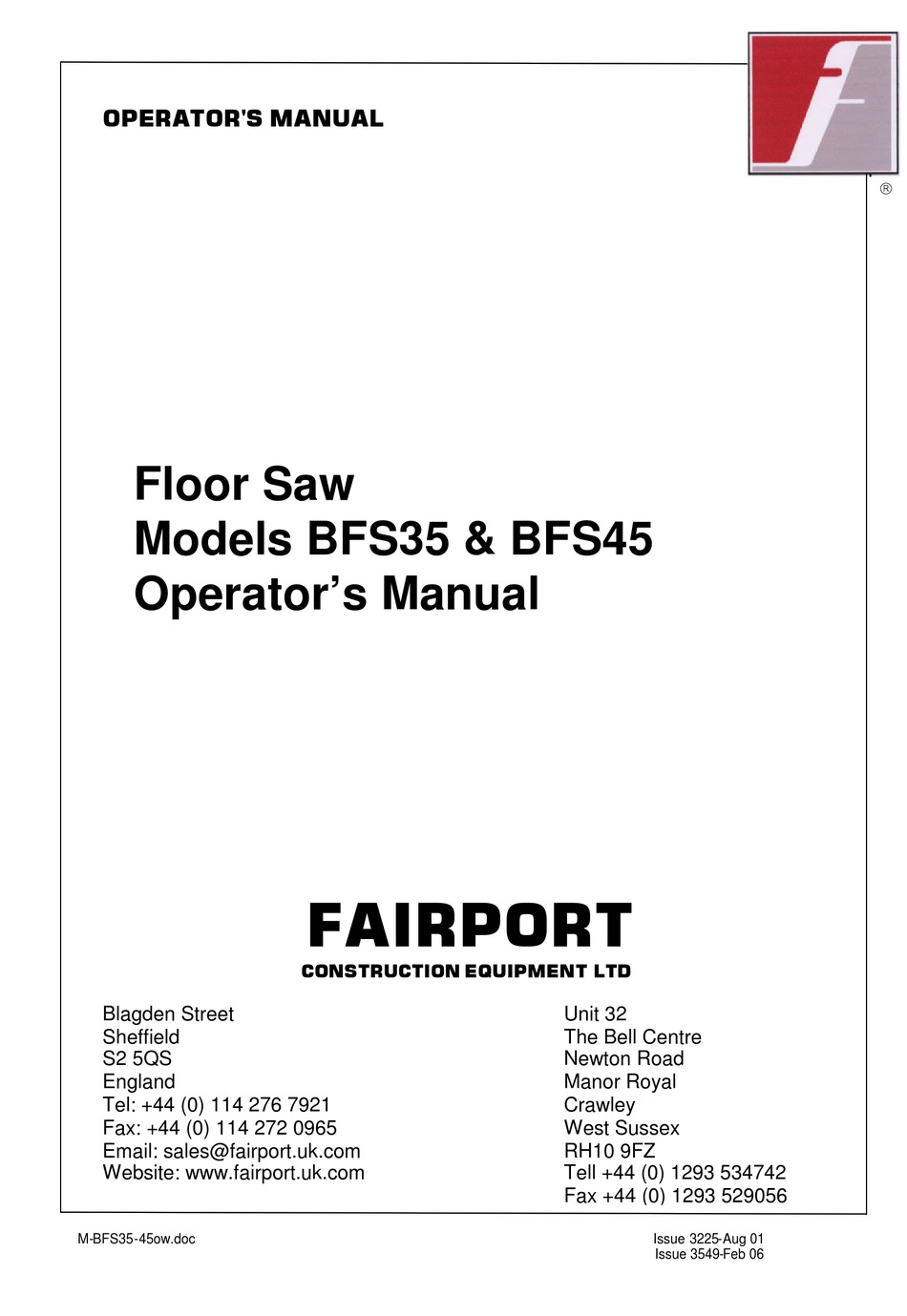

OPERATOR'S MANUAL
Floor Saw
Models BFS35 & BFS45
Operator's Manual
Blagden Street
Sheffield
S2 5QS
England
Tel: +44 (0) 114 276 7921
Fax: +44 (0) 114 272 0965
Email: sales@fairport.uk.com
Website: www.fairport.uk.com
M-BFS35-45ow.doc
FAIRPORT
CONSTRUCTION EQUIPMENT LTD
Unit 32
The Bell Centre
Newton Road
Manor Royal
Crawley
West Sussex
RH10 9FZ
Tell +44 (0) 1293 534742
Fax +44 (0) 1293 529056
Issue 3225-Aug 01
Issue 3549-Feb 06
Advertisement
Table of Contents
Summary of Contents for Fairport BFS35
- Page 1 OPERATOR'S MANUAL Floor Saw Models BFS35 & BFS45 Operator’s Manual FAIRPORT CONSTRUCTION EQUIPMENT LTD Blagden Street Unit 32 Sheffield The Bell Centre S2 5QS Newton Road England Manor Royal Tel: +44 (0) 114 276 7921 Crawley Fax: +44 (0) 114 272 0965 West Sussex Email: sales@fairport.uk.com...
-
Page 2: Table Of Contents
13-hp petrol engine. A 350mm blade may be fitted to a BFS45, but a 450mm should not be fitted to a BFS35 as the engine has insufficient power. A water tank is an integral part of the machines providing a water supply to both cool the blade and damp down dust produced while cutting. -
Page 3: Safety Precautions And Information
2750rpm At engine speed of 3600rpm 3600rpm Max depth of cut 100mm 150mm BLADE DATA Maximum diameter: 350mm for the BFS35 450mm for the BFS45 Bore diameter 25.4mm Guaranteed Sound Power, 108 Lwa dB(A) SAFETY PRECAUTIONS AND INFORMATION Read these operating and safety instructions before using the machine and operate the machine in accordance with these instructions. - Page 4 It must not be used for cutting any other material or for any other purpose. This machine must not be modified in any way without written permission of the manufacturer. Unauthorised modifications are likely to invalidate the warranty and also result in the machine not conforming to safety regulations. M-BFS35-45ow.doc Issue 3225-Aug 01...
-
Page 5: Safety Pictograms Used On This Equipment
If the arrow is unreadable the direction of rotation is clockwise looking onto the blade side of the machine. Replace the clamping flange; check it fits snugly against blade. Replace the blade nut and tighten securely (left hand thread). M-BFS35-45ow.doc Issue 3225-Aug 01... -
Page 6: Operating Instructions
On full revs lower the blade slowly into the cut to desired depth, indicated on the appropriate cutting depth scale (46), by rotating handle (44) counter clockwise. Handle (44) Lock knob (38) Depth scale (46) Valve (52) Guide plate (10) Tighten lock knob (38). M-BFS35-45ow.doc Issue 3225-Aug 01... -
Page 7: Hints On Cutting
Check drive belts monthly. Retighten if movement at centre of belt span is more than 4mm Replace all belts if any are worn or damaged. See full manual. Monthly apply a few drops of oil to elevating screw thread. M-BFS35-45ow.doc Issue 3225-Aug 01... -
Page 8: Warranty Conditions And Claims Procedure
A more comprehensive manual suitable for workshop use is available from Fairport Construction Equipment Ltd. WARRANTY CONDITIONS AND CLAIMS PROCEDURE All products supplied by Fairport Construction Equipment Ltd (hereafter referred to as FCE) are warranted to be free of defects due to faulty materials or workmanship for a... -
Page 9: Claims Procedure
In the event of the estimate not being accepted, a further charge will be made to defray the rebuilding of the machine. Estimates must be treated as approximate only as it may be found necessary to use additional parts on further examination. M-BFS35-45ow.doc Issue 3225-Aug 01... -
Page 10: Ec Declaration Of Conformity
EC Declaration of Conformity We Fairport Construction Equipment Limited Blagden Street Sheffield S2 5QS Declare that the Product BFS 35/45 Manufactured from 1 Sept 2004 conforms to the following Directives: 89/336/EEC, 89/392/EEC, 91/368/EEC, 2000/14/EC uses the following standards: BS EN 292-1, BS EN 292-2, BS EN 60204-1, BS EN 294...
