Summary of Contents for Kaiser Baas R20

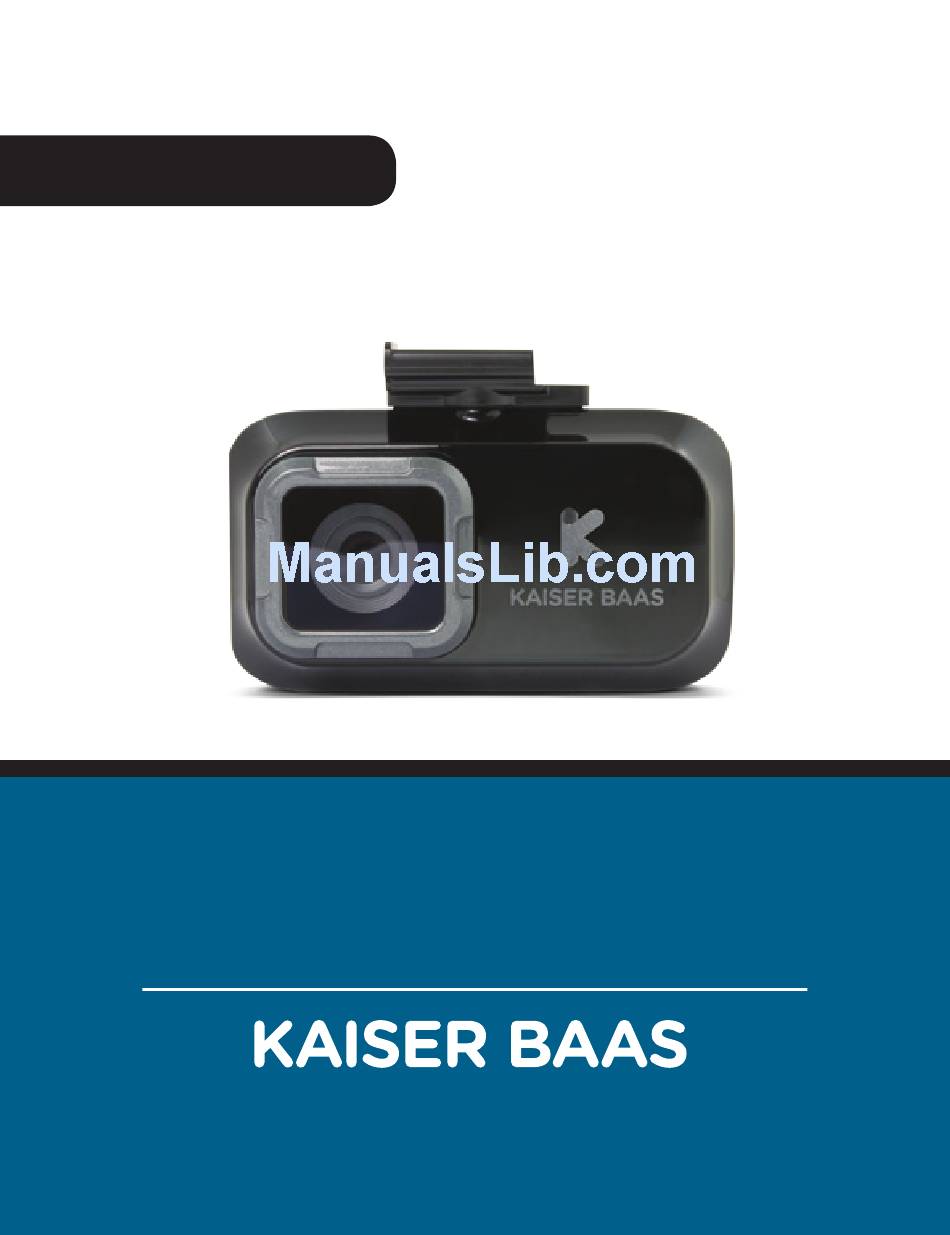

- Page 1 USER GUIDE R20 CAR DVR Capture your journey...
- Page 3 Languages English...
- Page 4 Community /kaiserbaas Register this product for 12 month warranty: www.kaiserbaas.com/register Get product updates: www.kaiserbaas.com/updates Tech support: e: helpdesk@kaiserbaas.com w: www.kaiserbaas.com/support p: Australia 1300 302 306 p: New Zealand 0800 302 306 (business hours, AEST)
-
Page 5: Table Of Contents
Contents Safety Precautions What’s in the Box Product Diagram Setting up the R20 Car DVR In Car Operation Computer Connection Interface Settings Software Specifications Frequently Asked Questions Contact Us... -
Page 6: Safety Precautions
• Only use the provided power cables to charge the device. • Do not expose the R20 camera to water, dust, oil and temperatures over 70˚c. • Avoid leaving your R20 camera in direct sunlight for prolonged periods of time. -
Page 7: What's In The Box
What’s in the Box Please ensure the product package has all the following contents: R20 Car DVR User Guide USB Car Charger Mount 6 x Cable Management Clips Micro USB Cable USB DC power cable... -
Page 8: Product Diagram
Product Diagram Wide Angle Lens Down/Photo Shutter Button Mounting Socket 2.7” Display DC Power Port Power/Back/Settings Button HDMI Mini Port OK/Event Recording Button Micro USB Port Reset Button Up/Playback Button Micro SD Slot Front Side Back Bottom... -
Page 9: Setting Up The R20 Car Dvr
30 seconds to ensure that the camera is secure. • Adjust the nut to ensure that the camera is correctly angled. • Finally connect the R20 to power using the DC power cable and the USB car charge adaptor. -
Page 10: In Car Operation
• LDWS (Lane Departure Warning System) will warn the driver if they are not correctly in their lane. This feature can be adjusted through the Camera setting. Note: For more information on the R20 interface please see section marked “Interface”. -
Page 11: Computer Connection
PC or Mac. The software can be found at: www.kaiserbaas.com/software/r30 • Follow the on screen set up guide. • Connect your R20 camera to your computer using the supplied micro USB cable. • Open the Motor+ software. • Select if you want to review media on the camera (left... -
Page 12: Interface
Interface Recording Screen This is the device’s main recording screen; this will show while your R20 is powered on and not in screensaver mode. The four on screen icons are selected by using their adjacent buttons. Recording Screen Screen Library/Playback... - Page 13 Library This menu is found by pushing the up button while at the recording screen. From here you can review your media, select either Event Recording, Loop Recording, or Photos by using the Up and Down buttons and the OK button to select. Library Screen Event recording Photos...
- Page 14 Media Once you have selected your media from the library screen, this screen gives the option of skipping to the next or previous file, or playing the currently selected file. Media Screen Previous Back Next Play...
- Page 15 Player This is the player screen, which is controlled by using the buttons on the side of the screen. Player Screen Rewind Stop Fast Forward Pause...
-
Page 16: Settings
Settings Camera Video Set the video • 1296p: 2304x1296 P30 Resolution resolution of Normal • 1080p: 1920x1080 P30 Looping Video and Event Protection Video • 720P: 1280x720 P30 LDWS Turn on/off the LDWS • On function • Off LDWS Adjust the lane sensing Calibration upper line &... - Page 17 Microphone Turn on/off the • On microphone during • Off recording Volume Adjust the Speaker • 0-5 volume of Voice/ Sound/Playback Sensitivity Set the sensitivity • High of the G-sensor to • Mid activate the Event Protection Recording • Low or turn off this function • Off Voice Guide...
-
Page 18: Software
Software Opening Screen Opening Screen Screen Camera media Media Stored on Computer... - Page 19 Media Manager Media Manager Screen Photo Media Video Camera Settings Event Video General Settings Media Stored on Computer...
- Page 20 Media Player Media Player Screen Speed Share to Social Media Compass Copy Video from Camera Player Controls GPS position...
- Page 21 General Settings General Settings Screen Language Selection Directory to Save Videos to Computer...
- Page 22 Camera Settings Camera Settings Screen Mute/Volume Voice Guidance Settings Event Recording Video Duration Settings Sensitivity Video Resolution Settings...
-
Page 23: Specifications
Specifications Sensor 3MP CMOS Lens 135° Wide Angle Lens Still Image Resolution 3MP on 1296p/2MP on 1080p/1MP on on Recording 720p Video Resolution 1296P: 2304x1296 P30/1080P: 1920x1080 P30/720P: 1280x720 P30 Video Format MPEG4 (H.264) .MOV File Photo Format Display Panel 2.7”... -
Page 24: Frequently Asked Questions
Q. I can’t find the App in the App store A. Go to www.kaiserbaas.com/R20 using your mobile phone for a direct link to the app store in your country. Q. My device will not record A. -
Page 25: Contact Us
Contact Us Having trouble setting your R20 Car DVR up? Please contact us. No question too big or small and we are more than happy to help. Please visit: www.kaiserbaas.com/support Or email: helpdesk@kaiserbaas.com For further information please visit: www.kaiserbaas.com Tech support: e: helpdesk@kaiserbaas.com...
