York S1-TCZCB01 Quick Reference Manual

QUICK REFERENCE GUIDE

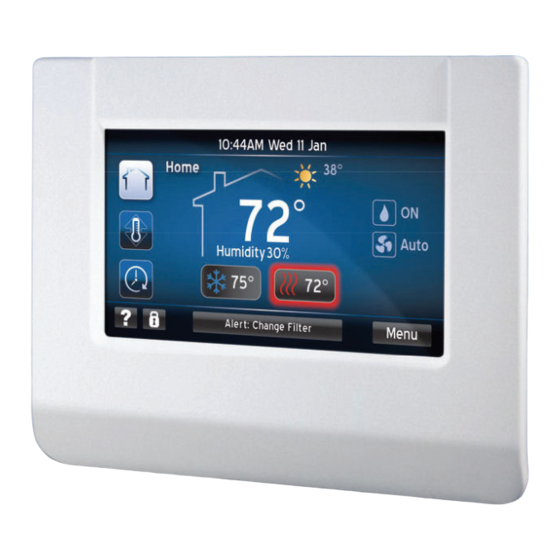

TOUCH SCREEN ZONING COMMUNICATING CONTROL
Model Number: S1-TCZCB01
- High Definition Colors
- Touch Screen
- 4 Wire Connections
- Auto Configuration
- Advanced Trouble Shooting
Subject to change without notice. Published in U.S.A.
Copyright © 2012 by Johnson Controls, Inc. All rights reserved.
York International Corp., 5005 York Drive, Norman, OK 73069
Zone Display Sensor Usability
A Zone Display Sensor allows the user to make simple changes from the
installed location and provides the flexibility to be viewed / updated from any
installed Touch Screen Communicating Control
To make changes to the zone from the Display Sensor, reference the graphic below.
Current Zone Current
Current Zone
Schedule Event
Temperature
Mode
Zone
Temperature
Adjustment
Button
Cool Mode Button Fan Button Heat Mode Button
To make changes to a zone containing a Zone Display Sensor from a Touch Screen Com-
municating Control. Access the zone containing the Zone Display Sensor from the "Manage
Zones" feature.
Managing Multiple Zones
In a Communicating Zoning System, any zone containing a Touch Screen
Communicating Control can be used to make changes in any other zone in
the house.
To view/update other zones from your Touch
Screen Communicating Control, select the "Man-
age Zones" button from your Menu screen.
The Manage Zones screen provides an overview
of each zone's current temperature and set
points.
Once a zone is selected, you will be able to make
changes to the zone based on the sensor type
installed in the zone.
879338-URG-A-0812
Supersedes: Nothing
Touch Screen Sensor Mode
If you have a Touch Screen Communicating Control installed in Sensor mode,
you have full access to all zones and can make changes to temperature set
points in any zone of the house.
While some of the touch screens communicating control's features are limited in Sensor
mode, using one to control a zone enables features that are not available with the other
Current
Day & Time
sensor types.
As with the Master Touch Screen, a Touch
Outdoor
Screen Communicating Control installed in
Temperature
Outdoor
Button Sensor mode contains the "Manage Zones"
feature.
The Touch Screen Communicating Control
Cancel
contains a Humidity sensor that allows for
Cancel
Hold
Hold
more comfort settings and control in its
Button
installed zone, even when in Sensor mode.
Zone Sensor Usability
A Zone Sensor offers whole home control in a small, functional package.
Change the set points and continuous fan of the Zone Sensor using the Touch Screen Com-
municating Control's "Manage Zones" feature.
Living Room
Select the zone that contains your Zone Sensor and a screen will be displayed that will
allow you to make changes to that zone. The zone name is displayed in the upper left cor-
ner of the screen to remind you of the zone being viewed.
Emergency
Heat
Fan Humidity Status Settings
Living Room
Manage
Zones
Dealer Tools
Clean Schedule
Living Room
Alert: Change Filter Close
Living Room / Manage Zones
Master Bedroom
Living Room
Kitchen
72° 68°
Override
68° 70°
Master Bedroom Basement
72° 72°
Cancel
Usability Schedule Setting for Multiple Zones
The Communicating Zoning System allows different schedules to be applied
to different zones. This allows maximum comfort in all areas of the home at
any given time of day.
After defining your desired schedules, you can
assign them separately to each zone by pressing
the "Assign to Calendar" button.
Simply select the zone you would like to apply the
11:07AM Thu 21 Jul
schedule to, press "OK" and you will be directed
to select schedules and assign months for the
previously selected zones.
75 °
Quick
Pick
Be sure to repeat for all zones to ensure that the
Duration
Quick
desired schedules and months are selected and
that your zones are properly programmed.
70°
50° 85°
Menu
Alert: Change Filter
/ Manage Zones 11:07AM Thu 21 Jul
72°
Kitchen
72° 68°
Override
68° 70°
Humidity3 3 3
Basement
72° 72°
Cancel
Select Zone
Apply to
Schedule:
Living Room / Schedule
Select Schedule:
Energy Saver
Schedule 1
Schedule 2
Schedule 3
55°
71 °
ON
Auto
dity y 3 30% 0 0 0 0 0 0 0 % % % % % %
72°
Alert: Change Filter Menu
Living Room Kitchen
Bedroom 1 Dining Room
Master
Den
Bedroom
OK
Assign to Calendar
Winter Spring
Dec Jan Feb Mar Apr May
June July Aug Sep Oct Nov
Summer Fall
Cancel Done
