3B Sientific U17450 Instruction Sheet

3B SCIENTIFIC® PHYSICS 3B SCIENTIFIC 3B SCIENTIFIC 3B SCIENTIFIC 3B SCIENTIFIC
U17450
Analog Multimeter with Zero-point Center/Left
Instruction Sheet
10/04 MC/ALF
3
2
4
1
Handheld meter for current and
voltage measurement.
1. Safety instructions
• Before using the analog multime-
ter, make sure you read the oper-
ating instructions carefully and
that you comply with them com-
pletely.
• The safety of the multimeter and
the person operating it can only
be guaranteed if it is used in ac-
cordance with the instructions. Do
not operate or handle this unit
incorrectly or inappropriately.
• The device may only be used by
persons, who are aware of the haz-
ards of contact (for voltages over
30 V rms) and can undertake the
appropriate safety precautions.
This also includes the appearance
PHYSICS PHYSICS PHYSICS PHYSICS

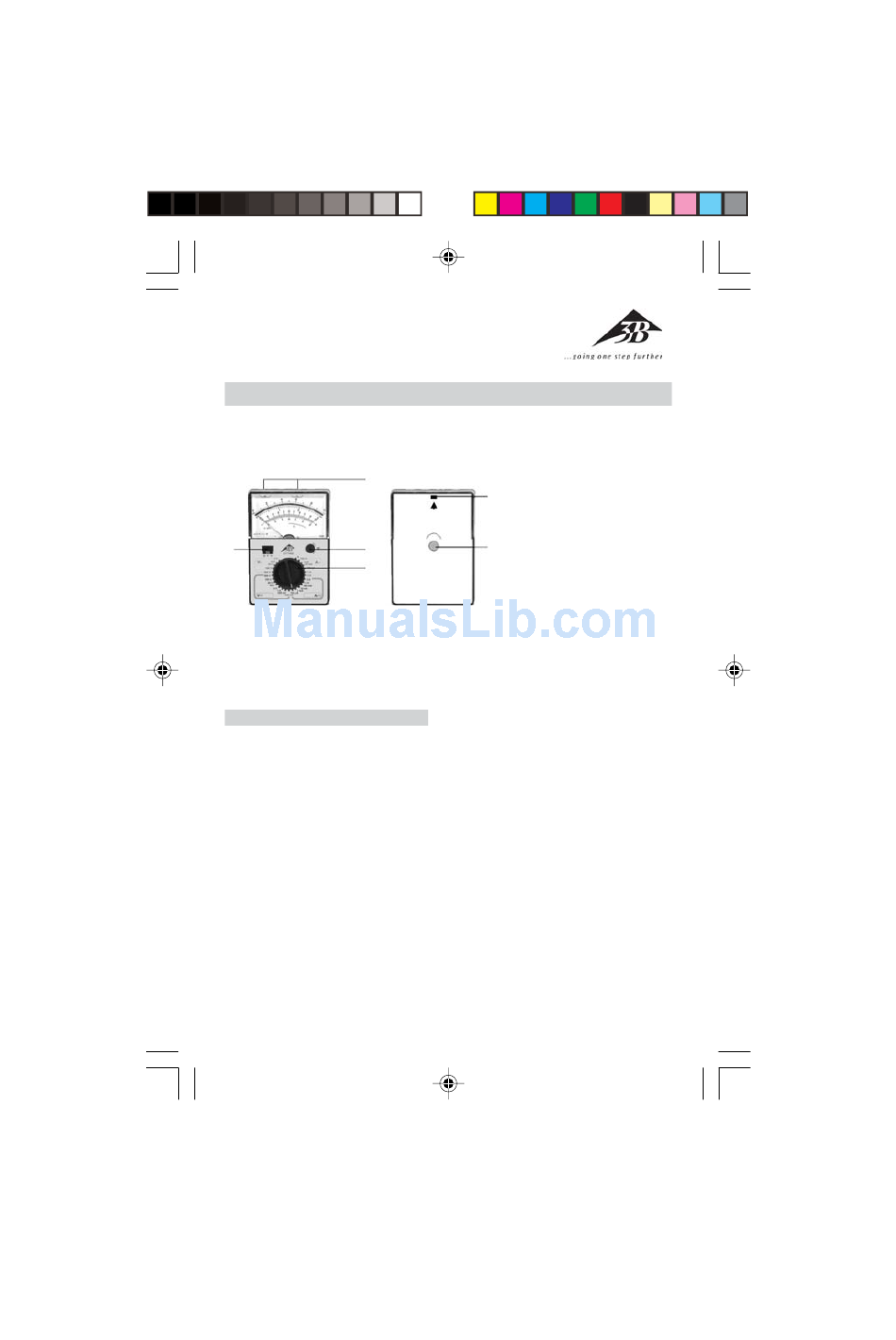

1 Rotary switch to select the
measurement range
2 Rotary knob to set the
6
electrical zero-point in the
center of the scale
3 Safety connection sockets
5
4 Slide switch to select the
operating mode
5 Adjustment screw to set the
zero-point mechanically
6 Nub to latch the housing
shut
of unforeseen voltages e.g. in de-
fective units or charged capacitors.
• In the case of voltage and current
measurements the nominal volt-
age between the phase and neu-
tral conductor may not exceed 300
V according to CAT II (in circuits
that are directly connected to the
mains) and CAT III (in building wir-
ing installations) 300 V.
• The analog multimeter may be
used for measurements in circuits
with corona discharge (high volt-
age).
• In measurements involving RF cir-
cuits special care must be taken
due to the existence of dangerous
hybrid voltages.
• The appropriate permissible mea-
surement range may not be ex-
ceeded. Always change from a
higher measurement range to a
6
