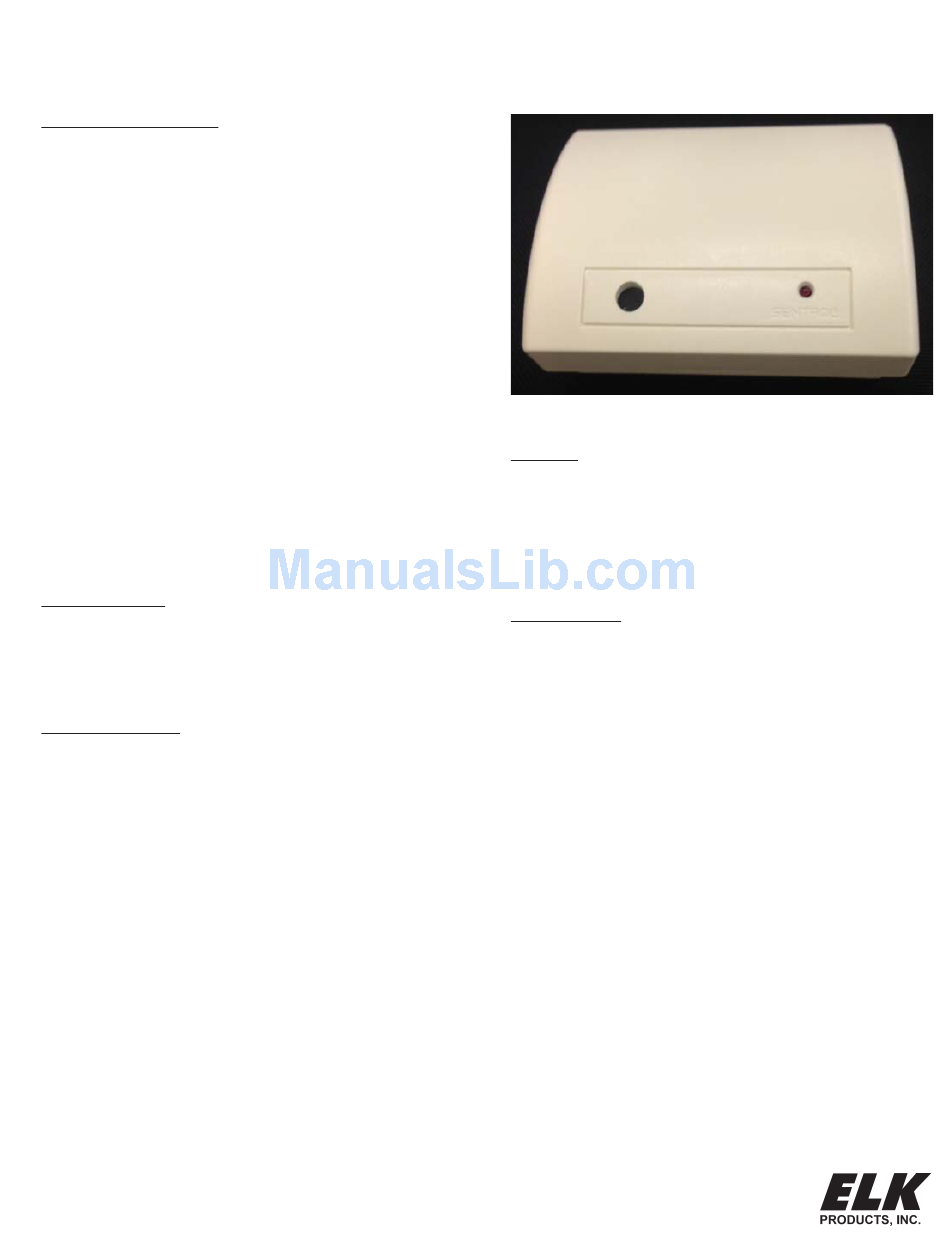

Elk -6040 Installation And Setup Manual

ELK-6040
Wireless Glass Break Sensor
APPLICATION & OVERVIEW

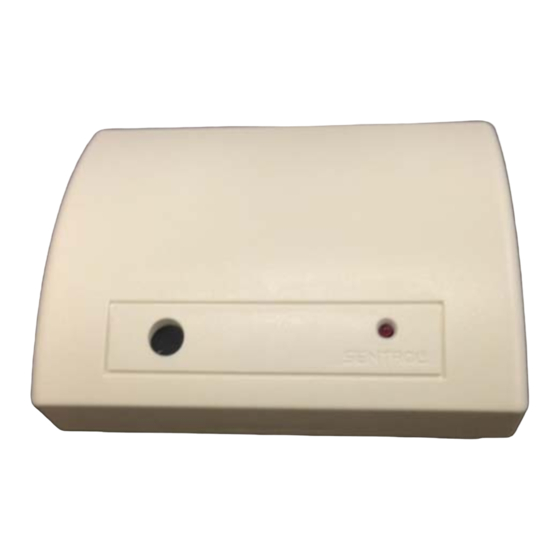

The ELK-6040 Wireless Glass Break Sensor is designed for use with
control/transceivers that accept Elk's two-way technology; such as the
ELK-M1XRFTW. It incorporates many features designed to ensure its
reliable performance.
The 6040 listens for actual patterns of breaking glass across the full
audio band using Pattern Recognition Technology
recognition patterns make it possible to detect the difference between
breaking glass of framed perimeter windows in a building vs. a drinking
glass breaking within a room.
The built-in two-way radio (RF) transmits alarm, supervisory, and low
battery messages to the control/receiver. Each sensor has a unique
TXID number that is enrolled into the control during installation. With its
two-way capability, the sensor listens after every transmission for a
positive acknowledgment from the control. This makes it very energy
efficient since it does not waste energy repeating transmissions unless
they are not acknowledged.
A simple hand clap test feature lets the user confirm that the sensor is
operational. A handheld glass break tester (not supplied) can be used
to place the sensor into range and functional test mode.
The product is suitable for use in quiet occupied areas on a perimeter
defined zone. It is intended for residential indoor dwelling unit applications
and other areas approved by the authority having jurisdiction (AHJ). It
is not intended for use in industrial applications.
ABOUT THIS GUIDE
This Guide describes the installation, operation, and maintenance of this
product. Keep this document in a handy location and refer to it for
answers regarding the products functions or features. Reading this
guide is the only way to learn how to use your product wisely and to
know how to react in the event of an alarm.

PACKAGE CONTENTS

6040 Wireless Glass Break sensor
CR123A Lithium Battery
Mounting Screws and Anchors
Installation Guide
For the latest downloadable version of this manual visit our website: http://www.elkproducts.com
ELK-6040 Glass Break Installation Manual
Installation and Setup Guide
TM
. The factory set

FEATURES

• Pattern Recognition Technology
• Wireless two-way communication
• Operation Alarm LED - RED (viewable from front)
• RF Acknowledge LED - Bi-Color (viewable with cover off)
• Long life Lithium battery {supplied}
• Low battery trouble signal
• Periodic Supervisory check-in

SPECIFICATIONS

• Dimensions: 4.25"W x 3.13"H x 1.70"D
• Sensor: Omni-directional Microphone, 360° Detection Range
• Detection Range: 20 ft. (6m) x 360°
• Min. Distance from Glass: 4 ft. (1.2m)
• Glass Thickness:
• Power: One CR123 3.0 VDC Lithium Bttery
• Quiescent Current: 25 μA (typically)
• Battery Life: 5 years
• RF Frequency: 902 - 928 Mhz channel hopping
• Supervisory check-in interval: ~64 minutes
• Storage temperature: -4 to +140° F (-20 to 60° C)
• Operating Environment: 32° to +120° F (0 to 49° C)
• Relative Humidity: 93% RH (max.), non-condensing
TM Pattern Recognition Technology is a registered trademark of Edwards,
a UTC Fire and Security company.
TM
Plate 3/32 to 1/4 in. (2.4 to 6.4mm)
Tempered 1/8 to 1/4 in. (3.2 to 6.4mm)
Wired 1/4 in. (6.4mm)
Laminated 1/8 to 1/4 in. (3.2 to 6.4mm)
Page 1
