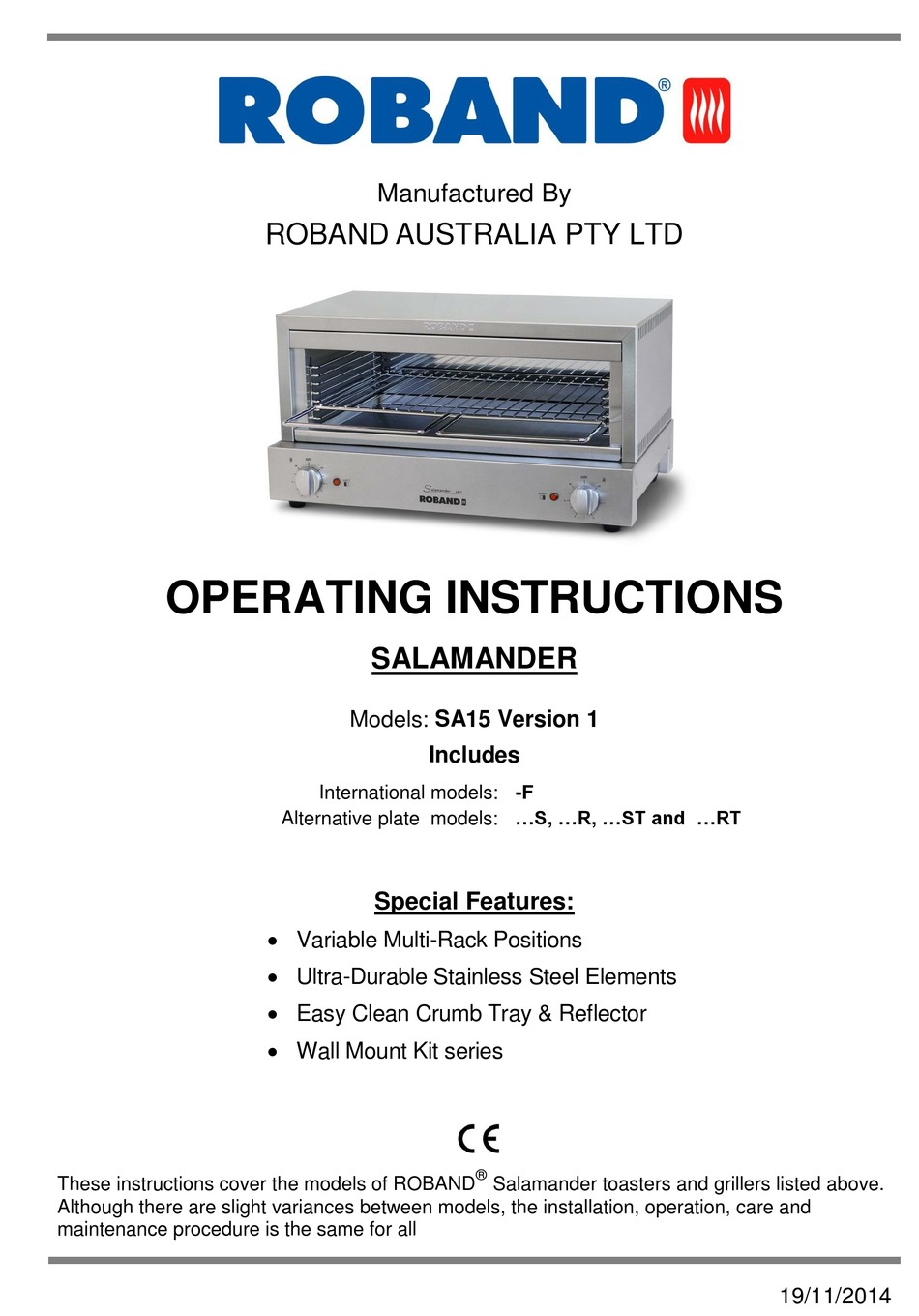

OPERATING INSTRUCTIONS
These instructions cover the models of ROBAND
Although there are slight variances between models, the installation, operation, care and
maintenance procedure is the same for all
Manufactured By
ROBAND AUSTRALIA PTY LTD
SALAMANDER
Models: SA15 Version 1
Includes
International models: -F
Alternative plate models: ...S, ...R, ...ST and ...RT
Special Features:
Variable Multi-Rack Positions
Ultra-Durable Stainless Steel Elements
Easy Clean Crumb Tray & Reflector
Wall Mount Kit series
®
Salamander toasters and grillers listed above.
19/11/2014
Advertisement
Table of Contents
Related Manuals for ROBAND SA15
Summary of Contents for ROBAND SA15
-
Page 1: Operating Instructions
Easy Clean Crumb Tray & Reflector Wall Mount Kit series ® These instructions cover the models of ROBAND Salamander toasters and grillers listed above. Although there are slight variances between models, the installation, operation, care and maintenance procedure is the same for all... - Page 2 Soup/Rice Warmers, Robatherm Urns, ö ® Austheat Fryers, Dipo Induction & Autofry Machines. Roband also has its own line of ® commercial cookware and cutlery under the Robinox brand name. For a complete set of brochures please contact your nearest authorised dealer or contact Roband directly at our head office.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ..................... 1 GENERAL PRECAUTIONS ..................1 PACKAGING ......................2 COMPLIANCE ......................2 INSTALLATION ....................... 3 OPERATION......................4 GENERAL SAFETY ....................5 CLEANING, CARE & MAINTENANCE ..............6 TROUBLESHOOTING ..................... 7 SPECIFICATIONS ....................7 CIRCUIT DIAGRAM....................8 SPARE PARTS LIST ....................9 APPENDIX A ...................... -
Page 4: Introduction
Toaster, and ensure that any risk to unwary customers or staff is minimised with additional signage if necessary. Due to the obvious heat hazard Roband recommends that these units be kept out of reach of children. Do not allow children to play with these units. -
Page 5: Packaging
PACKAGING ® All care is taken when packing and Roband ensures that every unit is functional and undamaged at the time of packaging. The Package should include: One Salamander, Model S15 One cooking rack Wall Mount Kit This manual Packaging Materials... -
Page 6: Installation
Angle SA15 at 45º so that the top tilts backwards and place SA15 onto the Wall Mount Hooks so that the cut-out on the rear of the SA15 back panel mates up with the hook profile. Carefully tilt forward till stand-off plate rests on the wall. -
Page 7: Operation
OPERATION Turn ON the unit by rotating either of the knobs to any position other than OFF. The cooking area of the salamander is divided into left and right halves. An energy regulator individually controls the element on each side. Select the desired heat setting on either or both energy regulators. -
Page 8: General Safety
Ensure that any damaged power cord is replaced before further use. DO NOT place any additional load on SA15 when wall mounted as this may exceed the wall mounts maximum load capacity. Maximum load is 25Kg. Page: 5... -
Page 9: Cleaning, Care & Maintenance
CLEANING, CARE & MAINTENANCE Attention to regular care and maintenance will ensure long and trouble free operation of your Salamander. Ensure the power is off and the salamander is cool before attempting to clean any part of the machine. ... -
Page 10: Troubleshooting
10 of this manual on RCD’S (residual current devices) for a full explanation. Only after all these points have been checked should you call for service. SPECIFICATIONS Model SA15 Power Source ( Volts AC) Power Consumption ( Watts ) 3200 Nominal Dimensions... -
Page 11: Circuit Diagram
CIRCUIT DIAGRAM All Models Note: This circuit diagram has been provided for reference and to assist qualified service and repair agents only. Under no circumstances should persons not suitably qualified attempt repairs to any electrical equipment. Page: 8... -
Page 12: Spare Parts List
ES0264 Pilot Light and Viton O-ring - Amber, 10mm screwed (includes nut) HC0152 Element - 1600W 230V ® MC0846 Knob & Spring - Roband Satin Finish - 6mm 0° MC0888 Rack MC0896 Element Support Bar - 5/16 303 stainless PC0061 Cord Clamp - 15A PC0072 Bush - Ø5/8"... -
Page 13: Appendix A
If you are unable to locate a circuit without an RCD please contact your ® supplier or contact Roband or our Agent for alternative suggestions. Page: 10... -
Page 14: Ec Declaration Of Conformity
Salamander Description Open Front Toaster Date first 1st Sep 2010 Marking SA15 Specific Models Includes export model: -UK, -F STANDARDS: This machine is designed in compliance with Machinery Directive 2006/42/EC Low Voltage Directive 2006/95/EC EMC Directive 89/336/EEC including amendments to 93/68/EEC ... -
Page 15: Warranty
Any repairs or replacement of defective goods or materials pursuant to this warranty, must be authorized by Roband Australia prior to any action being taken. The company reserves the right to reject a claim for warranty if it is not completely satisfied with the circumstances under which it occurred and any other costs incurred for false claims or faults due to incorrect usage etc. - Page 16 OTHER LEADING PRODUCTS AVAILABLE: -PLUS DRINK MIXERS PIE & FOOD WARMERS HIGH PERFORMANCE DEEP FRYERS VITAMIX BLENDERS GRILLMAX TOASTERS NOAW Slicers Manufactured/Imported in Australia by: Authorised Distributor/Agent...
