Page 1: Network Camera

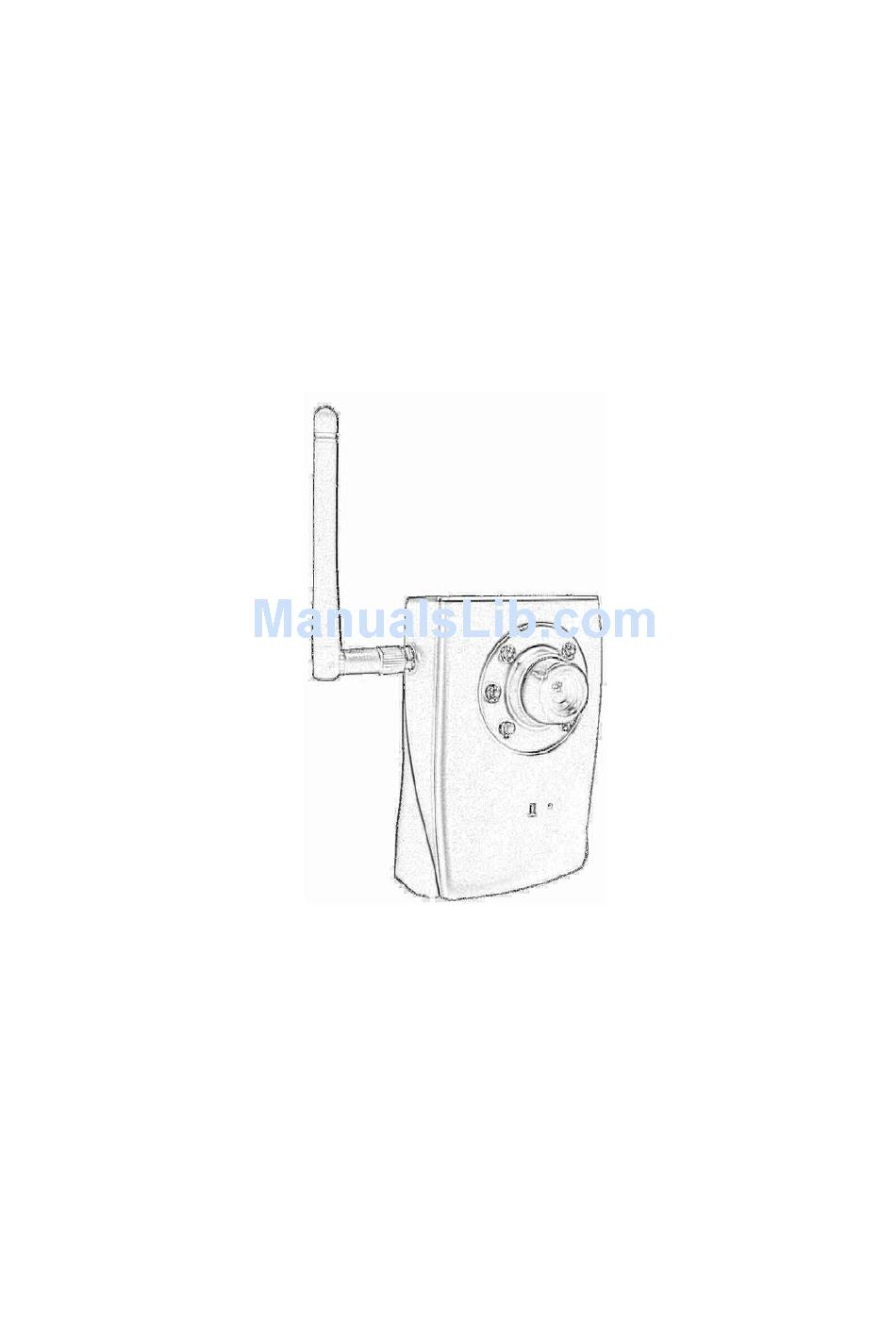

H.264 Cube Mega-Pixel / Multi-Profile Network Camera User’s Manual Firmware Version 5.a.1...
Page 2 Network Camera User’s Guide Owner's Record The model and serial numbers are located at the bottom of device. Record these numbers in the spaces provided below. Refer to these numbers whenever you call upon your dealer regarding this product. Model No. ____________________ Serial No.
Page 3 Network Camera User’s Guide Declaration of Conformity This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 4: Table Of Contents
Network Camera User’s Guide Table of Contents Overview ..........................6 Introduction......................... 6 Features ........................6 Minimum System Requirements................. 7 Package Contents........................ 8 Connections and Outlook....................9 Hardware Installation....................... 11 Preparation ........................13 Search and Set up by IPWizard II................13 Search........................
Page 5 Network Camera User’s Guide IP Filter ..................... 40 IP Notification................... 40 Camera: Adjust Camera parameters..............43 Picture ....................... 43 System: Configure and maintain system............45 System....................... 45 Date & Time....................46 Maintenance....................48 Video: Configure profile ................... 51 Common....................51 Video Profile .....................
Page 6: Overview
Network Camera User’s Guide Overview This user’s guide explains how to operate this camera from a computer. User should read this manual completely and carefully before you operate the device. Introduction This camera is an inexpensive and fully scalable surveillance device. Because the Network Cameras can be plugged into your existing local area network (LAN), you will potentially save thousands of dollars from unnecessary cabling.
Page 7: Minimum System Requirements
Network Camera User’s Guide Two-way audio Intelligent motion detection up to 10 zones Image transmission using an FTP or e-mail for event DDNS and PPPoE Multi-channel control software for surveillance application On-line firmware upgrade 802.3af PoE support (wired model only) Minimum System Requirements Microsoft Internet Explorer 6.0 or later Microsoft Media Player 11.0 or later (to playback recorded file)
Page 8: Package Contents
Network Camera User’s Guide Package Contents User can find the following items in the package: Item Descriptions 1. This Unit is the main element of the product. 2. Camera Stand with screws 3. Detachable WLAN Antenna (for WLAN model only) 4.
Page 9: Connections And Outlook
Network Camera User’s Guide Connections and Outlook DC Power LAN Socket Jack Factory Audio Default Reset Output Jack LAN Socket The LAN socket is a RJ-45 connector for connections to 10Base-T Ethernet or 100Base-TX Fast Ethernet cabling. This Ethernet port built N-Way protocol can detect or negotiate the transmission speed of the network automatically.
Page 10 Network Camera User’s Guide Antenna White-light Connector LEDs Network Microphone Accessing Type LED Antenna Connector In case this Camera is wireless model, there is a connector for SMA type antenna. Microphone The Network Camera has built-in an internal microphone. This microphone is hidden in the pinhole located on the front panel.
Page 11: Hardware Installation
Network Camera User’s Guide Hardware Installation 1. Attach the Camera with the included stand 2. Place the Camera on the table or fix it onto ceiling or wall Use three screws to fix the Network Camera onto the ceiling or wall. You could also put the Network Camera on the table directly.
Page 12: Power Cable
Network Camera User’s Guide Ethernet Cable 4. Connect the external power supply to Camera Connect the attached power adapter to the DC power jack of the Network Camera. Note: Use the power adapter, 12VDC, included in the package and connect it to wall outlet for AC power.
Page 13: Preparation
Network Camera User’s Guide Preparation Search and Set up by IPWizard II When you installed the Camera on a LAN environment, you have two easy ways to search your Cameras by IPWizard II or UPnP™ discovery. Here is the way to execute IPWizard II to discover Camera’s IP address and set up related parameter in a Camera.
Page 14: View
Network Camera User’s Guide View If IPWizard II finds network devices, View button will be available. Please select the device you want to view and click the View button. Then you could see the video from camera directly. Furthermore you could double click the left button of mouse to link to the network device by browser.
Page 15: Lan
Network Camera User’s Guide In case you want to change the IP related parameters of wired interface, please select the device you want to configure and click the LAN button. Relative settings will be carried out as below. You could modify the relative settings of the selected device. Click “<<” button will quit the LAN setting procedure and click “>>”...
Page 16: Wireless
Network Camera User’s Guide In case, you do not want to change username and/or password, then just click “Submit” button to perform your setting accordingly. Click “<<” button will go back to previous page. If you like to change username and/or password of the device, just click the check button. Then, the related fields will show up as below.
Page 17 Network Camera User’s Guide In case you want to change the IP related parameters of wireless interface, please select the device you want to configure and click the WIRELESS button. Relative settings will be carried out as above. Click SSID to select your wireless AP or router and key in WEP or WPA key. Click >>...
Page 18 Network Camera User’s Guide Click OK to confirm these parameters, then IPWizard II will start to configure this camera with specified information. Once this step finished, IPWizard II will prompt you to unplug the Ethernet cable to activate wireless access. Then IPWizard II will prompt you to test wireless setting or finish wireless procedure as below.
Page 19 Network Camera User’s Guide 19/94...
Page 20: Using Upnp Of Windows Xp Or Vista
Network Camera User’s Guide ® Using UPnP of Windows XP or Vista UPnP™ is short for Universal Plug and Play, which is a networking architecture that provides compatibility among networking equipment, software, and peripherals. This device is an UPnP enabled device. If the operating system, Windows XP or Vista, of your PC is UPnP enabled, the Network Camera will be very easy to be found.
Page 21: Install The Device Behind A Nat Router
Network Camera User’s Guide Install the Device behind a NAT Router Once installed, the device is accessible on your LAN. To access the device from the Internet you must configure your broadband router to allow incoming data traffic to the device.
Page 22: Access The Device From The Internet Explorer For The First Time
Network Camera User’s Guide Access the device from the Internet Explorer for the first time Start the web browser on the computer and type the IP address of the Camera you want to monitor as below: The Login Window of the Camera is prompted: Type in your login name and password under “USERNAME”...
Page 23: Logging In As An User
Network Camera User’s Guide According your browser’s security setting, the IE Web Page may prompt the “Security Warning” window. If so, select “Yes” to install and run the ActiveX control into your PC. Otherwise, the system will load the ActiveX silently. After the ActiveX control was installed and ran, the first image will be displayed.
Page 24: Operating The Network Camera
Network Camera User’s Guide Operating the Network Camera Start-up screen will be as follow no matter an ordinary users or an administrator. ActiveX Video Control Profile Streaming Protocol Language Setting Monitor Image Menu Section Client Setting Status Bar 2-Way Audio Full Screen Monitor Image Section The image shot by the device is shown here.
Page 25: Streaming Protocol
Network Camera User’s Guide Streaming Protocol User can select proper streaming protocol according to networking environment. Language The device could provide multiple languages to meet customer’s requirement. 2-Way Audio The device supports 2-way audio function. User can chose to enable or disable this function by toggling the icon below.
Page 26: Digital Zoom
Network Camera User’s Guide Note that this feature only supports on the ActiveX control within Microsfoft® Internet Explorer. On the ActiveX control icon, click the LeftMouseButton, then a menu pop-up. This menu provides features that are unique to the ActiveX control. These features include: •...
Page 27: Record
Network Camera User’s Guide Record Click Record to activate this function. Press Record button to start recording. The video file is saved as ASF format into your local PC. While you want to stop it, press Stop to stop recording. Select Browser, the pop-up window to select the save path and file name prefix, select OK to continue.
Page 28: Voice
Network Camera User’s Guide Click Snapshot to activate this function. Press Snapshot button to take a picture. The image file is saved as JPEG format into your local PC. Select Browser, the pop-up window to select the save path and file name prefix, select OK to continue. If you like to retrieve the saved image, select the file to display the saved image by using any one of graph editing tools.
Page 29: About
Network Camera User’s Guide About Click About to show this ActiveX information. 29/94...
Page 30: Administrating The Device
Network Camera User’s Guide Administrating the Device System Setting This function is only available for user logged into Camera as administrator. Click on each menu name to display its setting page. Item Action Network Configure Network settings such as DHCP, DDNS, 3GPP, PPPoE and UPnP Camera Adjust camera parameters, day &...
Page 31 Network Camera User’s Guide MAC address: Displays the Ethernet MAC address of the device. Note that user can not change it. Obtain IP address automatically (DHCP): DHCP: Stands for Dynamic Host Configuration Protocol. Enable this checked box when a DHCP server is installed on the network to issue IP address assignment.
Page 32: Wireless
Network Camera User’s Guide This port is very useful for Intranet usage. The second HTTP port is changeable. Users could assign the second port number of http protocol, and the WAN users should follow the port number to login. If the http port is not assigned as 80, users have to add the port number in back of IP address.
Page 33 Network Camera User’s Guide Setting (Easy Installation): Provides a 2-step procedure to configure wireless setting: Step 1: Select SSID of wireless router or access point (AP). Step 2: Key in security key of WEP or WPA. Then click “Submit” button to activate wireless setting.
Page 34 Network Camera User’s Guide In case, user wants to configure wireless settings manually, please follow the steps as below: MAC address: Displays the Ethernet MAC address of the WLAN card. Note that user can not change it. Site survey: Click the “Refresh” button. It will refresh information window which list is the result of a network scan.
Page 35: Ddns Service
Network Camera User’s Guide characters for 64-bit WEP and 26 hexadecimal characters for 128-bit WEP. - Web Key 1~4: Key value of WEP. WPA settings: - WPA Key: Key value of WPA. The device uses a pre-shared key (PSK) for key management.
Page 36: Pppoe
Network Camera User’s Guide If your device is connected to xDSL directly, you might need this feature. However, if your device is behind a NAT router, you will not need to enable this feature because your NAT router should take care of this job. As to xDSL environment, most of the users will use dynamic IP addresses.
Page 37 Network Camera User’s Guide PPPoE: Stands for Point to Point Protocol over Ethernet A standard builds on Ethernet and Point-to-Point network protocol. It allows your device with xDSL or cable connects with broadband network directly, then your device can dial up and get a dynamic IP address.
Page 38: Streaming
Network Camera User’s Guide Shows the IP information got from PPPoE server site. Status: Shows the Status of PPPoE connection. Streaming RTSP is a streaming control protocol, and a starting point for negotiating transports such as RTP, multicast and Unicast, and for negotiating codecs. RTSP can be considered a "remote control"...
Page 39: Upnp
Network Camera User’s Guide UPnP UPnP is short for Universal Plug and Play, which is a networking architecture that provides compatibility among networking equipment, software, and peripherals. This device is an UPnP enabled Network Camera. If your operating system is UPnP enabled, the device will automatically be detected and a new icon will be added to “My Network Places.”...
Page 40: Ip Filter
Network Camera User’s Guide Port Range: The port range will open in NAT router. External IP address: Show the IP address and port for WAN access through Internet. If NAT traversal is configured successfully, user can use this IP address and port to access this device. The external IP address is not shown in case NAT traversal function is failed.
Page 41 Network Camera User’s Guide In case the IP address is changed, system is able to send out an email to alert someone if the function is enabled. SMTP Notification (e-mail): If enable this function, then the “Send to“ and “Subject” fields need to be filled. Send To: Type the receiver’s e-mail address.
Page 42 Network Camera User’s Guide Message: The message will be sent to FTP server. HTTP Notification: If enable this function, then the fields below need to be filled. URL: Type the server name or the IP address of the HTTP server. HTTP Login name: Type the user name for the HTTP server.
Page 43: Camera: Adjust Camera Parameters
Network Camera User’s Guide Camera : Adjust Camera parameters Use this menu to set the functions of the camera parameters of the device. Picture Rotation: Turn the “Mirror” and “Vertical Flip” On or OFF. The image will be overturned as below. 43/94...
Page 44 Network Camera User’s Guide White Balance: Auto: will adjust the white balance automatically. Hold: will hold the white balance. Exposure Control: Auto: will adjust the internal gain automatically. Hold: will hold the internal gain. Maximum Exposure Time: User can limit the maximum exposure time of the image sensor. The larger value means longer exposure time possibly.
Page 45: System: Configure And Maintain System
Network Camera User’s Guide System : Configure and maintain system Use this menu to perform the principal settings of the device. System DIPS (Dynamic IP Service): To enable or disable the DIPS® (Dynamic IP Service) function. Device ID (for DIPS): It’s a unique number of each device for identification and this ID is used for DIPS.
Page 46: Date & Time
Network Camera User’s Guide (4) Visiting our company’s web site, you can find DIPS service page as below: Enter your Device Number and press “OK” button. Then, a new web page will pop up and link to your device accordingly. You will see that DIPS is a much easier service than DDNS.
Page 47 Network Camera User’s Guide Server Date & Time: Displays the date and time of the device. PC Time: Displays the date and time of the connected PC. Adjust: - Synchronize with PC: Click this option to enable time synchronization with PC time. - Manual setting: Click this option to set time and date manually.
Page 48: Maintenance
Network Camera User’s Guide Maintenance Hard Factory Default (Include the network setting): Recall the device hard factory default settings. Note that click this button will reset all device’s parameters to the factory settings (including the IP address). Factory Default (Except the network setting): The unit is restarted and most current settings are reset to factory default values.
Page 49 Network Camera User’s Guide Firmware Upgrade: The device supports new firmware upgrade (the software that controls the operation in the device). Please contact your dealer for the latest version if necessary. Download the latest firmware file from our website or your dealer. Unzip this firmware file to binary file and store it into your PC.
Page 50 Network Camera User’s Guide Warning!!! The download firmware procedure can not be interrupted. If the power and/or network connection are broken during the download procedure, it might possibly cause serious damage to the device. Strongly suggest that DO NOT upgrade firmware via Wireless LAN due to high error rate possibly and don't allow any other clients to access this unit during updating procedure.
Page 51: Video: Configure Profile
Network Camera User’s Guide Video : Configure profile This device provides 2 modes of video profile. The first one is Mega-pixel mode which supports video resolution up to Mega-pixel. However the maximum frame rate of this mode is up to 15fps only. The second one is VGA mode which supports video resolution up to VGA but frame rate can be up to 30fps.
Page 52 Network Camera User’s Guide Video Type: Video codec of the selected video profile. Resolution: Resolution of the selected video profile. Rate Control: Defines the rate control method of this profile. There are two options: Constant Bit Rate (CBR) or Variable Bit Rate (VBR). For CBR, the video bit rate is between low to high bandwidth based on different resolutions.
Page 53 Network Camera User’s Guide IP address and port for multicast audio streaming of the selected profile. Always Enable Multicast: Multicast streaming is always enabled or by request. 53/94...
Page 54: Audio: Audio Parameters
Network Camera User’s Guide Audio : Audio parameters Audio: To enable or disable audio function Audio Mode: To select Simplex or Full duplex (2-way audio) mode Input Gain: To adjust gain of input audio Output Gain: To adjust gain of output audio 54/94...
Page 55: User: Manage User Name, Password And Login Privilege
Network Camera User’s Guide User : Manage user name, password and login privilege Use this menu to add, update, or remove the usernames and passwords of the Administrator and viewer. Viewer login: Select “Anonymous” to allow any one viewing the video once connected. Otherwise, only users in database can view the video after login.
Page 56: E-Mail: Setup E-Mail Configuration
Network Camera User’s Guide E-Mail : Setup E-Mail configuration You may setup SMTP mail parameters for further operation of Event Schedule. That’s, if users want to send the alarm message out, it will need to configure parameters here and also add at least one event schedule to enable event triggering. SMTP Server: Type the SMTP server name or the IP address of the SMTP server.
Page 57 Network Camera User’s Guide E-mail From: Type the sender’s E-mail address. This address is used for reply e-mails. E-mail Subject: Type the subject/title of the e-mail. 57/94...
Page 58: Object Detection: Setup Object Detection
Network Camera User’s Guide Object detection : Setup Object detection Use this menu to specify motion detection window 1 to window 10 and set the conditions for detection while observing a captured image. Add and Del: To add or delete the motion windows. User can specify up to 4 Included and/or Excluded windows to monitor the video captured by this device.
Page 59: Storage: Status And Configuration Of Sd Card
Network Camera User’s Guide Storage : Status and configuration of SD card This page shows the status of attached SD card. You may setup related parameters to manage the attached SD card also. Enable automatic disk cleanup: Delete old recorded files while the conditions are reached as below. Remove recordings order than: Delete old files by days.
Page 60: Recording List: Files List Inside The Sd Card
Network Camera User’s Guide Recording List : Files list inside the SD Card This page shows the files list information. User may play or delete the selected file. 60/94...
Page 61: Event Server: Setup Ftp/Tcp/Http/Samba Server Configuration
Network Camera User’s Guide Event Server : Setup FTP/TCP/HTTP/SAMBA server configuration FTP Server You may setup FTP parameters for further operation of Event Schedule. That’s, if users want to send the alarm message to an FTP server, it will need to configure parameters here and also add at least one event schedule to enable event triggering as SMTP.
Page 62: Tcp Server
Network Camera User’s Guide FTP Path: Set working directory path of FTP server. FTP Passive Mode: Select passive or active mode connecting to FTP server. TCP Server In addition to send video file to FTP server, the device also can send event message to specified TCP server.
Page 63 Network Camera User’s Guide Name: User can specify multiple HTTP servers as wish. Therefore, user needs to specify a name for each HTTP server setting. URL: Type the server name or the IP address of the HTTP server. Test: Check the HTTP server whether it is available or not. HTTP Login name: Type the user name for the HTTP server.
Page 64: Samba Server
Network Camera User’s Guide SAMBA Server The device also can send video stream to specified SAMBA server. Name: User can specify multiple HTTP servers as wish. Therefore, user needs to specify a name for each HTTP server setting. SAMBA Server: Type the server name or the IP address of the SAMBA server.
Page 65: Event Schedule: Configure The Event Schedule
Network Camera User’s Guide Event Schedule : Configure the event schedule Setting This menu is used to specify the schedule of Event or Schedule Trigger and activate the some actions provided by this device. Where the Schedule Trigger will be activated by user-define interval without event happened.
Page 66 Network Camera User’s Guide Example 1: Send file to FTP server by motion triggered always: Select event trigger Enable time: start from 00:00 to 24:00 every day Trigger by: Motion Area (Added in Object Detection page) Action : Send FTP (Add in Event Server -> FTP Server page) Example 2: Send file to E-Mail server by motion triggered from Friday 18:00 to Saturday 06:00...
Page 67 Network Camera User’s Guide Example 3: Enable Voice Alert every 10-minute during 18:00 to 24:00 from Monday to Friday. Type: Select schedule trigger and interval is 10-minute. Enable time: Select Monday to Friday, and set start time from 18:00 and keep work in 6 hous.
Page 68: Record
Network Camera User’s Guide Record User can choose the type of record file for event or schedule application. Record File Type: Choose AVI or JPEG file format. Record File Prefix: Define the prefix of recorded filename. JPEG Picture Numbers: Define the picture numbers of JPEG to be sent out. 68/94...
Page 69: Appendix A: Restore Factory Default Settings
Network Camera User’s Guide Appendix A: Restore Factory Default Settings There is a button hidden in the pinhole near to the DC power connector. This button is used to restore the all factory default settings. Sometimes restarting the device will make the system back to a normal state.
Page 70: Appendix B: Troubleshooting & Frequently Asked Questions
Network Camera User’s Guide Appendix B: Troubleshooting & Frequently Asked Questions Question Answer or Resolution Features The video and audio The device utilizes H.264, MPEG4 and JPEG triple codec is adopted in the compression to providing high quality images. Where H.264 device.
Page 71 Network Camera User’s Guide holding down more than 3 seconds on the device. 2. Reconfigure the device. Forgot the IP address of Check IP address of device by using the IPWizard II program the device. or by UPnP discovery. IPWizard II program •...
Page 72 Network Camera User’s Guide on the LAN. • Make sure the http port used by the Network Camera, default=80, is forward to the Network Camera’s private IP address. • The port number assigned in your Network Camera might not be available via Internet. Check your ISP for available port.
Page 73 Network Camera User’s Guide but not externally. Internet firewall with your system or network administrator. The firewall may need to have some settings changed in order for the device to be accessible outside your LAN. • Make sure that the device isn’t conflicting with any other web server running on your LAN.
Page 74 Network Camera User’s Guide Image flickers. • Wrong power line frequency makes images flicker. Make sure the 50 or 60Hz format of your device. • If the object is dark, the image will flicker. Make the condition around the Camera brighter. The video images might be noisy if the device is located in a Noisy images occur.
Page 75: Appendix C: Ping Ip Address
Network Camera User’s Guide Appendix C: PING IP Address The PING (stands for Packet Internet Groper) command is used to detect whether a specific IP address is accessible by sending a packet to the specific address and waiting for a reply. It’s also a very useful tool to confirm the device installed or if the IP address conflicts with any other devices over the network.
Page 76: Appendix D: Bandwidth Estimation
Network Camera User’s Guide Appendix D: Bandwidth Estimation The frame rate of video transmitted from the device depends on connection bandwidth between client and server, video resolution, codec type, and quality setting of server. Here is a guideline to help you roughly estimate the bandwidth requirements form your device.
Page 77: Appendix E: Specifications
Network Camera User’s Guide Appendix E: Specifications Camera Image Device 1.3 Mega-pixel image sensor Effective Pixels 1280 x 1024 pixels Sensitivity 1.0V/lux-sec (550nm) Signal to Noise 44dB Lens f:4.3mm / F:1.8 IP Module Video H.264, MPEG4 and Motion JPEG simultaneously (Tri-encoders) Video Encoder 11 profiles simultaneously - H.264 SXGA/ VGA / QVGA / QQVGA...
Page 78 Network Camera User’s Guide Motion Detection 10-zone video motion detection File upload via FTP, SAMBA or email Notification via email, HTTP, and TCP Alarm Events External output activation Go to PTZ preset position Audio alerting output Video Buffer Pre- and post- alarm buffering General 128MB Power Supply...
Page 79: Appendix F: Configure Port Forwarding Manually
Network Camera User’s Guide Appendix F: Configure Port Forwarding Manually The device can be used with a router. If the device wants to be accessed from the WAN, its IP address needs to be setup as fixed IP address, also the port forwarding or Virtual Server function of router needs to be setup.
Page 80 Network Camera User’s Guide Your WAN IP Address will be listed here. Note: Because a dynamic WAN IP can change from time to time depending on your ISP, you may want to obtain a Static IP address from your ISP. A Static IP address is a fixed IP address that will not change over time and will be more convenient for you to use to access your camera from a remote location.
Page 81 Network Camera User’s Guide If you are using the default camera port settings, enter 80 into the Public and • Private Port section, click Apply. Scheduling should be set to Always so that the camera images can be accessed • at any time.
Page 82: Appendix G: Ddns Application
Network Camera User’s Guide Appendix G: DDNS Application 1. Preface If you have a Cable modem or xDSL, this is a great way to host your own Networked Device or other TCP/IP Service. Get your own domain like www.yourname.com, www.yourname.com.tw etc. (Note: This domain must be registered with Internic via registration authorities such as Network Solutions, DirectNIC, Register.com etc).
Page 83 Network Camera User’s Guide (3). After the columns show up at the left side, click “Create Account”. (4). Fill the application agreement and necessary information. a. Username b. E-mail address and confirmation c. Password and confirmation 83/94...
Page 84 Network Camera User’s Guide d. Submit all the input information and finish creating an account Click these two options 84/94...
Page 85 Network Camera User’s Guide (5). Check your e-mail mailbox. There will be an e-mail with a title “Your DynDNS Account Information“. Click the hyperlink address to confirm the DDNS service that you just applied. Then DDNS you applied activated. Click to confirm (6).
Page 86 Network Camera User’s Guide Input your account (7). If the correct username and password are input, you can see the following picture at the top-right of the login page. (8). Click the “Services”. (9). Click the “ Dynamic DNS ”. 86/94...
Page 87 Network Camera User’s Guide (10). Click the “Get Started”. (11). We could create a domain name without any charge at this step. First, we input the host name. (Pink No.1) Then we pick a domain that is easy to remember. (Pink No.2) The 3 step is to click “Offline Hostname”...
Page 88 Network Camera User’s Guide 4. Setup the DDNS and PPPoE of Networked Device At last, users have to enter the web page of Networked Device and setup the necessary information of DDNS and PPPoE after the application of DDNS service. Please check the user manual to access the DDNS and PPPoE pages.
Page 89: Appendix H: Power Line Frequency
Network Camera User’s Guide Appendix H: Power Line Frequency COUNTRY VOLTAGE FREQUENCY COMMENTS *Neutral and line wires are reversed from that used in Argentina 220V 50 Hz Australia and elsewhere. *Outlets typically controlled by adjacent switch. Australia 230V* 50 Hz Though nominal voltage has been officially changed to 230V, 240V is within tolerances and commonly found.
Page 90: Appendix I: 3Gpp
Network Camera User’s Guide Appendix I: 3GPP To use the 3GPP function, in addition to previous section, you might need more information or configuration to make this function work. Note that to use the 3GPP function, it strongly recommends to install the Networked Device with a public and fixed IP address without any firewall protection.
Page 91: Appendix J: Enable Upnp Of Windows Xp
Network Camera User’s Guide Appendix J: Enable UPnP of Windows XP Use the following steps to enable UPnP settings only if your operating system of PC is running Windows XP. Go to Start > Settings. Click Control Panel 91/94...
Page 92 Network Camera User’s Guide Click Add or Remove Programs Click Add/Remove Windows Components The following screen will appear: Select Networking Services 92/94...
Page 93 Network Camera User’s Guide Click Details Select Universal Plug and Play Click Ok 93/94...
Page 94 Network Camera User’s Guide Click Next Please wait while Setup configures the components. Click Finish 94/94...
