CH-1109TXC & RXC HDMI to CAT5e/CAT6 with LAN/PoE/IR Extender Operation Manual Operation Manual... -
Page 2: Revision History
PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 3: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......1 5. Features ............ 2 6. Operation Controls and Functions ..3 6.1 Transmitter ..........3 6.2 Receiver ..........4 6.3 D-Sub 9 Pin Definitions ......5 7. -
Page 4: Introduction

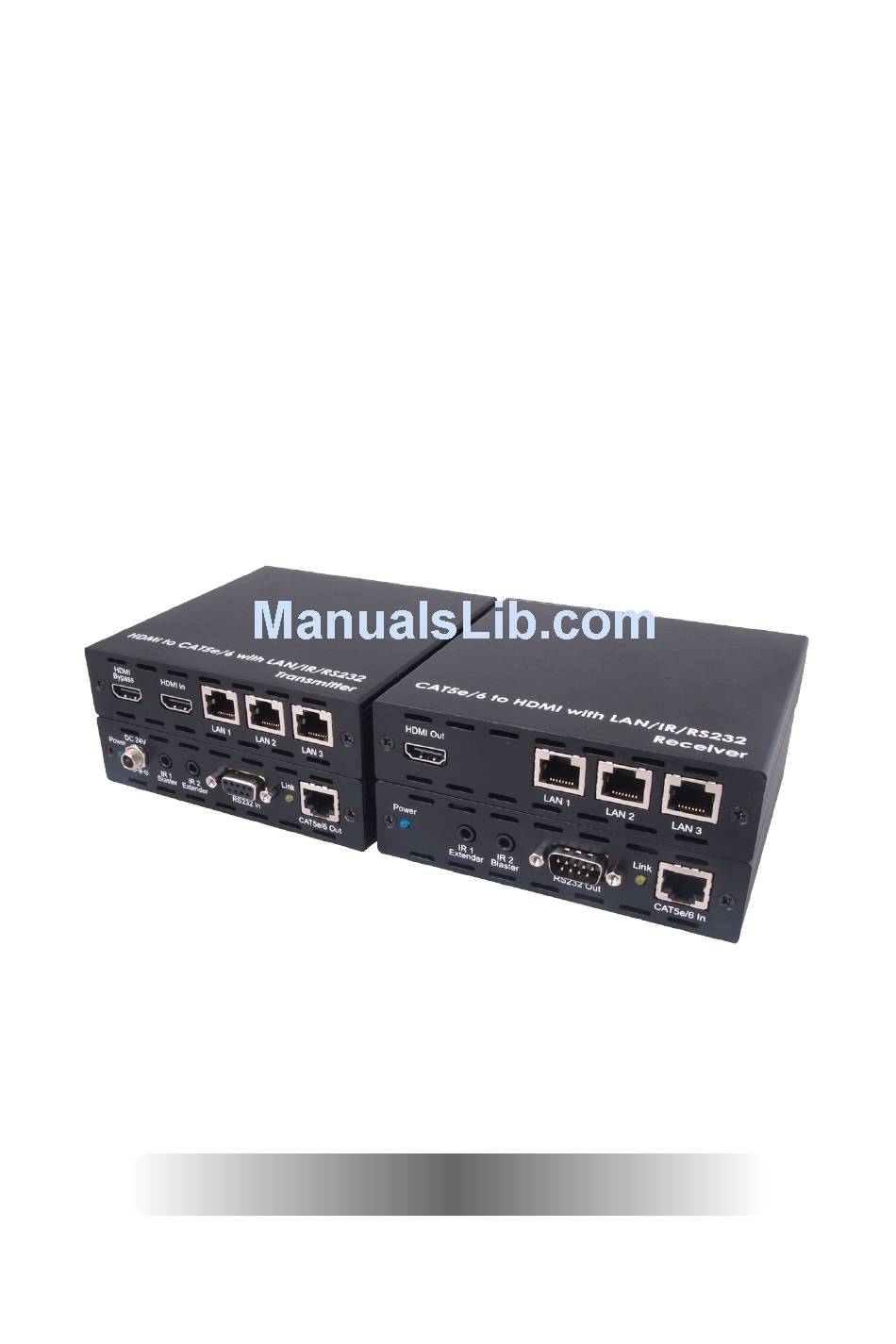

1. INTRODUCTION The device that can make your home or office more efficient, the CH-1109TXC & RXC is capable of sending HDMI (uncompressed audio/video), 3 Ethernet connections and control ports (through the built-in RS-232 and IR ports) over a single CAT5e/CAT6 up to a distance of 100m (300 ft.). -
Page 5: Features
5. FEATURES • HDMI 1.4 compliant with 3D formats and 4k/2k resolution support • Supports CEC bypass function • Simultaneous transmission of uncompressed video and audio (1080p@60Hz/-Deep Color) over a single CAT5e/CAT6 type cable for up to 100 m (300 ft.). NOTE: Tested with CAT-6E/23AWG cables, using cables of another specification may result in a different operating distance. -
Page 6: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Rear Front DC 24V HDMI HDMI In Bypass Power Link IR 1 IR 2 Blaster Extender RS232 In LAN 1 LAN 2 LAN 3 CAT5e/6 Out Power LED The red LED will illuminate when the 24 V DC Adaptor is connected to the AC outlet. -
Page 7: Receiver
NOTE: When the HDMI bypass is connected, no signals will be transmitted to the receiver side. Therefore, unplug this connection after confirming that the correct image is displayed HDMI In Connect to the HDMI equipped source equipment such as DVD or Blu-ray player. -
Page 8: D-Sub 9 Pin Definitions
CAT5e/6 IN Connect the transmitter and receiver via a single CAT5e/6 type cable for all data transmission. HDMI Out Connect to a HDMI equipped TV or monitor to display the HDMI input source signal. LAN 1/2/3 The LAN connections can be used to connect and share up to 6 ethernet connections (3 at the reciver end, 3 at the transmitter end), including computers, routers and media servers. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM PC with RS232 Control Blu-ray/DVD Player Modem/Router HDMI HDMI In Bypass Media Server LAN 1 LAN 2 LAN 3 DC 24V Power Link Transmitter IR 1 IR 2 Blaster Extender RS232 In CAT5e/6 Out Single CAT5e/6 Cable RS232 Controlled Device Receiver... -
Page 10: Specifications
8. SPECIFICATIONS Maximum Data Rate 10.2 Gbps Resolution Range Deep Color Ethernet Speed 100 Mbps Transmitter Input 1 × HDMI , 3 × Ethernet, 1 × RS-232, 1 × IR Extender Output 1 × CAT5e/6, 1 × HDMI Bypass, 1 × IR Blaster Receiver Input 1 ×... -
Page 11: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT6 Category 6 Cable HDMI High Definition Multimedia Interface...
