Summary of Contents for Southwestern Microsystems Music-In-A-Flash

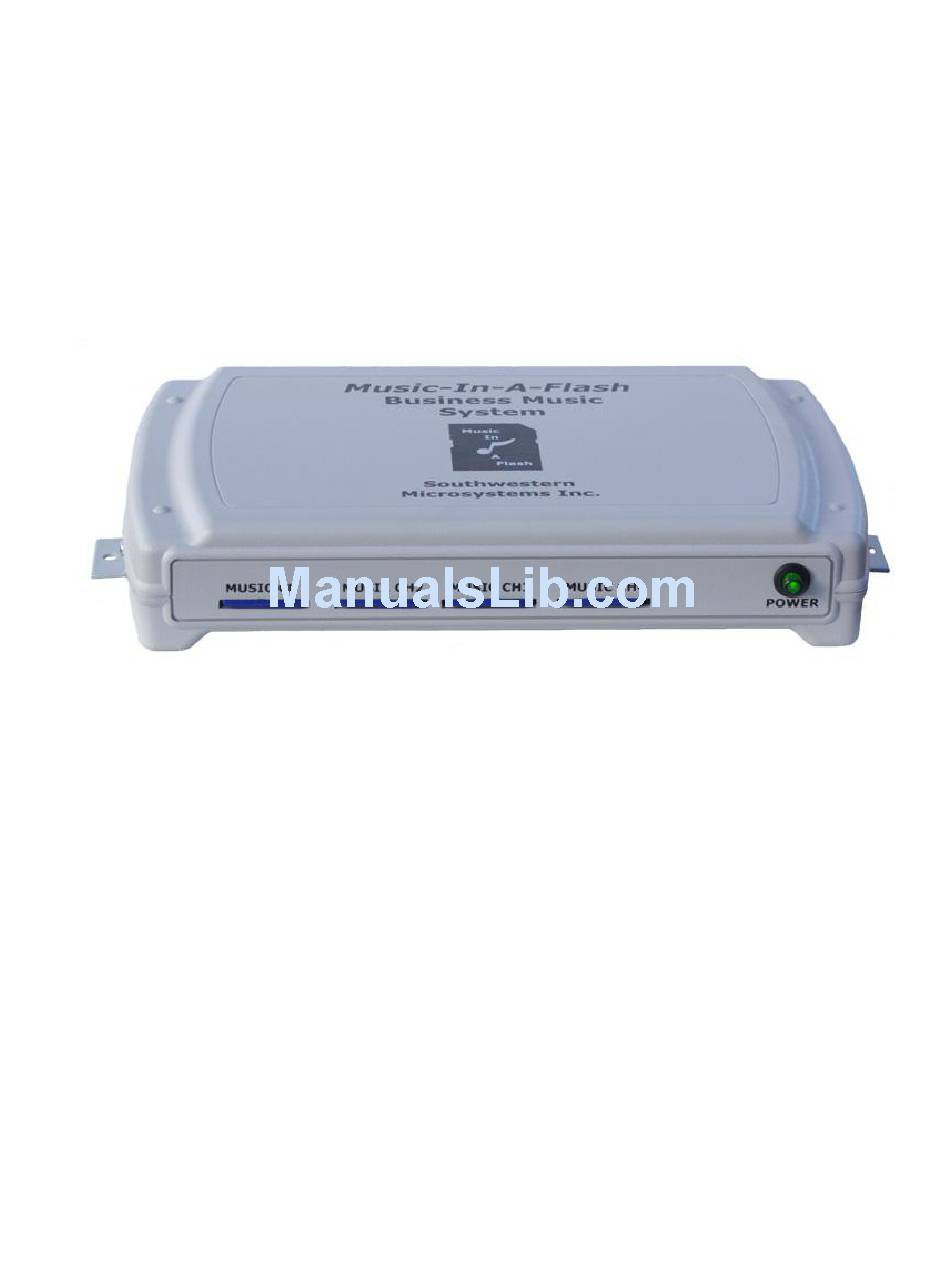

- Page 1 Music-In-A-Flash™ MP3 Music System Installation and Operations Manual Model: MD-MIAF4 Copyright © 2013 Southwestern Microsystems Inc. All rights reserved. Revision: K Dated: 09/01/2013...
-
Page 2: Table Of Contents
Thank you for purchasing the Music-In-A-Flash™ MP3 Music System. This music system has been designed to meet the demands of the home & business music markets by offering a simple to use and reliable system. Please take a few moments to read through this document and familiarize yourself with the installation and operation of your new Music-In-A-Flash™... -
Page 3: Section 1 - Installation Of Music-In-A-Flash Player
Mounting the player(s) on a wall: o The Music-in-a-Flash would need to be placed on a shelf, if a wall mount is desired, as the wall mounting brackets are no longer offered as shown on the picture below. -
Page 4: Section 2 - Connection To Ads Model 8X10 Primary Base Unit
Unit. This ensures there are no blank channels when your customer is stepping through the channels. o If you are going to use only 1 Music-in-a-Flash™ in your installation then: Connect supplied “Y” splitters to the output jacks on the Music-In-A- Flash™... - Page 5 Music-in-a-Flash & ADS Primary Control Unit – Audio Source Connection Diagram Page 5 of 9 Copyright 2013 Southwestern Microsystems Inc. All rights reserved.
-
Page 6: Section 3 - System Operation
(Bulk Rename Utility) available on our website (www.swmicrosystems.com) to automate file “renumbering”. A program link is available on the Music-in-a-Flash page which is available via the Technical Information / Music-in-a-Flash drop down menus. Need any help, please contact us. If a SD card has to be changed, the channel’s SD card can be simply ejected and changed without powering down the player. - Page 7 Inserting/Removing the SD cards: o The Music-In-A-Flash player utilizes a SD socket which is a “push-push” design similar to many cameras. To insert SD card, contacts must be facing down along front edge of card (SD card label should be visible).
-
Page 8: Section 4 - Music Sources
As previously stated, the Music-In-A-Flash™ MP3 Music System utilizes ONLY MP3 formatted music as the source of music. There are basically 3 ways to acquire music for the Music-In-A-Flash™ MP3 Music System. Option 1: MP3 Song Downloading - is the simplest by which the MP3 song files are downloaded from a provider’s website to your hard drive then copied on to the SD... -
Page 9: Section 5 - System Warranty
Microsystems reserves the rights to reject a warranty claim if any of the previously listed conditions are present at time of warranty request. In the event the Music-In-A-Flash™ MP3 Music System is out of warranty, we charge a flat rate of $50 to repair the unit. Shipping charges are not included in repair charge.
