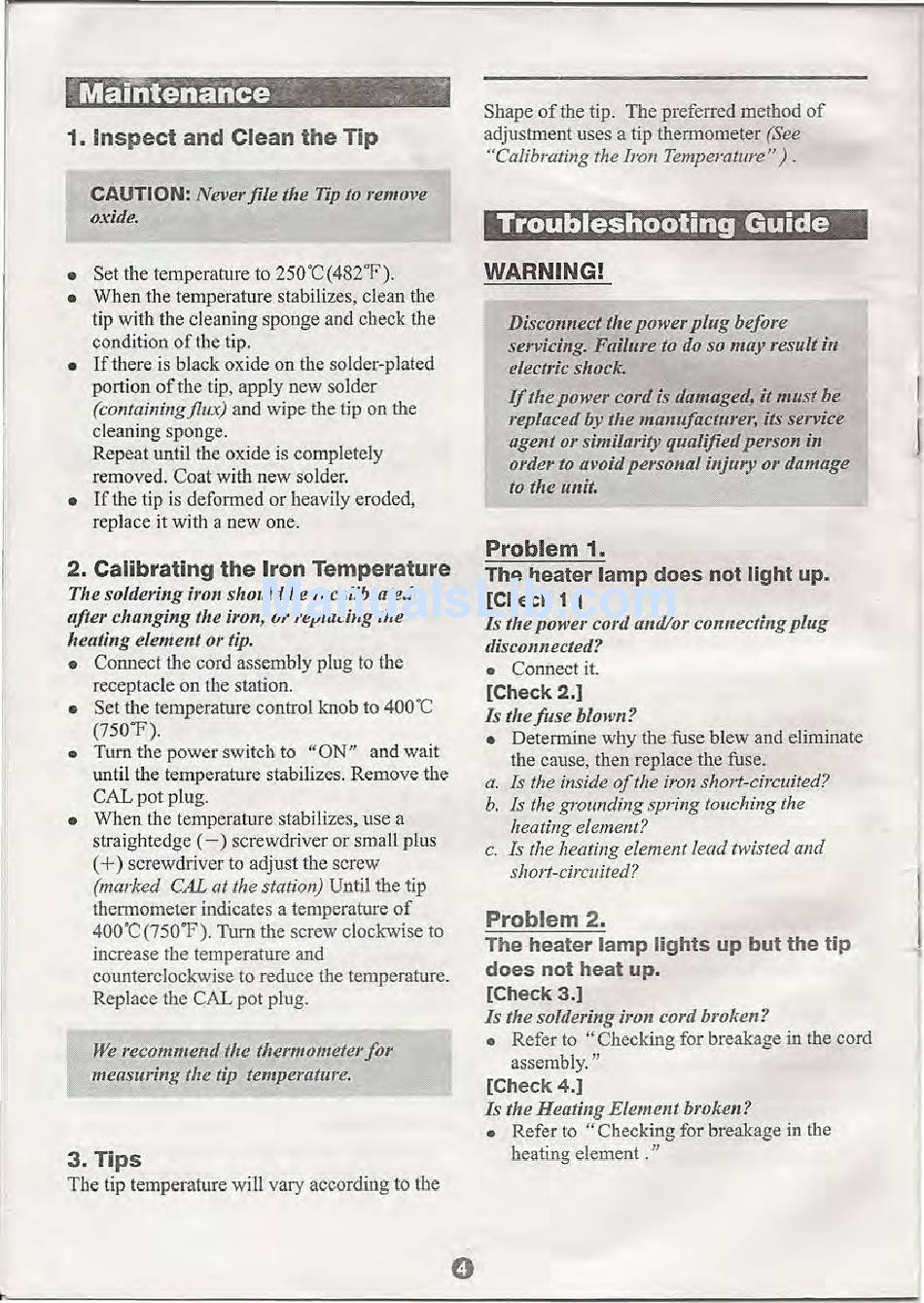

1.
Inspect
and Clean the
Tip
CAUTION:
Never file the Tip to remove
oxide.
•
Set the temperature to 250'C(482"F).
•
When
the
temperature
stabilizes,
clean the
tip with the cleaning sponge and check
the
condition
of the tip.
•
If
there is black oxide on
the solder-plated
portion of
the tip, apply new solder
(containing flux)
and
wipe the tip
on
the
cleaning sponge.
Repeat until
the oxide is completely
removed. Coat with new solder.
•
If
the tip
is
deformed or
heavily
eroded,
replace it with
a
new one.
2.
Calibrating the Iron Temperature
The soldering iron should
be
recalibrated
after changing
the
iron,
or replacing the
heating element
or tip.
•
Connect
the
cord
assembly plug to the
receptacle on
the
station.
•
Set
the temperature control
knob
to 400'C
(750·F).
.
•
Turn the power switch to
"ON"
and wait
until the
temperature stabilizes.
Remove
the
CAL pot plug.
•
When the temperature
stabilizes,
use a
straightedge
(
-) screwdriver or
small plus
(+)
screwdriver to adjust
the screw
(marked CAL
at
the
station)
Until the tip
thermometer indicates a temperature of
400·C(750·F).
Turn the
screw
clockwise to
increase
the
temperature and
counterclockwise
to reduce
the temperature.
Replace the CAL pot plug.
3. Tips
The
tip
temperature
will
vary
according to the
h
Shape
of
the
tip. The
preferred method of
adjustment uses
a
tip thermometer
(See
"Calibrating the Iron
Temperature").
WARNING!
Disconnect
the
power
plug before
servicing.
Failure to
do
so
may result
ill
electric
shock.
If the power cord is damaged,
it
must
be
replaced by the manufacturer,
its service
agent or similarity qualified person in
order to avoid personal injury
or damage
to the unit.
Problem 1.
The heater lamp does not light
up.
[Check
1.]
Is the power cord and/or
connecting
plug
disconnected?
•
Connect
it.
[Check 2.]
Is the fuse blown?
. .
•
Determine why the
fuse
blew and eliminate
the
cause,
then replace
the
fuse.
a.
1~
the
inside of the
iron short-circuited?
b. Is the
grounding
spring
touching the
heating
element?
c.
Is
the
heating
element
lead
twisted
and
short-circuited?
Problem
2.
The heater lamp lights up but the
tip
does not heat
up.
[Check
3.]
Is the soldering iron cord
broken?
•
Refer to "Checking for
breakage in
the
cord
assembly."
[Check
4.]
Is the
Heating
Element broken?
•
Refer to "Checking
for
breakage in the
heating
element."
o
