Please read these instructions and watch the Installation Video before you proceed with the
installation of the PC-IRS5-01. Installation Video:
The PC-IRS5-01 Infrared Receiver (IRS5) is a custom designed and manufactured device that
provides the Computer User or Builder with the following unique features:
It will function on any motherboard running Windows or Linux operating systems with
native eHome drivers. No driver downloads are needed.
It will start up and shutdown the computer from the Off, Hibernate or Sleep states
It controls such applications as Media Center and XBMC with any RC6 Remote
It mounts inside the computer case and can be used in a line-of-sight application or an
IR extender can be added to allow the computer case to be located anywhere and still
allow complete user control.
Description of the IRS5 components
The basic product comes with the IRS5 control board, 3 internal cables, 1 external cable with a
5 volt adapter and a mounting bracket with hardware.

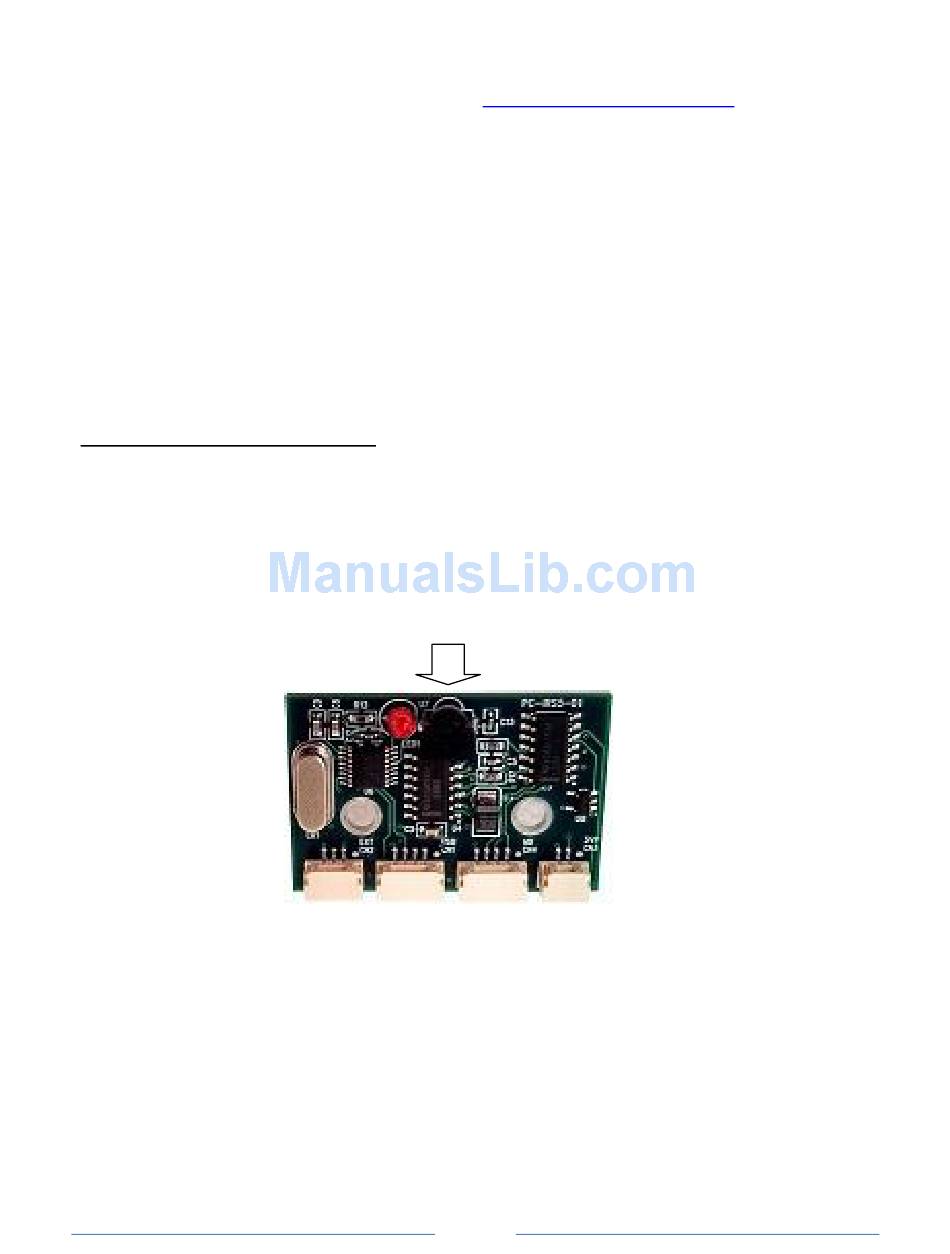

This is the PC IRS5-01 control Board. I will refer to it as the IRS5 for simplicity. It has 4 rear
connectors to which 3 internal cables connect. The 4
extender which is sold separately.
From the back of the IRS5, starting on the right, the connectors are:
The 2-wire 5V power cable labeled 5VP CN3.
The 4-wire MB Header Cable labeled MB CN4.
The 4-wire USB Cable labeled USB CN1.
Optional IR Extender. It is a 3-wire IR Extender Cable labeled EXT CN2.
PC-IRS5-01 Installation Instructions
IR Receiver Eye
EXT
USB
Page 1
http://youtu.be/oS98E32VhB4
th
connector is used for the optional IR
Remote must see this
MB
5V
Advertisement
Table of Contents
Related Manuals for Inteset PC-IRS5-01
Summary of Contents for Inteset PC-IRS5-01
- Page 1 PC-IRS5-01. Installation Video: http://youtu.be/oS98E32VhB4 The PC-IRS5-01 Infrared Receiver (IRS5) is a custom designed and manufactured device that provides the Computer User or Builder with the following unique features: It will function on any motherboard running Windows or Linux operating systems with native eHome drivers.
- Page 2 PC-IRS5-01 Installation Instructions The first 3 connectors are for installing the 3 internal cables described below: a. The 5V Power cable attaches at 5V CN3. It is then run to the back of your case or somewhere in the case where you can mount this connector. Mounting the connector will require a hole in the case that is 3/8”...
- Page 3 PC-IRS5-01 Installation Instructions Installation of the IRS5 control Board If you are going to mount the IRS5 in your computer case and control it without the extender cable, you will need to mount the board in your case so that the little black IR Receiver module (Eye) shown has a line of sight to your remote.
- Page 4 PC-IRS5-01 Installation Instructions room to run the Power Cable and the Extender Cable to a point in your case where you can mount the required back plane connectors and still hook up the internal cables. Again, the Power and Extender cables are 20” long.
- Page 5 PC-IRS5-01 Installation Instructions It is critical that the LED is wired correctly because it is what tells the IRS5 that your computer is on or off. So be sure that this and the Power Switch are wired correctly. If you haven’t already done so, once you have installed the cable on the motherboard header just plug the other end onto the IRS5 at the connector labeled MB CN4.
- Page 6 PC-IRS5-01 Installation Instructions need a ¼” hole. On the other end you would plug the white male connector into the IRS5 at the female connector labeled EXT CN2. You are now done with the internal portion of the IRS5 installation. We have 2 more simple steps before your IRS5 is operational.
- Page 7 PC-IRS5-01 Installation Instructions That’s it for the actual installation of the IRS5 and the cables involved. It may look complicated when you start but you will see how easy it is because most connections can only be done one way based on the connector labels. The biggest decision is where to locate the IRS5 control board in your computer case and whether you need the IR Extender or not.
