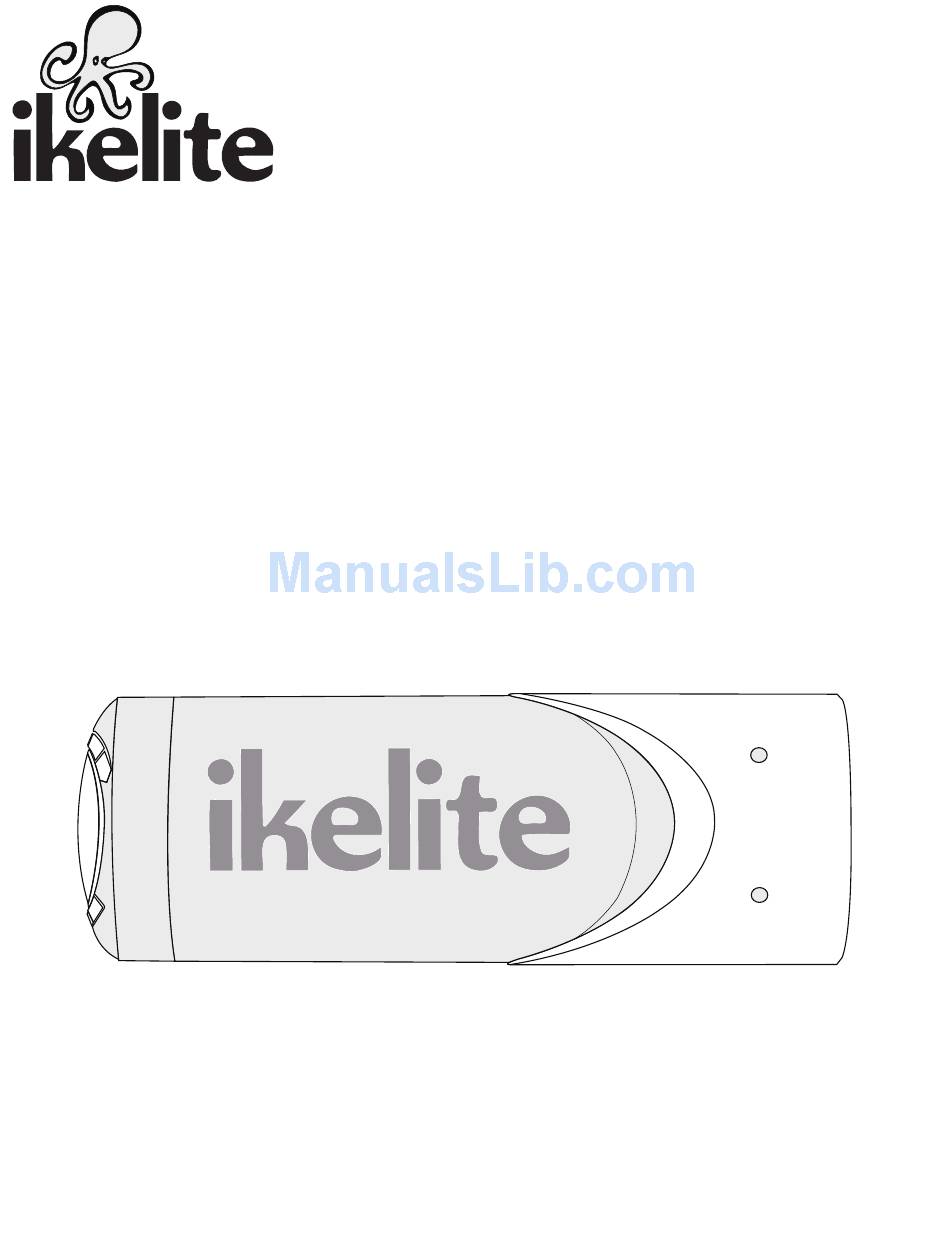

Vega Video + Photo Light
I n s t r u c t i o n M a n u a l
2101 Vega + US Charger
2102 Vega + Euro Charger
2103 Vega + UK Charger
2104 Vega + Aus Charger
Thank you for your purchase of Ikelite equipment. Please read this
instruction manual completely before attempting to operate or dive
with this product. Please refer to the back page of this manual to
register your Ikelite product.
Advertisement
Table of Contents
Summary of Contents for Ikelite 2101 Vega
- Page 1 2103 Vega + UK Charger 2104 Vega + Aus Charger Thank you for your purchase of Ikelite equipment. Please read this instruction manual completely before attempting to operate or dive with this product. Please refer to the back page of this manual to...
-
Page 2: Table Of Contents
Table of Contents Introduction ..............P. 3 Vega Light with Lanyard ..........P. 3 Specifications ..............P. 4 Usage ................P. 4 Parts of the Vega............P. 5 Power Dial Positions ............P. 6 Charging the Vega ............P. 7 Charger Information ............P. 8 WARNINGS..............P. 8 Vega Mounts & Accessories ........P. 9 Troubleshooting ............P. -
Page 3: Introduction
Introduction Like every Ikelite product, the Vega is designed, built and tested in the USA. We use locally sourced, top-grade materials. Our lights are built by hand and individually tested for function and waterproof integrity. The average assembly technician is a certified scuba diver and has over 16 years of experience building Ikelite products. -
Page 4: Specifications
Specifications Intensity ....2000 Lumens maximum power Power Settings..Full (2000), 1/2 (1000), 1/4 (500) Run Time ....45 min high power / 180 min low power Beam Angle ....65 degrees Coverage Angle ..52 degrees Color Temperature ..5700K Depth Rating ..300 ft (90 m) Dimensions ....1.95 in dia. -
Page 5: Parts Of The Vega
Parts of the Vega 1/4-20” Threaded Mounting Hole Cooling Channel Power Dial 46mm Threads Front LEDs Remaining Battery Power (Blue LEDs) Power Dial Charging Ports 3 LEDs = up to 100% 2 LEDs = up to 60% Power Setting 1 LED = up to 30% Indicators 1 LED Blinking = less than 15% (Red LEDs) -
Page 6: Power Dial Positions
Power Dial Positions Rotate the Knob counterclockwise and 180° past the OFF/CHARGE position to engage the Locking Switch, and LOCK the Power Dial when not in use. Rotate to engage LOCK. LOCKED Power Dial and Locking Switch in the LOCKED or TRAVEL position. Push Switch down to LOCK. -
Page 7: Charging The Vega
Charging the Vega CAUTION: Make sure the Vega is completely dry before charging. 1. Turn the Power Dial to the position. OFF/CHARGE 2. Push the Charger Plug into the Charging Ports until it is flush against the Power Dial, Diagram A. 3. -
Page 8: Charger Information
Use only in dry locations. The Vega contains no user-serviceable parts. Do not attempt to open this product; send to the Ikelite Service Department if damaged or inoperable. Keep the charger away from fire and other sources of heat. DO NOT attempt to charge or connect a Vega that has flooded or leaked. -
Page 9: Vega Mounts & Accessories
DO NOT subject the Vega to temperatures in excess of 70°C (158°F). Such abuse can result in loss of seal, battery leakage, and/or battery cell explosion. Product Safety Data Sheets (PSDS) can be obtained through an Ikelite dealer or by contacting ikelite@ikelite.com. Maintenance Always rinse the Vega in freshwater after each dive. -
Page 10: Storage Information
Check with your airline regarding regulations on transporting Li-ion batteries in carry-on or checked baggage. Customer Support Please read the troubleshooting section of this instruction manual before contacting Ikelite Customer Support. Email: ikelite@ikelite.com Ikelite Underwater Systems Phone: 317-923-4523 Service Department 50 West 33rd St. -
Page 11: Limited Warranty
This Ikelite product is warranted against any manufacturing defects for a period of one (1) year from the original date of purchase. Defective products should be returned to Ikelite postage paid. Ikelite will, at its sole discretion, repair or replace such products, and will return to customer postage paid. -
Page 12: Product Registration
Product Registration Please go to www.ikelite.com to register your Ikelite housing within 15 days of purchase. Ikelite Underwater Systems 50 West 33rd Street Indianapolis, IN 46208 USA www.ikelite.com © 2014 Ikelite Underwater Systems 2101(US)_2102(Euro)_2103(UK)_2104(Aus)_VEGA_Light_02-0414...
