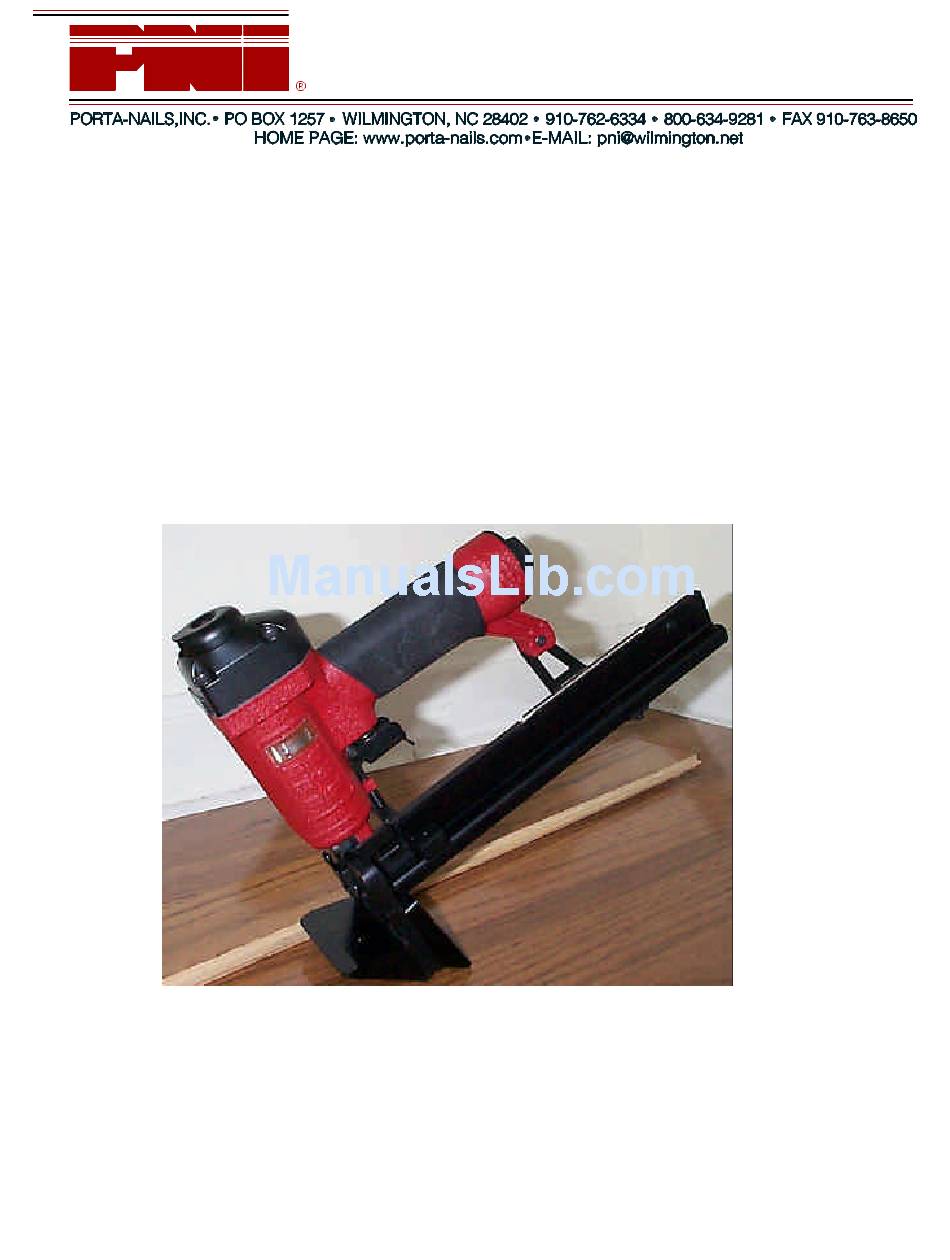

Owners Manual
Model 461
18 Gauge
Flooring Stapler
CAUTION - Read important safety instructions AND operation instructions, BEFORE
operating your Model 461 18 Gauge Flooring Stapler.
Your new Model 461 18 Gauge Flooring Stapler is a quality-built machine, capable of
dependable performance throughout its lifetime. To take full advantage of these capabilities
you should thoroughly understand the proper method and technique of its operation. Therefore,
we suggest you read this manual before operating and that you save it for future reference.
FORM P/N 461139 (3/9/2000)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 461 and is the answer not in the manual?

Questions and answers

Summary of Contents for PNI 461

  • Page 1 CAUTION - Read important safety instructions AND operation instructions, BEFORE operating your Model 461 18 Gauge Flooring Stapler. Your new Model 461 18 Gauge Flooring Stapler is a quality-built machine, capable of dependable performance throughout its lifetime. To take full advantage of these capabilities you should thoroughly understand the proper method and technique of its operation.
  • Page 2 Model 461 18 Gauge Flooring Stapler Specifications: Features: • Operating Pressure : • Light weight & powerful design 70 – 100 psi. • Fastener length range: 3/8” – 1-1/4” • Precise – drives staples at 45 degree angle • Magazine capacity: every time.
  • Page 3 TOOL AND PARTS WARRANTY Products are Computer Aided Designed to provide maximum power and reliability. The construction methods use the highest Quality standards of material and workmanship. TOOL AND PARTS WARRANTY: Products are warranted to be free of defects from workmanship and material for a period of one year from the date of original purchase (exceptions: rubber o-rings, seals and driver blades).
  • Page 4: Safety Instructions

    Safety Instructions Read this manual and understand all safety instruction before operating the tool. Never allow the use of any type of flammable gases or oxygen as a power source for the tool. Use filtered, lubricated, regulated compressed air only. Never use gasoline or other flammable liquids to clean the tool.
  • Page 5: Lubrication And Maintenance

    Lubrication And Maintenance Your tool requires lubrication before you use it for the first time. 2. Disconnect the air supply from the tool before lubricating. 3. Turn the tool so the inlet is facing up and put one drop of high speed spindle oil, UNOCAL RX22, or 3-IN-1 oil into air inlet.
  • Page 6 Contact Safety Mechanism CHECKING OPERATION OF CONTACT SAFETY MECHANISM 1. Disconnect the air supply from the tool. 2. Empty the magazine. 3. Make sure the trigger and contact safety mechanism move up and down without any sticking. 4. Connect air supply to the tool. 5.
  • Page 7: Filling The Magazine

    Filling The Magazine 1. Disconnect air hose. 2. Depress the magazine latch. Pull back on the magazine cover. 3. Insert a stick of fasteners into the magazine. Make sure the pointed ends of the fasteners are resting on the bottom edge of the magazine.
  • Page 8: Operating The Tool

    OPERATING THE TOOL PROTECT YOUR EYES AND EARS. WEAR SAFETY GLASSES WITH SIDE SHIELDS (MUST COMPLY WITH ANSI Z87.1). WEAR HEARING PROTECTION. EMPLOYERS AND USERS ARE RESPONSIBLE FOR ENSURING THE USER OR ANYONE NEAR THE TOOL WEAR THIS SAFETY PROTECTION. NOTE: CHECK AND REPLACE ANY DAMAGED OR WORN COMPONENTS ON THE TOOL.
  • Page 9: Clearing A Jam From The Tool

    Clearing A Jam From The Tool DISCONNECT THE TOOL FROM AIR COMPRESSOR BEFORE ADJUSTING. CLEARING JAMS. SERVICING, RELOCATING AND DURING NON- OPERATION. Fastener jammed inside magazine: 1. Disconnect tool from air supply. 2. Press down on latch and pull back on magazine. 3.
  • Page 11 PART PART ITEM DESCRIPTION ITEM DESCRIPTION SCREW - SOC BUTT. HD 46141 CONNECTOR - AIR 46050 DEFLECTOR 46109 CAP – END 46121 SCREW - SOC HEAD 46159 O-RING 46152 SEAL 46016 BODY – GUN 46115 WASHER - SPRING 46065 TRIGGER - SECONDARY 46104 TRIGGER - PRIMARY 46110 46119...
  • Page 12: Troubleshooting

    Troubleshooting Problem Cause Remedy O-rings in trigger valve housing O-rings must be replaced & Air leaking at trigger valve area. are damaged. operation of contact safety trip mechanism must be checked. Loose screws in housing. Screws need to be tightened. Air is leaking between housing and nose.
  • Page 13 NOTES...
