Summary of Contents for Legend Scenario Contol 5739 02

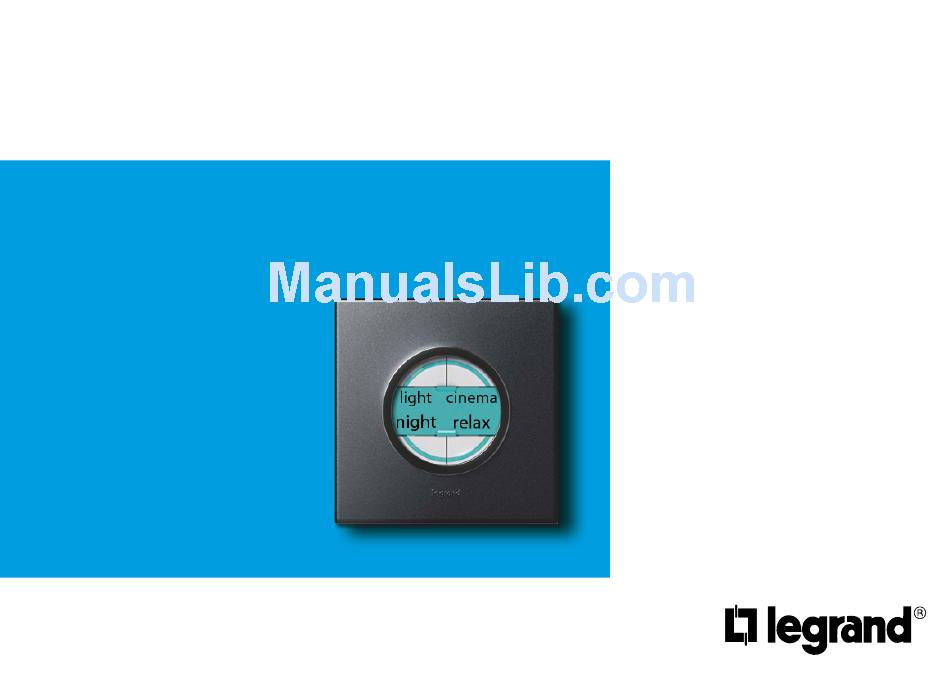

- Page 1 Scenario control User manual 5739 02 5739 03 Part. U3327A - 11/08-01 PC...
- Page 3 Contents ■ The Scenario Control ✔ General information ✔ Description Mode of operation ■ To program a scenario ✔ To cancel a scenario ✔ How your Scenario Control is confi gured ✔...
- Page 4 1 - Introduction ✔ ■ The Scenario Control Description ✔ General information The Scenario Control is a device which lets you call, create or edit scena- DEFAULT PUSH rios saved in an 0035 51 Scenario Module, simply and intuitively. Using the labels you can customise the device keys, inserting a descrip- tion of the scenario activated.
-
Page 5: Mode Of Operation
2 - Use ■ Mode of operation ✔ To program a scenario Your Scenario Control can program up to four scenarios, saving them in a Scenario Module (0035 51) which has been enabled for programming. luce cinema To save one or more scenarios: Press the key to end the programming. - Page 6 2 - Use ✔ ✔ To cancel a scenario How your Scenario Control is confi gured Follow the procedure described below to cancel a scenario. To cancel one or more scenarios: In the Scenario Module press the pro- gramming enabling pushbutton. 035 51 Its led becomes green: the module is enabled.
- Page 8 Installer stamp World Headquarters and International Department 87045 LIMOGES CEDEX FRANCE : 33 5 55 06 87 87 Fax : 33 5 55 06 74 55 www.legrandelectric.com...
