Summary of Contents for Reference TX40

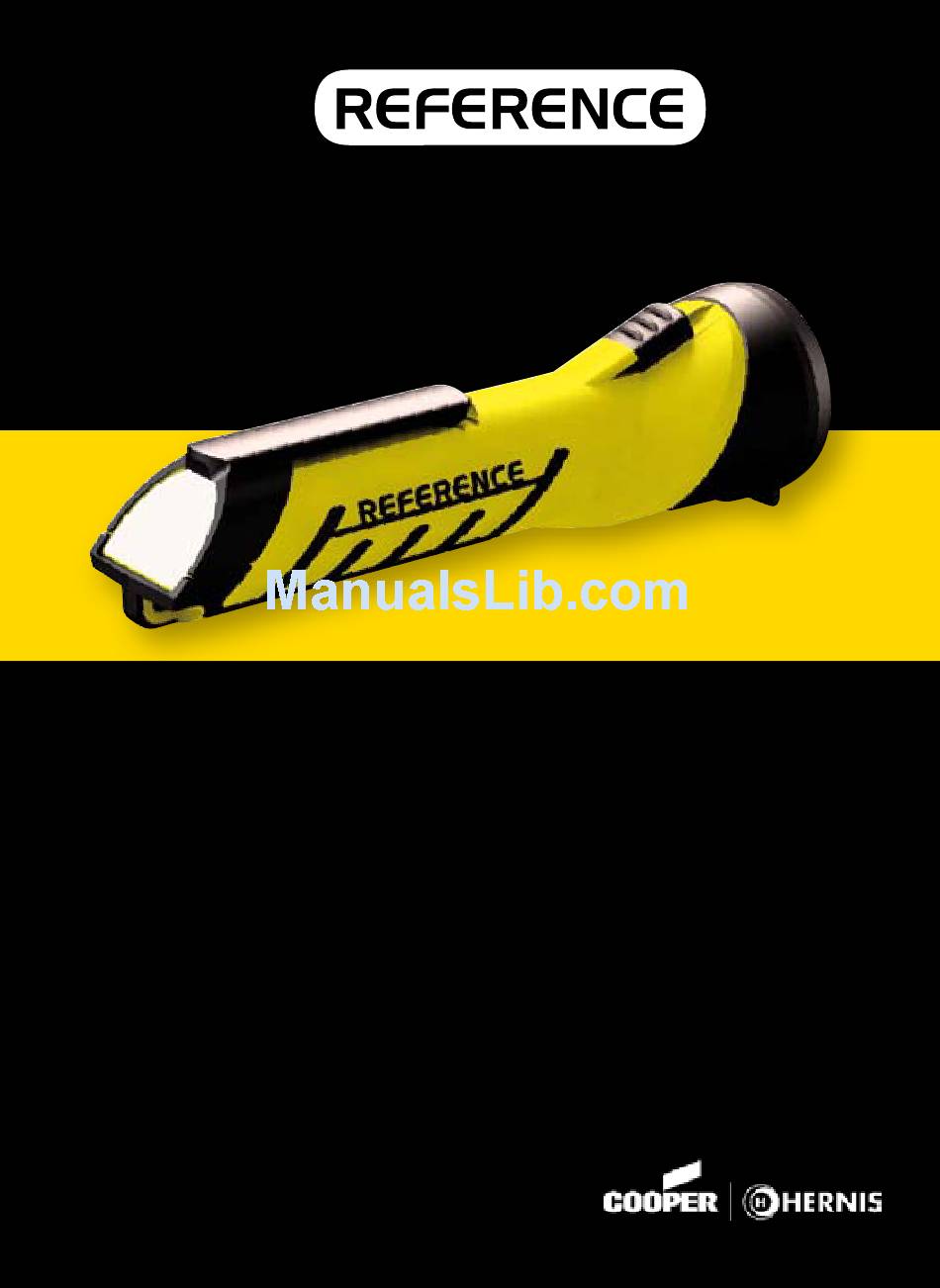

- Page 1 Operation manual TX40 and CX40...
- Page 2 Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10 page 2 Operation manual TX40/CX40...
- Page 3 Introduction Congratulations on your choice of hand torch! The TX40 is the most sophisticated Ex certified torch solution on the market The Reference solution is a multi- the TX40 to be recharged within Zone 1 gas hazardous environments, and purpose lighting solution that reduces the need for additional operate under Zone 0 conditions .
- Page 4 . Textured rubber for extra grip – Main body shaft is covered with textured rubber, providing a firm and comfortable grip under slippery conditions such as rain, oil, mud etc . page 4 Operation manual TX40/CX40...
- Page 5 Maintenance & Safety Permanent maintenance free battery Torch and charger condition solution indicator – With the sealed and self-maintained – Intelligent routines regularly perform rechargeable battery feature, general specific tests on both torch and charger to maintenance cost is reduced while eliminating monitor the systems condition and report the need for spare parts .
- Page 6 Installation, operation & maintenance Carger mount • Fasten charger with 4xM5 screws or stud bolts using a torque of 1-2 Nm . Power connection • Connect supplied cable to power source. • Connect grounding cable where applicable . • Termination of the power cord must be in an ATEX certified junction box and as shown in illustration .
- Page 7 . General maintenance • As required maintenance, inspect torch and charger regularly for physical damage. When cleaning Reference products, wipe torch and charger with soap and a clean cloth . Certification tag Sample: Torch TX40...
- Page 8 High efficiency LED, 3 watts Lens Polycarbonate with 4° spread Performance (1m) 200 lm Operation time Approx 5 hours Recharge time Approx 3 hours (80% in 2 hours) Operating life More than 1000 recharge cycles page 8 Operation manual TX40/CX40...
-
Page 9: Troubleshooting
. In the event of any problems still present after closely reviewing the above table, or other irregularities occuring during operation and handling, please contact Reference helpdesk for support . P .O . Box 791 Stoa,... - Page 10 Notes page 10 Operation manual TX40/CX40...
- Page 11 page 11...
- Page 12 P .O . Box 791 Stoa, NO-4809 Arendal, Norway Phone: +47 37 06 37 00 Email: reference@hernis .no www .reference .no...
