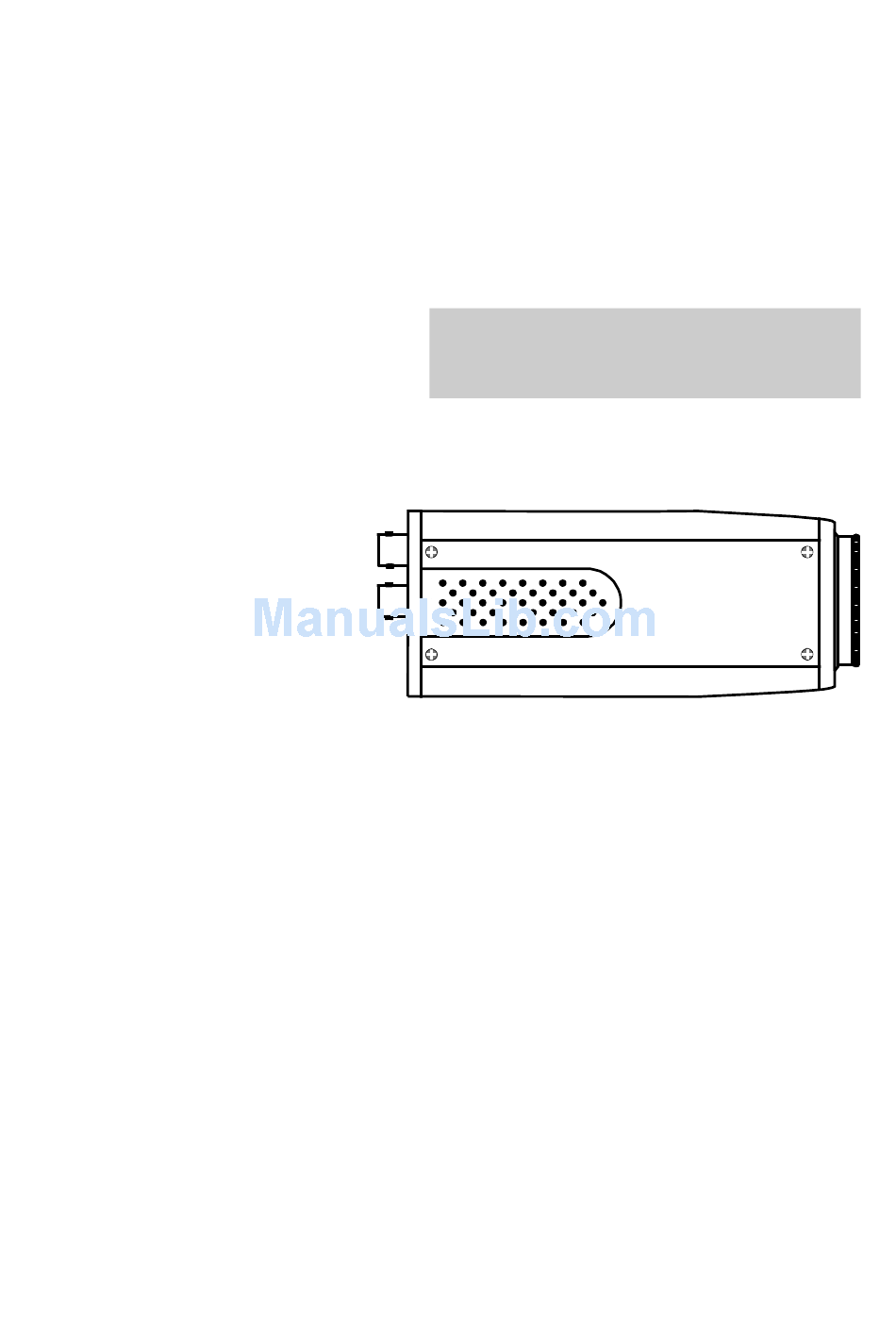

INSTALLATION &
OPERATION MANUAL
LAN CAMERA
Before trying to connect or operate this product, please read this manual completely

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JCK-32CL and is the answer not in the manual?

Questions and answers

Summary of Contents for Jetcom CCTV JCK-32CL

  • Page 1 INSTALLATION & OPERATION MANUAL LAN CAMERA Before trying to connect or operate this product, please read this manual completely...

  • Page 3: Table Of Contents

    Table Of Contents SAFETY PRECAUTIONS ................3 1. PRODUCT FEATURES................4 1.1 P ..............4 RODUCT NTRODUCTION 1.2 P ................5 RODUCT EATURES 2. DESCRIPTION OF THE FRONT/REAR VIEW .........7 2.1 F ............7 RONT ANEL AND ANEL 2.2 T ................8 ERMINAL LOCK 2.3 F ..................9 LANK ANEL...
  • Page 4 4.5 TCP/IP C ............20 ONFIGURATION SETTING 4.6 C ...............21 ONNECTION ESTING 5. Operating Instructions for Image Software and Network....23 5.1 M ............24 ICROSOFT NTERNET XPLORER ............24 5.1.1 Connecting the LAN CAMERA ..............26 5.1.2 Change Image Setting ...............35 5.1.4 Change the System Setting ............40 5.1.5 Change the Application Setting ..............48...

  • Page 5: Safety Precautions

    SAFETY PRECAUTIONS All the following safety and operational instructions to prevent harm or injury to the operator(s) or other persons should be read carefully before the unit is activated. WARNING To prevent fire or shock hazard, avoid exposing this unit to rain or moisture. Do not block ventilation openings.

  • Page 6: Product Features

    1. PRODUCT FEATURES 1.1 Product Introduction The LAN CAMERA is a state-of-the-art equipment of technological sophistication in its field. It combines multiple digital technical capabilities with the internal network functions of the network video camera. The user can immediately connect with a standard network, and the device can transmit the digital images to a remote browser.

  • Page 7: Product Features

    1.2 Product Features An inbuilt Web Server and Network Interface. The LAN CAMERA is effective in assuring the safety of an independent digital camera. Dual purpose: the LAN CAMERA can simultaneously export both the traditional analogs and the digital images. Motion detection: You can select the range and sensitivity of the detection.
  • Page 8 The RECORD–SCHEDULE provides seven periods of time and the LAN CAMERA starts and stops recording according to the programmed schedule. The device will record as long as the alarm input is activated, and allow users to set the alarm for a certain duration. The LAN CAMERA permits users to set the date and time.

  • Page 9: Description Of The Front/Rear View

    2. DESCRIPTION OF THE FRONT/REAR VIEW 2.1 Front Panel and Rear Panel -- Front Panel -- -- Rear Panel -- RS-232 VIDEO OUT AUDIO OUT ETHERNET DC 12V 1. ALM. OUT 2. GND 3. ALM. IN 4. ALM. RECOVER CF CARD 1.

  • Page 10: Terminal Block

    2.2 Terminal Block 1. ALM. OUT 2. GND 3. ALM. IN 4. ALM. RECOVER ALARM OUT (OUTPUT): This is an alarm output trigger. Connect this to external 5V, 20mA devices such as buzzers or lights. ( 0V(Active) GND: Ground contact. ALARM IN (INPUT): This is an alarm input that can be programmed in the menu 5V, 20mA system to active low.

  • Page 11: Flank Panel

    2.3 Flank Panel 1 AES LENS 2 DC IRIS 3 DHCP 4 STATIC IP RS-485 POWER LAN Lens Mount: This LAN CAMERA can be used with either C or CS mount lens. IRIS: Auto iris connector. This camera works with DC drive auto iris lens. Please refer to the pin assignment marked on the camera when connecting the auto iris lens.

  • Page 12: Installation

    3. INSTALLATION Please follow the instructions and the diagram below to set up the system. NOTE: The LAN CAMERA is linked by its Video Out connection via a BNC connector to a monitor's Video In connection. If this connection is there, you can see some information on the monitor screen, such as the LAN CAMERA factory default Static IP address(192.168.1.168).

  • Page 13: Connecting With A Multiplexer

    3.3 CONNECTING WITH A MULTIPLEXER LAN CAMERA 1 LAN CAMERA 2 TO LAN CAMERA VIDEO OUT BNC CONNECTOR LAN CAMERA 16 3.4 UPDATING SYSTEM SOFTWARE If the system software of the LAN CAMERA needs to be upgraded, please take the following steps to safely update it.

  • Page 14: Lan Camera Cf Card Troubleshooting

    PLEASE", please write down the error messages shown on the screen and inform your technical support, which ignoring the following steps. 10. Turn off the LANCAM when this update process is finished, and remove the CF Card from the LANCAM. 11.
  • Page 15 steps. 3. If no cross sign appears beside the "CF" icon, please go forward to the next step. If a cross sign appears, please check out the followings: a. Is it really a CF "Memory" Card? b. Is this CF Card formatted with the FAT16 format? c.

  • Page 16: Network Configuration

    4. Network Configuration 4.1 Cable Connections Please follow the instructions below to connect your LAN CAMERA to a computer or a network and to choose a proper RJ-45 cable configuration for connections. Physical specifications of RJ-45 cable for Ethernet Wire Type Cat.

  • Page 17: Connect To A Lan Hub (Intranet)

    4.1.2 Connect to a LAN Hub (INTRANET) The RJ-45 PIN configuration for connecting with a LAN Hub is shown below. TO PC NETWORK CARD LAN CAMERA RJ-45 uplink 4.1.3 Connect to WAN (INTERNET) The RJ-45 PIN configuration for connecting to a WAN is the same as connecting to a LAN. STATIC IP CABLE/XDSL MODEM LAN CAMERA TO ISP...

  • Page 18: Configure Your Lan Camera Network Settings

    4.2 Configure Your LAN CAMERA Network Settings Upon connecting with the network hardware, you need to activate the network function and configure the proper network settings of the LAN CAMERA. 4.2.1 Enable DHCP Function This function can only work if the LAN which the unit is connected to has a DHCP server. If the DHCP server is working, the LAN CAMERA will obtain an IP address automatically from the DHCP server.
  • Page 19 addresses are written as four sets of numbers separated by periods; for example, 192.168.1.1 Therefore, if the connected network is identified as Class C, for example, the first three sets of numbers of the LAN CAMERA IP address must be the same as the network address.

  • Page 20: Tcp/Ip Communication Software

    4.3 TCP/IP Communication Software Follow the instructions below to install the TCP/IP communication program into your computer. Click the Start menu from your computer, and point to the Settings/Control panel. Click the Network icon twice to enter the same setting windows.

  • Page 21: Tcp/Ip Installation

    Click on the Configuration tag; check if the TCP/IP is included among the network components list. If the TCP/IP is included, please process step 5. If it is not included, please follow step 4 to install the TCP/IP. 4.4 TCP/IP Installation During the installation, you will be requested to insert the Windows CD-ROM.

  • Page 22: Tcp/Ip Configuration Setting

    4.5 TCP/IP Configuration setting Click Start Settings Control Panel Network . Select TCP/IP , and then click Properties . Before processing the LAN CAMERA installation in a WAN, please make sure the Internet connection works properly. If not, please contact your ISP provider. If you are using a DHCP server, please select Obtain an IP address automatically .

  • Page 23: Connection Testing

    4.6 Connection Testing With the previous settings, follow the instructions below to ensure whether you have established the connection successfully. Click Start Programs MS-DOS Prompt Type in ping 192.168.1.168 then Enter. (See the sample screen below) ** This IP is the LAN CAMERA IP address that is assigned for the connected LAN CAMERA in step2.
  • Page 24 If you receive a response as in the sample screen below, the connection hasn’t been successfully established. Please re-check all the hardware and software installation by repeating steps 1 to 5. If you still can’t establish the connection after rechecking, please contact your dealer.

  • Page 25: Operating Instructions For Image Software And Network

    5. Operating Instructions for Image Software and Network Two choices of software are available for linking up with the LAN CAMERA: (1) the Microsoft Internet Explorer; and (2) the LAN CAMERA VIEWER, a network browser in a PC which provides the functions of monitoring remote zones or watching recorded data through the TCP/IP protocol.

  • Page 26: Microsoft Internet Explorer

    5.1 Microsoft Internet Explorer 5.1.1 Connecting the LAN CAMERA Start up the Microsoft Internet Explorer, and then follow the steps below to connect the LAN CAMERA. Click the URL block at the top of the window. Enter the URL address of the LAN CAMERA into the URL block and press the “ Enter ” button to enter the home page.
  • Page 27 Browsing images from the LAN CAMERA The images from the LAN CAMERA will be displayed on the home page while going online with the LAN CAMERA. There are some buttons provided at the bottom of the home page for further setting: Click the image button to enter the image-setting page.

  • Page 28: Change Image Setting

    5.1.2 Change Image Setting Please follow the steps below to change the image setting through the network if and as necessary. 1. Click the image button on the home page to enter the image-setting page. 2. Adjust the image setting including “Camera Title”, “Resolution”, “Quality”, “Fluorescent”, “BLC”, “Brightness”, “Hue”, “Saturation”, “Sharpness”, and “Viewer Type”...
  • Page 29 Description of function keys: Camera Title: Type in the camera title in the given space. Resolution: Scroll to choose the image resolution from a range of three sizes (352X224, 720X448 or 720X224). Quality: Scroll to choose the image quality out of a spectrum of qualities ranging from “highest, high, medium, low, or lowest”.
  • Page 30 The accessible networks here are the FTP, the SMTP, the SNTP, and the DDNS. Fill in the “IP Address”, “Netmask”, “Default gateway”, “Primary nameserver”, and “HTTP Port Number” if and as necessary. Click the Submit button to submit the new network setting. Click the Home button to return to the home page.
  • Page 31 Change the Network Setting — FTP. Please follow the steps below to change the FTP setting via the network if and as necessary to upload recording data live. 1. Click the FTP button at top left to enter the “FTP SERVER SETTING” page. 2.
  • Page 32 Change the Network Setting — SMTP. Please follow the steps below to change the SMTP setting through the network if and as necessary. Click the SMTP button at upper left above to enter the “SMTP SERVER SETTING” page. Fill in the IP address of the SMTP server, and set the recipient’s e-mail address when and as necessary.
  • Page 33 Change the Network Setting — SNTP. Please follow the steps below to change the SNTP setting through the network if and as necessary. 1. Click the SNTP button at upper left above to enter the “SNTP SERVER SETTING” page. 2. Enter the IP Address of the SNTP server, and choose one of the time zones as and when necessary. 3.
  • Page 34 Change the Network Setting — DDNS. The “Network” page has, on its upper left, the “DDNS” icon. Please follow the steps below to change the DDNS setting through the network if and as necessary. Click the DDNS button at upper left above to enter the “DDNS SETTING” page. Click the “Enable DDNS Function”...
  • Page 35 Description of function keys: Enable DDNS Function: Checkmark to activate the function. DDSN Type: Click to open the list of three DDNS modes to choose from : “DynDNS”, “hn”, and “adsldns”. Click the “Apply” button and connect this website automatically and enter it. Type in your dynamic IP Address and Email Address.
  • Page 36 Change the Network Setting — PPPoE. The “Network” page has, on its upper left, the “PPPoE” icon. Please follow the steps below to change the PPPoE setting through the network if necessary. Click the PPPoE button at upper left above to enter the “PPPoE SETTING” page. Click the “PPPoE mode”...

  • Page 37: Change The System Setting

    5.1.4 Change the System Setting Please follow the steps below to change the date and time of the system setting through the network if and as necessary. Set the Date and Time of the system 1. Click the system button in the home page to enter the “System - Date and Time” page (default). 2.
  • Page 38 automatically. Submit: Click to submit the new setting to the LAN CAMERA. Change the System Setting — Users. Please follow the steps below to change/add the users’ authority through the network if necessary. 1. Click the Users button on the left side of the “System - Date and Time” page to enter the “SYSTEM - USERS”...
  • Page 39 Submit: Click to submit the new setting to the LAN CAMERA. Change the System Setting — Digital I/O. Please follow the steps below to change the Digital I/O through the network if necessary. Click the Digital I/O button on the left side of the “System - Date and Time” page to enter the “SYSTEM –...
  • Page 40 Click the Audio mechanism button on the left side of the “System - Date and Time” page to enter the “SYSTEM –AUDIO MECHANISM SETTING” page. Mark “Audio Mechanism” “ON” or “OFF” and type in your desired audio volume level from a range of 0 to 11.
  • Page 41 Choose one of the three buttons shown on the page to view an event when necessary. The three buttons are titled “First Page”, “Previous 20”, and “Next 20”. Description of function keys: First Page: Displays the first page. Previous 20: Displays the previous 20 pages. Next 20: Displays the next 20 pages.

  • Page 42: Change The Application Setting

    5.1.5 Change the Application Setting Please follow the steps below to change the application setting through the network if and as necessary. Change the Application Setting — FTP APPLICATION SETTING. Please follow the steps below to change the FTP setting via the network if and as necessary to upload recording data live.
  • Page 43 Change the Application Setting — CF CARD APPLICATION SETTING. Please follow the steps below to change the CF CARD setting via the network if and as necessary to upload recording data live. Click the CF Card button on the top left to enter the “CF CARD APPLICATION SETTING” page. You have an option as to which CF - card storage format to use, the JPEG or the AVI.
  • Page 44 Change the Application Setting —SMTP APPLICATION SETTING. Please follow the steps below to change the SMTP setting via the network if and as necessary. Click the SMTP button on the left side to enter the “SMTP APPLICATION SETTING” page. Enter the attached file number as and when necessary. The maximum number which can be used is 8 Click the Submit button to submit the new SMTP setting of the recording.
  • Page 45 Change the Application Setting —RECORD APPLICATION ENABLE SETTING. Please follow the steps below to change the setting via the network if and as necessary. Click the Enable button on the left side of the record to enter the “RECORD APPLICATION ENABLE SETTING”...
  • Page 46 Change the Application Setting —RECORD - SCHEDULE. Click the Application button on the home page to enter the “RECORD - SCHEDULE” page. Check/uncheck any/all of the first seven boxes set vertically in the upper half of the “Record-Schedule” page to enable/disable the programmed recording function, and vary the setting of the targeted item while it is enabled.
  • Page 47 Change the Application Setting — ALARM APPLICATION ENABLE SETTING. Please follow the steps below to change the setting via the network if and as necessary. Click the Enable button on the left side of the record to enter the “ALARM APPLICATION ENABLE SETTING”...
  • Page 48 Description of function keys: Enable Alarm – Upload via FTP: Activates or deactivates the alarm recording upload to the FTP. Enable Alarm – Save Into CF Card: Activates or deactivates the alarm recording to be saved to the CF Card. Enable Alarm –...
  • Page 49 Click and drag the mouse across a targeted zone to draw a red rectangle on the image (coordinates provided below). Click the Save button to save the motion detection range. Enables / disables the motion detection function. Set up the signal level. Click the Submit button to submit the new setting of the recording.

  • Page 50: Change The Cf Card Setting

    5.1.6 Change the CF Card Setting Please follow the steps below to change the CF Card setting through the network if and as necessary. Change the CF Card Setting — FILELIST of MEMORY CARD. Please follow the steps below to change the setting via the network if and as necessary. Click the “CF Card”...

  • Page 51: Pppoe & Ddns

    5.1.7 PPPoE & DDNS Using the PPPoE Install the XDSL software (obtained from your ISP dealer) in your PC. Search your LAN CAMERA's IP address: you can use your Network Viewer's Scan IP program, or just connect the LAN CAM and the Video monitor. The monitor screen will show the IP address on its right side.
  • Page 52 Test: Go to the Internet. Set your PC to enter the Internet. Desktop → IE browser → Type in the LAN CAMERA IP address (the same address as in the PPPoE settings and step 3 above) → You can see the LAN CAM images. Application for DDNS Enter the LAN CAMERA home page →...
  • Page 53 DDNS settings Check your LAN CAMERA’s IP address ( Scan IP software or monitor ) → open your IE browser → Use the address to connect to the LAN CAM or view the images → Choose the network → Type in “User name : admin” and “Password : 9999” → Click “OK”. Choose the “DDNS”...

  • Page 54: The Lan Camera Viewer

    5.2 The LAN CAMERA Viewer This section provides instructions for installing and using the Network Viewer, and Image Viewer, which are included with the LAN CAMERA. The programs can be operated by a selected PC equipped with the following requirements. 5.2.1 Introduction to Network Viewer The Network Viewer allows you to potentially access many units of the LAN CAMERA from a remote desktop or a laptop in a TCP/IP networking environment.
  • Page 55 Install the Network Viewer for the ZIP file. 1. Save the ZIP file to your PC and extract the file to a designated directory. 2. Open the extracted folder. The folder contains 1 file. 3. Click on the icon to execute the installation and then follow the on-screen instructions to proceed with the rest of the installation procedure as they appear.

  • Page 56: Login The Lan Camera Software

    5.2.3 Login the LAN CAMERA software Login the LAN CAMERA software Once the Network View is executed a Login prompter will appear. You must enter the default User Name: admin , and the password: 9999 in the respective spaces. Click the “ OK ” button and enter the Console page of the Network Viewer: both the user name and password must be entered correctly.
  • Page 57 ( a ) Click the Auto - Search button at the bottom of the "Add Device Wizard " page to discover the connection of the LAN CAMERA - type device in the LAN. Instantly the "Search Device " page will appear. Click " Find " at the bottom of the page to access the list of device types.
  • Page 58 This page provides the IP Address, the device type, and the MAC Address. Click "Next" at the bottom of the page to access the next "Add Device Wizard" page. Assign a Device Title for the chosen LAN CAMERA. Click the " Finish " button to establish the connection between the device and the computer.
  • Page 59 Viewing images View the connected devices Once the connection has been established, click the icon to enter the single device-mode window. (See the sample screen below) This window on the right side of the “Console” page displays the connected device that has been arranged when you established the connection. Remove LAN CAMERA Click the button to remove the connection of a chosen device.
  • Page 60 Change the Settings Via the Network Follow the instructions below to reconfigure the settings via the network.
  • Page 61 Set the Settings of the Device page. When in the Device List, select a desired channel to enable the button, and click button to enter the Device Setting page. (See the sample screen as in A above) Vary any of the Device settings including the “Title”, “Password”, “Date & Time”, and “Audio Mechanism”...
  • Page 62 Set the Motion Detection of the Motion page. 1. When in the Device List, select a desired channel to enable the button, and click the button to enter the Device Setting page. (See the sample screen as in A above) 2.
  • Page 63 The quad modes and the single-channel Click the fourth button from the left above the window to alternately turn on the single-channel and the quad modes.
  • Page 64 Change the PC SYSTEM SETTING Follow the instructions below to reconfigure the System Setup, Alarm Setup, and Schedule Setup:...
  • Page 65 Set the System Setup 1. When in the Network Viewer Console, click the button to enter the System Setting page. 2. Click the System Setup button to enter the System Setup page. (See the sample screen as in A above.) 3.
  • Page 66 View the LIVE MONITOR Follow the instructions below to open the Network Viewer Monitor window:...
  • Page 67 Function Buttons Description Quad screen. Sequence. Displays a single - channel full screen each time. Click to minimize the Network Viewer Monitor into a PC system tray.. Stops receiving. Opens the "Network Viewer Player" window. Exit and return to the "Network Viewer Console" page.
  • Page 68 Network Viewer Player Click the button to view the “Network Viewer Player” window...
  • Page 69 Function Buttons Description Playback function bar. Play. - Click to a recorded video from the PLAY LIST. Pause. - Click to freeze the image. Stop. - Click to stop playing back a recorded video or cease recording. Step. Click view images picture-by-picture.
  • Page 70 This allows you to search a recorded video kept in the HDD of the device. Enter the MONTH /DAY /YEAR /HOUR /MINUTE you wish to search and click GO to proceed. Functions to fit the starting and ending points of an image display, when user wants to transfer a file.
  • Page 71 VIEWING AND SETTING IMAGES (A) 1. Select a specific record. 2. Click the play button. 3. Pause at a desired point. 4. Click "Export : Start " at lower left to activate viewing, then the date and time of the period displayed will appear in the attached blank space.

  • Page 72: The Image Viewer

    5.2.4 The Image Viewer This is image integrity-protection software. It not only allows you to view an archived image from the CF card or HDD of a computer, but also protects an archived image from reproduction or interpolation. If an image isn't in the original format form of our format, the Image Viewer will not display the image and instead will send a warning message of "...

  • Page 73: Specifications

    6. SPECIFICATIONS Model Number Day model Day & Night model Image System NTSC NTSC CCD sensor SONY 1/3 inch interlaced CCD CCD number of effective 768 x 494 pixels(NTSC); 752 x 582 pixels(PAL) pixels Resolution (digital) 720 x 480 pixels(NTSC); 720 x 576 pixels(PAL) Recording rate Up to 30(25) frame/sec At 352 x 240 (352 x 288) (Transmission Rate)

  • Page 74: Function Of Client Pc

    7. Function of Client PC System requirement Windows Browser IE 5.x 6.x Username / IP / PROXY / Password / Time / Date / Camera setup Motion / Alarm Multi-camera link > 16 camera Viewer 1 / 4 SPLIT PT control Support Save file format BMP / JPEG / AVI...

  • Page 75: Appendix 1. -Scanip

    APPENDIX 1. –SCANIP Follow the instructions below to use the SCANIP software to search the LAN CAMERA devices from a local location. Click the button to discover the connection of the all-type device in the LAN. The Device List will display the connection of the all-type device. Select the desired device from the Device List .
  • Page 76 5. Manual insertion of “Free IP Address”. If you have clicked “No”, please manually type in insertions as required in the “Free IP Address”, “Gateway Address”, and “NET Mask”. Follow each insertion you make by typing in the “Login Name” and “Password”, and click “UPDATE” to send your alterations to the LAN Camera.
  • Page 77 Select and double click any of the addresses in the “Free IP Address” box on the right to enter it into an IP Address on the left. To change any IP address, type in the new address in the “Free IP Address” box on the right as well as the device “Login Name”...

  • Page 78: Appendix 2. -Faq

    APPENDIX 2. –FAQ 1. How to disable the DHCP function and use a static IP instead? A ： Turn the “DIP SWITCH” from “3” to “4” and vary the relative network settings, the IP Address, NetMask and Gateway on the image web page. 2.
