Remaco IRE-120 User Manual

C COPYRIGHTS 1998
Warning
Important Notes:
All products are thoroughly inspected and fully tested operational in factory.
We accept no liability whatsoever for any losses due to improper operation, or any unauthorized alternation.
All trademarks contained in this installation guide are the property of their respective owners.
For improvement purposes, specifications and functions
are subject to change without advance notice.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER OR BACK.
NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
DC IN 17V JACK
Supply voltage: 230V/50Hz AC
Operating frequency: 434MHz
Power Consumption: 0.7 Watt
Radio-Frequency
AC Power Adaptor
IR Remote

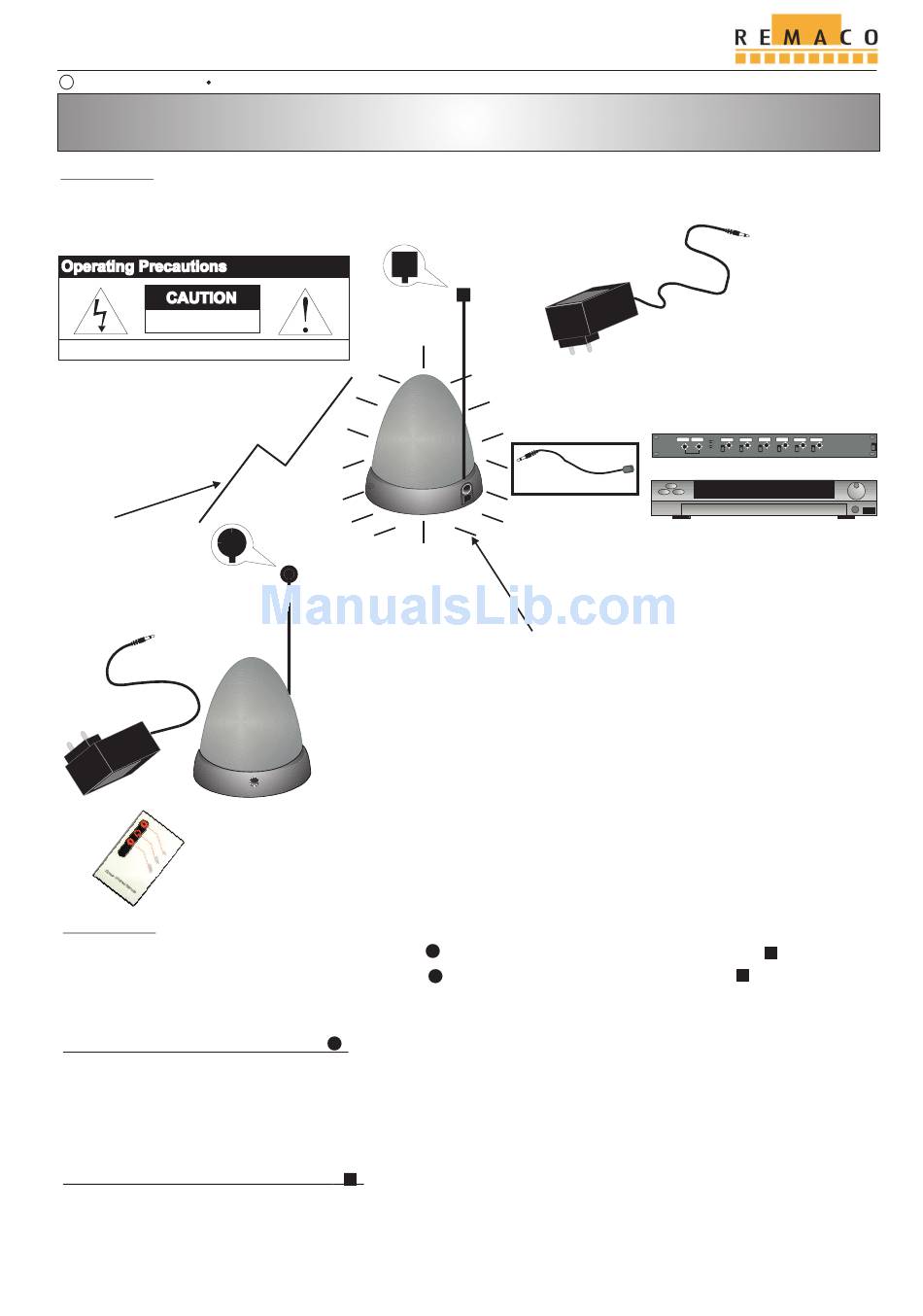

Setting up
Identify the
Infrared Signal Receiver , (ISR)
antenna shape. It is important to note that
head.
Infrared Signal Receiver , (ISR) ( )
1. ISR should be placed in the room from where you would like to control your A/V equipments.
(Example: TV, VCR, satellite receiver, cable TV converter, HiFi, CD player, LD player)
2. Connect the AC power adaptor of ISR to wall power socket.
3. The LED indicator should light up and it should be facing your remote control.
Infrared Signal Transmitter (IST) (
1. IST should be placed in the location where your A/V equipments are located.
2. Place the LED indicator side of IST facing the A/V equipments. When needed, IR probe cable can
used to wired to your equipment to get better signal.
3. Connect the AC power adaptor of IST to wall power socket.
4. The LED indicator should light up.
REMACO TECHNOLOGIES PTE LTD

User Guide

LED Indicator
Antenna
Infrared Signal Receiver
(ISR)
)
( IR Extender , Model: IRE-120 )
AC Power Adaptor
Antenna
IR Emitter Probe
IR Emitter Probe required
if infrared signal is blocked
by cabinet or equipments
Infrared Signal
Transmitter
(IST)
Omini-directional
infrared signal
( ) and Infrared Signal Transmitter, (IST)
ISR ( ) has a round antenna head and
Website: www.remacotech.com
V: 2.0
IRE-120
Amplifer
45:33 12 : 00
CD 2
DVD
( ) by their
IST ( ) has a square
