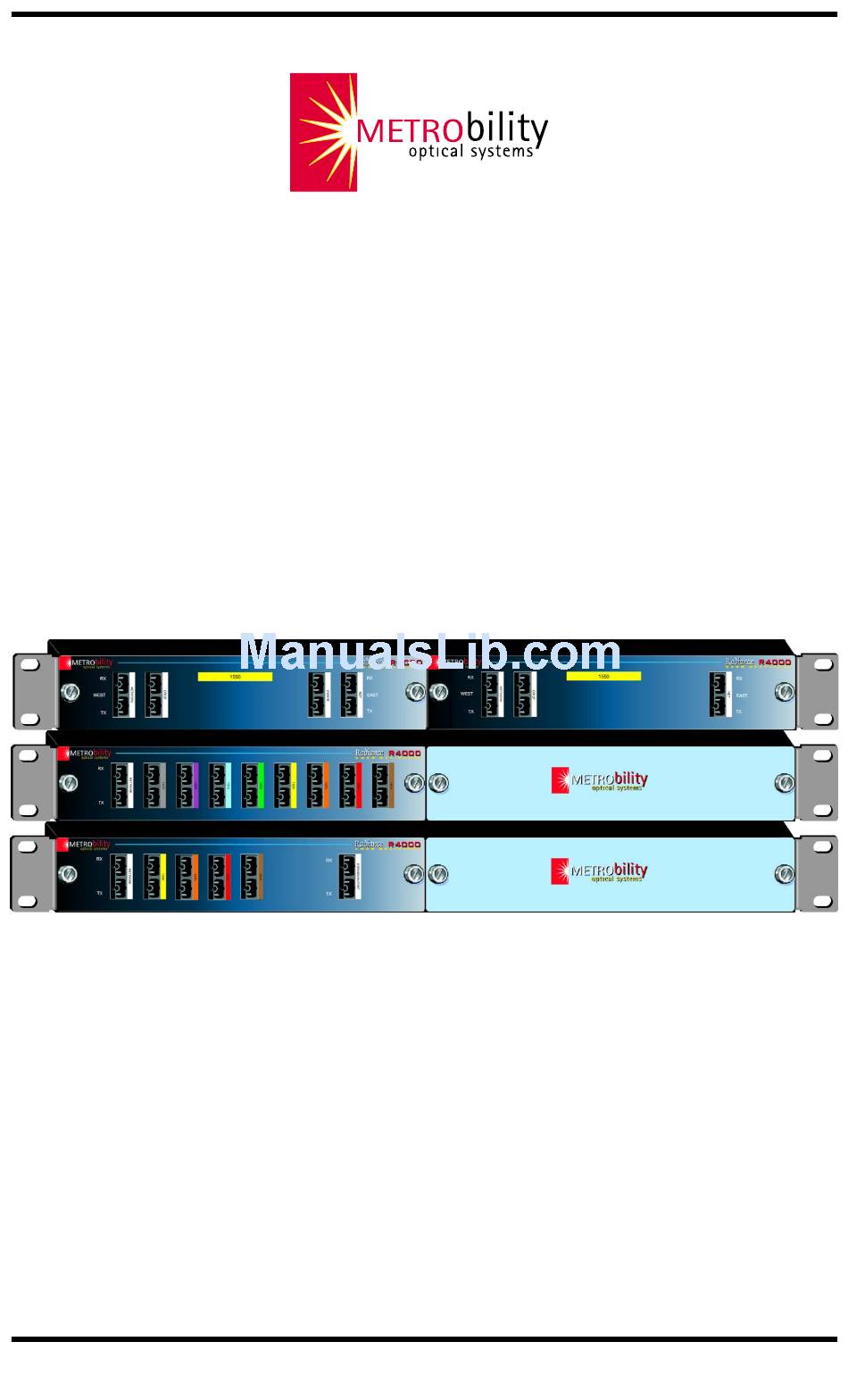

  • Page 1 ADIANCE CWDM S YSTEM Installation & User Guide...
  • Page 2 Metrobility Optical Systems, Inc.
  • Page 3 4000-CA ______ four 1-meter LC-to-SC singlemode fiber cables Metrobility, Metrobility Optical Systems, and NetBeacon are registered trademarks of Metrobility Optical Systems, Inc. The Metrobility Optical Systems logo is a trademark of Metrobility Optical Systems, Inc. All other trademarks are the property of their respective owners.

  • Page 4: Table Of Contents

    Table of Contents Radiance CWDM System Installation & User Guide Table of Contents ....................4 Overview ....................... 5 Product Features .................... 6 System Description ....................7 CWDM Components ..................7 Mux/Demux ................... 8 Expansion Port ................8 Drop/Pass Module ................10 Drop/Insert Module ................

  • Page 5: Overview

    By adding more channels onto available fibers, the Radiance CWDM System enables greater versatility for data commu- nications in ring, point-to-point, and multipoint topologies for both enterprise and metro applications.

  • Page 6: Product Features

    Product Features The Radiance CWDM System provides the following key features: • ITU G.694.2 CWDM wavelength grid with 20 nm spacing. • Support for up to 16 different channels, each carrying 1 Gbps of bandwidth.

  • Page 7: System Description

    System Description This section describes the components of the Radiance CWDM System. CWDM Components The Radiance CWDM System is comprised of three basic components. • The multiplexer/demultiplexer (mux/demux) combines four or eight different channels onto a common network fiber. Data received from the network fiber is separated back into the individual channels and returned to the local ports.

  • Page 8: Mux/Demux

    Mux/Demux The mux/demux provides four interface ports, each mapped to a different wavelength. The mux/demux combines the channels and transmits them on a single outbound (TX) fiber. Simultaneously, the mux/demux receives the same four channels from a single inbound (RX) fiber, separates them into individual wavelengths, and delivers each to the appropriate local interface.
  • Page 9 EAST Mux/Demux #1 Channels 1-8 The Radiance CWDM System supports four 4-channel mux/demux modules and one 8-channel mux/demux. The interface ports on the mux/demux connect to any Metrobility product that supports CWDM transceivers. The network port on the mux/demux connects to another mux/demux for a point-point application, or to a drop/insert or drop/pass module for other applications.

  • Page 10: Drop/Pass Module

    There are 16 drop/pass modules, each set to drop one of the 16 wavelength- specific channels supported by the Radiance CWDM System. Dropped channels interface with any Metrobility product that supports CWDM transceivers. O A D M D R O P / P A S S...

  • Page 11: Drop/Insert Module

    O A D M D R O P / I N S E R T 1590 WEST EAST Local Interface A Local Interface B Drop and Insert WEST EAST Local Interface B Local Interface A Radiance CWDM System...

  • Page 12: Installation Guide

    Installation Guide Follow the steps outlined in this section to install and start using the Radiance CWDM System. Unpack the System Check that the following components have been included: • R4000 chassis with pre-installed CWDM/OADM module(s) • 19-inch rackmounting hardware (2 brackets, 8 screws) •...

  • Page 13: Mount The Chassis

    Consider the overall loading before installing any equipment onto the rack. Reliable grounding must be maintained in the rack system. The R4000 is intended to be con- nected to earth ground. Radiance CWDM System...

  • Page 14: Attach The Grounding Lug

    Attach the Grounding Lug On the back panel, the R4000 provides two vertical grounding points ® where a grounding lug may be installed. Use a Panduit copper, standard barrel, two-hole lug (part number LCD8-10A-L) or its equivalent. Use two 10-32 screws to fasten the lug to the chassis. Use a No.
  • Page 15 Make sure the wavelength on the module is identical to that of the connected port. On the OADM modules, channels are dropped from eastbound traffic and inserted onto the westbound traffic. Refer to Drop/Pass Module Drop/Insert Module for more information. Radiance CWDM System...
  • Page 16 Connecting to the Network Use the Network Port for backbone connectivity. The mux/demux modules have one network port, which alternatively may be connected to an expansion port (see below). The OADM modules provide two network ports for connectivity to the east and west.

  • Page 17: User Guide

    Example 2: Calculate the power budget for Link A in the diagram below. Link A is the distance from CWDM SFP #1 to CWDM SFP #4. Mux/Demux #3 Mux/Demux #2 CWDM SFP CWDM SFP Mux/Demux #1 Mux/Demux #4 Link A Radiance CWDM System...
  • Page 18 Power Budget = TX Power - RX Sensitivity - Losses TX Power = 2 dBm RX Sensitivity = -25 dB Losses = (8-channel Mux/Demux #1 loss) + (4-channel Mux/Demux #2 loss) + (4-channel Mux/Demux #3 loss) + (8-channel Mux/Demux #4 loss) = 2.5 dBm + 2.0 dBm + 2.0 dBm + 2.5 dBm = 9.0 dBm Power Budget = TX Power - RX Sensitivity - Losses...

  • Page 19: Calculating The Maximum Link Distance

    Example 5: Calculate the maximum link distance for Link B from Example 3. Using a worst case value of 0.35 for the fiber attenuation, the distance is: 22 dBm - 2 dBm _____________________________ Distance = = 57 km 0.35 dBm/km Radiance CWDM System...

  • Page 20: Software Support

    R4000 chassis entered by all NetBeacon Clients. The inventory is accessible by any NetBeacon Client. Through NetBeacon, you can record the following information about the Radiance CWDM System into a database: • A coded identifier, which is used in place of an IP address.

  • Page 21: Topology Solutions

    Drop & Insert Module Radiance R1000 with R153 Line Cards Drop & Insert Radiance R4000 Radiance R1000 with Drop/Insert Module with R153 Line Cards Drop & Insert Radiance R4000 with Drop/Insert Module Radiance R1000 with R153 Line Cards Radiance CWDM System...
  • Page 22 RING TOPLOGY Radiance R4000 with two 4-Channel Radiance R4000 Mux/Demux Modules with two 4-Channel Mux/Demux Modules Drop & Drop & Insert Insert Radiance R5000 Radiance R5000 with R153 Line Cards with R153 Line Cards Drop & Insert Radiance R4000 with two 4-Channel Mux/Demux Modules Radiance R5000 with R153 Line Cards...
  • Page 23 R153 with Drop/Insert Module Line Cards Drop & Insert Drop & Insert Radiance R4000 with Drop/Insert Module Radiance R1000 with R153 Drop & Insert Line Cards Radiance R4000 with Drop/Insert Module Radiance R1000 with R153 Line Cards Radiance CWDM System...

  • Page 24: Replacing A Module

    Replacing a Module This section describes how to replace a module in the R4000 chassis. 1. If there are any fiber optic cables installed, disconnect them from the module. WARNING: Avoid looking into the laser beam coming from the cable. 2.

  • Page 25: Technical Specifications

    Output Power _________________________ 0 dBm to 5 dBm; 2 dBm (typical) Typical Link Budget __________________________________________ 28 dB Supported Link Length ________________________________________ 80 km Wavelength __________________________________ (see tables on next page) † Only applicable to the models ending in “E.” * ITU G.652.C-compliant fiber recommended. Radiance CWDM System...
  • Page 26 User Guide...

  • Page 27: Abbreviations

    Product Safety and Compliance Statements This equipment complies with the following requirement: NEBS Level 1 Certification This product shall be handled, stored and disposed of in accordance with all governing and applicable safety and environmental regulatory agency requirements. Radiance CWDM System...

  • Page 28: Warranty And Servicing

    Warranty and Servicing Three-Year Warranty for the Radiance CWDM System Metrobility Optical Systems, Inc. warrants that every Radiance CWDM System (R4000 chassis and modules) will be free from defects in material and work- manship for a period of THREE YEARS from the date of Metrobility shipment.
  • Page 29 Notes Radiance CWDM System...
  • Page 30 Product Manuals The most recent version of this manual is available online at http://www.metrobility.com/support/manuals.htm Product Registration To register your product, go to http://www.metrobility.com/support/registration.asp 25 Manchester Street, Merrimack, NH 03054 USA tel: 1.603.880.1833 • fax: 1.603.594.2887 www.metrobility.com 5660-000086 D 4/04...
