Summary of Contents for Tab Silverball Cosmo

  • Page 1 Manual...
  • Page 3 Our hotline is available for additional questions. Call +43 / 7229 / 78040 – 250 Operating instructions Silverball Cosmo machine manual (MH / SM 14.11.2005) Great care was taken in the compilation of these texts and images, but errors cannot be entirely ruled out.

  • Page 4: Setup Pointers

    Setup Pointers Safety regulations for the user • The machine may only be operated in dry rooms and connected to a safety plug socket that complies with the relevant safety standards. • Before starting the machine, it should be allowed to attain room temperature. •...

  • Page 5: Table Of Contents

    SYSTEM COMPONENTS IN THE PTIONAL FEATURES TROUBLESHOOTING RROR MESSAGES DETAILED DRAWING SILVERBALL COSMO COMPONENT GROUPS CABLE PLAN EC D ECLARATION OF ONFORMITY END-USER LICENSE AGREEMENT FOR MICROSOFT SOFTWARE TTACHMENT WARRANTY TERMS BY TAB-AUSTRIA INDUSTRIE UND UNTERHALTUNGSELEKTRONIK GMBH & CO KG NOTES: Page 5...

  • Page 6: Machine In Championsnet

    You may determine the version you are currently using by switching to Test Mode (see Page 9) or by selecting the TAB logo in the main interface. Please refer to the last page of this documentation for technical data and sizes.

  • Page 7: Taking Into Use

    Taking into use All machines are tested at the factory and delivered preset. We recommend that you wait for 15 minutes to allow the system to reach its operating temperature. Temperature differences and transport vibrations and so on may cause the touch screen settings to change.
  • Page 8 Press the TAB LOGO to enter the information overview. TAB Austria’s telephone – fax number and Internet address, the most recent Championsnet transmission and your machine’s software version, dongle version and system version are displayed here. Page 8...

  • Page 9: Testmode

    Then open the front lid and set the test switch to ON! The Silverball test mode appears on the screen. Testmode Page 9...
  • Page 10 You may make all the machine’s relevant settings in the test mode. The precise software version of the Silverball Strato and the dongle version are shown on the top edge of the screen. o General • Touch screen settings Press the Calibration button and follow the instructions shown on the screen. Then you may test the screen with Test.
  • Page 11 o Basic settings • Date and time You may set the current time and date here. The date and time will be set automatically if the machine is active in the Championsnet. You can then only adjust the time zones by 30 minutes or one hour. •...
  • Page 12 o Machine Test Test if all your input devices, p.e. buttons, coin acceptor,.. , are working properly. “Test Video” will activate the web cam. Page 12...
  • Page 13 o Hardware settings • Currency Set the programmed currency • Impuls Impuls settings for the • VDAI settings (only for machines with a german dongle) Settings to the VDAI • NV7 key This key is for the initialising of the bill acceptor. If you have to change the bill acceptor please be sure, that the key here is the same as on the bill acceptor.
  • Page 14 Procedure: • Choose „Run Coin service“ • You are now in the following options menu • Change Coin Set o Upload of some currency tables • Teach Channel o Program coins and Tokens • Test Coinmech o Test the coin channels •...
  • Page 15 The channels 6 up to 15 are free. These channels are ready to get programmed. • Choose „Teach Channel“ and press “Start” • Now you are in the following options menu where you have to throw in 15 coins • Follow the messages on the screen until you get the message “Teach complete” Page 15...
  • Page 16 • Select the currency and the value of it. Here you can see the channel 6 has been programmed with Croatian coins and the value is 1 Kuna = 1 credit. If you program a channel with token you have to choose „Token“! •...
  • Page 17 • Switch the Testmode to ON • In the menu „Hardware settings“ you have to choose your programmed currency In the menu „Machine tests“you are able to test it immediately. o Bookkeeping Here you find all the relevant informations to the bookkeeping. At “Bookkeeping2”...
  • Page 18 • Bookkeeping visible in the overview test menu If you activate this option, a Supervisor with his PIN code is allowed to look in here. o Setting the game price Page 18...
  • Page 19 • Setting the game price This is where you are able to set the credit value. For instance, 50 cents = one credit. You may change these values using the counter units. This is the setting for Standard1 (normal). You may set the bonus values in Standard2 (Bonus). •...
  • Page 20 o Local tournament settings You can create up to 2 local tournaments here. The tournaments can be played with 1 or 2 games. Pressing “set games / price” allows you to set the games and the game price for it. At “Statistic”...
  • Page 21 o Advertising text - input You can create your own advertising pages with a lot of standard pictures and also set the time to show in the stand-by mode. Page 21...
  • Page 22 After setting the PIN code you can find the Silverball logo in the lower left side after pressing the TAB Austria logo (also in the lower left side in the menu). Press the logo to get into the PIN code input.
  • Page 23 Once you have made all the desired settings, switch the Test Mode switch to OFF. The machine will automatically restart and you will be returned to the Silverball Strato Main Interface. Page 23...
  • Page 24 Selecting the button will take you to the Internet browser menu and the e-mail input mask. Note: The images may vary slightly from machine to machine, but they all possess the same functions. Page 24...

  • Page 25: Internet

    Enter the e-mail text here. Internet • Browse: Enter the address of the page you wish to visit here and it will be displayed, e.g. www.tab.at. • Refresh: The page currently shown will be refreshed. • Home: This will take you back to the start page.

  • Page 26: Technical Data

    Technical data • Machine sizes: Height: 36.5 cm Width: 54.5 cm Depth: 44 cm Weight: 25 kg *) • Electric data Power connection: 230 Volt to plug socket Power: 210 watts Fuse: 3.15 ampere Note: The following should be observed when connecting several machines to a power distributor: No more than three machines should be connected to one properly installed power connection, which should possess a 13-amp fuse.

  • Page 27: Championsnet

    Championsnet o Activate Championsnet Note: The terminal will restart automatically when Championsnet is activated! Selecting Change in Connection will take you to the following menu: Page 27...
  • Page 28 • Provider connection Set by entering type, telephone number, password • Commence transmission Here, you may determine when data transmissions should start automatically. • Connection type This is where you may set the type of your Internet connection. The checkbox Continuous Connection should remain deactivated, as otherwise the machine will stay online, which may result in considerable connection costs! Page 28...
  • Page 29 Modem Here, the connection may be established via an installed analogue modem or an ISDN card (optional). In Connection Type activate Modem. Then enter your telephone number, access number (user name) and the password in Provider Connection. Please enter the password a second time in Confirm. Fig. 1.0 on Page 32 describes Page 2 for connection settings.
  • Page 30 Here, your machine is connected to an internal network. No dial-in parameters are required. Only the settings shown on Page 2 are necessary. Select Network Direct and press the Page 2 button (see Fig. 1.0). Please contact your network administrator to procure the data and enter it accordingly.
  • Page 31 Page 2 of the Provider Connection menu: Fig. 1.0 This is where you may make your Internet settings. Contact your Internet provider or your network administrator should the settings not function. • Silverball Max Terminal If you want to operate the Silverball Max as Silverball Selection Terminals in the network, activate Enable Max Terminal and enter an IP address outside the IP range at IP Pool Starting Address and IP Pool Ending Address.
  • Page 32 The machine is registered during the registration process during which it is assigned its own machine number. To gain access to the Online Service, you must register on our homepage under OTM. You will then receive a separate TAN list and licences. The licenses are free of charge for a period of three months.

  • Page 33: Online Terminal Management

    When you register for the first time, you will receive licences free of charge for three months which will allow you to activate your terminal in the Online Service. Please consult the homepage at www.tab.at in the OTM section for prices for mp3 and video titles and other details about the OTM service.

  • Page 34: Cosmo Update

    Cosmo Update The software is stored on the hard disk fitted in the machine. It may be updated with the help of a removable drive. However, it may also be updated online when in Championsnet and Online Version Plus has been selected. ADSL connection is necessary for this due to the fact that a great quantity of data must be downloaded.
  • Page 35 You will need a PC with Windows, the Mpeg DJ Encoder software and a scanner. You may procure the software from TAB Austria. The PC must be equipped with a corresponding cartridge for the removable disk and a scanner.

  • Page 36: Key Options

    Key options When the machine is started with the test switch set to ON or by pressing Key 6 (right outer Player 2A), a menu with the following options will appear: Request Filecheck All data on the hard disk will be checked for errors. Request Touch Screen Calibration Selecting this menu will request calibration of the touch screen Enable Selftest...

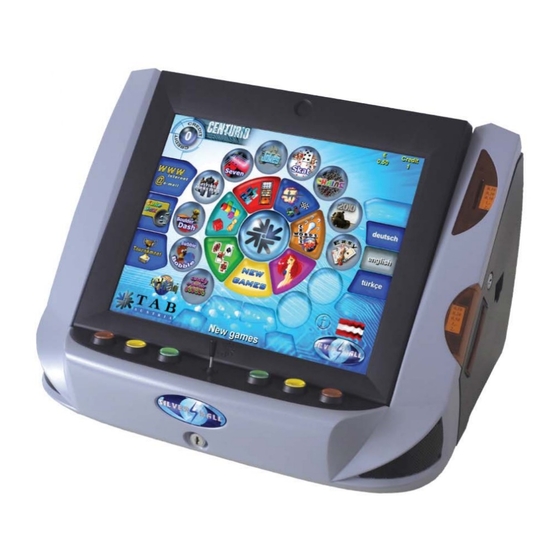

  • Page 37: Machine Description

    Machine description Silverball Cosmo is an ergonomically designed bar machine consisting of a metal body and plastic components. The machine contains an electronic coin checker, a 17” LCD (with touch screen) and a computer system. PC system components in the SILVERBALL COSMO PC system (2.4 GHz) with PCI bus and min.

  • Page 38: Troubleshooting

    Troubleshooting Fault Cause Remedy Touch screen only functions Connection cable from touch Replace connection cable. partly. screen to PC defective (the part that is connected to the PC). MEMORY TEST FAIL at start- Memory defective. Replace PC. No function. The mains plug has not been Connect to the mains socket.

  • Page 39: Error Messages

    The update hard disk does not support the device configuration, please have it checked by TAB. OVERWRITE PROTECTION Check the hard disk set-up, otherwise please have it checked by TAB. PARTITION ERROR The hard disk to be updated cannot be set up. Either the hard disk or its cable is defective.
  • Page 40 SLAVE COPY FILES ERROR An error has occurred writing to the hard disk to be updated. Either the hard disk or its cable is defective. NOT COMPLETELY UPDATED The update procedure has not been completed and must be repeated. CHECK FILES ERROR The hard disk content does not correspond to the specifications.

  • Page 41: Detailed Drawing Silverball Cosmo

    Detailed drawing Silverball Cosmo Lower housing section: 1. Metal body, Cosmo 022.082-006 2. Stop bolt with counter nut, DIN 439 022.011-603 3. Fan cover, Cosmo 022.082-038 4. Fan plate 464.126-127 5. Combination surge protector 671.115-507 6. Soft housing feet 022.011-400 7.
  • Page 42 Top housing section: 1. Top section, plastic, Cosmo 210.075-012 2. Coin insert, Cosmo 464.138-703 3. Bank note lettering field, Cosmo, coated, 210.075-016 German 4. Loudspeaker mesh, right, Cosmo 412.120-254 4. Loudspeaker mesh, left, Cosmo 412.120-255 5. C905 23 mm lock, various locks 675.191-550 6.
  • Page 43 1. Lid hinge, left, Cosmo 022.082-055 2. SC 5.9 ND 8056 loudspeaker 412.120-260 3. Joystick retention plate, Cosmo 022.082-062 4. Loudspeaker retention plate, right, Cosmo 022.082-048 4. Loudspeaker retention plate, left, Cosmo 022.082-049 5. Lid hinge, right, Cosmo 022.082-053 Page 43...
  • Page 44 1. Plastic part, front, display for Cosmo 210.075-029 2. 17" touch screen, flat + USB 462.930-202 3. 17" LCD TFT, LTM170EI-A01 831.700-032 4. Display retention plate for Cosmo 022.082-021 5. Camera retention plate, Cosmo 022.082-066 6. Plastic part, rear, Cosmo display 021.075-028 7.
  • Page 45 Cashdesk 022.082-047 Cashdoor 361.110-131 Plastic side, right, Cosmo 210.075-018 Keylock C905 23mm different locking 675.191-550 Page 45...

  • Page 46: Component Groups

    471.221-762 Combination surge protector, 4A 3.15 A 671.115-507 Stop bolt with counter nut, DIN 439 022.011-603 Bearing bush, Cosmo 022.082-065 Cable tree, Silverball Cosmo 360.110-635 Honeywell micro-switch, large, V5J012BB1D 461.613-360 Locking angle, front, Cosmo 022.082-064 Lock hook, side, Cosmo/Strato 675.196-192 Cable Y Power 5.25"...
  • Page 47 Display turning angle stop, right, Cosmo 022.082-060 Bank-note lettering field, Cosmo 210.075-019 Bank-note lettering field, Cosmo, coated, German 210.075-016 3) PC components PC TAB Micro-ATX COSMO 831.000-017 PC hard disk, 40 GB 831.000-040 Machine mains cable 230 v~ 360.141-810 4) Optional equipment Export package, Cosmo, printed 840.030-079...

  • Page 48: Cable Plan

    Cable plan Page 48...

  • Page 49: Ec Declaration Of Conformity

    EC Declaration of Conformity Page 49...

  • Page 50: End-User License Agreement For Microsoft Software

    END-USER LICENSE AGREEMENT FOR MICROSOFT SOFTWARE IMPORTANT - READ CAREFULLY: This End-User License Agreement ("EULA") is a legal agreement between you (either an individual or a single entity) and the manufacturer ("Manufacturer") or the special purpose computing device ("SYSTEM") you acquired which includes certain Microsoft software product(s) installed on the SYSTEM ("SOFTWARE PRODUCT"...
  • Page 51 • Rental. You may not rent or lease the SOFTWARE. • Software Transfer. You may permanently transfer all of your rights under this EULA only as part of a sale or transfer of the SYSTEM, provided you retain no copies, you transfer all of the SOFTWARE (including all component parts, the media, any upgrades or backup copies, and this EULA, and if applicable, the Certificate(s) of Authenticity), and the recipient agrees to the terms of this EULA.
  • Page 52 5. PRODUCT SUPPORT. • Product support for the SOFTWARE is not provided by Microsoft or its subsidiaries. For product support, please refer to Manufacturer's support number provided in the documentation for the SYSTEM. Should you have any questions concerning this EULA, or if you desire to contact Manufacturer for any other reason, please refer to the address provided in the documentation for the SYSTEM.
  • Page 53 PERFORMANCE, SUCH AS IN THE OPERATION OF NUCLEAR FACILITIES, AIRCRAFT NAVIGATION OR COMMUNICATION SYSTEMS, AIR TRAFFIC CONTROL, DIRECT LIFE SUPPORT MACHINES, OR WEAPONS SYSTEMS, IN WHICH THE FAILURE OF JAVA TECHNOLOGY COULD LEAD DIRECTLY TO DEATH, PERSONAL INJURY, OR SEVERE PHYSICAL OR ENVIRONMENTAL DAMAGE.

  • Page 54: Attachment 1

    Attachment 1 Page 54...

  • Page 55: Warranty Terms By Tab-Austria Industrie Und Unterhaltungselektronik Gmbh & Co Kg

    3. The warranty will only be granted for new products by TAB, not for their spare parts, not for products of different brands and manufacturers and corresponding spare parts. No warranty is granted for used products either.

  • Page 56: Notes

    machine defects caused by transport damage for which we are not responsible, incorrect installation and assembly, incorrect use, non-observance of operating or assembly instructions or lack of care. 6. The warranty claim becomes void if repairs or interventions have been carried out by the customer himself/herself or by persons who were not accordingly authorized or who were not authorized by us or in the event of our machines being fitted with spare, supplementary or accessory parts that are not original parts, or if parts have been...
