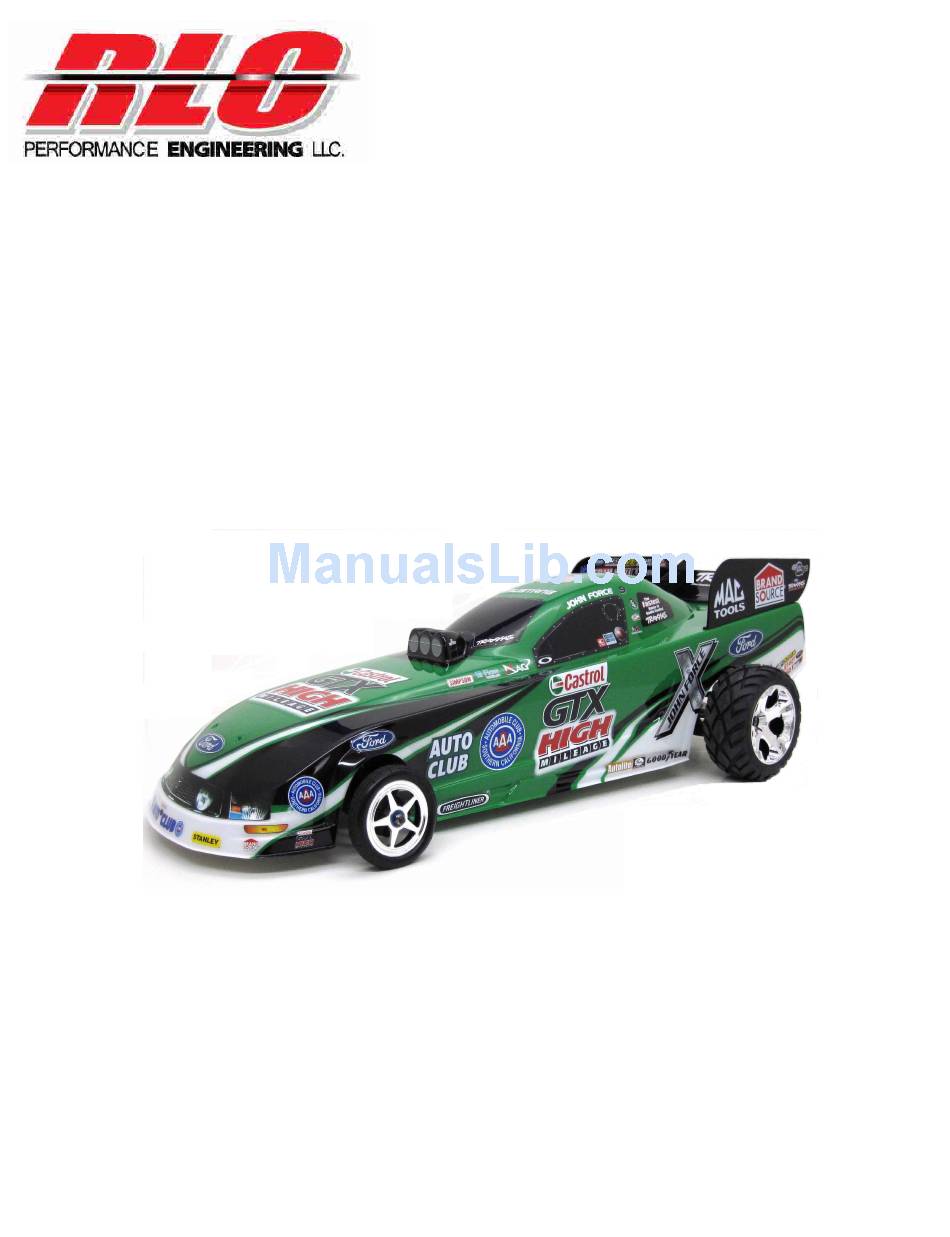

When You Want To Go Fast Instruction Manual Part # 500,501 Jato Sportsman Nitro Funny Car Kit www.rlchobbies.com If Our Name is On It, Rest Assured It's The Worlds Finest (732) 269-5628... - Page 2 Read The Instruction Page 1 Here are "Tips and Tricks" that will make your installation quick and easy. Check the last page in this instruction manual for your parts description. 1. Make sure all fuel is removed from the fuel tank in your Jato. 2.
- Page 3 #15 that is supplied with the kit. (Warning) If you do not use the anti-squat block supplied with the kit, the tires will hit the body. You must use the RLC Anti-Squat blocks to keep this from happening. Stock Anti-Squat RLC Anti-Squat 14.
- Page 4 Page 3 15. Bolt the steering servo into the new aluminum top plate #7 supplied with the kit as shown. Use the orginal screws that you removed from the Jato. 16. Take the top plate with the servo already bolted in and place it on the chassis into postion. Use the four 3 mm x 10 mm button head screws #11 supplied in the kit and hand tighten them down just a few threads.
- Page 5 Page 4 20. Install the rear trans cover and tie bar onto the new wheely bar #14 supplied with the kit. Use a small drop of red loc-tite on the bolt that goes inside the trans case and bolts to the lower wheely bar. This will insure the bolt does not vibrate out and ruin the gear set.
- Page 6 Page 5 25. This is how the conversion looks when it is done. The body mount is simple and easy. The body post #9 slides into the slots on top of the wheely bar mount. Once firmly in the slots just lower the front of the body until it snaps into the front bumper / fuel cell.
- Page 7 Part # Parts Description 1. 501 Funny Car Body 2. 6935 Front Bumper Fuel Cell Body Mount 3. 475RLC Front End Shim 4. 5535RLC Front Bumper 5. 450RLC Jato Sportsman Funny Car Chassis 6. 225RLC One Long And One Short Stand Offs For Top Plate 7.
