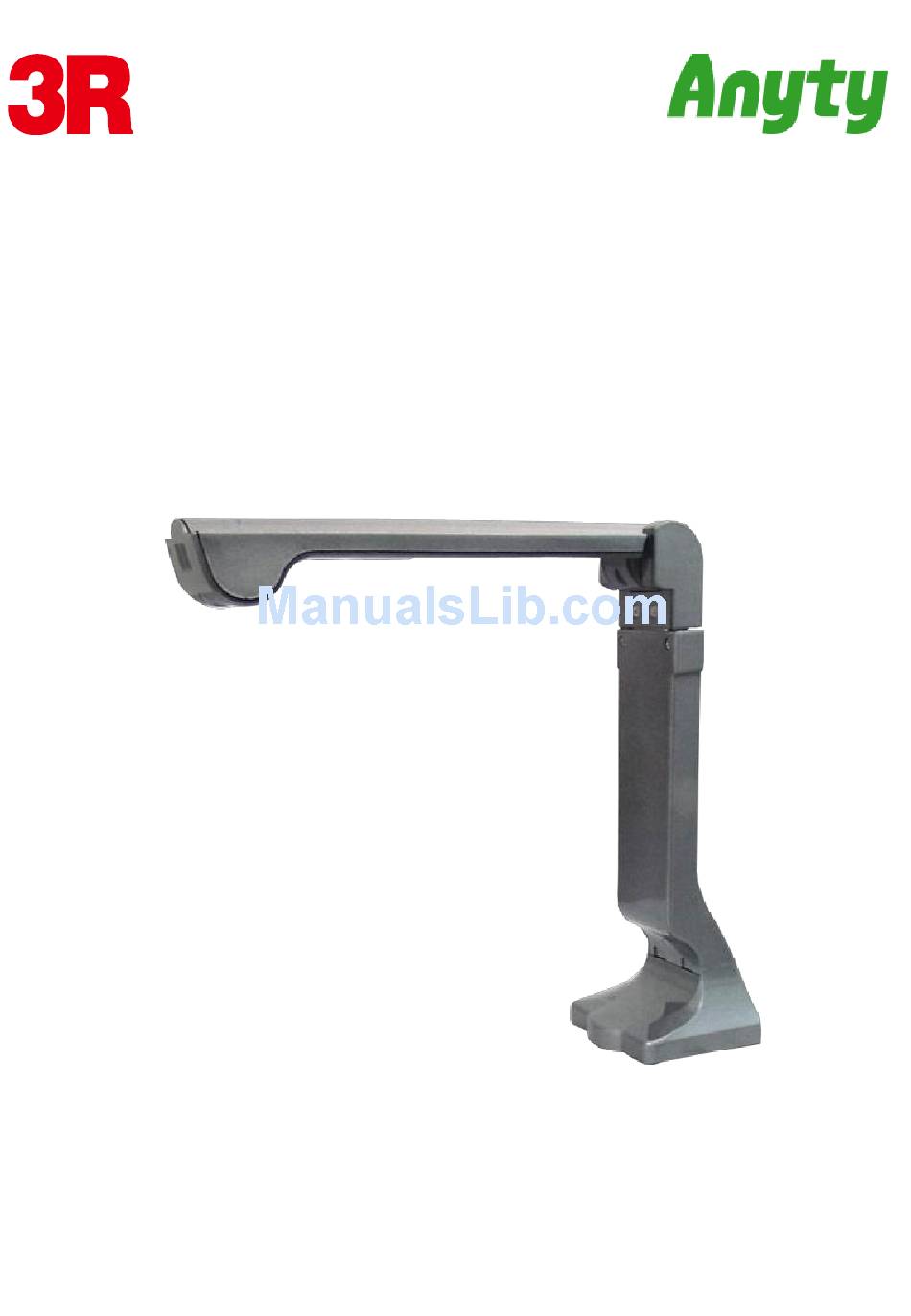

「Anyty」 Stand Scanner
3R-SSA600
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3R-SSA600 and is the answer not in the manual?

Questions and answers

Related Manuals for Anyty 3R-SSA600

Summary of Contents for Anyty 3R-SSA600

  • Page 1 「Anyty」 Stand Scanner 3R-SSA600 Operation Manual...

  • Page 3: Table Of Contents

    ― Index － 1. Contents 2. Function 3. Preparation 4. Software Installation 5. Use（Basic function） 6. Use（Window operation） 7. Use（Capture function） 8. Use（Preview function） 9. Use（Setting and other function） 10. Q&A 11. Cautions 12. Spec ※The brand name except us which I use with this book, the service name are registered trademarks of the product companies ―...

  • Page 4: Contents

    Contents Thank you for buying our stand scanner! The package contains contents below. ■Stand Scanner ■Exclusive mat ※Different color of front and back ■USB cable ■Installation CD ■Manual ― 2 ―...

  • Page 5: Function

    Functions ■Name of each parts Each name of parts is noted below. Names of parts in this manual will all be the same as below. Power lamp(Blue) Switch Sensor Dial USB connector（Back） ― 3 ―...
  • Page 6 ■Unfolding The product is packed in a folded state at the time of shipment. Please unfold sensor part before using. Default Unfold with hands （ Attention ） Be careful about nipping your hands during unfolding or storing. （Attention）Please store the scanner during carrying around. ■Lighting on/off of LED Switch of Inner LED is touch sensor.

  • Page 7: Preparation

    Preparation Please prepare mat and documents for scanning. ① First, please put mat on somewhere or something flat and stable. （Image from above） ※Color of mat is different in front side and back side but could be used for scanning either side. ②Then, put scanner on the mat where the white square is marked and noted as ‘Scanner’.

  • Page 8: Software Installation

    Software Installation Special software is required in order to use SSA-600. In this section it will explain the steps of installation. （Attention）Please do not connect the stand scanner with PC until installation of the software is completed. （Attention）The requirements of the software, please look at page 36 of ‘specs’.
  • Page 9 ②The screen of selecting install folder will show. Normally, click ‘Next’ to continue ③Click ‘Install’ to start installation. ― 7 ―...
  • Page 10 ④Installation will be starting. It will take several minutes to install. Please click ‘Finish’ to complete and terminate installation. ※Put check in 「Launch DocScanner」 box and launch DocScanner immediately after terminating install wizard. ⑤An icon of the software will be made in a list of desktop or programs （Attention）It might not be made on desktop depend on the environment.
  • Page 11 ⑥After completion of the installation, please connect a PC to a stand scanner with a USB cable. That is all for installation. （Attention） Please see Q&A on page 33 if it could not identified properly. （Back image） Connector When it is connected properly, you could confirm the following names on the device manager.

  • Page 12: Use（Basic Function

    Use （Basic Functions） Let’s try saving picture in standard state after installation. ① Connecting scanner to PC with USB cable. ②Please start "DocScanner" from the list of desktop or programs. ― 10 ―...
  • Page 13 ③ ‘DocScanner’ will be launched The image in the range of sensor will be shown on DocScaner Window. Please project the image which you want to capture on the screen. ④Please click ‘scan’ of the icon of the upper window when adjusting position is completed.
  • Page 14 ⑤The captured image will be displayed in a thumbnail on left side of the window. The preview will be displayed on the right side of the screen when you double-click the thumbnail. ⑥The scanned data will be saved in "DocScaner" folder in the My Document.

  • Page 15: Use（Window Operation

    Use（Window operation） In this section, it will explain the operation of special software. Each menu and function of icons will be introduced in next section. ― 13 ―...
  • Page 16 ■Menu bar（Topside of the Window） File operation or each function is divided into menu bar at upper side of the window. ■Tool bar（Upper window） Tool bar (with icons) is just under the menu bar. Some functions of the menu bar are displayed with an icon in tool bar, and the use of the function is possible immediately by clicking it.
  • Page 17 ■Video／Image（Upper window） To switch between capture window and preview window, please click tab at upper left side of the window. ■Video Property（Right side of the window） It will display windows such as the setting of a picture on the right side when you click ‘Video tool’ at the right side of the window.

  • Page 18: Use（Capture Function

    Use（Capture Function） You could select capture range and image effect during capturing. ■Capture range adjustment It will capture the whole range that a sensor scanned when you press the capture button with the initial state. Please follow the steps below if you only want to capture necessary range. （Attention）The pixels of saved data will be lower when you select the capture range than when you captured the whole range.
  • Page 19 ■Effect（Color inversion.etc） You are able to capture with effects shown above by clicking the icons. To cancel all effects, please click ‘Color’ icon. Inverse color － Inverting the color of captured image and save it. Grey-scale － Transferring to gray scale and save it. Black Line －...
  • Page 20 ■Revising direction（Turn of the image） Please use the icons on tool bar or ‘Image’ on the menu bar to revise the direction of the image at the time of saving. You are able to adjust the direction 90 degrees and can reverse it vertically or horizontally.
  • Page 21 ■Video property Video Resolution － Select resolution of saving data. Normally it is 2592 x 1944. Auto（check） － Software will adjust white balance.etc. automatically when you classify a check in this option. If you want to adjust it by manual operation, please exclude a check. Default（Button）...
  • Page 22 ■Tools Compressibility of the image － You are able to adjust compressibility (quality) of saving data in JEPG format. Turning ― Input numerical value to adjust angle of image Display magnification ― Change the size of the appearance of the photography screen. It will not be reflected for saving data. Fractionated Gain ―...

  • Page 23: Use（Preview Function

    （Preview function） Double click the thumbnail in saving list or preview tab to display preview screen. You are able to edit or print with this function. ■Print Click ‘Print’ icon on tool bar or ‘Print’ in ‘File’ on menu bar to start printing.
  • Page 24 ■Clip out only a necessary part Click ‘Rectangle select’ icon of the tool bar. Then, please choose the range that you want to clip out with mouse. A flame will be shown so click ‘Cut’ to cut only within selected range.
  • Page 25 ■Adjust display size You are able to change size of preview screen by options on menu bar or tool bar. This only changes display size but not saved data. ※Actual size; ‘Actual size’ will fix display size to make resolution of saved data match with resolution of the monitor. It will be different from the real manuscript size.
  • Page 26 ■Save as PDF file Click icon of ‘Creat PDF’ to save previewing image as PDF format. （Attention）Please see page 30 to know how to save several data as PDF at once. ■Special effect Put special effect and other functions on captured data, ―...
  • Page 27 Remove background ― It is a function to recognize the color of the background of the photography image, and to automatically convert into white. However the effect will be different according to captured data. OCR ― You are able to select a language and recognize by an OCR function.

  • Page 28: Use（Setting And Other Function

    （Setting and other functions） This section lists about various setting in the option and some other functions. 1. Option You are able to change settings of DocScaner in the option. ■Basic settings Picture Format ― You are able to select saving format. Picture size ―...
  • Page 29 （Attention）The consecutive numbers of the saved file name will be reset if you change the saving folder. ■Function setting Paper Size ― Cut in selected paper size Scan sound ― Put a check to make sound of scan Auto scan ― Put a check into this option to activate Auto scan. You are able to set photo number and interval time to start auto scan.
  • Page 30 ■Picture setting Black Line ― Change the standard of Black Line JEPG Quality ― Adjust the quality of the picture (Only for JEPG) Color mode ― Always save picture with grey scale if you put a check in this box, but not on displayed image. Scan preview style ―...
  • Page 31 ■Display settings Skin settings ― Adjust window color of DocScaner by adjusting combination of Red, Green, Blue. Click ‘Default’ to reset to initial state. Layout settings ― Qualify a check into ‘Menu on the right dock’ to put menu on the right side of the window. ―...
  • Page 32 ■Multiple PDF documents Please follow the step below to create multiple PDF documents ① Change option Select picture setting in Option and qualify a check into box of ‘Multiple PDF documents’ in ‘PDF Options’. The checks below are to set the size that you want to use as the standard. ②Select file ‘P’...
  • Page 33 ■OCR function The software contains simple OCR function. Display the picture which you want to run OCR. Please click ‘COR’ on tool bar or menu bar. Text identification will be starting. Processing gauge will be shown and starting. As identification is complete, the Word will be launched automatically and OCR data will be pasted on it.
  • Page 34 ■A3 capture function Dial The stand scanner is able to scan A3 size. Please pull top side of the scanner as the picture above. Now you are able to scan A3 size documents. The height (focal range) will change so please adjust focal point with dial next to the sensor.

  • Page 35: Q&A

    Q&A Q. No respond when I insert the Software CD in my PC A. The auto run could be blocked by security software or Windows of your PC. Please launch ‘setup.exe’ from CD-ROM directly. Q. Installation stops and does not work even if I restart it. A.

  • Page 36: Cautions

    Caution For safety use of the product, prohibition of using and cautions are written. To ensure customer’s safety, PLEASE read this carefully before using Warning Contents of actions lead to danger to life or serious injury Caution DO NOT leave or use the product under direct sunlight and circumstances of high temperature.
  • Page 37 Caution Please stop using the scanner immediately when you see the smoke comes from scanner or feel smelly. Attention other hazards Please fold it when you carry it around. Please DO NOT use mat in other purpose. ― 35 ―...

  • Page 38: Spec

    Spec ■Product specs Image sensor 500 million pixel CMOS sensor Light source Inner white LEDｘ1 or ambient light Corresponding color 24bit color Corresponding size A3※、 A4、 A5、 A6、 postcard、 name card Resolution Maximum 2592x1944 Saving format JPG、PNG、BMP、TIF.etc Other Functions A3 size capture ※ 、 Focal point adjustment、Save as PDF 、OCR Inter face USB2.0...
