Summary of Contents for Wolf Secure Wolf Guard

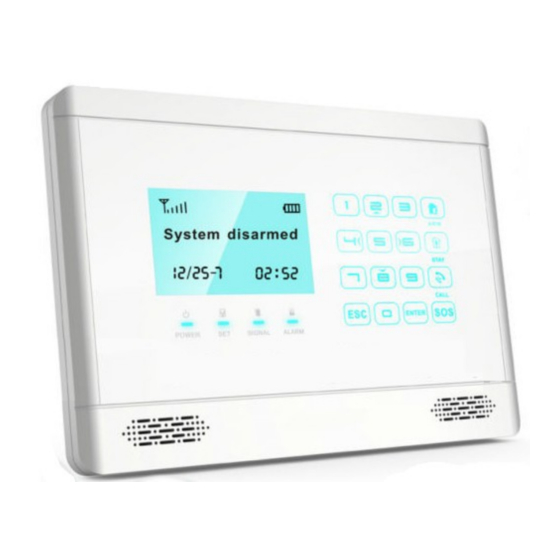

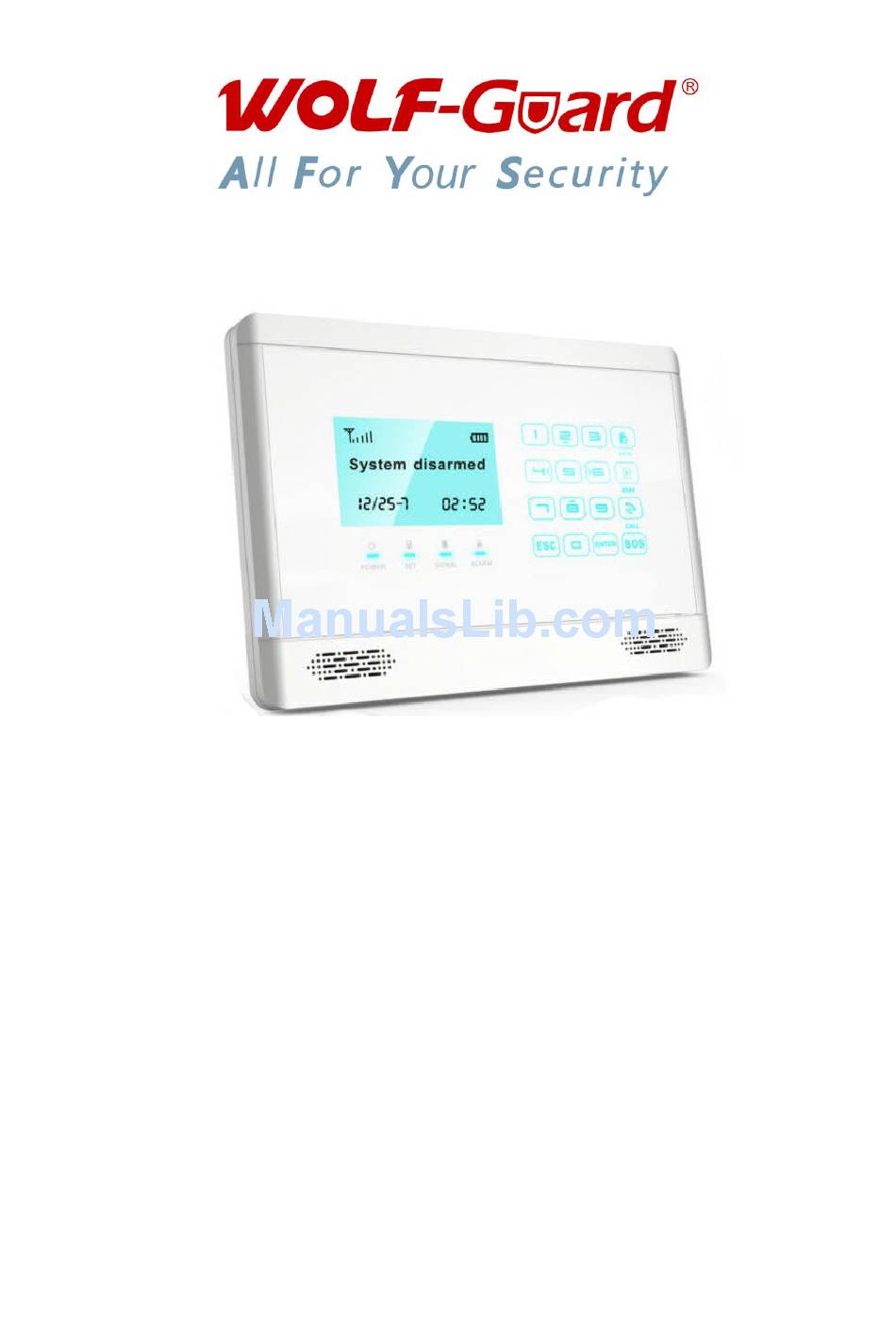

- Page 1 Wolf Guard Touch Keypad GSM Wireless alarm system User’s Manual Page 1 Wolf Secure http://www.wolfsecure-gsmalarms.co.za...
- Page 2 If unit is faulty please contact the seller. The information contained in this manual is prepared for this specific alarm system only. Wolf Guard adopts a sustainable development strategy. Therefore, the company retains the right to modify or make improvement to any product described herein without giving prior notice.
-
Page 3: Table Of Contents
Operation Instructions........................19 1. System statuses.........................19 2. Remote Controller Operation.....................19 3. Keypad operation ........................19 Activate Out Arm with the alarm keypad ..............19 Activate Home Arm using the alarm keypad..............20 Disarm.........................20 3. Cellular / phone operation ......................20 Page 3 Wolf Secure http://www.wolfsecure-gsmalarms.co.za... - Page 4 Receiving a call from the alarm system..............20 Making calls to control the alarm system..............21 Using alarm system as a cellphone/intercom system..........21 Technical Parameters..........................22 Specifications......................22 Factory settings......................22 Care and Maintenance........................23 Page 4 Wolf Secure http://www.wolfsecure-gsmalarms.co.za...
-
Page 5: Alarm Functions
♦ Built-in AAA NI-HI rechargeable backup battery ♦ Alarm event log ♦ “Listen in “ function ***New: Now include build-in wireless transmitter to trigger wireless sirens, strobes, relay units etc. ***New: You can now switch an appliance on/off from your cellphone Page 5 Wolf Secure http://www.wolfsecure-gsmalarms.co.za... -
Page 6: Alarm System Diagrams
Make sure it’s away from large metal objects and household appliances which may cause high frequency interference, as well as barriers such as reinforced concrete wall or fire door, etc. Alarm Panel front schematic diagram: LCD Display Page 6 Wolf Secure http://www.wolfsecure-gsmalarms.co.za... - Page 7 Do not add a bigger siren than supplied directly to the alarm unit. A bigger siren can be added via a suitable relay unit, please contact your supplier for more information. A bigger siren will overheat some components (not maybe but surly) and destroy them. Such action will void product Guarantee. Page 7 Wolf Secure http://www.wolfsecure-gsmalarms.co.za...
-
Page 8: Function Settings
While the alarm system is disarmed, input the 4-digit settings password using the keypad on the alarm unit and press [#] button to confirm. You will hear a voice prompt: please enter instruction. Note: The system default password is [8888]. Page 8 Wolf Secure http://www.wolfsecure-gsmalarms.co.za... -
Page 9: Exiting Settings Mode
“coding completed”, the [ ] indicator goes out, indicating the remote controller is successfully coded. Operating method: [20]+[A]+[#] A indicates：1~8 remote controllers number. Note: You can add maximum 8 remote controllers. Page 9 Wolf Secure http://www.wolfsecure-gsmalarms.co.za... -
Page 10: Delete Remote Controller
[01~99], and then input [#] to confirm. The main unit emits a long beep and the defence zone indicator flickers once. You will hear a voice prompt “delete completed”. Operating method: [24]+[XX]+[#] XX indicates: 01 ~99 defence zones number Page 10 Wolf Secure http://www.wolfsecure-gsmalarms.co.za... -
Page 11: Change Passwords
[BB] of the month, the two digits [CC] of the day, the two digits [DD] of the hour, the two digits [EE] of the minute, the two digits [FF] of the second, and finally enter [#] to Page 11 Wolf Secure http://www.wolfsecure-gsmalarms.co.za... -
Page 12: Time Based Arming And Disarming
XX indicates: the address code 36, 37, 38 of the timely disarming AA indicates: the hour of the setting time BB indicates: the minute of the setting time For example: set the arm time as 10:45am Operating method: [33][22][45][#] LCD display: Page 12 Wolf Secure http://www.wolfsecure-gsmalarms.co.za... -
Page 13: Timing Control
Operating method: [XX][#] XX indicates: the 1- 6 alarming user number [51] ~ [56] For example: Delete the third alarming user number from the system. Operating method: [53][#] LCD display: Page 13 Wolf Secure http://www.wolfsecure-gsmalarms.co.za... -
Page 14: Sms Receiving Number Setting
[4]: bypass defence zone – alarm will not be triggered if sensors on this zone is triggered. C: defence zone location (locations are a way to give the user an idea on what zone were triggered when the alarm calls or SMS the user). Page 14 Wolf Secure http://www.wolfsecure-gsmalarms.co.za... -
Page 15: Home Arm Defence Zone Setting
] indicator will go on, and do your recording for the next 10 seconds , record at 10cm away from the main unit with relative loud tone. In the next 10 seconds, the main unit will replay your message. Operating method: [701][#] LCD display: Page 15 Wolf Secure http://www.wolfsecure-gsmalarms.co.za... -
Page 16: Siren Setting
8 to go to next record and press [*#] to exit checking. Example: the 51st defence zone; the 7th alarming; alarming time: 12:10, August 1st, 2008. LCD display for one second and then display the alarming time: Page 16 Wolf Secure http://www.wolfsecure-gsmalarms.co.za... -
Page 17: Sms Notification When Alarm Is Armed/Disarmed (Default: Off)
The voice prompt when arming or disarming the system as well as for all voice prompts used by the system can be enabled or disabled. Voice prompt settings when arm/disarm In setting status, first input [83], then [0/1] and finally press [#] to confirm; voice prompts: setting completed, please enter instruction. Operating method:[83][A]# Page 17 Wolf Secure http://www.wolfsecure-gsmalarms.co.za... -
Page 18: Wireless Transmitter Operations
The main unit will make a long beep and voice prompts: setting completed, please enter instruction. Operating method: [84] [0/1] [#] [1]: activate voice prompt for all operations (factory default) [0]: deactivate voice prompt For example: Set voice prompt OFF Operating method: [84] [0] [#] Page 18 Wolf Secure http://www.wolfsecure-gsmalarms.co.za... -
Page 19: Tamper Alarm Setting
Out arm is used when there is nobody inside the protected property and all sensors will be active Press [Out Home ] button on keypad, system will make one beep per second for a total of 100 Page 19 Wolf Secure http://www.wolfsecure-gsmalarms.co.za... -
Page 20: Activate Home Arm Using The Alarm Keypad
If you answer the call, you will hear the pre-recorded voice recorded as explained earlier as well as an artificial voice that gives the zone number that triggered the alarm.. You can set the alarm system via your telephone or mobile phone keypad. Page 20 Wolf Secure http://www.wolfsecure-gsmalarms.co.za... -
Page 21: Making Calls To Control The Alarm System
The alarm system will send power failure and recovery notifications via SMS when detecting power loss to the alarm system. Note: Only under Out Arm status, will the system send SMS power failure/ power recovery alerts. The SMS content: Power failure: Power changer off Power recovery: Power changer on Page 21 Wolf Secure http://www.wolfsecure-gsmalarms.co.za... -
Page 22: Technical Parameters
Remote control (user) Password 1234 Siren sound time 180 sec Components list Main panel 1 pc, • Remote controller 2 pcs, • Siren 1 pc, • PIR sensor 1 pc, • Door sensor 1 pc, • Page 22 Wolf Secure http://www.wolfsecure-gsmalarms.co.za... -
Page 23: Care And Maintenance
Do not drop this product on the ground or on hard objects, as it may lead to • massive impact causing faults and damages. Without approval and consent of relevant authorities, please do not set “110”, “119” • Page 23 Wolf Secure http://www.wolfsecure-gsmalarms.co.za... - Page 24 Please read the suggestions above carefully and follow the instructions herein. If any of the equipment does not work properly, please send it to the dealer or authorized service point for repair. We will try our best to solve the problem for you as soon as possible. Page 24 Wolf Secure http://www.wolfsecure-gsmalarms.co.za...
Need help?
Do you have a question about the Wolf Guard and is the answer not in the manual?
Questions and answers
how to set up exit entrance delay on g4 alarm system
To set up the exit/entrance (alarm) delay on the Wolf Secure Guard G4 alarm system:
1. Enter setup status on the keypad.
2. Press [45].
3. Enter the desired delay time from 01 to 99 seconds.
4. Press [#] to confirm.
Example: To set a 40-second delay, press [45] [40] [#].
Note: Alarm delay only works for zones set as delay zones.
