Summary of Contents for SmartKat Sailing boat
- Page 1 BENUTZERHANDBUCH USER MANUAL NAVODILA ZA UPORABO Edition 03/09...
- Page 2 This user manual is an important document and it will help you to get the most out of your smartkat. The operation and use of the smartkat always takes place at your own risk and under your own responsibility. This user manual also includes a warranty card that must be filled out by the selling agent and forwarded to your local smartkat importer.

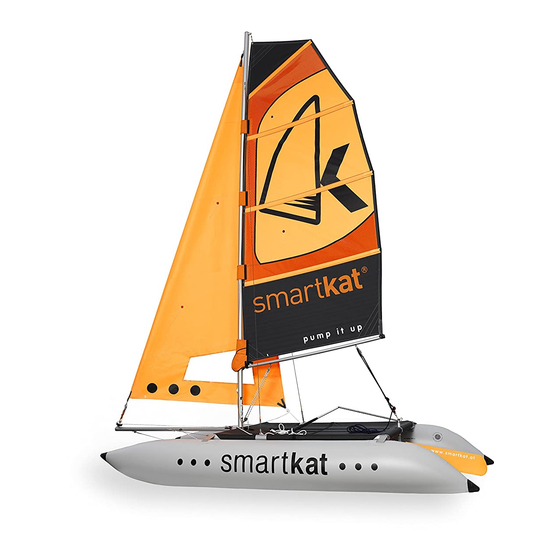

- Page 3 BEWARE OF OFFSHORE WINDS AND CURRENTS SMARTKAT – SAILING CATAMARAN SPECIFICATIONS: overall length: 4,30 m Mast height: 4,80 m 2,20 m Sail area: 9,90 m overall width: 42,00 kg Depth: 0,75 m Weight: 4 / 2 Max. engine HP: 3 HP...
-
Page 4: General Recommendations
*) jib respectively in performance version GENERAL RECOMMENDATIONS Before you begin to inflate the hulls, lay out your smartkat onto an area that is clean and free of sharp objects and debris. Inflate your smartkat using a general purpose air pump of the type you would use for inflating air beds, swimming toys or small inflatable boats. - Page 5 The hulls should never be fully pumped up until the smartkat is completely assembled. 4. You will find that the smartkat is much easier to assemble if you initially inflate the hulls to about 30% of their volume. This is particular recommended when assembling the smartkat for the first time (01).
- Page 6 d) FIRST ASSEMBLY Unfold the trampoline and push the front frame tube – the front frame tube is recognised by it having a holder for the centreboard in the middle – through the front tunnel on the trampoline (02). After this, push the right side tube in the same way through the right trampo-line tunnel (the left side of the trampoline is the one with the eyelets) –...
- Page 7 SECOND AND SUBSEQUENT ASSEMBLY If you have taken the smartkat apart properly, you haven’t unlaced the side frame tubes but have just loosened and perhaps unlaced the rear frame tube so that you must only slot the side frame tubes into the front frame tube and push on the rear frame tube.
- Page 8 f) Fix the centreboard into the centreboard holder provided on the trampoline frame (16). For lifting the centreboard, a reserve elastic rope and a reserve lifting rope are included (17). g) Fix the two shackles of the two side centreboard mountings into the metal plates provided on the two side frames.
- Page 9 h) So that you can manipulate it easier, lay the bowsprit with its rear end on the trampoline and the front end with the headsail roller on the ground (20). Position the two bowsprit side fixing ropes by attaching the karabiner (21) and secure this in the appropriate hole in the frame plates left and right (22).
- Page 10 j) Unfold the headsail and fix the headsail with the furling fock swivel at the front side of the mast top (right at the top of the mast) (28 - 29) OPTIONAL TRAPEZE KIT If you own a trapeze kit, now hang in the wire cables with the two hooks in the screw shackles of the mast shroud (31).
- Page 11 (35 - 37). Both shroud tensioners have been adjusted and fixed in the factory. On very rigorous use of the smartkat it can become necessary to readjust these shroud tensioners. However, only carry out this work when the smartkat has been completely assembled.
- Page 12 By drawing the luff taut, the bowsprit and the mast should be completely and properly tensioned. The smartkat is now completely tensioned and has reached its final stability (30 und 41). n) Now take the two headsail ropes through the eyelet guides and to the clamps left and right on the side frame members.
- Page 13 p) Mount the boom fork on the mast by full mainsail and fix the boom kicker with the karabiner in the eyelet guide provided on the boom (45 - 47) Pull the boom kicker to have the mast bended. This pre bending of the mast brings a higher performance and stability of the mast.
- Page 14 Now fix karabiner of the mainsail line block into the hole provided on the rudder mounting (51 - 52). t) Place, carry or push the smartkat into the water, at a suitable depth of water push the rudder into a vertical position until the rudder blade...
-
Page 15: Maintenance And Cleaning
MAINTENANCE AND CLEANING Clean and check the smartkat and all its parts carefully after each use. To make dismantling easy, regularly clean and oil or grease the connections. After use in salt water, rinse the smartkat thoroughly with... - Page 16 STORAGE If you want to store your smartkat for any length of time, keep it in a clean and dry place that is not subject to large variations of temperature or exposure to other damaging factors, whether it is stored in the bags or not.
- Page 17 Keep all repair materials as well as glue, cleaning and glue solvents out of the reach of children. Do not smoke while working. Avoid open fire and flames. If you have any further questions or suggestions or need other information concerning your smartkat, please contact your dealer or visit our homepage www.smartkat.at.
-
Page 18: Spare Parts
OPARE PROPELLER FOR TRAVEL sma430 sma701 ELECTRICAL PUMP SPARE PARTS Generally speaking, all parts of your smartkat are available as spare parts (subject to any construction modifications). When ordering spare parts, please include the construction number of your smartkat with your order. -
Page 19: Warranty Conditions
sold. - Page 20 As owner of the smartkat or one or more accessories it is your responsibility to report any defect in the indicated product in writing to a smartkat importer, or dealer. Such a report must be made as...
- Page 21 ..........................construction no.: ..........................date of purchase: ..........................dealer stamp and signature: date of delivery check ..........................signature of the technician: ..........................Smartkat GmbH, Hochstraße 36, 4400 Steyr, Austria Phone +43 7252 778173, Fax +43 7252 778174 vertrieb@smartkat.at, www.smartkat.at...
