Summary of Contents for zBoost ZB560Y
Page 1
ZB560Y Manual zBoost® products have a 30-day money back guarantee when purchased directly from zBoost. If product is purchased from a reseller or third party, the purchaser is subject to the policies of the third party. 2 Year manufacturer warranty. Warranty registration at www.zBoost.com...
Cellular REACH ZB560Y Manual ® FCC Requirements This is a CONSUMER Device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. AT&T, Sprint, T-Mobile, Verizon and 90 additional carriers have already given consent for all consumers to use this device.
FCC Information FCC ID: SO4ZB570-PCS-CEL Warning: Changes or modifications to this device not expressly approved by zBoost could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

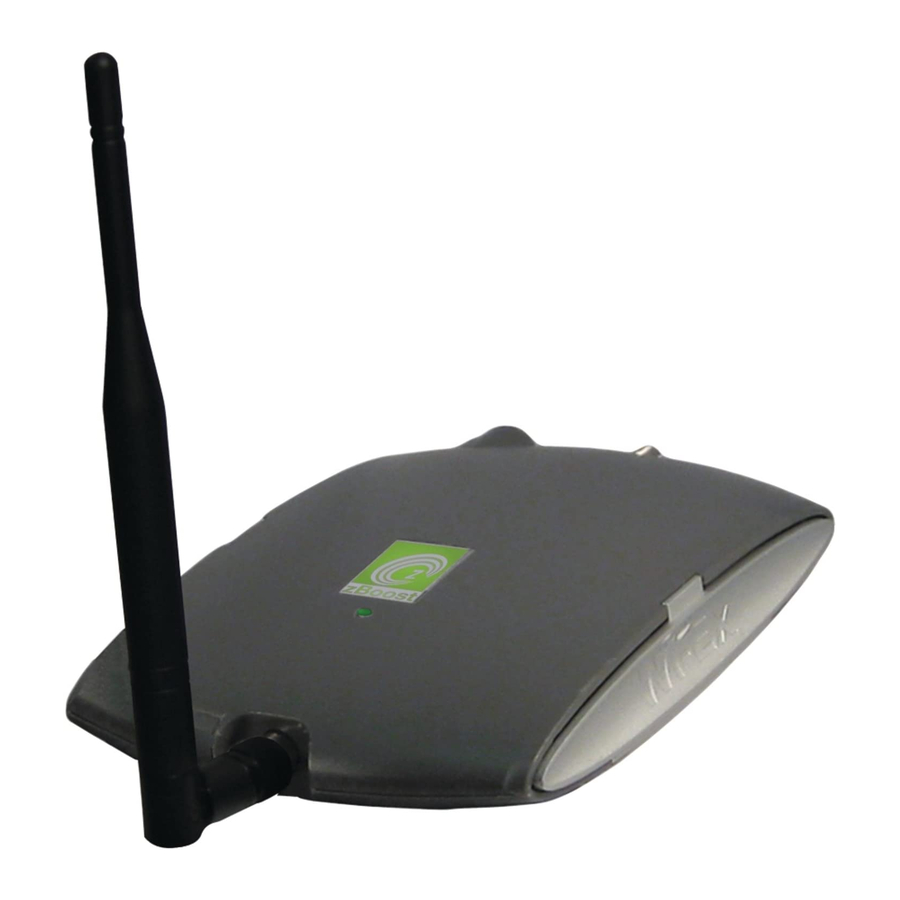

Cellular REACH ZB560Y Manual ® Package Contents Before you begin, make sure all of the following parts came with your zBoost ZB560Y. Literature Contents: SETUP OVERVIEW ① Setup overview ① Product Contents: ② zBoost Base Unit ② ③ Indoor Antenna ④...
Cellular REACH ZB560Y Manual ® Accessories The following accessories are authorized for this zBoost product. Please see our website for complete selection. To order, call 1-800-871-1612 or visit, www.zBoost.com Broadcast Antennas - Indoor CANT-0032 Indoor Broadcast Antenna, Omni Whip Direct to Booster, Black, CEL-PCS (1 dBi)
Setting Up Your zBoost Signal Booster ..................6 FIRST: Mount the External Antenna..................... 6 Antenna Bracket Assembly ......................6 SECOND: Place the zBoost Base Unit where you want to create a Cell Zone ......6 THIRD: Run the Coaxial Cable ....................7 FOURTH: Connect zBoost Base Unit to Power ................
® Overview Thank you for choosing zBoost! You will now be able to use your cell phone INSIDE your home. Gone are the days when you had to go to the window upstairs or walk outside to use your cell phone.
Check for Signal Strength Before placing a zBoost in your home, make sure that you can place calls on the outside of your home, in the attic, at roof level or wherever you plan to place the External Antenna. zBoost can only bring signal into your home when signal reaches the External Antenna.
Cellular REACH ZB560Y Manual ® Before installing, please note the following important factors in determining your zBoost performance: • At least 15 vertical feet is needed between the External Antenna (receives the outside signal) and the Indoor Antenna (rebroadcasts the signal indoors). Separation less than 15 vertical feet will result in decreased performance.
The power supply consumes less than 10W (less than 0.2A). Warning The zBoost ZB560Y Cellular REACH base unit MUST only be used with the provided power adaptor. Use of other power adaptors will void the warranty and may damage the unit.
Contact zBoost to obtain a YX699 Signal Meter. NOTE: The zBoost Cellualr REACH ZB560Y requires at least 15 feet of vertical separation between the Base Unit and the External Antenna. Generally, increasing this distance (up to 40 feet) will increase the performance and decreasing the distance will limit zBoost performance.
Please note: Cable longer than 65 feet is not recommended. FOURTH: Connect zBoost Base Unit to Power Connect the zBoost Base Unit to the power supply and plug into a power outlet. When your zBoost system is in place and fully connected, walk...
6 to 10 seconds. An increase of only one bar typically indicates a 4x to 10x signal increase. THE BEST INDICATOR OF PRODUCT PERFORMANCE IS THE ABILITY TO RELIABLY PLACE AND RECEIVE CALLS WHERE YOU COULD NOT BEFORE SETTING UP THE ZB560Y Cellular REACH.
Base Unit LED Indicators section. Adjustments may be needed to optimize performance. If you find the increased signal coverage is acceptable, however, no additional adjustments are needed. See “zBoost Base Unit Light Indicators” on page 10 for more information. External Antenna Coax Cable 15 ft.
Cellular REACH ZB560Y Manual ® zBoost Base Unit Light Indicators During Initial Power Up Light Mode Status Solution Cycle RED, System is GREEN, powering up. ORANGE Please allow up to 30 seconds. Flashing BASE UNIT will Unplug the BASE UNIT power supply.
Cellular REACH ZB560Y Manual ® Technical Specifications Product Specifications for zBoost Cellular REACH ZB560Y Cellular band Frequency Uplink: 824 to 849 MHz Downlink: 869 to 894 MHz System Gain 71 dB CEL band supported A, B, A’, B’ Networks...
Does the zBoost work if you have no bars? No, if no signal is present outdoors zBoost products will not work for you. Also, keep in mind if your best signal is 1 bar at the External Antenna, your coverage will be limited to a small room.
The “de-kitting” and sale as a standalone product of any one or more components of such a product kit is in violation of zBoost’ warranty. No “de-kitted” product will be eligible for return for any reason. The sale of separate, not-kitted cable, antennas and other accessories is allowed and fully...
Page 21
If still solid red, call customer support 1-800-871-1612. To get warranty service… Warranty service will be provided by zBoost. If you believe you need service for your unit, contact zBoost at 1-800-871-1612 or support@zboost.com. A representative will go through a diagnostic checklist with you.
