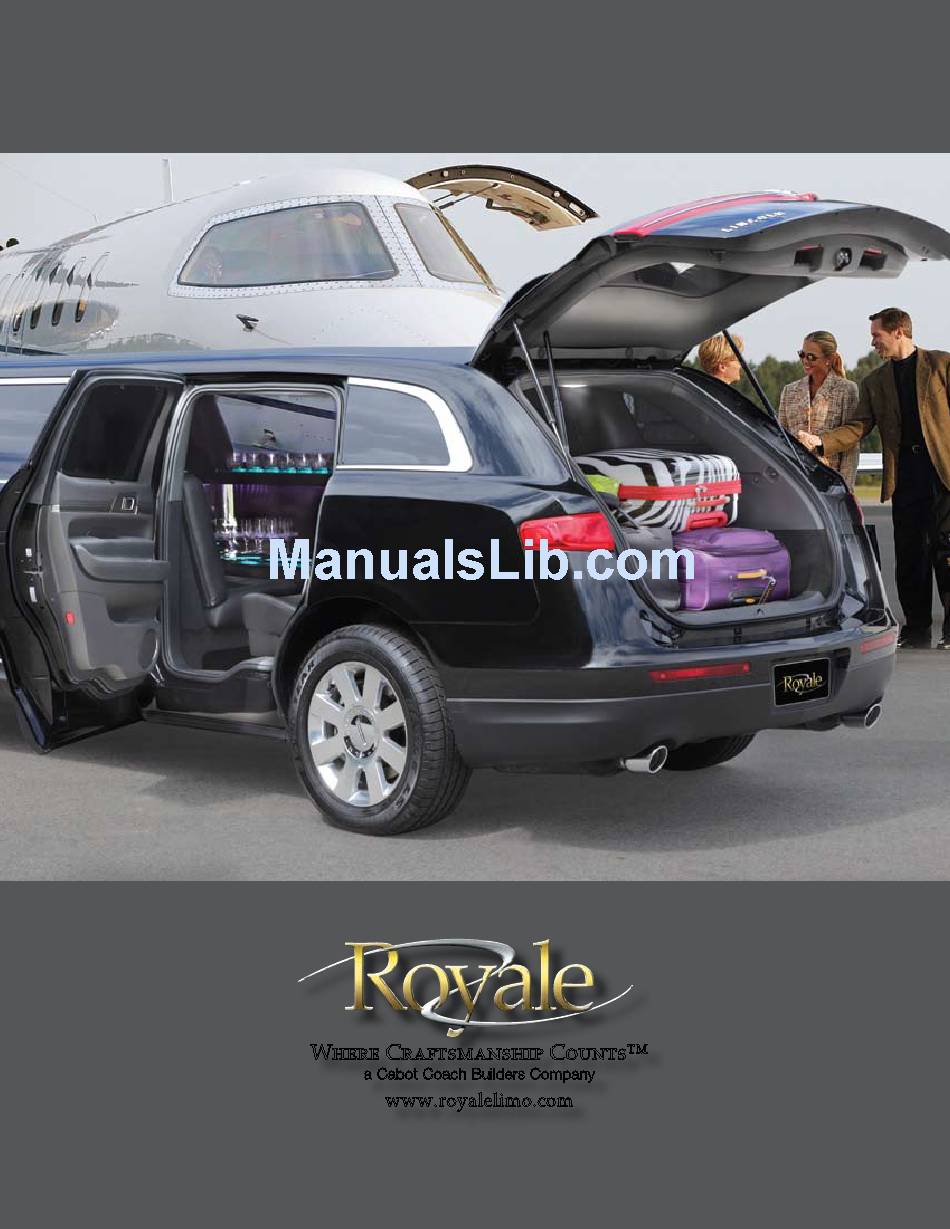

- Page 1 Royale Limousine - MKT Owner’s Guide Where Craftsmanship Counts™ a Cabot Coach Builders Company www.royalelimo.com Corporate Headquarters - 99 Newark Street, Haverhill, MA 01832 ph. 800.544.5587 • fx. 978.521.5425 2015 MKT...
-
Page 2: Table Of Contents
Table of Contents Congratulations on Your Purchase of a Royale Limousine Manufactured Where Craftsmanship Counts! Have Questions? A Royale Team Member is Ready to Help. Helpful Hints and Recommendations Control Panel Users Guide - Driver (Standard Equipment) Control Panel Users Guide - Passenger (Standard Equipment) -
Page 3: Congratulations On Your Purchase Of A Royale Limousine Manufactured Where Craftsmanship Counts
Congratulations on Your Purchase of a Royale Limousine Manufactured Where Craftsmanship Counts! ince 1983 Royale has been manufacturing the finest limousines in the world and backing each with exceptional service. It is my true belief that Royale’s exceptional service will encourage you to purchase your future limousines from us. That is why we have compiled this comprehensive manual;... -
Page 4: Have Questions? A Royale Team Member Is Ready To Help
Have Questions? A Royale Team Member is Ready to Help. Managers Parts Please feel free to contact the following Managers If you need replacement parts for your limousine with any questions or concerns. call the number below. We ship parts daily all over... -
Page 5: Helpful Hints And Recommendations
Helpful Hints and Recommendations Here are some helpful hints to help you maintain your Royale limousine and avoid some of the problems that might arise. Watch the tire pressure closely, rotate tires frequently every 5,000 miles or as recommended in OEM manual. -
Page 6: Control Panel Users Guide - Driver (Standard Equipment)
Control Panel Users Guide - Driver (Standard Equipment) Driver’s Control Panel Battery Level Indicator Sun Roof On/Off These indicator lights notify you of This button controls power to rear cabin the charging condition of your battery. sunroof so the rear passenger will not be When the battery voltage is high green able to open or close the sunroof. -
Page 7: Auxiliary Battery
Auxiliary Battery Privacy Divider Your MKT is equipped with battery saver This button operates the solid privacy technology. It does not require the use of divider. Press and hold up to raise and the Auxiliary Battery button to activate it. press and hold down to lower. -
Page 8: Control Panel Users Guide - Passenger (Standard Equipment)
Control Panel Users Guide - Passenger (Standard Equipment) Passenger’s Control Panel Accent Lights This button controls the accent or fiber optic lights in the console and above the windows. These lights are dimmed when the down button is pressed and brightened when the up button is pressed. - Page 9 NOTE: The manual heater control valve (optional) must be in the open or on position and the Royale heat must be on for the Factory Rear Heat to function. * Rear control panel features can be overridden by the driver's master control panel.
-
Page 10: Factory Rear Heater/Ac Control
Factory Rear Heater/AC Control Your MKT is equipped with two independent rear HVAC systems; one is added by Royale and the other is the OEM system installed by Lincoln. The Royale system is operated from the rear control panel as indicated on the pages above. -
Page 11: Audio Video System Owners Manual's
Audio Video System Users Guide Owners Manuals Refer to the owners manual for the specific model of your stereo located on our website home page at: www.royalelimo.com Select Support on the side bar, and scroll down to: 2013 Model Downloads - Limousine Accessories... -
Page 12: Driver's Touch Control Operation Guide (Optional Equipment)
Driver’s Touch Control Operation Guide (Optional Equipment) Driver’s Touch Control Driver Panel Overview The Driver Touch Control Panel offers the ability to hide features from the passenger menu by deactivating the feature and hiding the button from the passenger when necessary. It also allows full access to all of the passenger control features through the passenger menu button. -
Page 13: Set Clock
Intercom Passenger This button turns on the front This button allows the driver to to rear intercom. Pressing the control all passenger functions button will activate the intercom and will illuminate please refer to passenger functions reference guide on the green indicator light. With the light on speak page 11 for details. -
Page 14: Passenger's Touch Control Operation Guide (Optional Equipment)
Passenger’s Touch Control Operation Guide (Optional Equipment) Passenger Panel Overview The driver has full access to the passenger controls from the driver panel. When the driver adjusts passenger features his/her actions will be displayed on the rear controls. This is to assist the passengers with navigating the Touch Control’s many features. - Page 15 Media Menu Overview Source The Media menu controls the media system features This button changes the Stereo source. of your limousine including your Stereo, DVD, TV, The rear Stereo has several input VCP and CD. This menu uses easily recognizable sources available;...
- Page 16 Divider Menu Select CD Menu The Divider menu controls the mechanical features of your limousine including the dividers, sunroof and optional 20" TV. This button controls the CD volume. Press the up arrow for more volume Retractable TV and the down arrow for less volume. By inserting a CD the Stereo source will Behind the Privacy Divider glass may be the optional automatically change to CD and begin...
- Page 17 Lights Menu Dim LCD The Lights Menu controls the rear lighting systems. This button allows the rear Some of the lighting systems are dimmable while passenger to dim or brighten the others are not. display. Follow the easy to read menu to adjust the display.
-
Page 18: Mobile Hot Spot (Optional Equipment)
Divider Menu The Divider menu controls the mechanical features of your limousine including the dividers and sunroof. Privacy Divider This button controls the privacy divider, pressing the up arrow will raise the divider and pressing down arrow will lower the divider. Glass Divider This button controls the glass divider, pressing the up arrow will raise the... -
Page 19: Advanced Lighting And Fan Speed Features
Advanced Lighting and Fan Speed Features User programmable start up features are available by switches are indicated with an *. For an additional adjusting the DIP switches located on the main circuit charge the memory chip may be reprogrammed at board, upper left corner labeled “OPTIONS,”... -
Page 20: Intercom Adjustments
Intercom Adjustments The Royale hands free intercom control box is located on the divider behind the driver’s seat. There are two adjustments one for driver volume and one for passenger volume. Adjust these according to your preference. passenger volume driver volume... -
Page 21: Operating The Led Fiber Illuminator
Operating The LED Fiber Illuminator Your new limousine may be equipped with a LED dip switch location Fiber Optic Illuminator. The lighting functions of this illuminator are user programmable by adjusting the DIP Switch settings found on the illuminator. The illuminator itself is located near the main control board on the divider panel behind the driver’s seat at the bottom of the divider. -
Page 22: Dip Switch Functions
DIP Switch Functions DIP Switch Number 1 This switch selects the speed of the default color wheel pattern. This is the pattern that emulates a standard motorized color wheel illuminator; in that all ports are the same color at the same time, and the colors morph from one to another in unison. -
Page 23: Main Circuit Board Photo
Main Circuit Board Photo DIP switch for advanced ribbon cable to ribbon cable to lighting and fan speed features driver controls passenger controls power ground ground power Fuse Values privacy divider 10 amp breaker reading lights 10 amp fuse floor and dome lights 10 amp fuse vanity mirror lights 5 amp fuse... -
Page 24: Circuit Board Pin Location · Color · Function
Circuit Board Pin Location · Color · Function J-9 Plug blue/orange battery relay red/black TV/VCR yellow/14 gauge radio memory red/white 12v a switched red/black TV power brown/white dome light green/yellow vanity light brown coach light trigger white/blue reading light 12v c switched blue/red ignition switch purple/black... -
Page 25: Main Board Trigger Wire Location - Color - Factory Fuse Location
Main Board Trigger Wire Location – Color – Factory Fuse Location The trigger wire is a power lead to put initial power to the limousine’s Main Circuit Board. This wire is always active as long as the vehicle key is in the on accessory position. -
Page 26: Wire And Harness Location · Color · Function
Wire and Harness Location · Color · Function Under The Hood green/white voltage sensor red #8 gauge power 12v blue/white vacuum switch red #8 gauge power 12v blue/orange solenoid trigger Passenger Side · Divider Drivers Side · Divider Plug 2 Plug 1 black ground... - Page 27 Wire and Harness Location · Color · Function Center · Divider Plug P3 black ground red/green floor lights Plug C white/brown privacy divider white/green glass divider blue/brown privacy divider blue/green glass divider Plug P 1 black ground 2 blue/yellow color wheel 3 green/orange color wheel motor Plug N...
-
Page 28: Power Distribution
Power Connector The 13 pin limousine power connector is located close to the steering column. This connection supplied by Lincoln eliminates the need for any under the hood electrical connections. The power connector contains various power feeds and inputs for limousine accessories. This connector supplies power for the main limousine control board. -
Page 29: Wire Routing Extension · Mkt
Wire Routing Extension · MKT... -
Page 30: Wire Routing Main Harness · Mkt
Wire Routing Main Harness · MKT... -
Page 31: Manual Heater Control Valve Operation (Optional)
The manual valve is opened manually (see above) and the electric valve is opened by turning on the Royale heat. This allows free flow of hot water and both the factory rear and Royale heat will work. -
Page 32: New Vehicle Limited Warranty · United States Only
Royale makes no warranty whatsoever to any OEM chassis or chassis part, not modified by Royale. Royale reserves the right to make changes in design, and changes or improvements on its product without imposing any obligation upon itself to install the same on products theretofore manufactured. -
Page 33: New Vehicle Limited Warranty · International
Royale makes no warranty whatsoever to any OEM chassis or chassis part, not modified by Royale. Royale reserves the right to make changes in design, and changes or improvements on its product without imposing any obligation upon itself to install the same on products theretofore manufactured.
