Summary of Contents for MLC MIDI LOOP S10

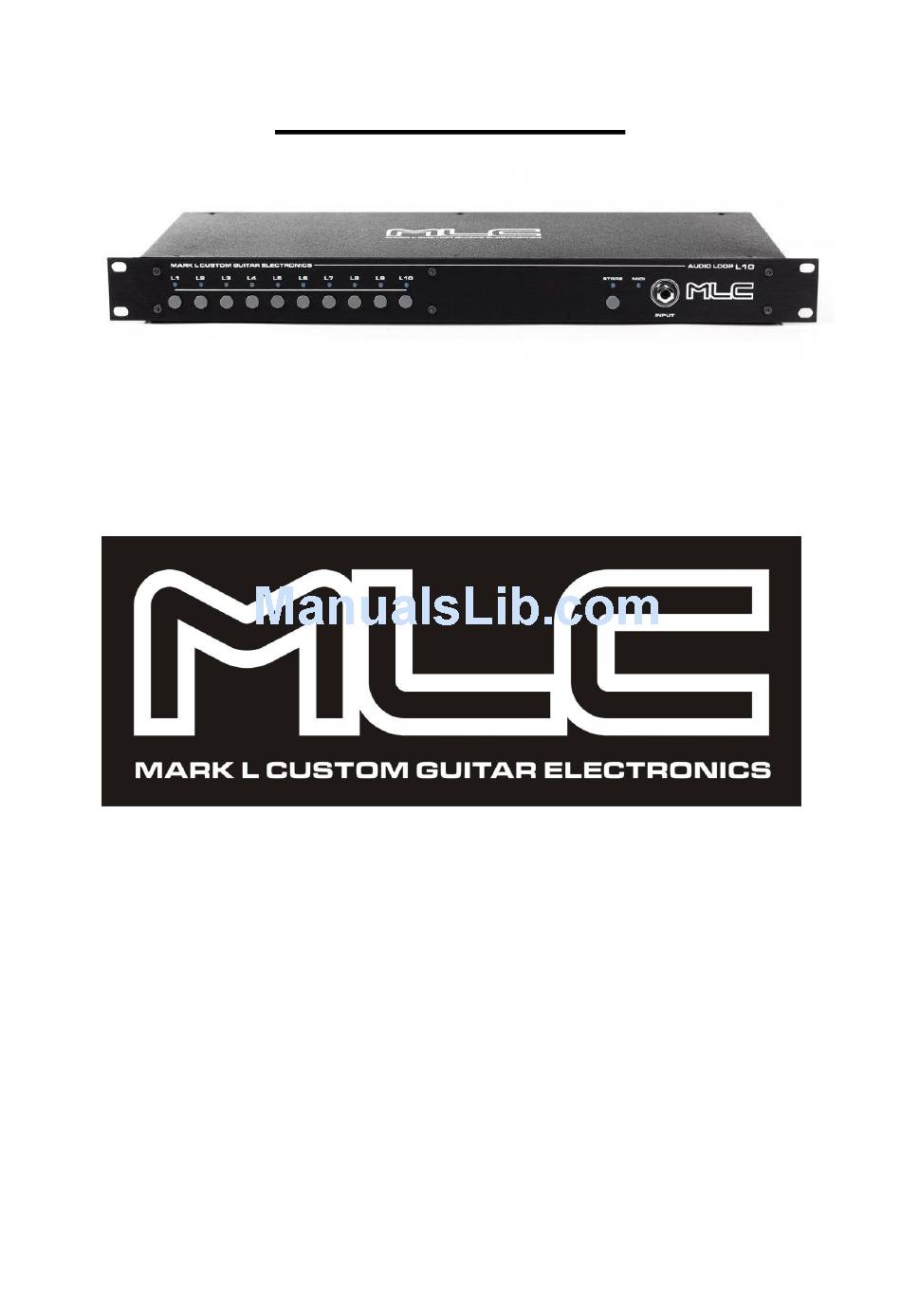

- Page 1 MIDI LOOP L10 Instruction Manual 1 MIDI LOOP S10 Instruction Manual MARK L Custom Guitar Electronics 1...
- Page 2 MIDI LOOP L10 Instruction Manual 2 Contents : Introduction Warranty 1 – Front Panel 2 – Rear Panel 3 - MIDI MARK L Custom Guitar Electronics 2...
- Page 3 S10 is controlled by MIDI CC (Control Change) commands over 16 MIDI channels. S10 is compatible with any type of MIDI controller capable of sending CC commands, but to ensure proper operation and maximum effectiveness we recommend using MLC MARK L controllers.
- Page 4 MIDI LOOP L10 Instruction Manual 4 In case this option is not used, receptacles OUT1 an IN2 are bridged inside the device. The same applies to receptacles LINK OUT and IN1. The rear panel also features two MIDI IN receptacles used for processing the foot pedal signal and a MIDI THRU OUT, a bypass, thanks to which we can hook-up an additional midi device which we want to control with the same device as the L10 MIDI IN has built-in power supply for all MARK L controllers, you need not plug in every...
- Page 5 MIDI LOOP L10 Instruction Manual 5 Warranty 1. The Warranty is limited to production defects and/or faulty components. 2. The Warranty expires 24 months after the date of purchase. 3. The Warranty does not cover the following: Defects caused by shipping and handling. ...
-
Page 6: Front Panel
MIDI LOOP L10 Instruction Manual 6 1. Front Panel The front panel consists of 11 LED diodes informing which loop (L1-L10) and a MIDI light which informs if the device is receiving MIDI signals. To connect audio through a high grade line buffer, connect to the lockable JACK 6,3MM AUDIO INPUT receptacle. -
Page 7: Rear Panel
MIDI LOOP L10 Instruction Manual 7 2.Rear Panel The rear panel consists of 6,3 mm „jack‟ receptacles used for connecting effects, audio signals and control the amplifier and other devices - LINK OUT -feed thru on front panel output - INPUT 1 -Effects loop 1-6 IN - OUTPUT 1 -Effects loop 1-6 OUT - INPUT 2 -Effect loop 7-10 IN - OUTPUT 2 -Effects loop 7-10 OUT... - Page 8 MIDI LOOP L10 Instruction Manual 8 MARK L Custom Guitar Electronics 8...
- Page 9 MIDI LOOP L10 Instruction Manual 9 3.Midi MIDI CONNECTION and Phantom Power for FX25/FX25ACE MIDI INPUT signal Pin 1 - NC Pin 2 - NC Pin 3 - NC Pin 4 - MIDI (+) Pin 5 - MIDI (- ) Pin 6 - 9VAC phantom power out Pin 7 - 9VAC phantom power out MIDI OUTPUT...
- Page 10 To save a setting to a MIDI program change: Select a MIDI program number with your MIDI footswitch or controller. Manually select the desired state of each Audio Loop using the MLC L10’s front panel buttons. Hold down the STORE button until the LEDs flash.
