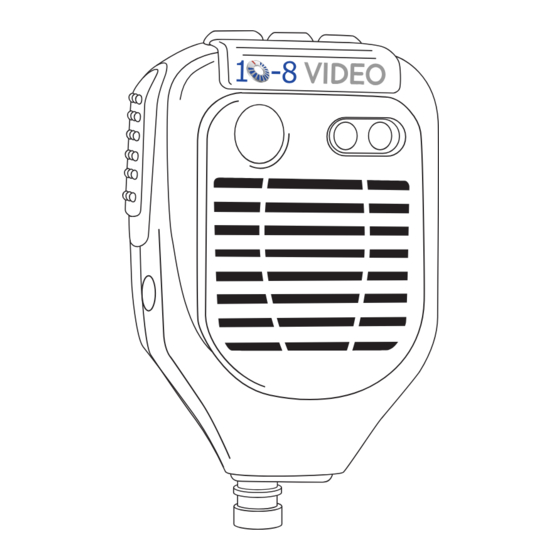

- Page 1 10-8 Body Camera User Manual 2014r1...
-
Page 2: Warranty Details
Warranty Details • One (1) year free replacement of any failed component. How to Get Support 1. Visit the Warranty Parts Replacement form on our web site: http://www.10-8video.com/support/warranty-form/ 2. Fill out and submit the form. Shipping Address 10-8 Video Digital Evidence Solutions 1423 Huntsville, Hwy. Fayetteville, TN 37334 Copyright © 2011-2014 10-8 Video Digital Evidence Solutions. • All rights reserved. Disclaimer: 10-8 Video Digital Evidence Solutions reserves the right to make changes in Phone Numbers specifications at any time and without notice. The information provided by this document is believed to be accurate and reliable. However, no responsibility is assumed by 10-8 Video (888) 788-1048 • (931) 262-2221 Digital Evidence Solutions for its use; nor any infringements of patents or other rights of (931) 233-1263 (FAX) third parties resulting from its use. No license is granted under any patents or patent rights of 10-8 Video Digital Evidence Solutions. -
Page 3: Table Of Contents
Contents Introduction Software Overview Using the Software Package Contents Managing Files Viewing a File First-Time Usage Deleting a File Body Camera Setup Copying a File to Your Computer Changing Your Software Password BC-1 Body Camera Diagram Administrating Software User Accounts Operation Creating a New Software User Account Power On/Off... -
Page 4: Introduction
Introduction Thank you for purchasing the 10-8 BC-1 Body Camera. To prevent any damage to the unit causing a reduction of its life span, we recommend reading this User Manual carefully before using the device. Overview This digital police enforcement DVR provides the officer with state of the art capabilities such as high-definition digital video recording, still image capture capabilities, high-speed USB data transmission and USB charging. Package Contents This page left intentionally blank. Your 10-8 BC-1 Body Camera will have shipped with the following items, please take the time to confirm you have the following items: • 1 - Body Camera • 1 - Instruction Manual • 1 - 12V Car Charger • 1 - 120V Charger • 1 - USB Cable • 1 - Mic Cable (Optional) Introduction... -
Page 5: First-Time Usage
First-Time Usage IMPORTANT! 7. The LCD Display on the BC-1 Body Camera will display four (4) asterisks (*) indicating it is waiting for you to enter the password READ THIS FIRST to access the internals of the device. The default password for the camera is 0000 - four zeros. 8. Use the BC-1 Body Camera to set the proper badge number for the Before using your new BC-1 Body Camera for the first time, we officer who is to use the camera. The BC-1 Software allows you to set recommend performing the following steps to maximize the usability of both the unit and user ID for each unit used. This information will your new BC-1 Body Camera. display on every video along with the date and time. Body Camera Setup 9. We also recommend changing the password at this point. 1. Charge the BC-1 Body Camera using the 120 Volt, 12 Volt or USB cable. For maximum security of your files, we recommend changing the See Charging the Battery section for details. -
Page 6: Bc-1 Body Camera Diagram
BC-1 Body Camera Diagram Operation Power On/Off Power On: 1. Press and hold the “Power” button until the device beeps. Clamp Lens IR LEDS Recording Microphone 2. The LED Status Indicator will light up green and the LCD screen will Microphone display the 10-8 Video logo. 1.5” LCD Screen Speaker LED Status Indicator 3. After a few minutes of inactivity, the system will then enter into recording standby mode and the LED Status Indicator will remain lit Walkie green. -
Page 7: Video Recording & Playback
Operation Video Recording & Playback Battery Status Icon Recording Video Recording Status Icon Recording Time Remaining Recording Time 1. Briefly press the “REC” button until the LED Status Indicator lights up red. The BC=1 Body Camera will beep audibly. 2. The BC-1 Body Camera will enter into Video Recording Mode (FIG. 2) and begin to record. It will save a file every 10 minutes. If lighting is insufficient, the recorder will automatically enable Night Mode and the IR LED. It will automatically return to the normal recording mode when lighting conditions improve. -
Page 8: Recording And Playing Audio
Operation Recording and Playing Audio Taking a Photo Recording Audio 1. Make sure the BC-1 Body Camera is in Recording Standby Mode by exiting any currently active mode. 1. Press and hold the “REC” button for about 2 seconds. 2. Press the “Selection” button to take a picture and the LED Status 2. The BC-1 Body Camera will beep, and the LED Status Indicator will Indicator will flash red. light up yellow indicating it has begun recording audio only. View Photos 3. The LCD Screen will show the Audio Recording Mode Screen (FIG. 6) 1. Press and hold the “Playback” button until the BC-1 Body Camera Stop Recording Audio enters into Playback Mode. (FIG. 4) 1. Press the “REC”... -
Page 9: Charging The Battery
Operation Charging the Battery Factory Reset There are three ways to charge your 10-8 BC-1 Body Camera: Press and hold both the “Power” and “REC” buttons to reset the BC-1 Body Camera to its factory defaults. • 120 Volt Charger (Fastest Charge Rate) • 12 Volt car charger (Fast) • USB cable connected to a powered USB computer port (Slow) Caution: Do not perform a Factory Reset while recording or while the device is connected to a computer. Doing so may cause file corruption and/or damage the internal memory. A new, or completely drained BC-1 Body Camera battery can take 6-8 hours to charge fully. -
Page 10: Software
Software Using the Software 7. After you have set the last number in the PIN, clicking the “Play” button to select that digit will submit the PIN for verification. It’s advisable to always start the software before plugging the BC-1 Body Camera into your computer. 8. If you have entered the proper PIN on the BC-1 Body Camera, the LCD screen will display “MSDC” for a few seconds then turn off. 1. Start the BC-1 Body Camera software. 9. The software will then display the folders and files located on the 2. Enter your software user id and software password to log in. BC-1 Body Camera. Managing Files Default Administrator Login: User: 0000 The left column of the BC-1 Body Camera software displays the folders Password: 000 and files contained on the device. Use the upper section of the left column to navigate through the various folders on the BC-1 Body Camera storage media. 3. Plug the BC-1 Body Camera into your computer using the supplied USB cable. Viewing a File If this is the first time you have connected the BC-1 Body 1. Click once on the filename of the file you wish to view. -
Page 11: Copying A File To Your Computer
Software 5. Unless you have a reason to disable the account you should leave the Copying a File to Your Computer account enabled. 1. Click once on the file you wish to copy. 6. Click the “Ok” button to save the new user’s account. 2. Click the “Copy” button at the bottom of the left column. Editing a Software User Account 3. A pop up window will appear. Select the location where you wish to save the file. 1. Click on the “User Management” icon located at the top of the window. 4. Click the “Save” button. 2. Click on the name of the account you wish to edit. Changing Your Software Password 3. Click on the “Edit”... -
Page 12: Deleting A Software User Account
Software Backing Up Files Deleting a Software User Account The BC-1 Body Camera software allows you to easily copy all the files 1. Click on the “User Management” icon located at the top of the currently stored on it to your computer. window. 1. Ensure the BC-1 Body Camera is connected to a computer running the 2. Click on the name of the account you wish to delete. BC-1 Body Camera software and the software can see the BC-1 Body Camera. 3. Click on the “Delete” button. 2. Click on the “Backup” icon. 4. Confirm account deletion or cancel the request. 3. Confirm the folder on your computer to back the files up to or use the Setting the BC-1 Body Camera Device ID “Browse” button to select the proper folder. 4. Select whether to overwrite or skip copying a file if an existing 1. Ensure the BC-1 Body Camera is connected to a computer running the filename already exists in your currently selected folder. -
Page 13: System Messages
System Messages Specifications The 10-8 BC-1 Body Camera utilizes both audible (“beeps”) and visual Brand Name: 10-8 (LED lights and LCD screen) indicators to inform you of the status and Model Name: 10-8 BC-1 health of the device. Refer to the charts below for more information. Specifications: • Loop Recording • Industrial grade for extreme conditions & reliability • Can replace existing mic for most major brand walkies LED Status Indicator Lights • Drop/shock & water resistant •...
