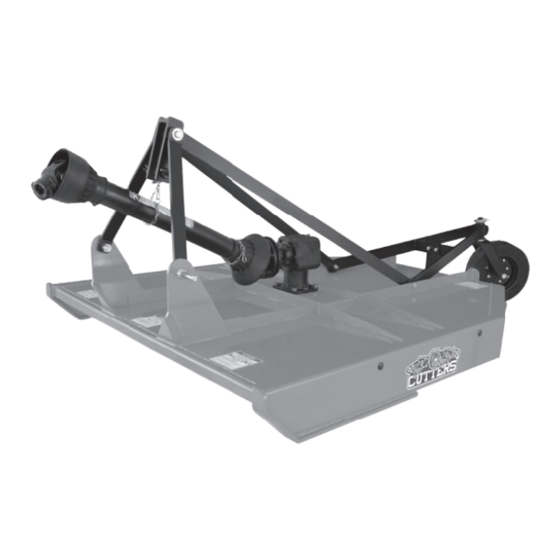

Bad Boy 5´ Cutter Owner's Operation Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

OWNER'S OPERATION

PARTS MANUAL

10-28-2014

Table of Contents

Need help?

Do you have a question about the 5´ Cutter and is the answer not in the manual?

Questions and answers

Summary of Contents for Bad Boy 5´ Cutter

Page 1 OWNER’S OPERATION & PARTS MANUAL 10-28-2014...
Page 2 This cutter is sent from the factory without gearbox oil. TO THE OWNER: Read this manual before operating your Bad Boy Cutter and require this of any other person that is to operate this equipment. Although this cutter has been engineered with safety and reliability as the foremost concerns, there is no substitute for an informed and cautious operator.
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS ....................4 SAFETY RULES ....................5 GENERAL INFORMATION ................. 8 OPERATION ...................... 8 OWNER SERVICE ....................13 TROUBLESHOOTING ..................18 CUTTER ASSEMBLY AND PART LIST .............19 FASTENER TORQUE CHART ................24 DEALER’S CHECKLISTS ................. 25 PRODUCT WARRANTY .................. 26 PAGE 3...
Page 4: Specifications
SPECIFICATIONS Category 5´ Bad Boy Cutter Gear Box 50hp heavy duty Omni RC51 Gear box mount 3/8˝ steel; completely surrounded by interlocking ‘H’ supports Deck Thickness 1 Piece, 11 Gauge solid welded Skirt Thickness 3/16˝ steel Under-decking support 1/4˝ x 6-1/2˝...
Page 5: Safety Rules
SAFETY RULES TRAINING ■ Safety instructions are important!! While these instructions and rules may seem lengthy or redundant, they are presented for your safety. Almost all accidents arising from the use of equipment such as this that has resulted in injury or death would have been avoided had instructions such as these been adhered to.
Page 6 in loss of steering. The weight may be attained with front wheel weights, ballast in tires or front tractor weights. Weigh the tractor and equipment; do not estimate. ■ Inspect and clear the area of stones, branches, or other hard objects that might be thrown, causing injury or damage.
Page 7 ■ Do not allow bystanders in the area when operating, attaching, removing, assembling, or servicing equipment. ■ Keep all persons away from operator control area while performing adjustments, service, or maintenance. ■ Do not modify or alter (or permit anyone else to modify or alter) the equipment or any of its components in any way.
Page 8: General Information
The illustrations and data used in this manual were current at the time of printing, but due to possible running changes, your machine may vary slightly in detail. Bad Boy Cutters reserves the right to redesign and change the machines as necessary without notification.
Page 9 ATTACH CUTTER TO TRACTOR CAUTION ■ Make sure driveline will not bottom out at the shortest length and that it has at least 1/3 overlap at its longest length. ■ Select a top link mounting pin that will allow floating link to swing freely through the cutter A-frame bars.
Page 10 If the distance is too small, the driveline may bottom out during operation and damage the cutter or tractor. If the driveline is too short, please call your Bad Boy Cutter dealer for a longer driveline. If the driveline is too long, follow the instructions below for shortening the driveline.
Page 11 CUTTING HEIGHT ADJUSTMENT WARNING ■ Keep all persons away from operator control area while performing adjustments, service, or maintenance. ■ Avoid low cutting heights when at all possible. Striking the ground with a cutter blade during operation results in one of the most damaging shock loads a cutter can encounter. Repeated blade/ ground contact will cause damage to the cutter and drive.
Page 12 ■ Move slowly into material. Adjust tractor ground speed to provide a clean cut without lugging the tractor engine. Proper ground speed will depend on the terrain and the material’s height, type, density, and moisture content. The operator will be able to determine appropriate ground speeds for different conditions.
Page 13: Owner Service
OWNER SERVICE The information in this section is written for operators who possess basic mechanical skills. If you need help, your dealer has trained service technicians available. For your protection, read and follow the safety information in this manual. WARNING ■...
Page 14 3. With full cutter weight lowered onto jack stands, test the blocking stability carefully, but vigorously, to ensure its stability. 4. If cutter is attached to tractor when blocking, set the brakes, remove the key, and block the cutter before working underneath. Also, securely chock the rear tractor wheels (both in front and behind) and tighten the tractor’s lower 3-point arm anti-sway mechanism to prevent side-to-side movement.
Page 15 LUBRICATION POINTS 1. Tail-wheel pivot tube ..............8 hours 2. Tail-wheel ..................8 hours 3. PTO shaft: front and rear U-joints ..........8 hours 4. PTO shaft: slip joint (apply grease to inner shaft ......8 hours 5. PTO shaft: plastic shield bearings ..........8 hours 6.
Page 16 1. Inspect the blade bolts for nicks or gouges and, if found, replace the damaged blade bolt(s). 2. Insert blade bolt through the blade. Blade should swivel on blade bolt; if it doesn’t, determine the cause and correct. 3. Align crossbar with blade access hole in cutter frame. Apply a liberal coating of an anti-seize product to the blade bolt and crossbar hole.
Page 17 DRIVELINE SHEAR-BOLT REPLACEMENT ■ Always use a 1/2˝ x 3-1/4˝ SAE grade 2 bolt as a replacement part. Using a hardened bolt (such as grade 5 or grade 8) may result in damage to driveline or gearbox. 1. Slide the driveline bell shield (covers the U-joint of the PTO shaft and input shaft of gearbox) back along the driveline guard.
Page 18: Troubleshooting
■ Sand down scratches and the edges of areas of missing paint and coat with Bad Boy touch-up paint. ■ Replace any missing, damaged, or otherwise unreadable decals.
Page 19: Cutter Assembly And Part List
CUTTER ASSEMBLY AND PART LIST PAGE 19...
Page 20 PAGE 20...
Page 21 ASSEMBLY INSTRUCTIONS Note: Use cutter part list and accompanying illustration located in the previous section to reference item numbers indicated in the assembly instructions. Item numbers are in parenthesis. Partial or full assembly of the cutter may have been performed prior to purchase. 1.
Page 22: Tail Wheel Assembly
-TAIL WHEEL ASSEMBLY- Notes: a) Reference item numbers below for tail wheel assembly. b) Bushings (3) are pre-installed in Hub (2). ■ Secure Hub (2) to Wheel and Tire (1) using four Hub Lock Washers (4) and four Hub Nuts (5). Tighten to 50 ft-lbs.
Page 23 6. Insert post of the Tail Wheel Assembly (8) through the following parts in the order given: 1-1/4˝ Flat Washer (20); tube on Rear A-Arm Assembly (2) {entering from the ‘bottom’ of the tube}; 1-1/4˝ Flat Washer (20). Secure by inserting 3/8˝ x 3˝ Cotter Pin (23) through hole in post of the Tail Wheel Assembly.
Page 24: Fastener Torque Chart
FASTENER TORQUE CHART NOTICE: Torque values given in the above text assume an unlubricated fastener. If using a lubricated fastener, reduce the torque (given in the previous text) by 25%. Fastener Item Number Torque (Lubricated/Unlubricated) �5/8˝ x 2-1/2˝ Hex Bolt 56 ft-lbs / 75 ft-lbs 1/2˝...
Page 25: Dealer's Checklists
DEALER’S CHECKLISTS PRE-DELIVERY CHECK LIST ■ IMPORTANT- The gearbox was not filled with gear oil at the factory. It must be filled before the cutter can be placed into service (see Lubrication, pg. 14). Failure to fill the gearbox with the proper quantity of gear oil will result in damage to the gearbox.
Page 26: Product Warranty
LIMITED WARRANTY Bad Boy Cutters warrants to the original purchaser of any new Bad Boy Cutter(s) that the equipment be free from defects in material and workmanship for a period of two (2) year from date of retail sale.
Page 27 ALL IMPLIED WARRANTIES ARE EXCLUDED. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. BAD BOY CUTTERS WILL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES AND/OR EXPENSES IN CONNECTION WITH THE PURCHASE OR USE OF THE CUTTER.
Page 28 102 Industrial Drive Batesville, Arkansas 72501 (870) 698-0090 PAGE 28...
