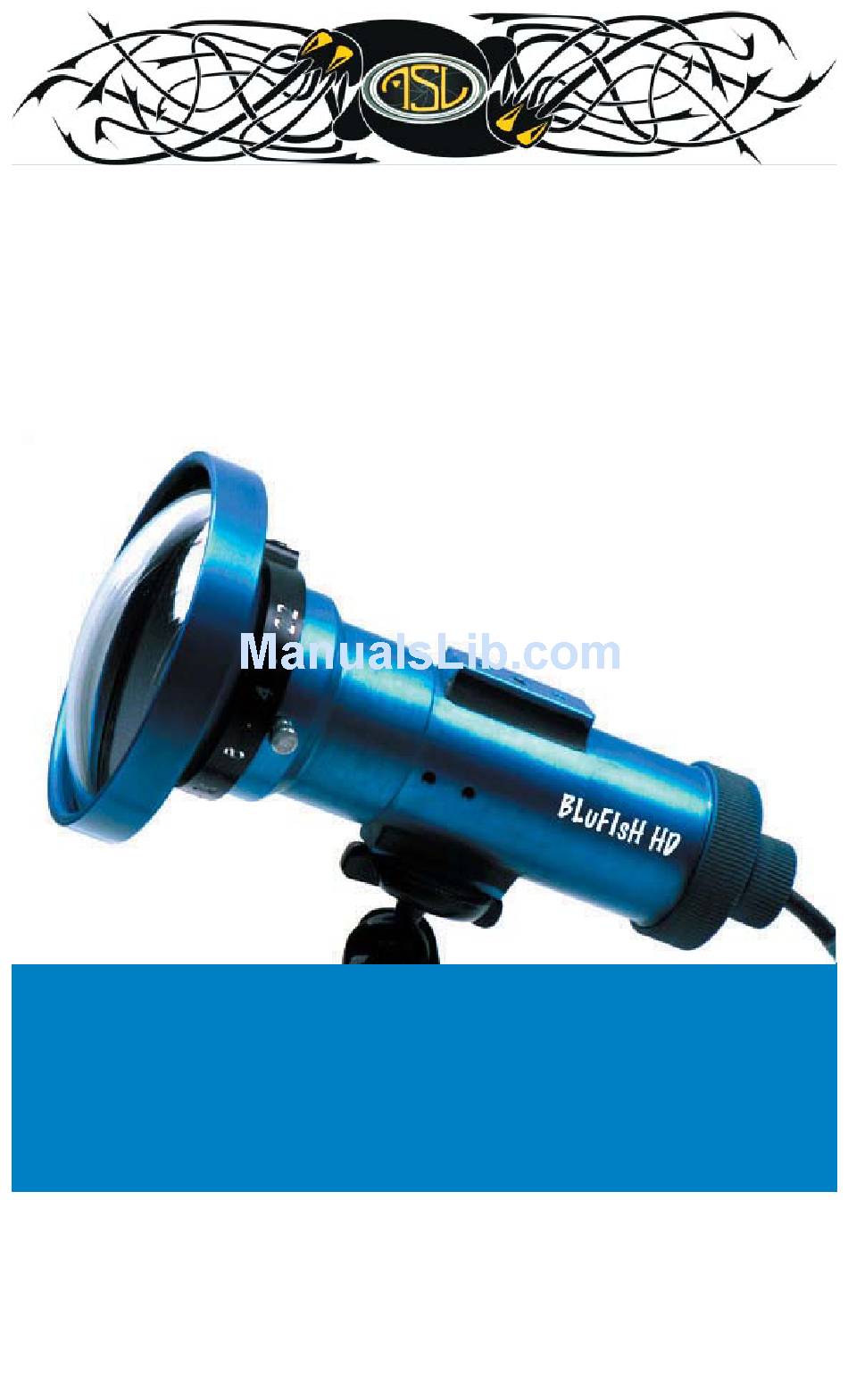

- Page 1 BLuFisH HD BLuFisH HD High Defi nition remote head point of view camera housing User’s manual BluFish-Inst.01...
-
Page 3: Table Of Contents
Table of contents Features / 4 Getting Started / 5 Unpacking / 6 Features & Controls / 7 Preparing Camera Head / 8 Sealing the connector / 9 Installing Lens Port / 10-11 Installing rear cover / 12 Maintenance / 13 Specifi... -
Page 4: Features
BLuFish underwater housing for the Iconix HD POV (HD-RH1) camera Features Your BLuFISH HD comes to you as a kit to assemble for the Iconix HD- RH1 POV camera head. The fully assembled system will give you access to high quality features such as: High Defi... -
Page 5: Getting Started
Getting started Getting started What to know about the ICONIX HD-RH1 1/3” Progressive 3CCD HDTV Camera A revolutionary High Defi nition remote head point of view camera system providing a high-performance, multi-format solution in a small package. Image Sensor 1/3-inch Progressive CCD Optical System 1/3-inch 3-CCD Prism Multi-Format:... -
Page 6: Unpacking
High Definition underwater POV imaging. Your purchase of the BLuFISH HD comes with a 90 day warranty on parts and workmanship. While precautions have been taken on the packaging and the shipping, some damage may have occurred during shipping. -
Page 7: Features & Controls
Features & Controls Features & Controls 1 - Dome port 2 - Iris ring 3 - Mounting shoe 4 - Flat port 5 - Locking screw 6 - Rear cover assembly 7 - Video cable... -
Page 8: Preparing Camera Head
Preparing Camera Head Preparing the Camera Head Whether you are using the Fuji 2.8mm lens or the Fuji 4mm lens, the camera head preparation will be the same. The operation has to be done on the lens itself to adapt it to the BLuFISH lens adaptor. If the threaded mounting block is attached to the camera head, it will have to be re- moved, as the camera head will not fi... -
Page 9: Sealing The Connector
.215 inches or else the system will not seal correctly. NOTE: Your BLuFISH HD Hous- ing was shipped to you with a short piece of cable showing the order of assembly. Pay attention to this as- sembly as you take it apart so you’ll... -
Page 10: Installing Lens Port
Installing lens port Installing lens port 1. Locate the notch that is ma- chined on the front lens port. Slide the camera lens into the lens port and line up the Iris bushing with the notch so the camera lens sits properly in the port. -
Page 11: Installing Rear Cover
Installing rear cover Installing lens port 4. Finally, lock the lens port onto the main body by screwing in the thumbscrew located on the front part of the port. Once completed, you may try to adjust / turn the iris dial. -
Page 12: Maintenance
Maintenance Maintenance Keeping your system clean and preventing it from any damage will ex- tend its lifetime and performance. This section will tell you how to main- tain your system. Please refer to the instructional video and/or contact ASL for more info. While assembling the unit Inspect all the o-rings to detect any dirt or debris. -
Page 13: Specifi Cations
Specifi cations Specifi cations All pieces are corrosion resistant Aluminum Alloy and Stainless Steel. Length (excluding cable): 9.85 inches Max Width: 4.50 inches Max Height: 4.50 inches Weight: With Dome Port : 852g (1lb 14oz) With Flat Port : 661g (1lb 7oz) In Sea water including camera head / Dome port : 274g (0.604 lbs) In Fresh water including camera head / Dome port : 290g (0.639 lbs) - Page 14 Warranty Warranty All manufactured parts of your BLuFISH HD Housing are fully covered for defects in manufacture up to 90 days under normal use. The warranty will automatically become void if the equipment has been mishandled, abused or modifi ed in any way. Scratches or damages to the dome port or fl...
- Page 16 Air Sea Land Gear Inc. 19-69 Steinway Street Astoria, New York 11105-1108 1 888-ASL-LENS - Sales and Marketing 718-626-2646 - Sales and Marketing 718-626-1493 - Fax sales@airsealand.com www.airsealand.com...
