CODE AND SUPPLY REQUIREMENTS: This Outdoor Fire Pit must be installed in accordance with local codes and
ordinances, or in the absence of local codes, with the latest National Fuel Gas Code. ANSI Z223.1
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of
life.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do
not use any phone in your building.
Immediately call your gas supplier from a
neighbor's phone. Follow the gas
supplier's instructions.
If you cannot reach your gas supplier,
call the fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.

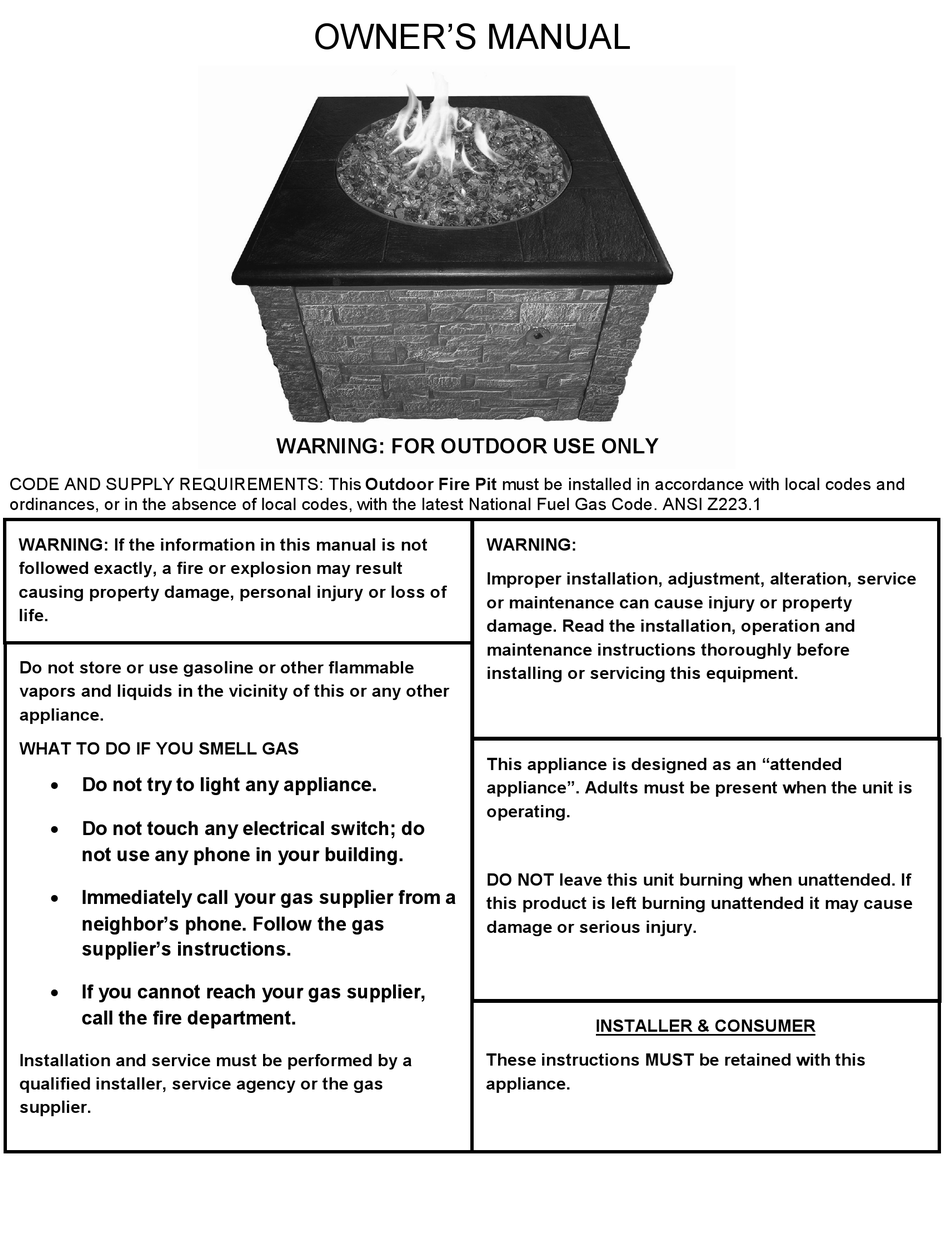

OWNER'S MANUAL
WARNING: FOR OUTDOOR USE ONLY
WARNING:
Improper installation, adjustment, alteration, service
or maintenance can cause injury or property
damage. Read the installation, operation and
maintenance instructions thoroughly before
installing or servicing this equipment.
This appliance is designed as an "attended
appliance". Adults must be present when the unit is
operating.
DO NOT leave this unit burning when unattended. If
this product is left burning unattended it may cause
damage or serious injury.
INSTALLER & CONSUMER
These instructions MUST be retained with this
appliance.

Advertisement

loading

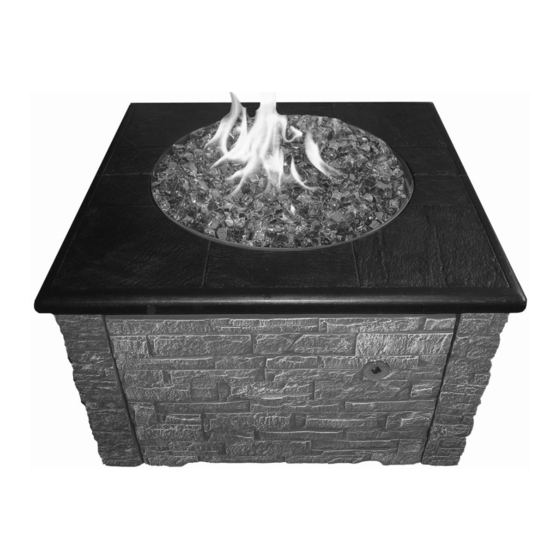

Summary of Contents for Legacy Fire Pit

  • Page 1 OWNER’S MANUAL WARNING: FOR OUTDOOR USE ONLY CODE AND SUPPLY REQUIREMENTS: This Outdoor Fire Pit must be installed in accordance with local codes and ordinances, or in the absence of local codes, with the latest National Fuel Gas Code. ANSI Z223.1...
  • Page 2 TABLE OF CONTENTS Cover – Important Safety Information Table of Contents— Important Safety Information Minimum Clearances to Combustibles— Pre-Installation & Preparation Guidelines— Installation Information Assembly— Gas Connections— Operating Instructions— Lighting Instructions— Operating Information— IMPORTANT SAFETY INFORMATION READ THESE INSTRUCTIONS FULLY BEFORE INSTALLING THIS OUTDOOR FIREPIT. If not installed and used correctly per these instructions, this product can cause serious injury.
  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION -INSTALLATION AND PREPARATION SAFETY GUIDELINES Before installing this outdoor firepit, check “Minimum Clearance to Combustibles” on page 2. MINIMUM CLEARANCES must be maintained when you install this outdoor firepit. THERE MUST BE AT LEAST 60” from the center of the burner to any combustible sidewall. The unit MUST NOT BE installed under any type of ceiling or overhang.
  • Page 4 Gas Regulator with Hose – 24” Lava Rock – 1 Bag Note: Your Fire Pit may be partially or completely pre-assembled. In either case please maintain these set up instructions for future reference. Lay out all parts and identify the corner posts [4], connecting rails [8], nuts and washers [16 each].
  • Page 5 Connect the Regulator to a propane gas tank. Open your propane gas tank valve. Note: Be sure that the valve in your Fire Pit is in the Off position prior to opening your propane gas. Then, using the key supplied turn the gas on slowly and ignite using a butane lighter...
  • Page 6: Operating Instructions

    OPERATING INSTRUCTIONS *We recommend that before you install your log set or glass you familiarize yourself with the control valve layout. This will help you to be confident operating the log set when fully installed (see figures below for typical control positions). FOR YOUR SAFETY, READ BEFORE LIGHTING WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
  • Page 7: Operating Information

    Firepit. DO NOT leave in operation when unattended. WARNING: DO NOT operate this Firepit in the rain. SOLID FUEL MUST NOT BE BURNED in your fire pit. This appliance is for use with gas only. DO NOT continue using if you smell unusual odors or have headaches, nausea or are dizzy.
