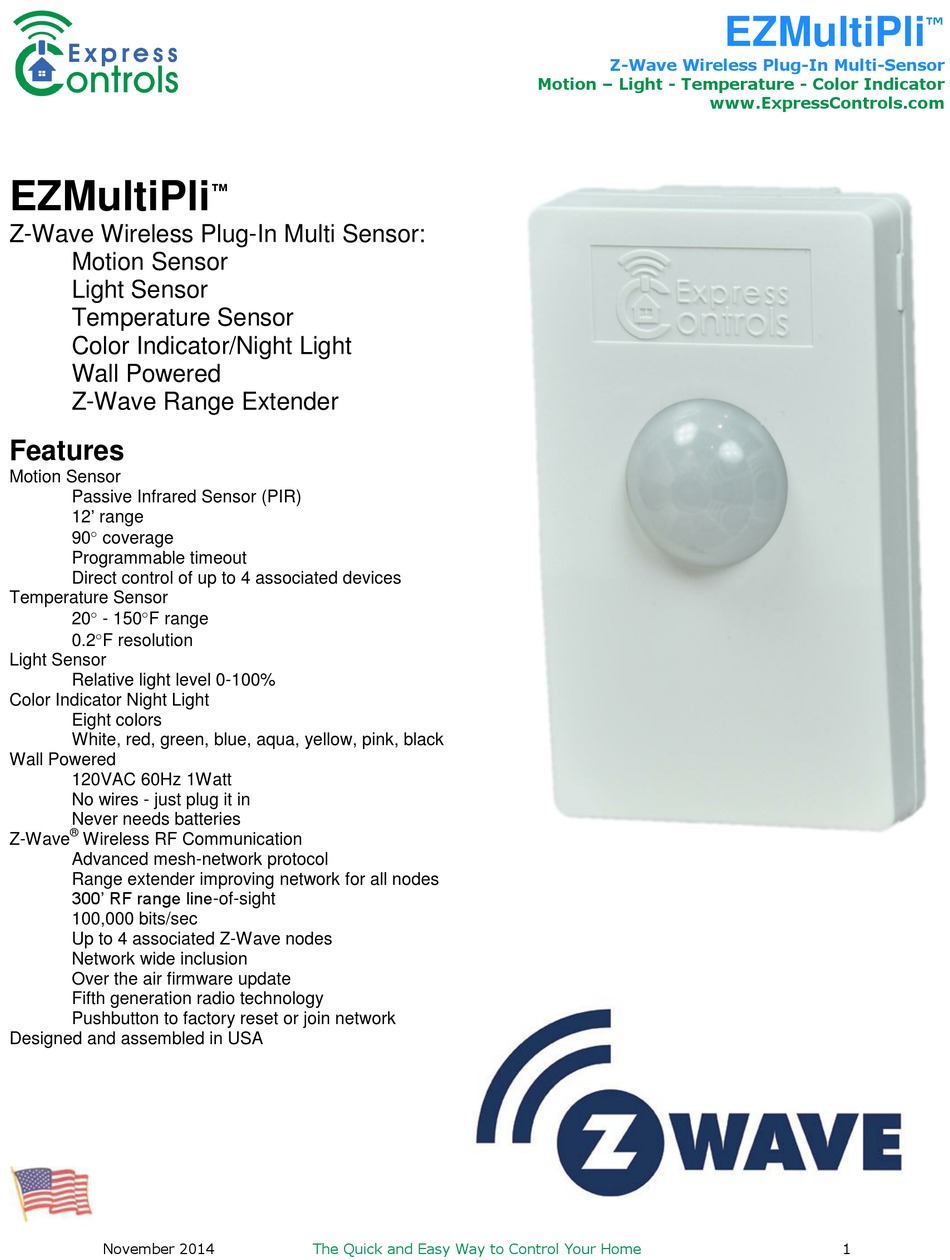

EZMultiPli
Z-Wave Wireless Plug-In Multi Sensor:
Motion Sensor
Light Sensor
Temperature Sensor
Color Indicator/Night Light
Wall Powered
Z-Wave Range Extender
Features
Motion Sensor
Passive Infrared Sensor (PIR)
12' range
90 coverage
Programmable timeout
Direct control of up to 4 associated devices
Temperature Sensor
20 - 150F range
0.2F resolution
Light Sensor
Relative light level 0-100%
Color Indicator Night Light
Eight colors
White, red, green, blue, aqua, yellow, pink, black
Wall Powered
120VAC 60Hz 1Watt
No wires - just plug it in
Never needs batteries
®
Z-Wave
Wireless RF Communication
Advanced mesh-network protocol
Range extender improving network for all nodes
300' RF range line-of-sight
100,000 bits/sec
Up to 4 associated Z-Wave nodes
Network wide inclusion
Over the air firmware update
Fifth generation radio technology
Pushbutton to factory reset or join network
Designed and assembled in USA
November 2014
™
The Quick and Easy Way to Control Your Home
Z-Wave Wireless Plug-In Multi-Sensor
Motion – Light - Temperature - Color Indicator
www.ExpressControls.com
EZMultiPli
1
™
Advertisement
Table of Contents
Summary of Contents for Express Controls EZMultiPli
- Page 1 ™ EZMultiPli Z-Wave Wireless Plug-In Multi-Sensor Motion – Light - Temperature - Color Indicator www.ExpressControls.com EZMultiPli ™ Z-Wave Wireless Plug-In Multi Sensor: Motion Sensor Light Sensor Temperature Sensor Color Indicator/Night Light Wall Powered Z-Wave Range Extender Features Motion Sensor Passive Infrared Sensor (PIR) 12’...
-
Page 2: Table Of Contents
™ EZMultiPli Z-Wave Wireless Plug-In Multi-Sensor Motion – Light - Temperature - Color Indicator www.ExpressControls.com Table of Contents Introduction ....................................3 Quick Start ....................................4 Detailed Instructions ................................4 Exclusion ..................................4 Factory Reset ................................... 4 Inclusion ................................... 4 Motion Report .................................. 5 Motion Timeout ................................ -
Page 3: Introduction
EZMultiPli is wall powered and needs no wires or batteries. Simply plug EZMultiPli into the wall, join the Z-Wave network and you’re ready to go. Z-Wave is a wireless mesh-networking protocol for reliable, intelligent home control of all Z-Wave compatible devices. Z- Wave devices can act as repeaters to create a mesh-network to ensure reliable communication regardless of the manufacturer or type of device. -
Page 4: Quick Start
Z-Wave network. Inclusion Before attempting to include (pair) EZMultiPli to a Z-Wave network, be sure the LED is blinking an aqua color. If it is not blinking aqua, follow the exclusion instructions above. -
Page 5: Motion Report
EZMultiPli sends a report of the relative amount of light currently in the room to the Z-Wave system controller. The value is from 0 to 100% and is relative to the maximum and minimum amount of light EZMultiPli has measured since it was plugged in. -
Page 6: Configuration Parameters
This section is intended for home control software developers to support EZMultiPli in their home control software. Users of EZMultiPli do not need this information but it is provided here for serious DIYers who want to understand how the device works under the hood. -
Page 7: Notification Command Class
The most important part of the interview process is to associate the system controller interface NodeID to association group 1 (LIFELINE). EZMultiPli will send all notifications to this node. Assign a Return Route to the group 1 NodeID to ensure proper routing without unnecessary delays. -
Page 8: Multilevel Sensor Reports
™ EZMultiPli Z-Wave Wireless Plug-In Multi-Sensor Motion – Light - Temperature - Color Indicator www.ExpressControls.com Return Routes should be assigned to the Group 1 NodeIDs to minimize Z-Wave routing delays. Multilevel Sensor Reports The sensors should be interviewed to determine their capabilities and supported scales using the SENSOR_MULTILEVEL_SUPPORTED_GET_SENSOR and SENSOR_MULTILEVEL_SUPPORTED_GET_SCALE commands. -
Page 9: Color Switch Command Class
Firmware Update Command Class The firmware of EZMultiPli can be updated in the field by the customer using the Firmware Update Command Class. An Intel Hex file of the Over-The-Air firmware can be obtained from the Express Controls web site. - Page 10 ™ EZMultiPli Z-Wave Wireless Plug-In Multi-Sensor Motion – Light - Temperature - Color Indicator www.ExpressControls.com Step System Controller Device that needs updated firmware User must push the button to initiate the update (manual authentication is recommended) The also goes into LEARN mode and the LED blinks...
- Page 11 ™ EZMultiPli Z-Wave Wireless Plug-In Multi-Sensor Motion – Light - Temperature - Color Indicator www.ExpressControls.com Step System Controller Device that needs updated firmware Wait for the SEND of the REPORT to complete and the callback to acknowledge that the report was sent.
-
Page 12: Troubleshooting
After this initial 5 minute testing period the LED goes off and stays off. is motion If EZMultiPli is plugged into an outlet on an exterior wall or close to the floor, the temperature The temperature is off may be off by a few degrees. -
Page 13: Federal Communications Commission (Fcc)
LIMITED 2 YEAR WARRANTY If within two (2) years from the date of purchase, this product fails due to a defect in material or workmanship, Express Controls LLC will repair or replace it, as its sole option, free of charge. This warranty is extended to the original household purchaser only and is not transferable. This warranty does not apply to: (a) damage to units caused by accident, dropping or abuse in handling, acts of God or any negligent use;... -
Page 14: Technical Specification
Routing Slave Enhanced 232 EZMultiPl-US 908/916MHz for North America ZWavePlus SKU (EAN13):0661799815048 Notification (Alarm command class version 3) Multilevel Sensor V6 (Luminance, Temperature) Copyright 2014 Express Controls LLC Color Control Hollis NH USA Manufacturer Specific www.ExpressControls.com All Rights Reserved Version...
