Summary of Contents for eCopy ScanStand

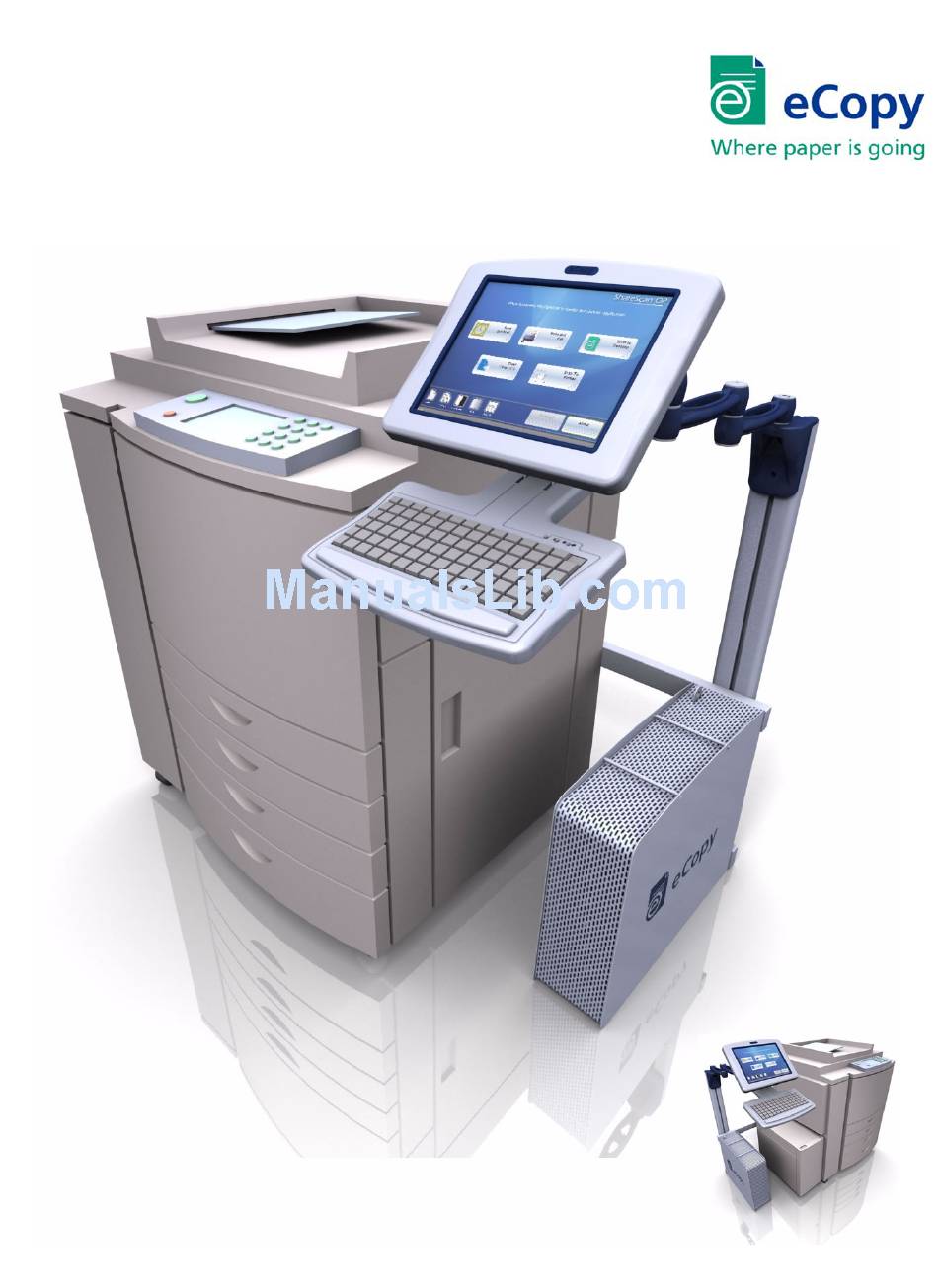

- Page 1 ScanStand Assembly Instructions Revision 2.1 © eCopy, Inc. All trademarks are properties of their respective owners (see product documentation for details). P/N: 73-00030 (2/2006)
- Page 2 Licensing, Copyright, and Trademark Information The information in this document is subject to change and does not represent a commitment on the part of eCopy, Inc. The software described in this document is furnished under a license agreement. The software may be used or copied only in accordance with the terms of the agreement.
-
Page 3: Planning The Installation
Planning the installation You can assemble the eCopy ScanStand in several configurations. Determine the best configuration so the arm, touch screen, and keyboard do not interfere with copier access. In most situations: > If the finisher is on the left of the copier, configure the PC and arm at the right of the assembly. - Page 4 In rare situations, you may need to position the post and arm assembly at the opposite end of the rear frame from the angle frame. The diagrams below illustrate various configuration options. Typical configuration Configuration to accommodate Rarely used but available if reservoir or other large accessory required Right configuration Left configuration eCopy ScanStand Assembly Instructions...
-
Page 5: Component Identification
Angle frame (J) ships inside PC cover (F) A: Touch screen B: Keyboard C: Arm D: Rear frame E: Arm support post F: PC cover G: L-bracket H: PC clamp I: Master fastener kit J: Angle frame eCopy ScanStand Assembly Instructions... -
Page 6: Outside North America
US/North America Technical Support hours are Monday through Friday, 6:00 A.M. to 5:30 P.M. EST. Phone: +1 (603) 881-4450 (select option 8) E-mail: support@ecopy.com Outside North America Please contact your local dealer or national sales organization. eCopy ScanStand Assembly Instructions... - Page 7 Step 1: Rear and angle frame assembly Fastener Kit #1: P/N 16-5001-A Screw feet into threaded holes in underside of rear frame (2) and angle frame (1). Screw feet in all the way. Components shown full size to help identification Feet (3) eCopy ScanStand Assembly Instructions...
- Page 8 Left configuration (front view) Left configuration (rear view) Right configuration (front view) Right configuration (rear view) Tighten bolts securely using 13 mm wrench. Do not over tighten or you will bend the metal tubing. eCopy ScanStand Assembly Instructions...
- Page 9 Place L-bracket on bolts and attach loosely using hex nuts. Slide bracket to lowest position. You will re- position and tighten the L-bracket later. Vertical struts Left configuration with optional L-bracket position eCopy ScanStand Assembly Instructions...
- Page 10 Place washer and nut on each bolt. Turn only 2- 3 times leaving bolt heads extended at least 16 mm (5/8 inch) from rear of frame. Tighten nuts securely using 13 mm wrench. Note bolt head alignment and required gap eCopy ScanStand Assembly Instructions...
- Page 11 Fastener Kit #4: P/N 16-5001-D Insert 30 mm (1-1/8 inch) hex bolts into arm bracket from rear (opposite the side with the eCopy logo). Bolt heads should be on flat side of bracket. Components shown full size to help identification Do not attempt to loosen or tighten the Allen screws on the arm joints.
- Page 12 Remove Allen screws (2) from underside of keyboard bracket and set screws aside. Do not remove the tension screws. Slide tongue at rear of keyboard into keyboard Flip keyboard down to horizontal position. bracket, aligning the screw holes. eCopy ScanStand Assembly Instructions...
- Page 13 Then re-insert and tighten the four screw first using the Allen key. screws. Remove four pan head Phillips screws (4) from center back side of touch screen. eCopy ScanStand Assembly Instructions...
- Page 14 50 mm (2 inches) of slack in cables between screen and first clip. Guide cables over top of bracket and into vertical cable channel at rear of arm support post. Exit cables at or near base of post. eCopy ScanStand Assembly Instructions...
- Page 15 3-port hub Connect keyboard and screen cables to PC. Attach power cable to PC. To copier To wall jack Integrated network port Complete setup of eCopy software (see the eCopy software installation documentation for details). eCopy ScanStand Assembly Instructions...
- Page 16 Place cover over PC and align inside cover clips with tongues on frame. You may need to press iii. Click OK. the side covers together to align the clips. Warning! Be careful to avoid pinching your hands between the cover and the frame. eCopy ScanStand Assembly Instructions...
