OPERATORS MANUAL

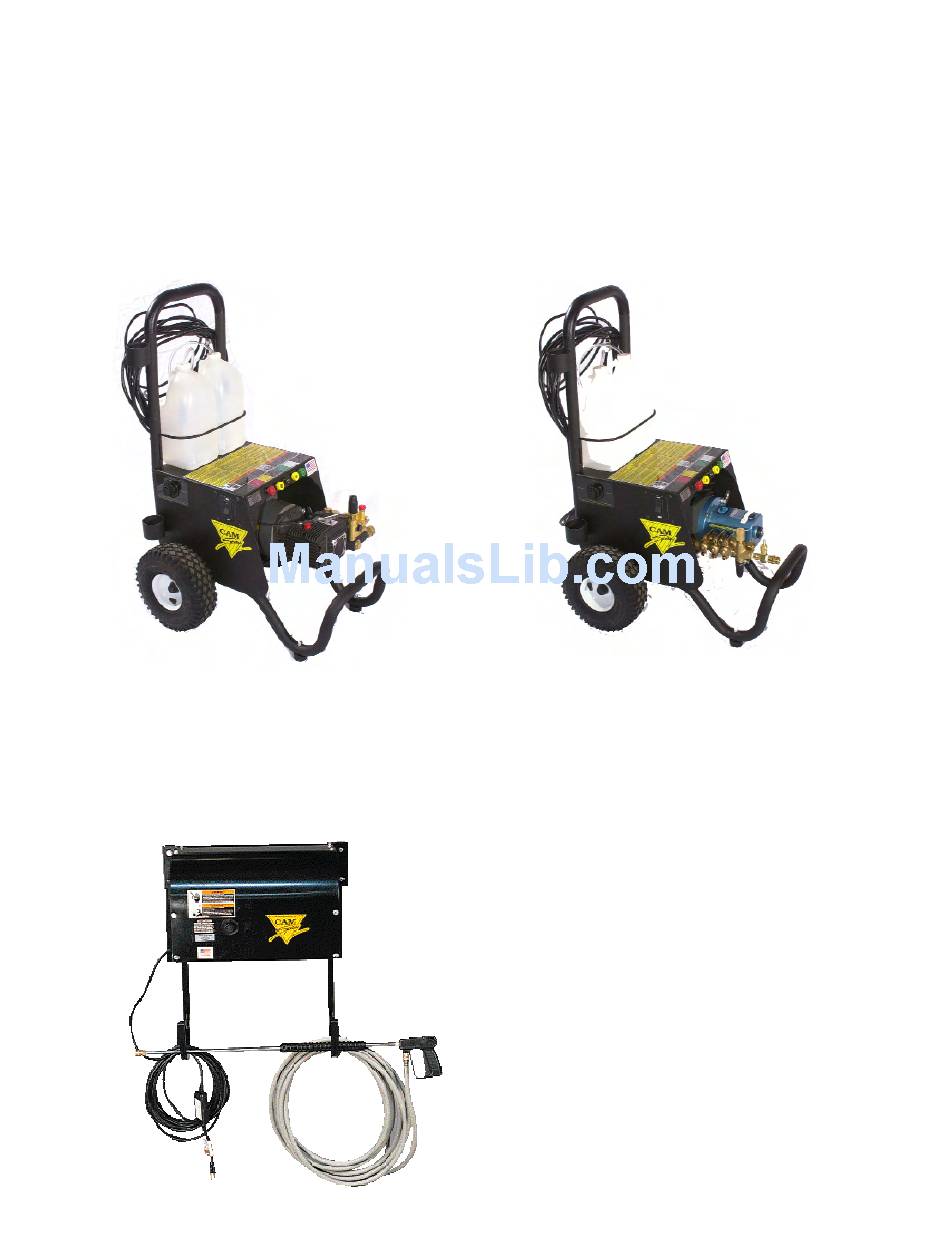

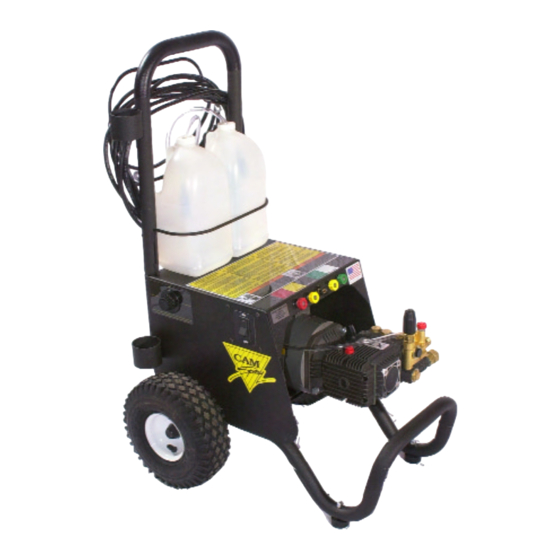

MX, MXD and Wall Mount Style Models
MX and MXD Models
Models are:
1000MX, 1500AMX, 1500MX
and 20005MX
Wall Mount Style Models
Features General pump
for
Models are:
1000MXDS, 1500AMXDS,
1500MXDS and 20005MXDS
Models offered are:
1000WM and 1500WM with painted frame
1000WM/SS and 1500WM/SS with stainless
steel frame.
Features Cat pump
Advertisement
Table of Contents
Related Manuals for Cam Spray 1000MX
Summary of Contents for Cam Spray 1000MX
-
Page 1: Operators Manual
MX and MXD Models Features Cat pump Features General pump Models are: Models are: 1000MXDS, 1500AMXDS, 1000MX, 1500AMX, 1500MX 1500MXDS and 20005MXDS and 20005MX Wall Mount Style Models Models offered are: 1000WM and 1500WM with painted frame 1000WM/SS and 1500WM/SS with stainless... - Page 2 Thank You..for selecting our products. Our personnel have proudly made every effort to ensure that your new Pressure Washer is of the quality that you expect. But things do occasionally go wrong. This is why every pressure washer is covered by a limited warranty. Among other things this warranty provides for the replacement of parts found to be defective during the operation of your new pressure washer.
-
Page 3: Important Safety Instructions
WARNING The following warnings must be followed, Failure to follow these warnings could result in serious personal injury or death! Never allow children or untrained personnel to operate machinery. Electrical equipment can cause shock and sparks. Do not bypass or remove the grounding prong in any electrical plug. Keep electrical plugs, connections and cords out of water and moisture. - Page 4 Initial setup and operation of your new pressure washer Inspection When you receive your pressure washer be sure you check for concealed freight damage. Any for freight damage should be noted with the delivering carrier. If you have any questions related to freight call the 800 number listed in the front of the manual.
- Page 5 During The pressure was set at the factory during the testing procedure, no adjustments to the machine should be required for operation. During operation do not leave the machine running for more than 2 min- Operation utes without the trigger gun being pulled. Although your machine has a by-pass valve on it and may have a thermal relief system, this can cause extensive pump damage.
-
Page 6: Shutdown Procedure
Shut down procedure Storage 1. Turn off the power switch on the pressure washer. 2. Relieve pressure on line by pulling trigger gun. 3. Shut off water supply and disconnect garden hose. 4. Be sure to check for water leaks or oil leaks that should be repaired before the next operation. 5. - Page 7 Wall Mount Gun 509370 Wall Mount Lance Replacement Quick Tips For All Units Flow 2.0 GPM 2.0 GPM 3.0 GPM 3.0 GPM Tip Description Model 1000MX Model 1500AMX Model 1500MX Model 20005MX 1000MXDS 1500AMXDS 1500MXDS 20005MXDS Black-Soap Tip 509520 509520...
-
Page 8: Parts List
2SFX PUMP 7500X UNLOADER PARTS LIST ITEM PART NUMBER DESCRIPTION CAT 540081 CAP, HEX ADJUSTING CAT 31047 NUT, LOCKING(OPTIONAL) CAT 32094 SPRING, COIL (2000 PSI) CAT 107672 RETAINER, SPRING CAT 45694 STEM, PISTON (M5) CAT 20184 BACK UP RING CAT 14190 O-RING, RETAINER CAT 107673 RETAINER, PISTON... - Page 9 TT Series (Gas / Electric) This pump uses 30 wt. oil Electric Flange Gas Flange PARTS LIST Pos. Code Description Kit No. Pos. Code Description Kit No. 55120122 Manifold, Alum Nickel 90357200 O-ring Valve assy, comp 90502200 Anti-Ext ring 98204100 Plug 1/4 x 9 G 96707000 Flinger washer...
