Summary of Contents for Viatron Autrix

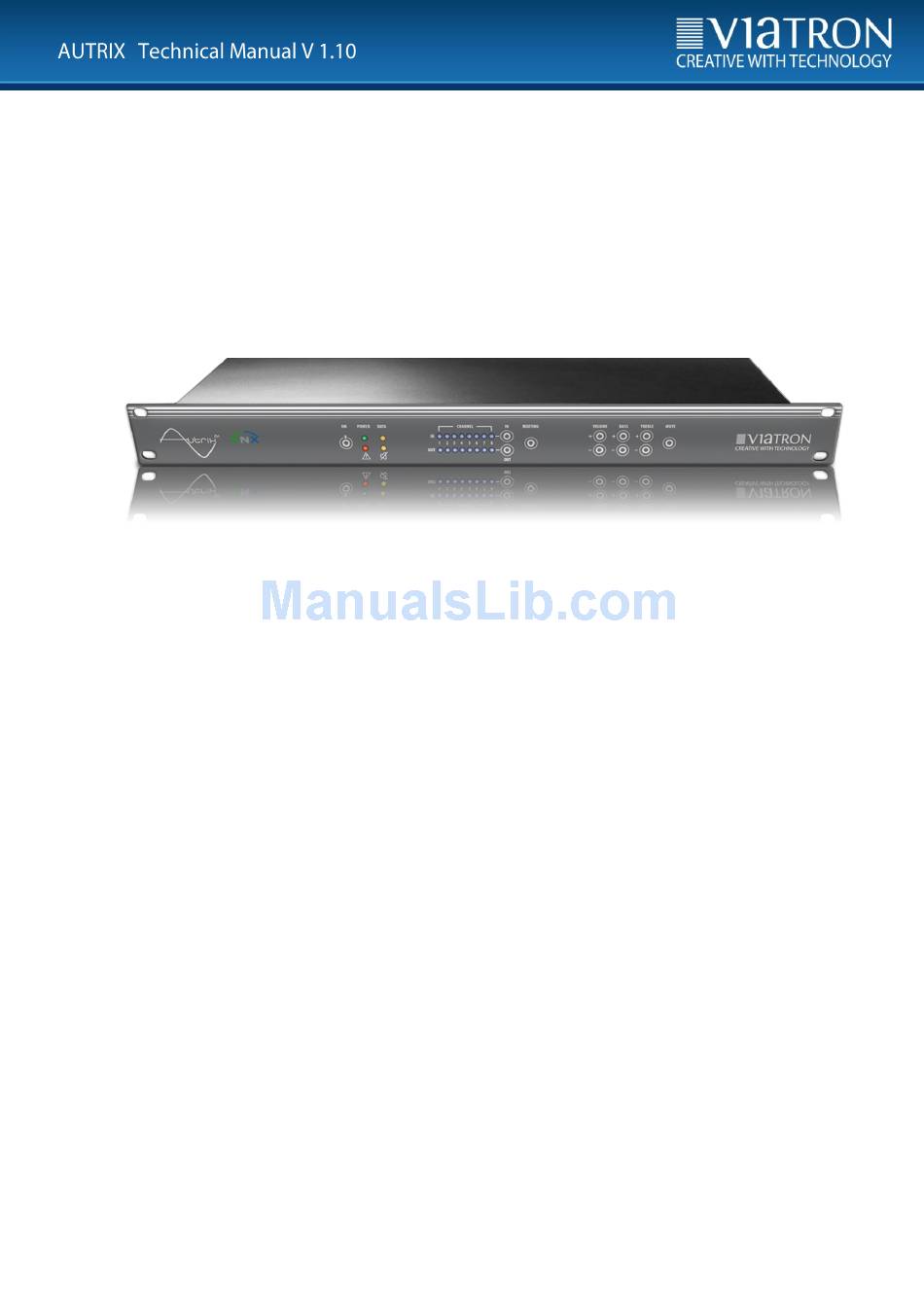

- Page 1 Viatron GmbH - KNX MultiRoom Audio - Autrix Technical Manual Page 1 of 23...
-
Page 2: Table Of Contents
1 General description: ......................... 4 2 Block diagramm ........................5 2.1 Schema Autrix with 4 zones ....................... 5 2.2 Schema Autrix with 8 zones ....................... 5 3 Connections to he unit (rear side oft he unit) ................. 6 3.1 Loudspeaker connections ........................6 3.2 Audio Output (NF) .......................... - Page 3 11 Technical Data ........................20 11.1 Data sheet ............................20 11.2 System and error messages (LEDs Front) ..................21 12 Maintenance and care ......................22 13 Important Information ......................22 13.1 Liability exclusion ..........................22 13.2 Approved use ............................. 22 13.3 Warranty .............................
-
Page 4: General Description
8 speaker output (8 Ohm) 2 stereo audio output (NF signals) The AUTRIX is directly connected to the KNX building bus. So the controlling can be made by the installed switch range/visualisation. The device can also be controlled directly over the front panell located on front of the device. -
Page 5: Block Diagramm
Block diagramm 2.1 Schema Autrix with 4 zones Figure: Schema Autrix with 4 amplifier zones 2.2 Schema Autrix with 8 zones Figure: Schema Autrix with 8 amplifier zones Page 5 of 23... -
Page 6: Connections To He Unit (Rear Side Oft He Unit)
3.3 Audio Input (NF) Up to 4 onsite audio devices, are connected to the 4 audio NF inputs (stereo RCA sockets) of the Autrix. These audio input signals are then available for all integrated amplifier stages (up to 8 amplifier). -
Page 7: Knx Port
Even after switching off the amplifier boards the Autrix can still receive or send telegrams. Switching off the amplifier board is recommended, if the autrix will not be in use for a longer period of time (for example: nighttime, vaccation etc.). -
Page 8: Master Mute On/Off
At the end of the alarm (temperature back to normal) the status will send the value 0. During the period of the alarm the Autrix M4 is switched off automatically. Afterwards the Autrix M4 needs to be turned on again (through KNX Bus or trough the front panel oft he device). -
Page 9: Amplifier N: Input Signal - Value
Amplifier 7 Input signal- status 5.010 counting impulse status Amplifier 8 Input signal- status 5.010 counting impulse status Via these communication objects the Autrix M4 sends back the number of the audio input, which was currently selected. Page 9 of 23... -
Page 10: Amplifier N: Mute On / Off
5.001 percent (0-100) status Amplifier 7 Volume status 5.001 percent (0-100) status Amplifier 8 Volume status 5.001 percent (0-100) status Via these communication objects the Autrix sends back the currently volume level of an amplifier. Page 10 of 23... -
Page 11: Knx Object Description / Sound Settings
KNX Object description / Sound settings 6.1 Amplifier n: Treble, setting - steppwise Object Designation Function Data type Amplifier 1 Treble step 1.007 step stepped Amplifier 2 Treble step 1.007 step stepped Amplifier 3 Treble step 1.007 step stepped Amplifier 4 Treble step 1.007 step stepped... -
Page 12: Amplifier N: Treble - Status
5.001 percent (0-100) status Amplifier 8 Treble status 5.001 percent (0-100) status The Autrix sends the treble setting status value back to the appropriate zone using these communication objects. 6.4 Amplifier n: Middle, setting - steppwise Object Designation Funktion Datentyp... -
Page 13: Amplifier N: Middle, Setting - Value
5.001 percent (0-100) status Amplifier 7 Middle status 5.001 percent (0-100) status Amplifier 8 Middle status 5.001 percent (0-100) status The Autrix sends the middle setting status value back to the appropriate zone using these communication objects. Page 13 of 23... -
Page 14: Amplifier N: Bass, Setting - Steppwise
6.7 Amplifier n: Bass, setting - steppwise Object Designation Function Data type Amplifier 1 Bass step 1.007 step steppwise Amplifier 2 Bass step 1.007 step steppwise Amplifier 3 Bass step 1.007 step steppwise Amplifier 4 Bass step 1.007 step steppwise Amplifier 5 Bass step 1.007 step... -
Page 15: Amplifier N: Bass - Status
As various audio sources may supply output levels of different strengths, appropriate compensation can take place on the Autrix. For this, the 4 inputs on the Autrix can be set independently of one another. This setting is termed input amplification. In the as-delivered state, a medium input gain is assigned to all the inputs. This presetting can be changed as necessary using the following communication objects. -
Page 16: Audio Input N: Setting The Input Gain - Value
Autrix works with the adapted sound settings. The data point "Reset" allows restoration of the factory sound settings. In order to save these permanently to the Autrix, the above-mentioned data point can be used to save sound settings. -
Page 17: Sound Settings: Save
Via this button the Autrix can be switched on or off. The green „power“ LED shows the current state. In off state the Power-LED is also off. The Autrix is than in a stand-by-mode and can be turned on again at any time. -
Page 18: Setting An Input Source For A Zone
9.2 Setting an input source for a zone To allocate a certain input signal to a zone, the following operating steps must be accomplished: 1) selecting the input signal: for this purpose the „IN“ key has to be pushed/confirmed until the LED line „IN“ shows the required input-number. -
Page 19: Mastermute / On - Off
9.6 MasterMute / ON - OFF The use of the function MasterMuste sets the Autrix to complete silence. Over the „MUTE“ key, it can be turned on or off. This key works after the Toggle principle: pressing the key several times changes at a time the status between:... -
Page 20: Technical Data
Technical Data 11.1 Data sheet Technical Data Autrix M4.4 Autrix M4.8 Power supply 110 VAC to 240 VAC 110 VAC to 240 VAC Protection rear side of the unit T 1,0A T 2,0A Protection top of the unit T 10 A... -
Page 21: System And Error Messages (Leds Front)
11.2 System and error messages (LEDs Front) The Autrix comes with LED´s placed on the frontpanel, which are arranged as followed: Channel LEDs: 8 x LED Input 8 x LED Output Status LEDs: 1 x Power 1 x Data 1 x Alert (symbol „warning triangle“) 1 x Mute (symbol „crossed out speaker“) -
Page 22: Maintenance And Care
We provide a warranty in accordance with the statutory requirements. Please send the device exempt from postage, with a description of the defect and in its original packaging to our service center (Viatron GmbH, Barschweg 2, 76275 Ettlingen). 13.4 Warning notices Listening to loud music can cause hearing-impairment! The above described device may never be used for health- or life saving purposes!. -
Page 23: Contact
Contact Viatron GmbH Barschweg 2 76275 Ettlingen, Germany Telefon: +49 (0)7243 39 790 65 Telefax: +49 (0)721 78159826 E-Mail: info@viatron.de For more information www.viatron.de Page 23 of 23...
