Summary of Contents for Caretec SweetHeart

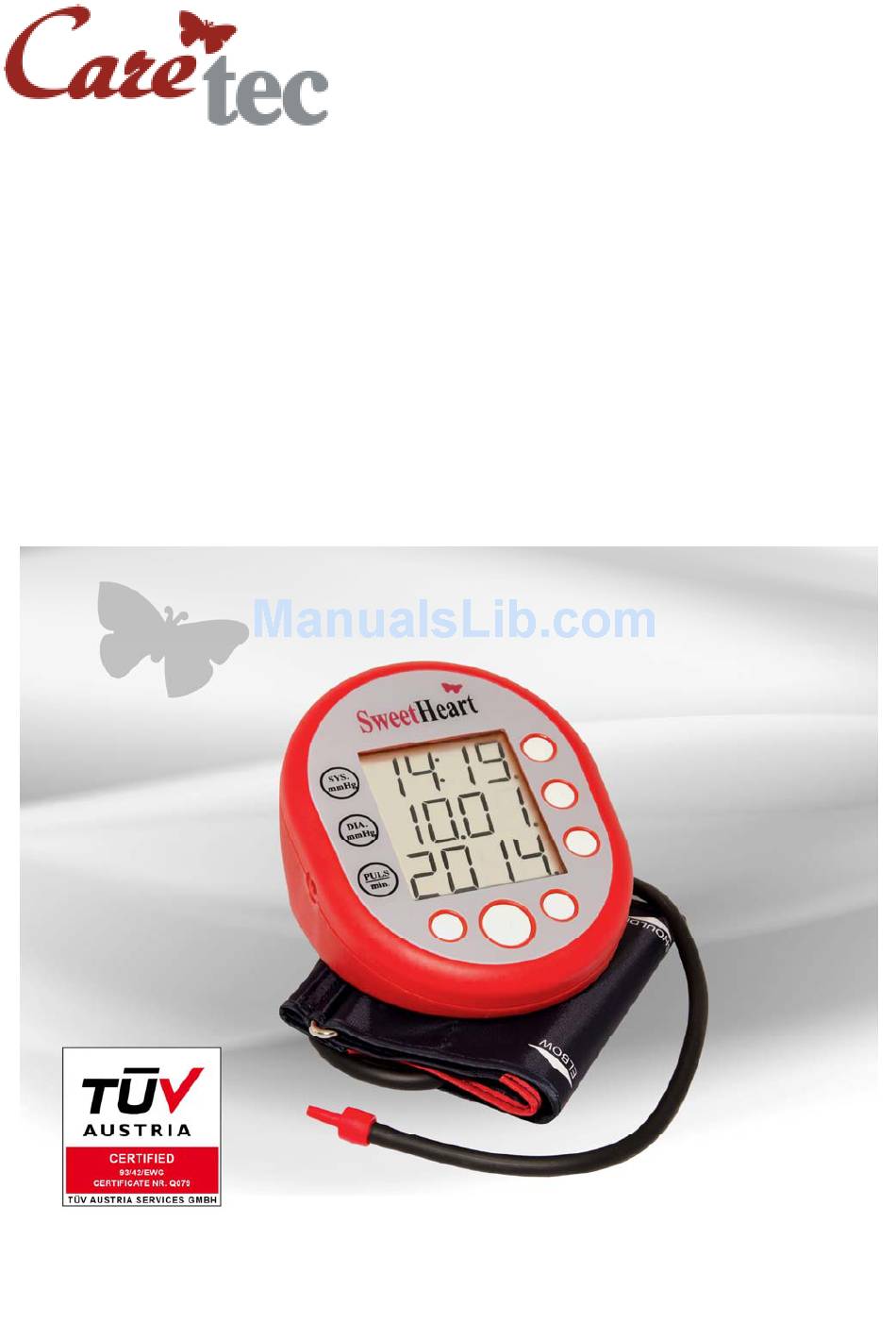

- Page 1 User Manual ___________________________________________________________ SweetHeart Automatic blood pressure meter with integrated speech output...
-
Page 2: Table Of Contents
Table of Contents 1: Introduction page 3 2: Description of the device page 4 3: Power Supply page 5 4: Keyboard Layout page 6 4.1: Horizontally Arranged Keys page 6 4.1.1: Left key – Volume Control page 6 4.1.2: On/Off Key page 6 4.1.3: Right Key –... -
Page 3: 1: Introduction
Introduction SweetHeart is a fully automatic blood pressure and pulse meter with integrated speech output. Its outstanding features are: state-of-the-art technology: measurement starts during inflation; this accelaretes the process and is less strenuous for the heart acoustic signals with every heart beat ... -
Page 4: 2: Description Of The Device
2: Description of the device To get acquainted with the device, place it in front of you so that the lower edge of the front side is facing you. Upper Side In the middle of the slightly sloping surface is a very large display with 3 lines. -
Page 5: 3: Power Supply
Batteries SweetHeart can be operated with 4 x 1.5 V AA Mignon batteries. The battery compartment is located on the bottom of the device. The lid of the battery compartment is partly ribbed. To remove the battery lid press the ribbed part with both thumbs and push it away from you. -
Page 6: 4: Keyboard Layout
4: Keyboard Layout 4.1: Horizontally Arranged Keys The horizontally arranged keys right below the display are the left key, the On/Off key and the right key. 4.1.1: Left key – Volume Control You can choose one of 6 different volume levels by pressing the left key. A short press will increase the volume;... -
Page 7: 3: Right Key - Memory
4.2.1: Upper and Lower Key - Announcement of Date and Time SweetHeart has an integrated electronic watch showing the date and time whenever the device is not being operated. To hear the time, press the upper key shortly, to hear the date, press the lower key shortly. -
Page 8: Placing The Cuff
right after physical exercise. In the morning and in the evening, measurement should only be carried out before meals and before taking medication. Unless otherwise instructed, it is recommended to measure the blood pressure around the same time of the day. 5.1: Placing the Cuff Make sure you place the cuff correctly on the upper arm before starting the measurement. -
Page 9: Start The Measurement
5.2: Start the Measurement press the On/Off key announcement: "measurement has been started" cuff inflates automatically beep-sounds during the measurement indicate the pulse announcement: "Systole 120, Diastole 93, Puls 88" If you activated a target value, the device will announce the deviations from this target value, e.g. -
Page 10: 6: Menu
Menu The menu offers the possibility to recall and administer stored values, to set time and date and enter a personal target value. To enter the menu, proceed as follows: access the menu: short press of middle key announcement: "Menu" ... -
Page 11: 3: Delete Triple Values
Caution: When recalling the single values, you will always hear the single value of the last chosen triple value, e.g. when you recalled the second entry of the triple values and now change to the systole values, it will start with the systole value of the second entry. -
Page 12: Set Target Value
6.3: Set Target Value This menu function enables you to enter your personal target value. Deviations from this target value will automatically be announced after the measurement. To enter your target value, proceed as follows: confirm menu function: long press of middle key announcement: e.g. "target value person 1 –... -
Page 13: 7: Data Transfer To The Pc
Make sure the batteries are inserted in the correct way. Make sure that SweetHeart is not used as a kids toy. When using earphones, make sure to use an accurate volume level to avoid ear damages. -
Page 14: 10: Technical Data
Cuff Pressure: 0 – 280mm/Hg ( ± 3%) Measuring Rate: Pulse Rate: 30 – 160 S/min ( ± 5%) SweetHeart – talking blood pressure meter 4 x 1,5V AA Mignon batteries 1 x cuff standard size (big or small cuff on demand) -
Page 15: 12: Legal Notice On The Disposal Of Electronic Devices
During the guarantee periods mentioned above, the product will be either repaired or replaced free of charge. In no event shall CareTec be liable for indirect, special or consequential damages. The exposure of the device to liquids, strong electromagnetic fields, heat as well as dropping the device or opening the case causes immediate loss of guarantee. -
Page 16: 13: Symbols Used
Caution Additional information Must be disposed off separately from household waste Manufactured by 14: Manufacturer CareTec International GmbH Stubenbastei 1, 1010 Vienna, Austria Phone: (+43 1) 513 80 81 0 Fax: (+43 1) 513 80 81 9 E-mail: office@caretec.at Web: www.caretec.at...
