Sierra SRP54 Installation Manual

SIERRA COMPONENT INSTALLATION

Selecting the placement of your new Sierra Component speakers may be as easy as
using the existing factory locations or may require you to create a new location. Speaker
placement in the door, dash, or rear deck is the most common. See your local
Phoenix Gold Dealer for additional location options and mounting assistance.

SIERRA WOOFER INSTALLATION

1. Many vehicles already have factory locations (Figure 1.) to house the "DROP IN" feature
of the Sierra Component line.If no existing locations are available or are not used
(Figure 2.), check the desired location for adequate cutout area and any depth
obstructions. Make sure to allow sufficient clearance for window tracks, structural
braces, trunk lid springs, etc.
2. Assuming enough area and depth is available, use the provided template and trace
the speaker cutout and mounting holes onto the surface of the mounting location.
3. If the mounting surface is not structurally strong enough to accommodate screws, (i.e.
plastic, cardboard) use the provided speed clips which will act as a nut for the supplied
screws.
4. Always provide water protection if not supplied in the vehicle. We suggest using a rain
shield or equivalent.If in doubt, please contact your Sierra Dealer.

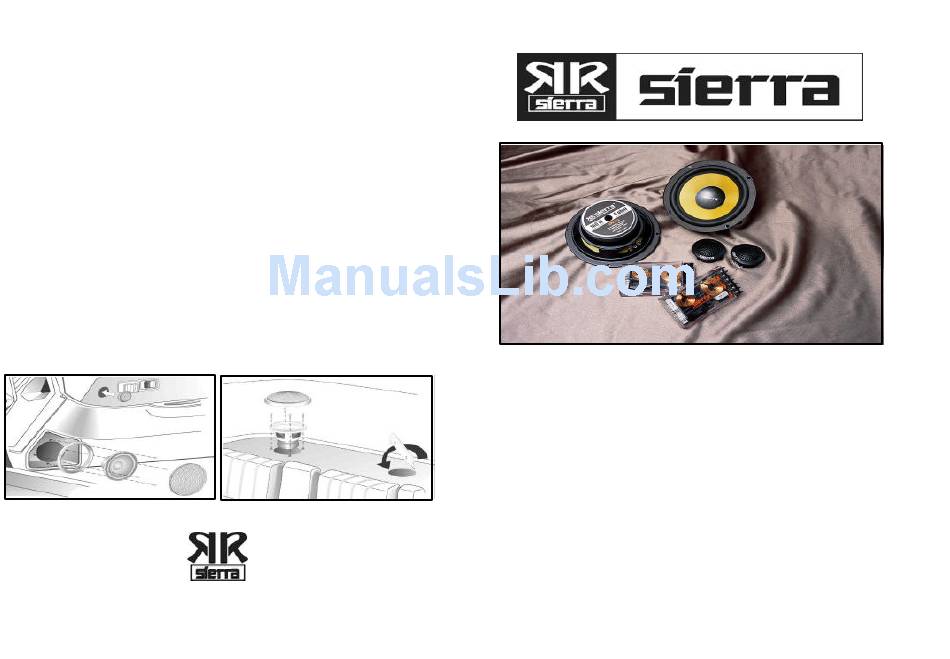

Figute 1 : Factoty speaker location
¼-¿ï½Ã °-¼-±¸ °¡¾ç2µ¿ 1481 °¡¾çÁ¦1°ø´Ü 4Ãþ
TEL : (02) 2659-8385 FAX : (02) 2659-3846
Figute 2 : Creating new speaker location
COMPONENTS : SRP54 / SRP62 / SRP693
Congratulations on your purchase of a new Sierra Component loudspeaker
system. By purchasing Sierra, you've demonstrated a desire to own the finest
in audio reproduction. Sierra strives to provide you, the customer, with the
most thoroughly engineered and tested car audio products possible.

SIERRA COMPONENT FEATURES

• Developed by Sierra from the ground up to set new standards in performance.
• Optimized magnet/motor structures result in high efficiency and clarity.
• Advanced butyl rubber surround is more rugged than foam,won't break down from
moisture or UV, and is extremely well damped.
• Flat linear roll spider reduces distortion and provides maximum voice coil centering.
• Rigid powder coated steel frame
• Optimized 12dB/18dB octave acoustic crossover.
• Standard mounting sizes and bolt patterns
• Poly Kevlar Cone, Butyl – Rubber Surround, Conex Damper, Kapton Voice Coil.
• Silk, ccaw(Copper Coated Aluminum Wire) Coil Neodymium Magnet
