Mamba BOOST 200 2032 User Manual

6-in-1 power supply with 200w inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Model No. 2032
200W Power Inverter
260 PSI Air Pressure Gauge
Main Power LED Indicator
USB / Inverter Power Switch
—
USB power ON position
Inverter Power Switch
Inverter power ON position
12 VDC Socket with
Protective Dust Cover
Inverter Power LED Indicator
Air Compressor ON/OFF Switch
USB power ON position —
Power OFF position
Inverter power ON position =
Packaging includes
the following accessories:
110 VAC Charging adaptor
12 VDC Charging adaptor
Compressor Air Valve Accessories
Operating Instruction Manual
IMPORTANT INFORMATION
READ AND UNDERSTAND ALL WARNINGS AND THE ADVISORY NOTES INCLUDED IN THIS
MANUAL. FOLLOW INSTRUCTIONS PROVIDED BY YOUR VEHICLE MANUFACTURER AND MAN-
UFACTURER OF THE DEVICES INTENDED TO BE USED WITH THIS POWER SUPPLY.
MAKE CERTAIN THIS DEVICE IS FULLY CHARGED PRIOR TO FIRST USE.
WARNINGS
THIS PRODUCT CONTAINS A SEALED LEAD-ACID BATTERY AND MUST BE DISPOSED OF
PROPERLY. YOU MAY CONTACT YOUR LOCAL GOVERNMENT RECYCLING AUTHORITY FOR
APPROPRIATE DISPOSAL. FAILURE TO FOLLOW THE INSTRUCTIONS MAY CAUSE DAMAGE
TO THE PRODUCT AND OR PERSONAL INJURY.

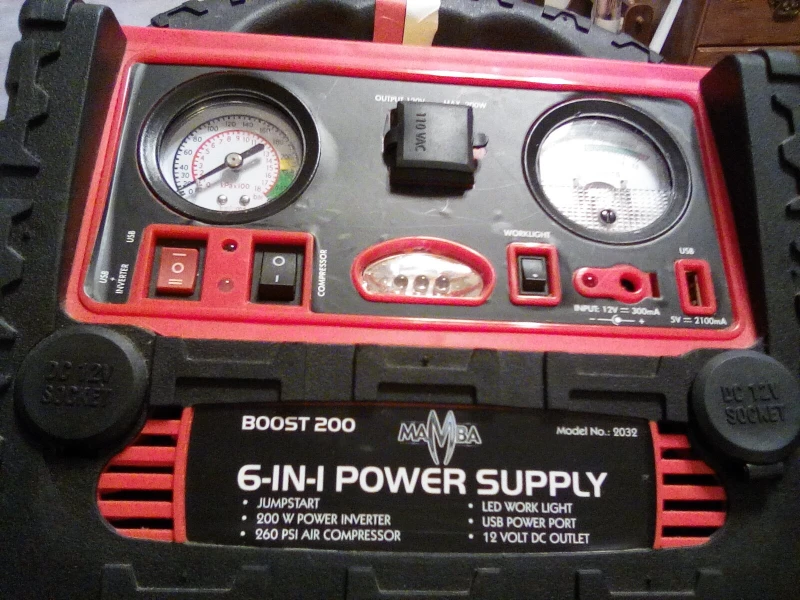

BOOST 200
6-in-1 POWER SUPPLY
with 200W inverter
=
LED Work light
Double Injection
Rubberized handle
Battery Charge Status
Dial Gauge
LED Work light
ON/OFF Switch
Charging Jack/Port
USB Port 2100mA
Battery Charging
Indicator LED
12 VDC Socket with
Protective Dust Cover
Double Injection Rubberized
Protective Padding
Battery Cable/Clamp—Negative
Main Booster
Power Switch
Inverter Blade Fuse
Battery Cable/Clamp
Positive
Compressor Air Hose
And Accessories
Compartment

Advertisement

Table of Contents
loading

Related Manuals for Mamba BOOST 200 2032

Summary of Contents for Mamba BOOST 200 2032

  • Page 1: Important Information

    Model No. 2032 BOOST 200 6-in-1 POWER SUPPLY with 200W inverter 200W Power Inverter Double Injection Rubberized handle Battery Charge Status 260 PSI Air Pressure Gauge Dial Gauge Main Power LED Indicator LED Work light USB / Inverter Power Switch ON/OFF Switch —...
  • Page 2 Model No. 2032 IMPORTANT ADVISORY NOTES  Do not use with dry cell batteries. These batteries may burst and cause injury to person or damage personal property.  Do not attempt to face the battery being jumped. Stay away as far as possible from the battery when making the final connection.
  • Page 3 Model No. 2032 SPECIFICATIONS:  BUILT-IN 12V 10AH RECHARGEABLE LEAD ACID BATTERY.  INSTANT BATTERY JUMP STARTER.  DUAL 12 VDC COVERED OUTPUT PORTS.  USB POWER SUPPLY OUTPUT PORT RATED AT 5V - 2100mA.  200 WATT CONTINUOUS/400 WATT PEAK POWER INVERTER WITH 120 VAC COVERED OUTLET.
  • Page 4 Model No. 2032 AIR COMPRESSOR OPERATING INSTRUCTIONS: CAUTIONS  Do not operate the Air Compressor more than 15 Minutes continuously. Allow the compressor to cool down for 10 minutes between each continuous operation.  Review the products to be inflated for manufacturer’s recommended maximum inflation pressure.
  • Page 5 Model No. 2032 1. Turn the Main Booster Power Switch to ON position. The LED indicator located in the front panel will illuminate BLUE indicating power is available in the Boost 200 system. 2. Remove the 12 Volt DC protective cover or covers. 3.
  • Page 6 Model No. 2032 USB OUTPUT PORT: 1. Turn the Main Booster Power Switch to ON position. The LED indicator located in the front panel will illuminate BLUE indicating power is available in the Boost 200 system. 2. Prior to connecting the device to be powered by the USB port, make sure the USB power switch is in OFF position.
  • Page 7 Model No. 2032 Positive Grounded System: I. Connect the BLACK CLAMP (negative -) to the negative terminal of the vehicle battery. II. Connect the RED CLAMP (positive +) to the vehicle engine block, or a metal part of the vehicle which is connected to the vehicle ground system. Do not clamp directly to positive battery terminal, main fuel distribution module or sheet metal parts.
  • Page 8 Model No. 2032 TROUBLESHOOTING GUIDE: TROUBLE RECOMMENDED SOLUTION Vehicle does not start Turn the Main Power Switch to ON Position to allow power into the booster clamps. Allow the Boost 200 to stay connected to the vehicle battery for a longer period of time.

  • Page 9: Specifications

    Model No. 2032 SPECIFICATIONS:  Battery rated capacity ————————————————— 12 Volt - 10 Ah  Power inverter power output ——————————————- 200 Watt  Air Compressor ———————————————————— 260 PSI  12 Volt DC output ports output Amp.———————————- 10 A  USB port output rating —————————————————- 5 Volt - 2100 mA ...
