Summary of Contents for Wow iQ 330

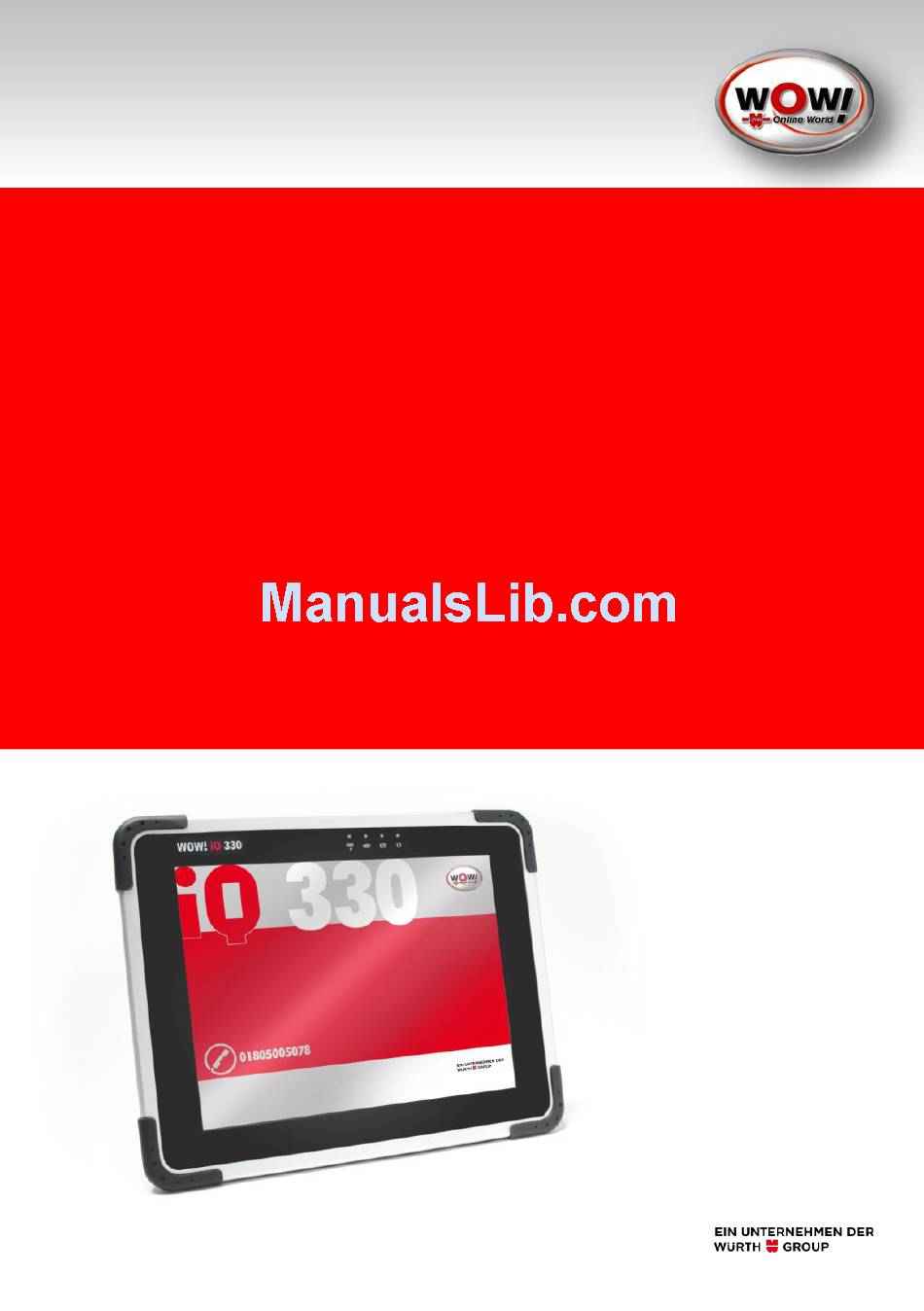

- Page 1 User manual iQ 330 – Generation 22 Rugged Tablet PC M970D 2155-ENG / V-1.0-15/07/13...
-
Page 3: Limitation Of Liability
All Rights Reserved. Copyright 2012 The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages. -
Page 4: Table Of Contents
Content Content ..................2 IMPORTANT SAFETY INSTRUCTIONS ..............3 Caring for Your Tablet PC ................. 4 Information on the Power Cord ................. 4 Battery Pack Safety ................... 5 Regulatory Information CE ................6 FCC ................... 6 Getting Started ....................8 Connecting the AC Power ................. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please read these instructions carefully before using the product and save for later reference. Follow all warnings and instructions marked on the product. Unplug this product from the wall outlet before cleaning. Clean the product with a damp soft cloth. Do not use liquid or aerosol cleaners as it may cause permanent damage to the screen. -
Page 6: Caring For Your Tablet Pc
If the product does not operate normally that the operating instructions are followed. Adjust only those controls that are covered by the operating instructions since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation. -
Page 7: Battery Pack Safety
grounding pin, for example, by attaching a 2-pin adapter. The grounding pin is an important safety feature. Only the AC adapter provided with the computer should be used with the computer 1.3 Battery Pack Safety Keep the battery away from children. The battery pack is intended to use only with this Tablet PC. -
Page 8: Regulatory Information Ce
Identifikation Manufactory: WinMate WinMate Communication INC. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 241,Taiwan, R.O.C. Distributed: Würth Online World GmbH Schliffenstr./Falkhof 74653 Künzelsau Product: Rugged Tablet PC /iQ330 Model No.: M970D 1.5 Regulatory Information CE European Notice This product with the CE marking comply with the published by the European Community Directive EUROPEAN COUNCIL DIRECTIVE 2004/108/EC Compliance with these directives implies conformity to the following... - Page 9 That this product has been assessed against the following Applicable Standards CISPR PUB. 22, FCC Part 15 Subpart B and Canada ICES-003 Issue 4 CERPASS hereby acknowledges that: The measurements shown in this test report may issue a DECLARATION of CONFORMITY and apply the FCC mark in accordance to U.
-
Page 10: Getting Started
Getting Started This chapter guides you to get the Rugged Tablet PC ready for operating. 2.1 Connecting the AC Power Our tablet PC can operate either on the external AC power adapter or internal battery power. It is suggested that you use AC power when you start up the tablet PC first time. -
Page 11: Turning On And Off The Tablet Pc
Turning On and Off the Tablet PC Turning on the Tablet PC 1. 1. Place your tablet PC on a flat and stable surface or holding the tablet PC on your hand. 2. Make sure that the tablet PC is either connected to AC power or the battery pack with power. -
Page 12: Touring The Tablet Pc
2.3 Touring the Tablet PC This section we will show the Tablet PC external connection parts and their functions. Front view LCD display Contents of the current system operation are displayed here. LED status indicators From right to left shows the status about Power mode, Battery mode, Storage and WiFi status mode. -
Page 13: Led Indicator Status Description
LED Indicator Status Description LED Term Power mode Battery Status Storage Wi-Fi Status Status LED Indicator Indicator Blue light： Orange Light： Green light： Green light： Status when Power On. Under charging when storage when Wi-Fi Description under under operation. No light when Red Light：... -
Page 14: Bottom View
Bottom view Docking Connector Connect to the optional docking USB 2.0 port Standard USB2.0 port LAN/HDMI LAN & HDMI Out combo connecter. Connect with the LAN & optional HDMI cable. Mic-in/Line-Out Mic-in for microphone. Line-Out for the external speaker or handset. -
Page 15: Top View
Top view Menü Quick to Know Menu Hotkey (F1) Programmable Hot-key for user to define by application Vol + volume up Vol. - volume down Back view Camera Camera for pictures and videos Threaded hole Attachment for the hand trap... -
Page 16: Product Features And Specification
Product Features and Specification 3.1 Product Features Our Rugged Tablet PCs are designed with state of the art industrial use, versatile functionality and solid products. With great mobility support and battery management. The 9.7” rugged tablet provides an alternative solution for those between general consumer and extremely rugged application. -
Page 17: Product Specification
3.2 Product Specification The product specification as the following table description: System Specification System Processor Intel® Atom N2600 Dual core 1.6GHz BIOS AMI System BIOS System Chipset Intel® NM10 Chipset System Memory 2GB SODIMM DDR3-800 LAN Controller Realtek RTL811B GigaLAN Controller Storage mSATA SSD Audio... -
Page 18: System Specification (Continues)
System Specification (continues) Mechanical and Environment Weight 988g (w/o accessories) Operating Temperature 0 deg.C to 50 deg.C Operating Humidity 30% to 90% (non condensing） IP Proof IP54 Mounting Optional docking / Optional VESA Kit Shock Rugged mobile-shock Vibration Rugged mobile-vibration Drop* 4 feets Certifications... -
Page 19: Operating Tablet Pc And Hottab Hotkey Utility
Operating Tablet PC and HotTab Hotkey Utility 4.1 Quick to Know Menu and HotTab Hotkey Function This section will introduce you about our easy-of-use function buttons. Our Tablet PC function buttons support very easy way and useful function to adjust Brightness, Volume and watch Battery current status. For programmable Hotkey function can also be defined by user to control by their common use application. -
Page 20: How To Use F1 (Hotkey) Function
information BIOS version EC version 4.1.2 How to use F1 (Hotkey) Function F1 (Hotkey) Function Use the HotTab software utility to make it easy to program and define hot key by customer’s usual application. Long press (3~4 seconds) the “F1” button on the top of your M970D and you can see the utilities menu at center of desktop. -
Page 21: Utilities Function
Utilities Function 1. The first is virtual mouse 2. Screen rotation 3. Onscreen Keyboard 4. Camera Function 5. F1 Short function key You can set F1 button as a hotkey to open the programs listed on menu or use “Browse” (5.a) and choose the execution program file. - Page 22 6. Power Manage function 7. Touch Lock Touch “Touch Lock” button to lock the touch screen and all buttons on the tablet. Drag right to unlock the touch screen and all buttons on the tablet. 8. Low battery warning: When the battery under 10%, system will show the battery low to remind you to change the new battery or insert adapter to charge.
-
Page 23: Wireless Network And Bluetooth
4.2 Wireless Network and Bluetooth 4.2.1 Connecting to a Wireless Network To connect to a wireless network: 1. Push “Menu” button 4 times and making sure the Wireless function is “On”. 2. Please using the defult Windows Wireless Network Connection utility. -
Page 24: Using The Bluetooth Wireless Feature
Both devices must be discoverable. 2. First Click on the icon on the desktop or the taskbar. 3. Click on Add Device 4. Follow the wizard's instructions Note Bluetooth devices manufactured by WOW!, E.g. WOW! Snooper are configured at the WOW! software. -
Page 25: Using The Camera Feature
4.3 Using the Camera Feature We apply a internal 2M Pixels Web Camera module for default function of the Tablet PC series. 1. Push “Menu” button 4 times and making sure the Camera function is “On”. 2. Press “F1” button about 5 seconds to into the HotTab utilities menu. -
Page 26: Tablet Pc Power Mangaement
Tablet PC power mangaement About AC Adapter Our Tablet PC support one set of AC adapter and power cord by country area. Please contact with your dealer for appropriate power cord if necessary. CAUTION When you disconnect the AC adapter, disconnect from the electrical outlet first and then from the tablet PC. -
Page 27: Charging Approaches
It is also recommended not to charge the battery when temperature is above 45°C (113°F) To prevent damage, the charging process may stop and the Battery Charge Indicator flashes red when the environmental temperature gets above 55°C (131°F) 5.2.2 Charging Approaches There is one way recommended to charge the battery pack. -
Page 28: Battery Low Signals And Actions
5.2.4 Battery Low Signals and Actions Battery Low occurs when the battery has approximately 10 % (Windows default setting) of its charge remaining. The tablet PC’s Battery Charge Indicator ( ) blinks red to alert you take actions. NOTICE: You can set up the Battery Low threshold and signals under Windows. Immediately save your data upon Battery Low. -
Page 29: Troubleshooting
The WoW! software remains unaffected during system recovery. The WoW! update status and your registrations are retained. WARNING Use only if you are prompted by the Service Partner to. WARNING... - Page 30 IMPORTANT! Perform a manual data backup before starting the system recovery. All the data on the C: partition are deleted. NOTE: For system recovery you need a standard PC keyboard with USB connection. The system recovery started by the F9 key! 1.
-
Page 31: Contact
Contact Importer: Data Respons GmbH Amalienbadstr. 41, Bau 53 DE-76227 Karlsruhe www.datarespons.de Assembled in Taiwan Distribution: WOW! Würth Online World GmbH Schliffenstraße Falkhof DE-74653 Künzelsau +49 (0) 7940/15-1770 +49 (0)7940/15-3299 info@wow-portal.com http://www.wow-portal.com Support For more support please contact your local service partner. - Page 33 WOW! Würth Online World GmbH Schliffenstraße Falkhof 74653 Künzelsau 2155-ENG / V-1.0-15/07/2013...
