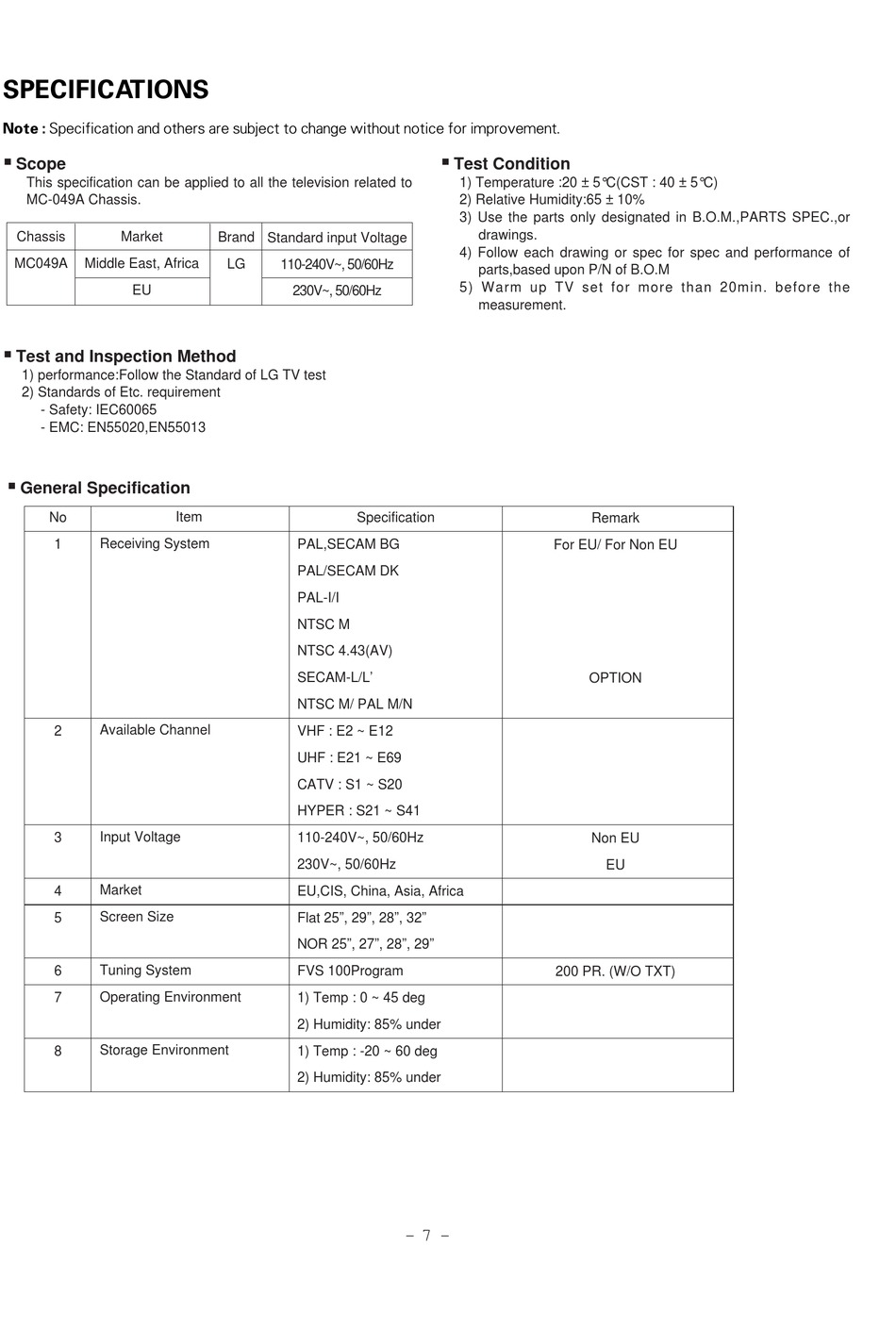

SPECIFICA TIONS
Note : Specification and others are subject to change without notice for improvement.
F
Scope
This specification can be applied to all the television related to
MC-049A Chassis.
Chassis
Market
MC049A
Middle East, Africa
EU
F
Test and Inspection Method
1) performance:Follow the Standard of LG TV test
2) Standards of Etc. requirement
- Safety: IEC60065
- EMC: EN55020,EN55013
F
General Specification
No
Receiving System
1
Available Channel
2
Input Voltage
3
Market
4
Screen Size
5
6
Tuning System
Operating Environment
7
Storage Environment
8
Brand
Standard input Voltage
LG
110-240V~, 50/60Hz
230V~, 50/60Hz
Item
PAL,SECAM BG
PAL/SECAM DK
PAL-I/I
NTSC M
NTSC 4.43(AV)
SECAM-L/L'
NTSC M/ PAL M/N
VHF : E2 ~ E12
UHF : E21 ~ E69
CATV : S1 ~ S20
HYPER : S21 ~ S41
110-240V~, 50/60Hz
230V~, 50/60Hz
EU,CIS, China, Asia, Africa
Flat 25", 29", 28", 32"
NOR 25", 27", 28", 29"
FVS 100Program
1) Temp : 0 ~ 45 deg
2) Humidity: 85% under
1) Temp : -20 ~ 60 deg
2) Humidity: 85% under
F
Test Condition
1) Temperature :20 ± 5 ° C(CST : 40 ± 5°C)
2) Relative Humidity:65 ± 10%
3) Use the parts only designated in B.O.M.,PARTS SPEC.,or
drawings.
4) Follow each drawing or spec for spec and performance of
parts,based upon P/N of B.O.M
5) Warm up TV set for more than 20min. before the
measurement.
Specification
- 7 -
Remark
For EU/ For Non EU
OPTION
Non EU
EU
200 PR. (W/O TXT)
