Techkon SpectroPlate Manual

Digital microscope
Hide thumbs Also See for SpectroPlate:
Table of Contents

Advertisement

Quick Links

See also: User Manual
TECHKON
Manual
Digital MicroScope
SpectroPlate
Software
SpectroConnect

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SpectroPlate and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Techkon SpectroPlate

Summary of Contents for Techkon SpectroPlate

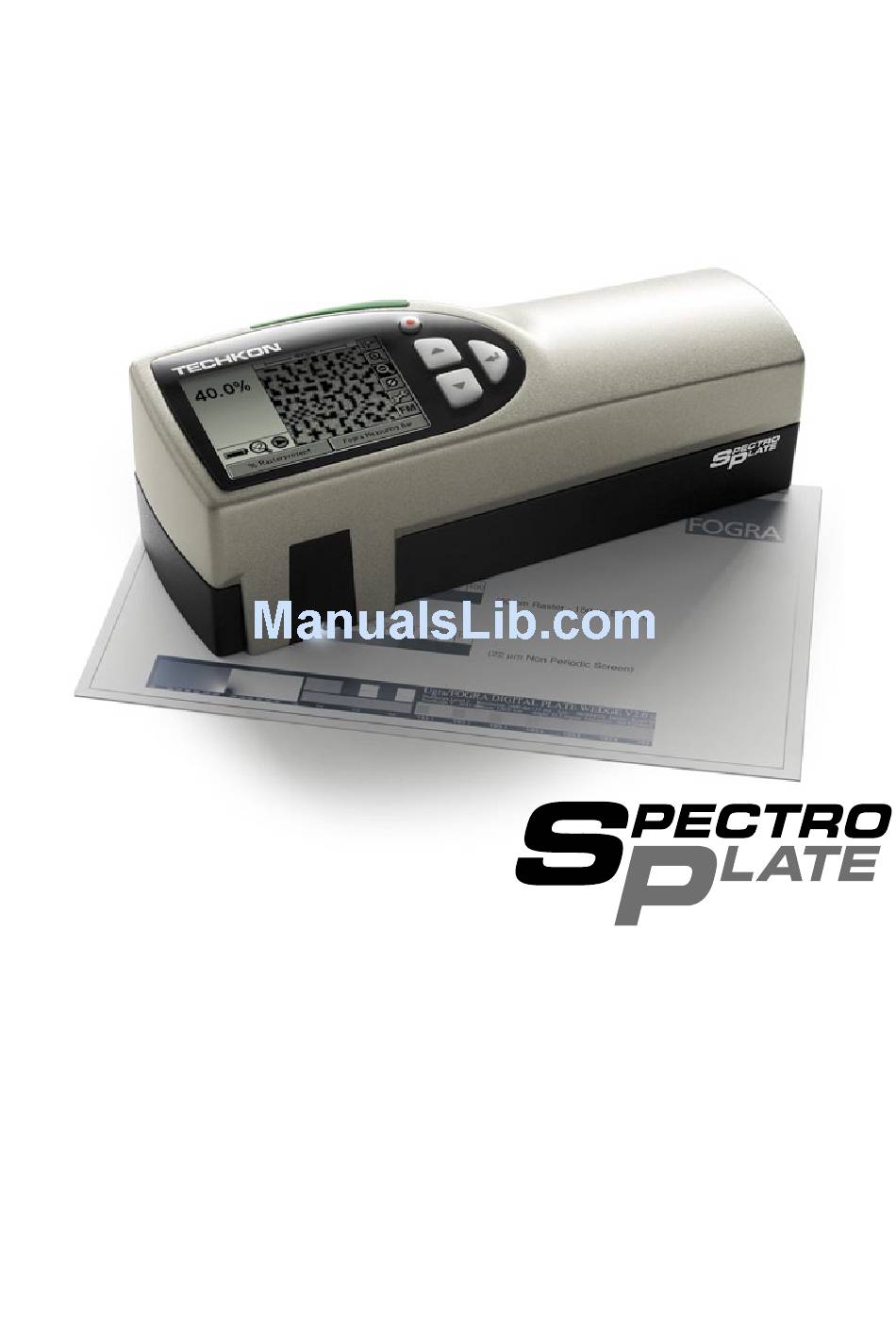

  • Page 1 TECHKON Manual Digital MicroScope SpectroPlate Software SpectroConnect...
  • Page 2 Programs may only be copied for back-up purposes. TECHKON can not be held liable for any damages that may occur by the use of TECHKON products. The TECHKON team takes great care in producing this manual. Nevertheless, we can not fully guarantee the complete absence of errors.
  • Page 3 We are happy that you have selected this high-quality measurement instrument. It will be a valuable tool for your day-to-day quality control tasks. With this manual we invite you to learn how to use SpectroPlate. The manual is divided into three chapters:...

  • Page 4: Table Of Contents

    1.4 Working with SpectroPlate ............10 1.5 Care and maintenance ..............18 Chapter 2: Description of measurement functions 2.1 Measurement functions of SpectroPlate Start ......21 2.2 Additional functions of SpectroPlate Expert ......22 2.3 Additional functions of SpectroPlate All-Vision ..... 29 Chapter 3: How to use the Windows software SpectroConnect 3.1 Software description ..............

  • Page 5: Chapter 1: How To Use Techkon Spectroplate

    The measurement accuracy of a plate measuring device is determined by the quality of the optical system and the performance of the image processing algorithms. SpectroPlate meets the highest standards in this respect. The sample is illuminated uniformly with spectral broadband light. The microscopic image is captured by a precision optical lens system and a high resolution CMOS color matrix sensor with high dynamic range.
  • Page 6 SpectroPlate lets you see things normally hidden to the human eye. It shows the raster dots on a film or a printing plate in large magnification on the device display or optionally on a computer screen.
  • Page 7 • Upgrade from Start- to Expert-version via firmware upload from the PC • USB port for the speedy transfer of measurement data to the PC • Comprehensive software SpectroConnect included Manual TECHKON SpectroPlate Chapter 1 – How to use SpectroPlate Page 7...

  • Page 8: Performance Packages And Packing List

    The carrying case protects SpectroPlate and parts Accessories: • Software upgrade from SpectroPlate Start to Expert; Hardware upgrade to All-Vision • Replacement parts: charging console with white standard, rechargeable battery • Offset printing plate reference Fogra Measuring Bar FMB; (can be purchased at Fogra Forschungsgesellschaft, www.fogra.org)

  • Page 9: Design Of Spectroplate

    It is compact in size; the buttons can be reached with the right index finger when the device is held with the right hand. The LCD display is inclined towards the user, so the display information can be read clearly. SpectroPlate can be easily positioned on the measurement sample.

  • Page 10: Working With Spectroplate

    1.4 Working with SpectroPlate Switching on and off SpectroPlate is switched on by pressing the green measurement button. It is imme- diately ready to measure. If no button is pressed within two minutes, the device will switch off automatically. Switching it on again with the green measurement button will show on the display the last measurement done.
  • Page 11 The SpectroPlate display is divided logically into a section where the measurement results are displayed and a frame of “soft keys”. Notice: In the Start-version of SpectroPlate certain “soft keys” will be not select- able and are shaded in gray. These are the functions which are only available for the Expert- and All-Vision-model.
  • Page 12 Within this window you can navigate with the Arrow buttons and select with the Enter button. The red Escape button brings you back to the measurement mode. only SpectroPlate Expert and All-Vision Page 12 Manual TECHKON SpectroPlate Chapter 1 – How to use SpectroPlate...
  • Page 13 Index of the measurement functions: 1. % dot measurement p. 21 2. Dot transfer curve p. 23 3. Dot gain curve p. 26 4. Geometrical analysis p. 27 Manual TECHKON SpectroPlate Chapter 1 – How to use SpectroPlate Page 13...
  • Page 14 Calibration SpectroPlate is factory-side calibrated. A white calibration adjusts the digital camera module. The screen calibration is for exact adjustment of dot percentage mea- surements towards the reference plate Fogra Measuring Bar FMB. The calibration remains permanently and the devices are long-term stable. This means that there are no time intervals for re-calibration necessary.
  • Page 15 Select “Calibration” and then “White Cali- bration” from the menu “device settings” and follow the instructions on the device display. The calibration is confirmed by an acoustic signal. Manual TECHKON SpectroPlate Chapter 1 – How to use SpectroPlate Page 15...
  • Page 16 Edit the reference values from the list of the FMB protocol into the table in SpectroPlate. Now perform the AM or FM measurements on the FMB plate. Page 16 Manual TECHKON SpectroPlate Chapter 1 – How to use SpectroPlate...
  • Page 17 Setting the plate type SpectroPlate will carry out optimized image calculations depending on the type of offset printing plate used. Therefore the type of printing plate has to be selected. Also for measurements on film or printed paper the right setting has to be made first.

  • Page 18: Care And Maintenance

    1.5 Care and maintenance SpectroPlate is a highly-precise optical instrument. It is designed to work in harsh, industrial environments. However, it should be handled with care. Avoid mechani- cal shocks, heat, dusty or humid environments. Keep it always at a safe place, for example in the carrying case.
  • Page 19 Error handling Should SpectroPlate do not work properly, first check, if all instrument settings and measurement conditions are set correctly. Next perform a white calibration on the white standard which is integrated in the charging console and try again to perform measurements.
  • Page 20 – depending how it was used – it will loose its capacity and it will make sense to replace it. Only use original TECHKON SpectroPlate replacement batteries. The use of other batteries is hazardous ! For opening the battery case you will need a Philips screwdriver type 1.

  • Page 21: Chapter 2: Description Of Measurement Functions

    Pause symbol = Result image: The display turns back to the live image binary image after image processing automatically after five seconds or when the device is moved to another sample. Manual TECHKON SpectroPlate Chapter 2 – Measurement functions Page 21...

  • Page 22: Additional Functions Of Spectroplate Expert

    In order to record a complete dot transfer curve, all measurement patches of a gradation wedge have to be measured. A gradation wedge consists of consecutive measurement patches e. g. 10 %, 20 %, 30 %, ... Page 22 Manual TECHKON SpectroPlate Chapter 2 – Measurement functions...
  • Page 23 Just scroll between the values with the Ar- row buttons and select one with the Enter button. A small pop-up window opens where you can edit the new value using the Arrow buttons. Manual TECHKON SpectroPlate Chapter 2 – Measurement functions Page 23...
  • Page 24 This function will store an already measured curve as target values. A free assignment of the measured curve to one of the four sets of target values is possible. Page 24 Manual TECHKON SpectroPlate Chapter 2 – Measurement functions...
  • Page 25 The gray shading marks the and target value area of values within the tolerance range. Measurement values out of tolerance are 2. “Soft key” Transfer curve marked as crosses. Manual TECHKON SpectroPlate Chapter 2 – Measurement functions Page 25...
  • Page 26 Thus the dot gain is 45,4 % - 50 % = -4,6 %. In this special case the dot gain is a dot “loss”, because the value is negative. Dot percentage - reference value = dot gain Page 26 Manual TECHKON SpectroPlate Chapter 2 – Measurement functions...
  • Page 27 Geometrical analysis SpectroPlate Expert can be used as a digital microscope as well. Microscopic small structures can be viewed on the LCD display and can be transferred as high resolu- tion image files to a PC. The measurement function “Geometrical analysis”...
  • Page 28 Memory SpectroPlate Expert and All-Vision can save up to 100 data sets. The measured data can be managed within the device and can be transmitted to the computer as well. Access to the memory menu is via the “soft key” Device settings or as a shortcut by pressing the red Escape button and then the Enter button.

  • Page 29: Additional Functions Of Spectroplate All-Vision

    4. Up to 9 measurements can be set. 2.3 Additional functions of SpectroPlate All-Vision SpectroPlate All-Vision is a special version of the SpectroPlate series for the measurement of chemistry-free, processless printing plates with a very low visible contrast.
  • Page 30 Be sure to make the measurements on the tional plates. dry plate. Page 30 Manual TECHKON SpectroPlate Chapter 2 – Measurement functions...

  • Page 31: Chapter 3: How To Use The Windows Software Spectroconnect

    • When using SpectroPlate Start the device has to be connected to the PC via the USB-cable when making measurements. The values will be instantly visible on the computer screen.

  • Page 32: Overview

    SpectroConnect”. SpectroConnect After starting the program and selecting the SpectroPlate icon in the upper left corner, the main screen “Transfer curve” will appear. It is divided into three logical segments: On the left side the contents of the device memory, on the right side the active program module and at the bottom the program module bar, which lists all available and selectable modules.

  • Page 33: Software Module "Spectroplate Settings

    New device software can be uploaded into the device. There are two different types of files to upload: • Device update: loads the new version of device software • Device upgrade: upgrades from SpectroPlate Start to Expert 4. Device display: This shows the device display on the computer screen.
  • Page 34 3.4 Software module “SpectroPlate settings” The software module “SpectroPlate settings” allows to select the plate type (1.), the table of target values (2.) and positive or negative plates (3.) directly. First click on the soft key “Measurement conditions” (4.) in the lower right section of the displayed image.

  • Page 35: Software Module "Transfer Curve

    This module is for displaying the transfer curve. The curves can be built up by single measurements with SpectroPlate connected. With SpectroPlate Expert or All-Vision complete transfer curves can be recorded remotely without the PC connection. The data transfer can be carried out later.

  • Page 36: Software Module "Export

    Measurement data can be exported in any other Windows application e. g. Microsoft Word™, Excel™ or a RIP calibration software. SpectroPlate works like the keyboard: Pressing the measurement button will place the measurement value automatically at the location where the cursor is.

  • Page 37: Software Module "Digital Microscope

    The result image is a binary bitmap. and the angle in degrees. The triangle will not be part of the image data when the image is saved. Manual TECHKON SpectroPlate Chapter 3 – SpectroConnect Page 37...

  • Page 38: Technical Specifications

    Specifications can be subject to change without notice. film in transmission and reflection, Specifications valid for standard device with 3 mm aperture. All mentioned trademarks and copyrights are recognized. printed paper CMYK SpectroPlate, SpectroDens, SpectroJet, SpectroDrive, SpectroCheck, InkCheck and TECHKON are registered trademarks of TECHKON GmbH.
  • Page 39 It can be cleaned with clean, compressed air and an optics brush. We recommend a functionality check-up every 24 months at the TECHKON service center, which includes the issue of a new manufacturer certificate. Warranty: The warranty for TECHKON products is 24 months starting with the date of purchase.
  • Page 40 FMB. The averaged measurement results of SpectroPlate have to be within the following tolerances: AM screen (periodic): ± 0,5 % FM screen (non periodic): ±...
  • Page 41 EU-Konformitätserklärung EC-Declaration of Conformity Déclaration de Conformité de la CE Dichiarazione di conformità CE Hersteller: TECHKON GmbH Manufacturer / constructeur / costruttore Adresse: Wiesbadener Str. 27 D-61462 Königstein Address / adresse / indirizzo erklärt, dass die Produkte: Declares that the products / déclare, que le produits / si dichiara che il prodotto...
