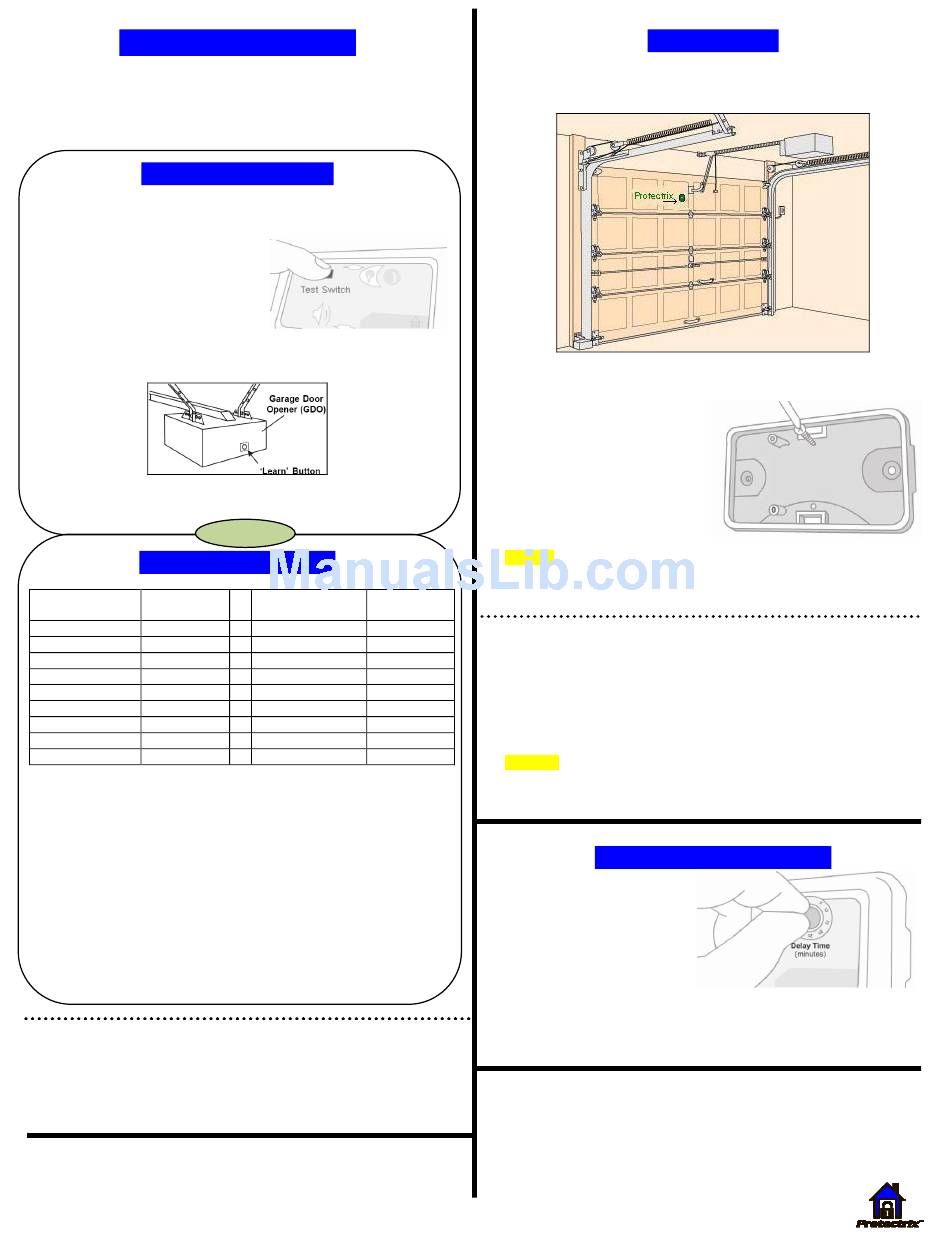

Protectrix 18M User Manual

Start – Setup Overview
If you have a Genie, or Overhead garage door with rolling code or a learn
button (Diagram A), start at step 1A and skip step 1B.
Otherwise proceed to step 1B and skip step 1A.
Step 1A – Learn Code
Find your "learn" button on the garage door opener (see diagram A), a) press
the learn button for 1 second. The LED light beside the learn button should go
on. Now b) press the TEST SWITCH
button on the front of Protectrix™. You
may need to press TEST SWITCH after
the red light behind the test switch goes
out two to three additional times with
some garage doors. The learn light on the
garage door opener should flash or go off,
and Protectrix will beep and blink. Protectrix is programmed and can open
and close your garage door. (Run Test 1 below, DO NOT DO Step 1B)
Diagram A: Location of Receiver Learn Button
Step 1B –Record Code
Garage Remote Delay Time
Manufacturer Setting
Allstar™/Allister
30m
/6/318MHz
Chamberlain®
tst
/1/ 390MHz
Craftsman®
tst
/1/ 390MHz
Genie®
2m
/2/390MHz
Liftmaster®
tst
/1/ 390MHz
Linear® (below)
5m
/3/310MHz
MegaCode™
30m
/6/318MHz
Marantec®
20m
/5/315MHz
MasterCraft®
tst
/1/ 390MHz
* The above Brand and Registered Trademarks are registered trade names of the respective entities and
are only used for reference
** The above list is subject to additions and modifications
Table 1: Model Training Settings
*Need original manufacturers wireless garage door remote control, and
Protectrix.unit.
A) Disconnect the Battery from Protectrix.
B) On the front of Protectrix, set the Delay Time to the value from Table 1.
C) Press and Hold the Test Switch Down while connecting the battery
D) Release the Test Switch when Protectrix stops beeping
E) Holding the Remote Control about 30cm (1foot) away from Protectrix,
hold down the transmit switch on your Remote Control until the RED
light goes out on Protectrix (less than 20seconds).
F) Run Test 1 below
Test 1)
Pressing the test button on the front of Protectrix™ should open and
close your garage door. Try 5 times, if this does not occur each time, either a)
the remote has not been programmed correctly (repeat step 1), b) your opener
is not supported, c) the remote lock switch is on (this may be next to the
switch you use to open your garage door from inside your garage).
2009-12-18
NOT both
Garage Remote Delay Time
Manufacturer Setting
Moore-O-Matic™
5m
Multi-Code™
10m
Overhead®
2m
Pulsar™
30m
Raynor®
tst
/1/ 390MHz
Sears®
tst
/1/ 390MHz
Stanley®
5m
Rolling Code
off
/0/ 315&390
Protectrix18M - Automatic Garage Door Closer Manual
a) Pick an area on the upper part of the Garage Door as shown in Diagram B
to install Protectrix.
b) Secure Protectrix to the garage door; screw the back half of the case to the
garage door with two screws. If
you do not want to use screws, you
can use double-sided tape and
apply it to the back of Protectrix
then stick Protectrix to the garage
door but ensure that the double-
sided tape is securely attached to
the garage door (see below
Caution).
Caution! If Protectrix™ falls or releases from the garage door, Protectrix™
may inadvertently open the garage door, or never try to close the garage
door. Ensure Protectrix™ is firmly attached!
/3/310MHz
Test 2)
Set the Delay Time to tst (1 minute) and leave your garage door
/4/300MHz
open. If the unit is not mounted to the garage door, the Protectrix unit must
/2/390MHz
face down for the timer to start the countdown!
/6/318MHz
An alarm (blinking light and beeping sound) will start after 1 minute; the
alarm will continue for 30 seconds, then the garage door should close. If the
/3/310MHz
garage door does not close retry Test 1 again.
Warning! Test that Protectrix works on your garage door before depending
on it, not testing it could mean your garage door will never close
automatically.
On the front of Protectrix turn
the knob to the desired number
of minutes that you would like
Protectrix to wait before trying
to close the garage door.
If you select 5m (3) that is 5
minutes, a setting of 1hr (7) would wait 1 hour before trying to close the door.
Note: The maximum possible delay time is 4 hours.
Note: You can turn the system off by selecting Off (0) for the delay time.
Step 2 – Install
Diagram B: Installation location of Protectrix
Step 3 – Adjust Delay Time
