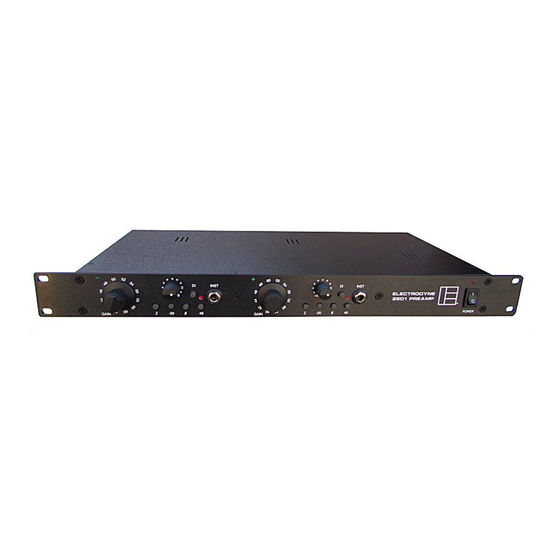

Summary of Contents for Electrodyne Audio 2501 Preamp

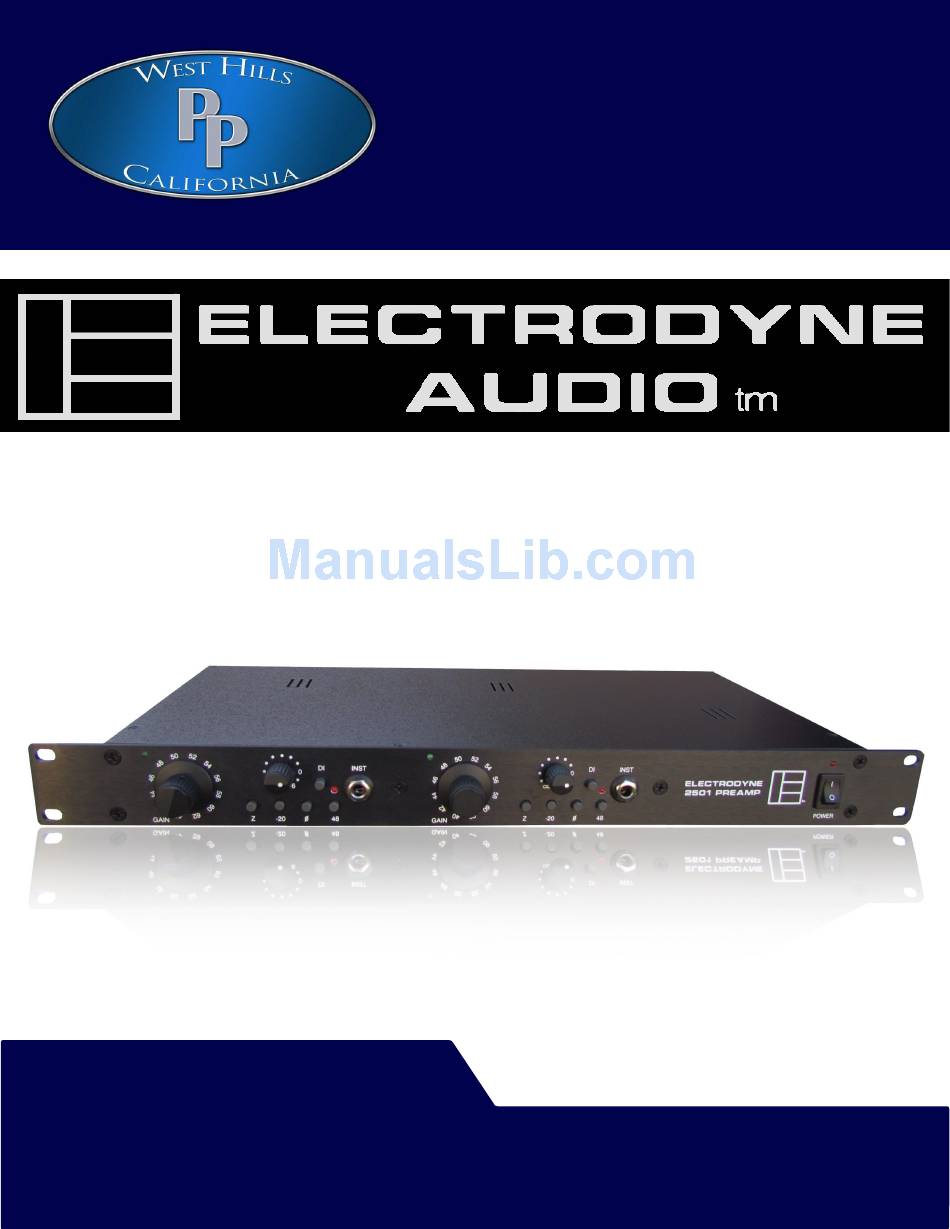

- Page 1 2501 PREAMP ™ Owner’s Manual...
-
Page 2: Warranty
WARRANTY: One Year Internal Parts And Labor Warranty. Your Warranty begins on the date of purchase. To activate your Warranty, please fill out and mail the Warranty Card to: Pete’s Place Audio P.O. Box 4255 West Hills, CA 91304 U.S.A. Also, your name may be placed on our mailing list for future updates and new product announcements (unless otherwise requested). - Page 3 The 2501 is a 100% original Electrodyne design, not a clone or a copy. Electrodyne products are still made here in the USA by Electrodyne Audio LLC, handcrafted the same as they were in the 1960's and 1970's with the same proud workmanship and design that made them collectable classics then, and today over 60 years later.
- Page 4 Heavy-gauge Anodized Aluminum Face Plate All XLR I/O On/Off Power Switch Red LED Power Indicator In line with our company policy of continuous development, the above features are subject to change without notice. ™ Electrodyne 2501 Preamp Owner’s Manual...
-
Page 5: Specifications
Frequency response: +/- 0.25db, <10hz to >70khz typical (no filters engaged). Noise: -85db typ.I In line with our company policy of continuous development, the above specifications are subject to change without notice. ™ Electrodyne 2501 Preamp Owner’s Manual... -
Page 6: Front Panel
-20dB PAD for Mic/DI Input (switch out=pad out, switch in=pad engaged) Phase Reverse Switch (switch out=normal, switch in=out of phase) 48v Phantom Power with red led indicator (press to activate) Power Switch with red led Indicator ™ Electrodyne 2501 Preamp Owner’s Manual... -
Page 7: Rear Panel
Balanced XLR Output, Channel A Balanced XLR Input, Channel A ALWAYS USE GOOD COMMON SENSE WHEN OPERATING ANY ELECTRONIC EQUIPMENT. IF YOU HAVE QUESTIONS, PLEASE CONTACT YOUR DEALER OR THE MANUFACTURER BEFORE DOING ANYTHING!!!!! ™ Electrodyne 2501 Preamp Owner’s Manual... - Page 8 “Z” switch. Depending on each microphone components and internal design, changing the Z switch may change the way the 2501 preamp and microphones interact, and as a result gain and frequency response can change in wonderfully creative ways. Imagine being able to press a button and get two or more different tones from one mic. From flat...
- Page 9 PETE’S PLACE AUDIO P.O. Box 4255 West Hills, CA 91304 USA (818) 716- 4153 www.petesplaceaudio.com...
